SPM Firma 200A Brushless Smart Marine ESC, 12S P-SPMXME1200

Model No: P-SPMXME1200


COMING SOON 04/12/2025

Coming Soon - Stock Arriving: 04/12/2025

Stock Arriving: 04/12/2025

£274.99

£36.99

£238.00

Inc VAT & delivery

We Accept
Delivery Included
1 Year Warranty

SpektrumT Smart Electronic Speed Controls Video

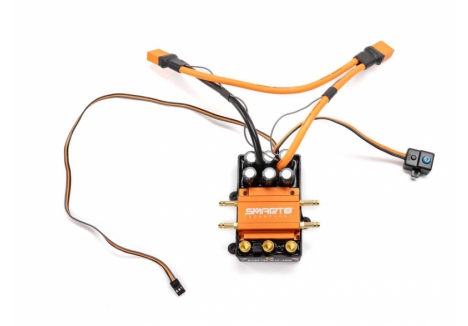

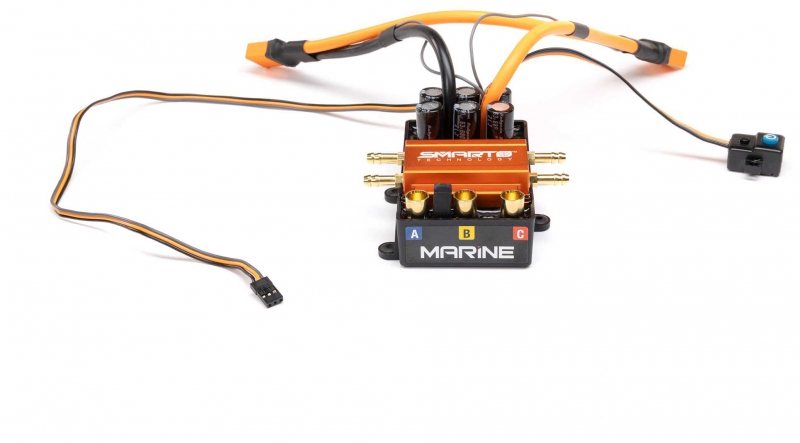

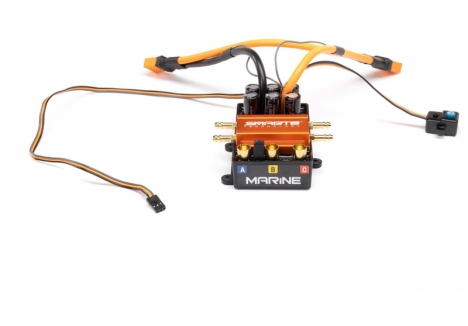

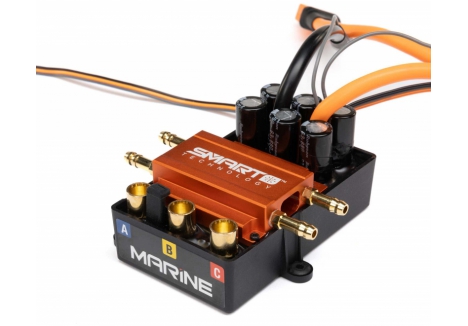

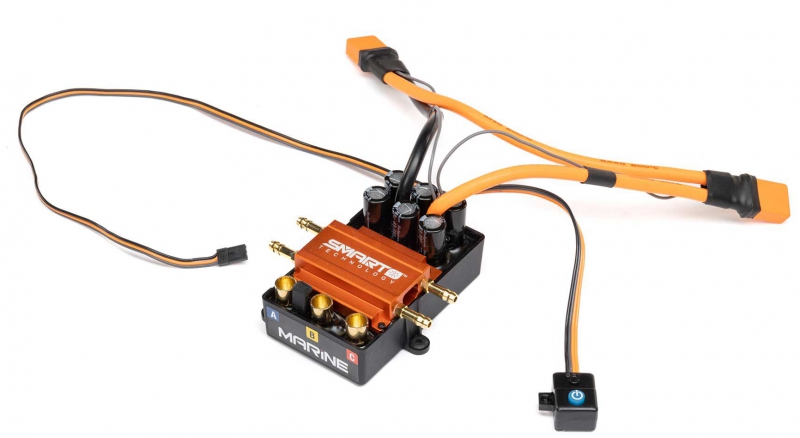

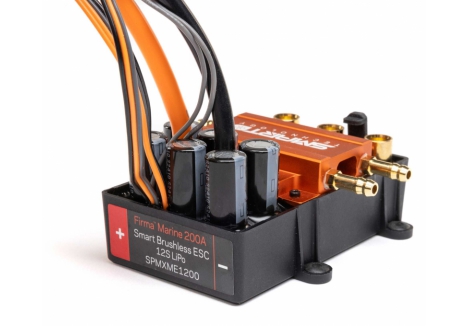

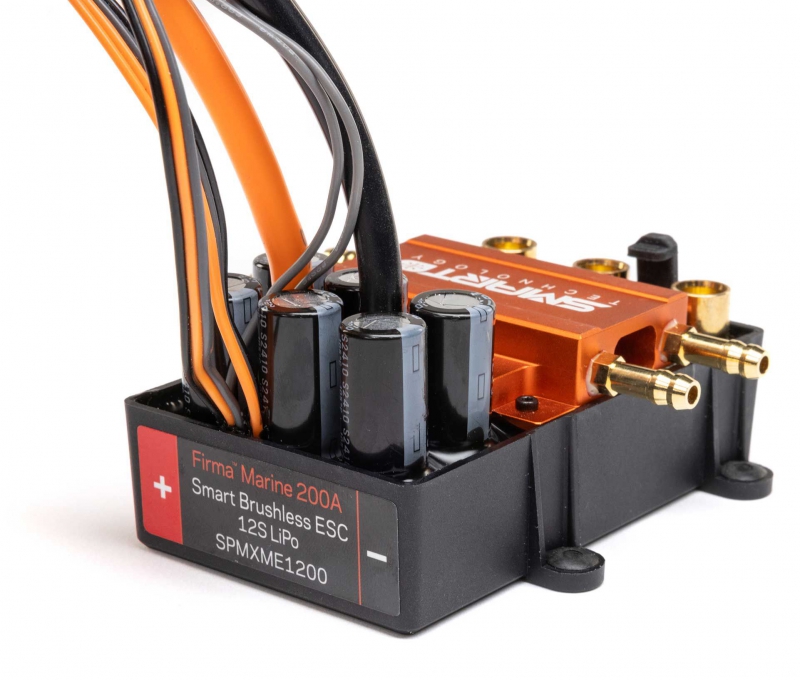

The Spektrum P-SPMXME1200 Firma 200A Smart ESC with 6S–12S LiPo support, IC5 input, and 1200A burst current is a powerhouse marine electronic speed control engineered for large-scale brushless RC boats. Designed to deliver explosive acceleration and ultra-smooth throttle response, this ESC combines high-voltage performance with Smart telemetry and advanced protection features. Its water-cooled housing and dual IC5 inputs ensure efficient thermal management and flexible battery configurations, while the integrated Smart data wire transmits real-time diagnostics directly to your Spektrum transmitter—no sensors or modules required.

Key features of the Spektrum P-SPMXME1200 Firma 200A Smart Marine ESC

  • Smart telemetry – transmits voltage, current, temperature, and RPM via IC5 data wire

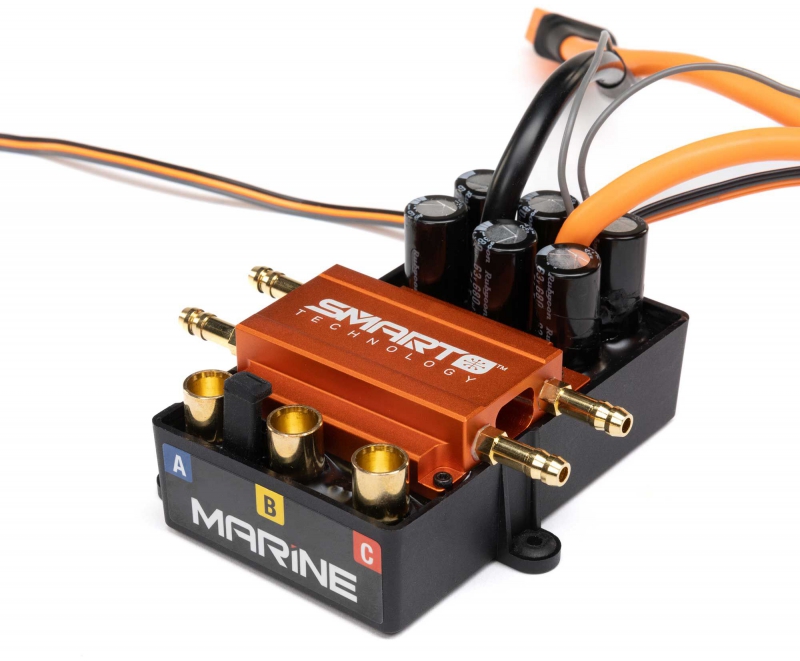

  • Water-cooled housing – maintains optimal operating temperature under high load

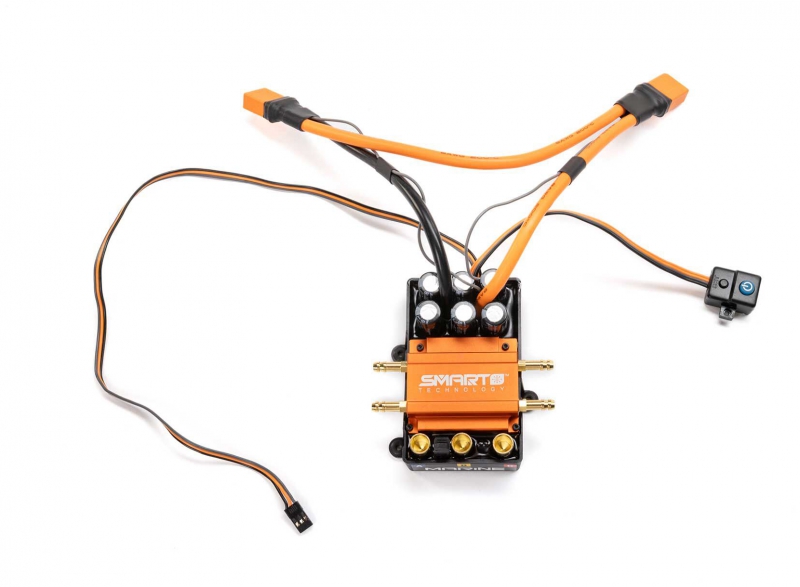

  • Dual IC5 inputs – supports flexible 6S–12S LiPo battery configurations
  • 8mm motor bullets – secure high-current connection for large brushless motors
  • Switch-mode BEC – adjustable output at 6V, 7.4V, or 8.4V with 8A continuous and 25A peak
  • Multi-point protection – includes auto cutoff, overload, and thermal safeguards
  • Firmware updatable – compatible with SmartLink USB and Programming Box

Why is the Spektrum P-SPMXME1200 ideal for high-performance marine setups?

The Spektrum P-SPMXME1200 waterproof marine ESC with Smart telemetry, 8mm motor bullets, and 8A switch-mode BEC is built for serious RC boaters who demand reliability and responsiveness. With 200A continuous output and a staggering 1200A burst capacity, it powers large hulls through aggressive throttle curves and challenging water conditions. The water-cooled design ensures consistent performance during extended runs, while the Smart telemetry system provides real-time feedback without the need for external sensors.

How does Smart telemetry improve marine diagnostics?

Smart technology transforms the Spektrum digital boat ESC with 1200A burst current, 8mm motor leads, and water-cooled housing into a real-time diagnostic hub. Through the IC5 connector’s integrated data wire, telemetry is transmitted directly to your Spektrum transmitter—delivering live updates on voltage, current draw, temperature, and RPM. This streamlined setup eliminates clutter and simplifies installation, giving boaters full visibility into system health and performance.

What makes the dual IC5 input configuration valuable?

The high-performance boat ESC with dual IC5 inputs, firmware updatable logic, and thrust reversing offers flexible power options for large-scale marine platforms. Dual IC5 connectors allow users to run parallel 3S–6S LiPo packs, achieving up to 12S total input voltage. This configuration supports higher power delivery and extended runtime, while maintaining compatibility with Spektrum Smart batteries for full telemetry functionality.

What protection features are built into the ESC?

The Smart marine ESC for offshore racers and sport boats with telemetry, auto cutoff, and overload protection includes multiple layers of safety. Auto cutoff prevents battery over-discharge, overload protection guards against electrical surges, and thermal protection ensures safe operation under heavy load. These features work in tandem with the water-cooled housing to maintain system integrity and prevent damage during high-stress conditions.

Buy Spektrum P-SPMXME1200 Firma 200A Smart ESC for 6S–12S brushless RC boats and high-performance marine setups.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMXME1200
  • Product Type: Spektrum P-SPMXME1200 Firma 200A Smart ESC with 6S–12S LiPo support, IC5 input, and 1200A burst current, Spektrum P-SPMXME1200 waterproof marine ESC with Smart telemetry, 8mm motor bullets, and 8A switch-mode BEC, Spektrum P-SPMXME1200 brushless ESC for RC boats with water-cooled housing and multi-point protection, Smart marine ESC for offshore racers and sport boats with telemetry, auto cutoff, and overload protection

Dimensions

  • Product Length: 95 mm – suitable for large hull installations
  • Product Height: 44 mm – compact vertical profile for marine compartments
  • Product Width: 58 mm (2.28") – wide footprint for stable mounting

Electrical and Performance Specifications

  • ESC Type: Brushless – optimized for high-efficiency marine motor control
  • Application: RC Large Boat – designed for high-performance marine platforms
  • Input Voltage: 6S–12S LiPo – supports 22.2V to 44.4V HV setups
  • Maximum Continuous Current: 200A – sustained output for extreme throttle profiles
  • Maximum Burst Current: 1200A – short-duration peak power handling

Connector and Lead Configuration

  • Battery Connector: Dual IC5 – high heat-resistant input, EC5 compatible
  • Motor Output Lead: 8mm bullet connectors – secure high-current motor integration

Processor and Control Features

  • Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
  • Programmable: Yes – supports multiple parameters via Smart ESC Programming Box
  • Thrust Reversing: Yes – programmable for braking and maneuverability

Telemetry and Smart Technology

  • Telemetry: Smart all-in-one telemetry – transmits RPM, voltage, current, and temperature via IC5 data wire
  • Firmware Updates: Supported – via SmartLink USB or Programming Box

Protection and Safety Features

  • Waterproof Rating: Yes – fully sealed for marine use
  • Failsafe Protection: Yes – ensures controlled shutdown during signal loss
  • Thermal Protection: Yes – prevents overheating during extended operation
  • Overload Protection: Yes – safeguards against electrical surges
  • Auto Cutoff: Yes – protects battery from deep discharge

BEC Specifications

  • BEC Type: Switch-mode – efficient power delivery to receiver and servos
  • BEC Voltage: Adjustable – 6V, 7.4V, or 8.4V output options
  • BEC Continuous Current: 8A – supports high-demand marine servo systems
  • BEC Peak Current: 25A – handles transient loads during throttle spikes

Construction and Mounting

  • Cooling System: Water-cooled housing – maximizes thermal efficiency under load
  • Case Material: Rugged plastic – impact-resistant for aquatic environments
  • Mounting Tabs: Included – enables secure installation in boat hulls

What’s in the Box

  • 1 × Spektrum Firma 200A Smart Marine ESC

What You Require / What You Will Need

  • Spektrum Smart Receiver: Required for telemetry integration

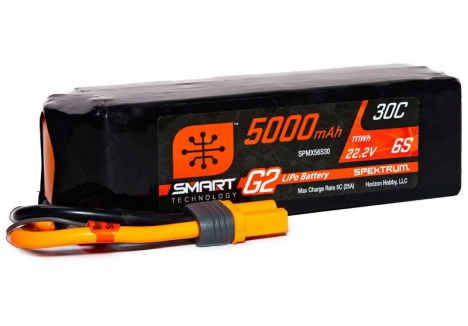

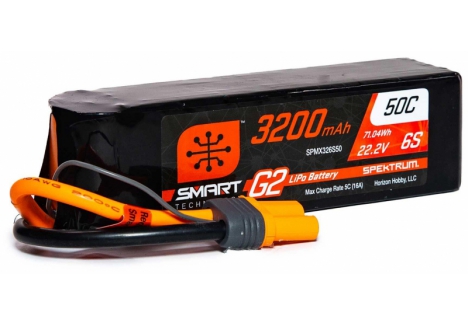

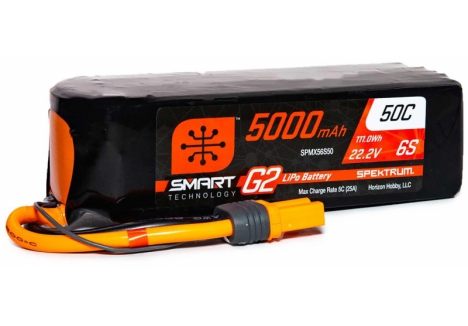

  • Spektrum Smart Technology LiPo Battery: Required for full telemetry functionality
  • Spektrum Transmitter: Required for Smart telemetry and thrust reversing
