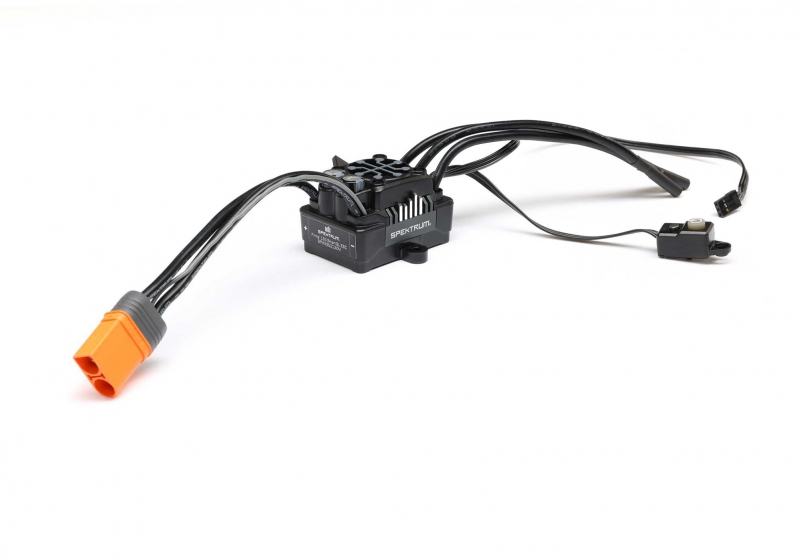

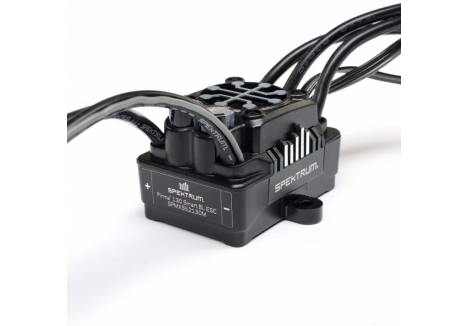

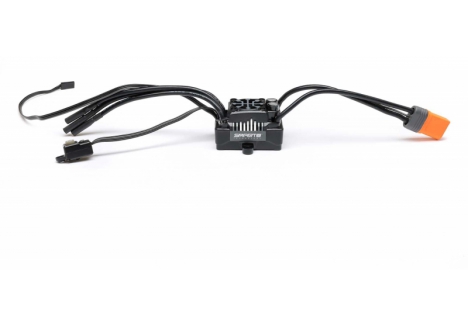

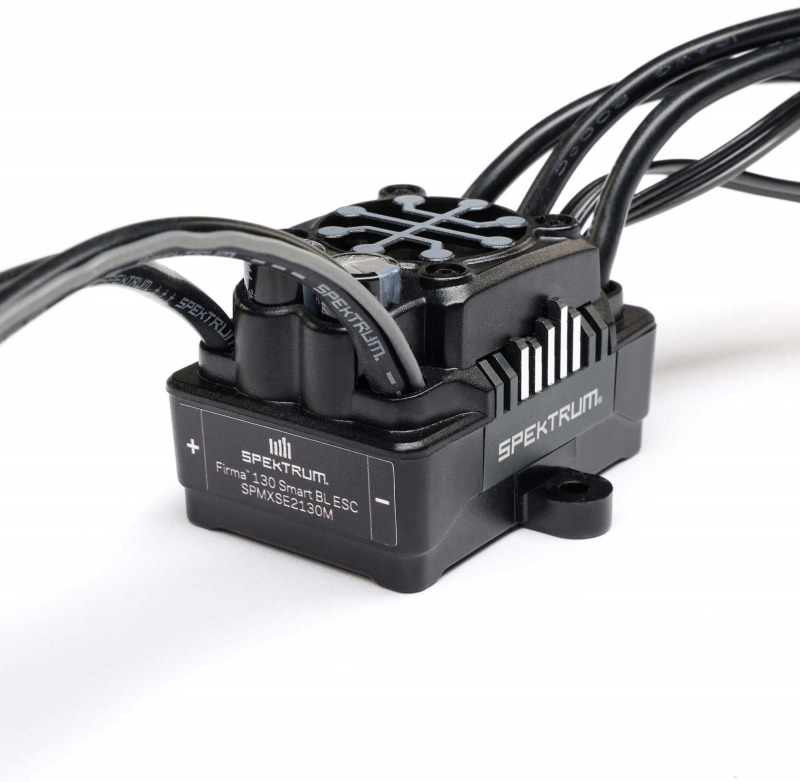

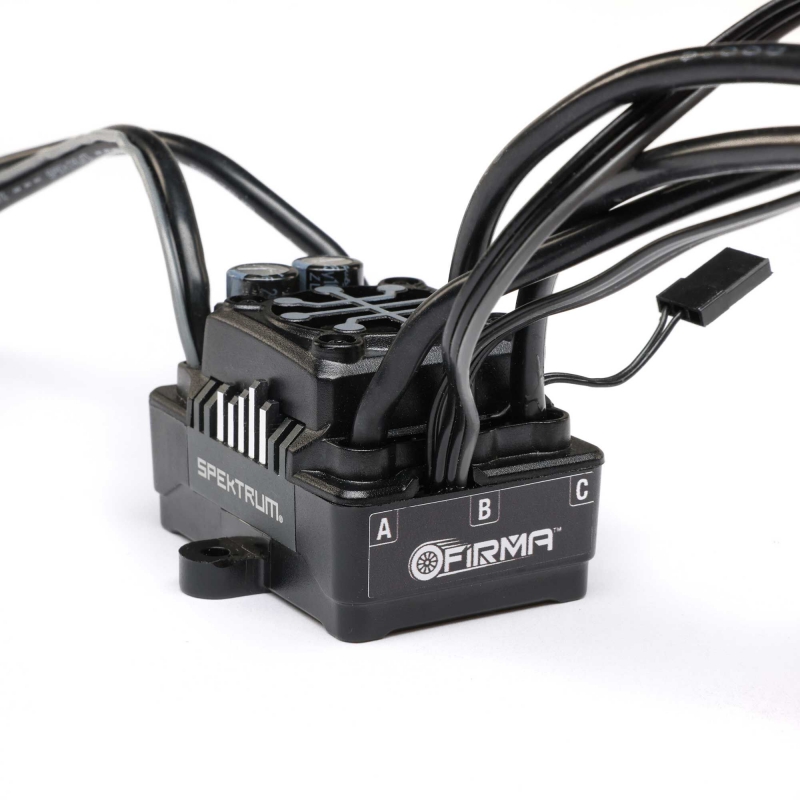

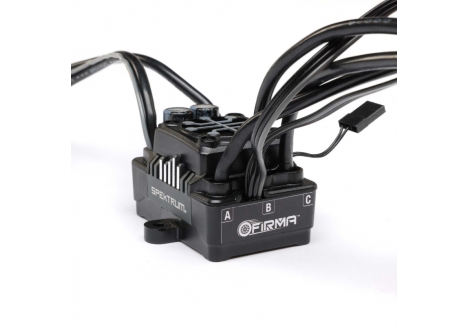

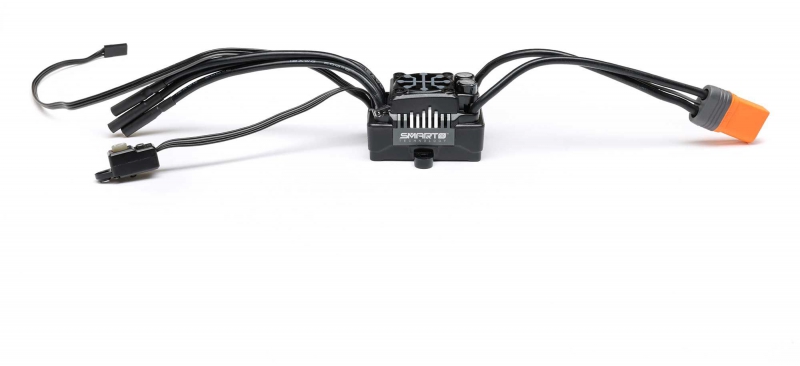

Spektrum Firma 130A Brushless Smart ESC Overview
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
SpektrumT Smart Electronic Speed Controls Video
Spektrum Firma 130A Brushless Smart ESC Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof*
- Programming optimized for LMT 2.0 Trick Modes/Freestyle Modes
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- TextGen interface
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer

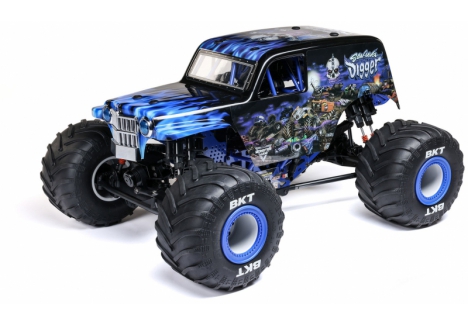

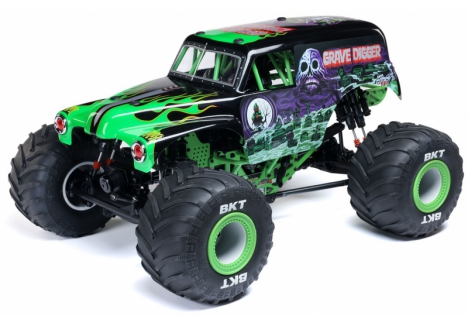

- Compatible with the Losi LMT 2.0
- High current adjustable BEC (6v or 7.4v @ 4 Amps)
- Compact for easy installation in most applications
- Ready to install - no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backward compatible with EC™ connectors
- Limited 1-year warranty
The Spektrum P-SPMXSE2130M Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and LMT 2.0 freestyle optimization is a purpose-built brushless ESC designed to unleash the full potential of Losi LMT 2.0 monster trucks. Engineered for high-impact freestyle performance, it combines raw power with intelligent control, offering 130A continuous output, Smart telemetry, and waterproof durability. With trick mode programming, TextGen interface, and a high-efficiency cooling system, this ESC delivers precision and resilience for bashers who demand more from every launch, flip, and landing.
Key features of the Spektrum P-SPMXSE2130M Firma 130A Smart ESC
- Smart telemetry – real-time data including RPM, voltage, temperature, and battery capacity
- Freestyle optimization – tuned specifically for Losi LMT 2.0 monster trucks
- TextGen interface – on-screen programming via compatible Spektrum transmitters
- Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app
- Waterproof housing – all-weather protection for extreme terrain and stunt conditions
- Failsafe logic and multi-point protection – includes over-current, thermal, and low-voltage safeguards
- 5A adjustable BEC – selectable 6V or 7.4V output for high-torque servo compatibility
- Compact form factor – 56mm length and 126g weight for tight installs
Why is the Spektrum P-SPMXSE2130M ideal for LMT 2.0 freestyle builds?
The Spektrum P-SPMXSE2130M brushless ESC for monster trucks with TextGen interface and cooling fan is uniquely optimized for the demands of freestyle driving. With 130A continuous current and 4mm motor bullets, it delivers explosive acceleration and responsive control. The integrated cooling fan and aluminum heat sink maintain thermal stability during high-load stunts, while the rugged waterproof casing ensures reliability through mud, gravel, and airborne impacts. Whether you're performing backflips or powering through rough terrain, this ESC is built to handle the chaos of freestyle monster truck action.
How does Smart telemetry enhance performance and diagnostics?
The Smart ESC for Losi LMT 2.0 with one-wire telemetry, failsafe logic, and aluminum heat sink provides seamless telemetry integration without the need for extra sensors or modules. Through a single wire, the ESC transmits RPM, temperature, battery voltage, and capacity directly to your Spektrum transmitter in real time. This allows drivers to monitor system health, adjust settings on the fly, and optimize performance based on live feedback. When paired with a Spektrum Smart LiPo battery, the ESC also delivers detailed battery diagnostics such as cycle count, cell voltage, and remaining capacity.
What makes the TextGen interface a game-changer?
The Spektrum digital ESC with 130A continuous output, 4mm motor leads, and SmartLink programming options includes the TextGen interface for direct on-screen programming via compatible Spektrum transmitters. This feature allows users to adjust ESC settings without external devices, making it easier to fine-tune throttle curves, brake strength, and trick mode parameters right at the track. Combined with firmware updatability and multiple programming pathways, the TextGen interface streamlines setup and customization for freestyle drivers who need fast, flexible control.
Can the Spektrum P-SPMXSE2130M handle extreme conditions?
Absolutely. The best waterproof ESC with Smart telemetry, IC5 connector, and trick mode programming for bashers is built for all-weather operation and high-impact use. Its waterproof housing protects internal components from moisture, dust, and debris, while the IC5 connector ensures reliable power delivery under stress. The rugged construction and compact dimensions allow for secure placement in monster truck chassis, and the cooling system keeps temperatures in check during intense runs. Whether you're bashing through mud or launching off ramps, this ESC is engineered to perform under pressure.
Buy Spektrum P-SPMXSE2130M Firma 130A Smart ESC for LMT 2.0 freestyle monster trucks and 2S–4S platforms.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXSE2130M
- Product Type: Spektrum P-SPMXSE2130M Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and LMT 2.0 freestyle optimization, Spektrum P-SPMXSE2130M waterproof surface ESC with Smart telemetry, 4mm motor bullets, and 5A adjustable BEC, Spektrum P-SPMXSE2130M brushless ESC for monster trucks with TextGen interface and cooling fan, Spektrum P-SPMXSE2130M with 6V/7.4V selectable BEC, 126g weight, and 56mm length for compact installs, Smart ESC for Losi LMT 2.0 with one-wire telemetry, failsafe logic, and aluminum heat sink, High-performance surface ESC with button programming, waterproof housing, and multi-point protection
Dimensions
- Length: 5.6 cm – compact footprint for LMT 2.0 chassis layouts
- Width: 3.6 cm – standard width for secure mounting and airflow
- Height: 3.8 cm – vertical clearance suitable for monster truck builds
- Weight: 126 g – optimized for balance and durability
Electrical and Performance Specifications
- ESC Type: Brushless – optimized for efficient motor control in freestyle monster trucks
- Application: Surface – specifically tuned for Losi LMT 2.0 platforms
- Input Voltage: 2S–4S LiPo – supports 7.4V to 14.8V setups
- Maximum Continuous Current: 130A – delivers sustained high-output performance
- Maximum Burst Current: Not specified – optimized for freestyle trick modes
Connector and Output Configuration
- Battery Connector: IC5 – high heat-resistant input, backwards compatible with EC3 and EC5
- Motor Output Lead: 4mm bullet connectors – secure and efficient connection for brushless motors
Processor and Control Features
- Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
- Programmable: Yes – supports multiple programming methods for flexible configuration
- Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App, TextGen interface
- Forward/Reverse: Yes – includes full directional control for freestyle maneuverability
- Brakes: Yes – adjustable braking force for terrain-specific tuning
Telemetry and Smart Technology
- Telemetry: Smart all-in-one – transmits RPM, voltage, temperature, and battery data via one-wire link
- Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time
Protection and Safety Features
- Waterproof Rating: Yes – sealed housing for all-weather operation
- Failsafe Protection: Yes – maintains control during signal loss or system fault
- Thermal Protection: Yes – prevents overheating during extended use
- Overload Protection: Yes – safeguards against electrical surges
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge
BEC Specifications
- BEC Type: Adjustable – provides stable power delivery to receiver and servos
- BEC Voltage: Selectable 6V or 7.4V – supports a range of servo configurations
- BEC Continuous Current: 5A – suitable for high-demand monster truck electronics
Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for off-road durability
- Heat Sink: Integrated aluminum – improves thermal efficiency under load
- Cooling Fan: Yes – active cooling for sustained high-current operation
- Mounting Tabs: Included – enables secure installation in monster truck chassis
- Installation: Ready to install – no soldering required
What’s in the Box
- 1 × Spektrum Firma Smart ESC
- 1 × Spektrum Smart Sticker Sheet
- 1 × Product Manual
What You Require / What You Will Need
- 1 × Spektrum Surface Receiver
- 1 × Spektrum Smart Technology LiPo Battery
- 1 × Spektrum Transmitter
