Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW30104300
• Product Type: Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current, Hobbywing HW30104300 MAX5 HV Plus G2 with 12S LiPo support and IP67 rating, Hobbywing HW30104300 brushless ESC with built-in Bluetooth and 28A BEC, Hobbywing HW30104300 with turbo timing and 4080μF capacitor protection, Hobbywing MAX5 HV Plus G2 ESC for 1/5–1/8 scale high-speed applications, Hobbywing ESC with AS150 anti-spark plugs and dual programming modes
• Product Colour: Black

Dimensions

• Length: 9.45 cm – compact enough for high-speed 1/5–1/8 scale installations
• Width: 5.94 cm – allows efficient mounting in tight chassis layouts
• Height: 5.16 cm – accommodates internal cooling and protection systems
• Weight: 450 g – includes wires and plugs; engineered for thermal stability and durability

Electrical and Performance Specifications

• Continuous Current: 330A – supports sustained high-output power for extreme-speed applications
• Peak Current: 2000A – handles explosive acceleration and torque bursts
• Input Voltage: 6–12S LiPo – compatible with high-voltage battery configurations
• Motor Compatibility: Sensored and sensorless brushless motors – supports flexible setups
• Maximum Speed: 300,000 RPM (2-pole motors) – ideal for ultra-high speed builds
• Turbo Timing: Adjustable up to 24° – boosts speed by approximately 18% when paired with EZRUN 5690/56118 G2 motors

BEC System

• BEC Type: Switch-mode regulator – efficient and thermally stable
• BEC Output Voltage: Selectable 6V / 7.4V / 8.4V – supports high-voltage servo systems
• BEC Output Current: 8A continuous, 28A peak – ensures reliable servo performance under load

Protection and Safety Features

• Waterproof Rating: IP67 – protects against mud, snow, ice, and water accumulation
• Dustproof Construction: Sealed design for all-weather operation
• Anti-Spark Circuit: AS150 plugs – protects battery connectors from damage during high-voltage connection
• Capacitor Capacity: 4080μF – eliminates need for external capacitors in 1/5–1/8 scale models
• Capacitor Thermal Protection: Integrated – maintains safe operating conditions under load
• Failsafe Systems: Includes battery low voltage, ESC and motor overheat, signal loss, and current protection

Connectivity and Programming

• Bluetooth Module: Built-in – enables direct mobile app control and firmware upgrades
• Programming Methods: Dual – via HW Link app or LCD G2 programmer through independent port
• Data Logging: Real-time and historical graph support – stores up to 10 minutes of recent data
• Firmware Upgrade: Supported – via mobile app or OTA programmer

Wires and Connectors

• Input Wires: 8AWG Red and Black – 20 cm length for secure power delivery
• Output Wires: Not included – user-configurable based on motor setup
• Input Connectors: AS150-F (red shell), AS150-M (black shell) – high-current rated and pre-installed
• Output Connectors: 8.0 mm Gold female plug – supports high-current motor connections

Applications

• Vehicle Type: 1/5th, 1/7th, and 1/8th scale cars – designed for high-speed and violent applications
• Motor Type: Brushless – supports both sensored and sensorless configurations
• Recommended Motor: EZRUN 5690/56118SL G2 – optimized for turbo timing and full-sensored operation

What’s Included

• 1 × EZRUN MAX5 HV Plus G2 ESC

What You Require

• 6–12S LiPo battery pack
• Brushless motor (sensored or sensorless)
• LCD G2 programmer or OTA module (for firmware upgrades and advanced tuning)

Sold Separately

• LCD G2 program box
• OTA programmer

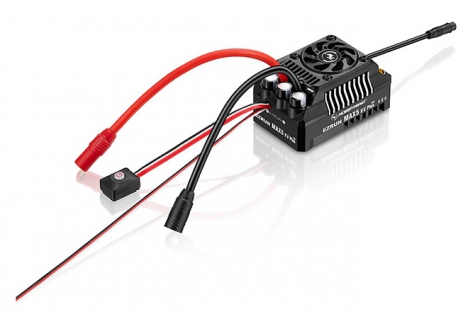

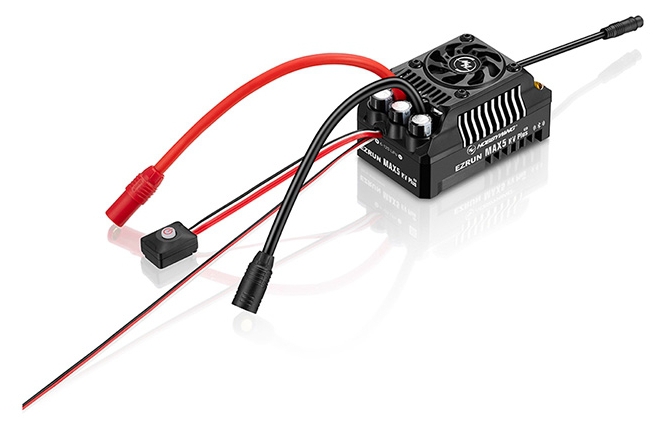

Product Description of Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current

The Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current is a black, high-performance brushless controller engineered for extreme-speed 1/5–1/8 scale applications. Designed to support 6–12S LiPo input and deliver up to 500A continuous current on 8S, this ESC is built for aggressive acceleration, high RPM operation, and full-sensored motor control. Whether you're pushing the limits of a monster truck or tuning a high-speed buggy, the Hobbywing HW30104300 MAX5 HV Plus G2 with 12S LiPo support and IP67 rating offers unmatched power, configurability, and protection. With built-in Bluetooth, real-time data logging, and a 28A switch-mode BEC, this ESC is the ultimate upgrade for serious RC performance.

Key features of the Hobbywing HW30104300 ESC

• IP67 waterproof and dustproof casing – engineered for reliable operation across mud, snow, and water
• Built-in Bluetooth module – enables direct mobile app control and firmware upgrades
• 4080μF capacitor protection – eliminates need for external capacitors and ensures thermal safety
• Turbo timing adjustment – boosts speed by up to 18% when paired with compatible motors
• 28A switch-mode BEC – supports high-voltage servos with selectable output
• AS150 anti-spark plugs – protect battery connectors from damage during high-voltage connection

How does the Hobbywing HW30104300 ESC deliver extreme-speed performance?

The Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current is engineered for ultra-high speed applications, supporting up to 300,000 RPM with 2-pole motors. Its advanced freewheeling technology improves drive efficiency and reduces operating temperature, enhancing stability and reliability under load. With support for 6–12S LiPo input, this ESC delivers explosive torque and throttle response across a wide range of terrain. Whether you're racing on asphalt or launching off dirt ramps, the ESC maintains consistent output and thermal integrity, making it ideal for competitive builds and high-speed experimentation.

What makes the waterproof design suitable for all-weather operation?

The Hobbywing HW30104300 MAX5 HV Plus G2 with 12S LiPo support and IP67 rating features a sealed enclosure that resists water, dust, and sediment intrusion. Tested under GB/T 4208-2017 and IEC 60529 standards, the IP67 rating ensures splash resistance and dust protection under normal use. This allows the ESC to operate reliably in mud, snow, and water accumulation without compromising internal components. For users who demand consistent performance across unpredictable environments, this waterproof design offers peace of mind and operational flexibility.

How does built-in Bluetooth enhance usability?

The Hobbywing HW30104300 brushless ESC with built-in Bluetooth and 28A BEC includes a fully integrated Bluetooth module that connects directly to the HW Link mobile app. Users can adjust parameters, monitor real-time data, and perform firmware upgrades without external programmers. The app interface displays throttle curves, voltage, current, temperature, and speed metrics, helping users fine-tune performance and diagnose issues quickly. With a transmission range of approximately 5 meters, the Bluetooth module streamlines setup and control, making the ESC more accessible and responsive in dynamic environments.

Why is capacitor protection critical for high-speed builds?

The Hobbywing HW30104300 with turbo timing and 4080μF capacitor protection features a high-capacity internal capacitor bank that eliminates the need for external capacitors in 1/5–1/8 scale models. With 4080μF total capacity, the system stabilizes voltage during high-load operation and includes thermal protection to prevent overheating. This ensures safe and reliable performance during extended use, especially in high-RPM scenarios. For users pushing the limits of speed and torque, the capacitor system provides essential protection and voltage consistency.

How does turbo timing improve acceleration and speed?

The Hobbywing MAX5 HV Plus G2 ESC for 1/5–1/8 scale high-speed applications supports up to 24 degrees of turbo timing adjustment, delivering an estimated 18% increase in speed when paired with EZRUN 5690/56118 G2 motors. This feature enhances throttle response and top-end performance, making it ideal for racing and high-speed applications. Turbo timing is exclusive to compatible Hobbywing motors and cannot be activated with non-supported units. When used correctly, it unlocks the full potential of the ESC’s power delivery system, giving users a competitive edge in demanding conditions.

What makes the BEC system suitable for high-voltage servos?

The Hobbywing ESC with AS150 anti-spark plugs and dual programming modes includes a switch-mode BEC capable of delivering 8A continuous and 28A peak current. Users can select between 6V, 7.4V, and 8.4V output to match servo requirements, ensuring optimal responsiveness and protection. This flexibility is essential for large-scale builds where servo performance directly impacts control precision. Whether you're steering a monster truck or managing throttle input on a buggy, the BEC system provides the voltage headroom needed for smooth and reliable operation.

How do anti-spark plugs and dual programming modes improve safety and control?

The Hobbywing HW30104300 ESC with AS150 anti-spark plugs and dual programming modes includes AS150 connectors that protect battery plugs from damage during high-voltage connection. These plugs prevent strong electric sparks that could harm components or users. The ESC also supports dual programming methods: via Bluetooth using the HW Link app, or through an independent programming port using the LCD G2 programmer or OTA module. This flexibility allows users to configure settings in the field or workshop, enhancing usability and control across different environments.

For RC builders seeking a high-performance, all-weather ESC with advanced configurability and protection, the affordable Hobbywing MAX5 Plus G2 with 300,000 RPM support and app control offers exceptional value and reliability. Buy Hobbywing HW30104300 ESC with real-time data logging and firmware upgrade today.

Technical Specifications of Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current

Brand, Model and Product Type

• Brand: Hobbywing
• Model: HW30104300
• Product Type: Hobbywing HW30104300 ESC with 330A continuous and 2000A peak current, Hobbywing HW30104300 MAX5 HV Plus G2 with 12S LiPo support and IP67 rating, Hobbywing HW30104300 brushless ESC with built-in Bluetooth and 28A BEC, Hobbywing HW30104300 with turbo timing and 4080μF capacitor protection, Hobbywing MAX5 HV Plus G2 ESC for 1/5–1/8 scale high-speed applications, Hobbywing ESC with AS150 anti-spark plugs and dual programming modes
• Product Colour: Black

Dimensions

• Length: 9.45 cm – compact enough for high-speed 1/5–1/8 scale installations
• Width: 5.94 cm – allows efficient mounting in tight chassis layouts
• Height: 5.16 cm – accommodates internal cooling and protection systems
• Weight: 450 g – includes wires and plugs; engineered for thermal stability and durability

Electrical and Performance Specifications

• Continuous Current: 330A – supports sustained high-output power for extreme-speed applications
• Peak Current: 2000A – handles explosive acceleration and torque bursts
• Input Voltage: 6–12S LiPo – compatible with high-voltage battery configurations
• Motor Compatibility: Sensored and sensorless brushless motors – supports flexible setups
• Maximum Speed: 300,000 RPM (2-pole motors) – ideal for ultra-high speed builds
• Turbo Timing: Adjustable up to 24° – boosts speed by approximately 18% when paired with EZRUN 5690/56118 G2 motors

BEC System

• BEC Type: Switch-mode regulator – efficient and thermally stable
• BEC Output Voltage: Selectable 6V / 7.4V / 8.4V – supports high-voltage servo systems
• BEC Output Current: 8A continuous, 28A peak – ensures reliable servo performance under load

Protection and Safety Features

• Waterproof Rating: IP67 – protects against mud, snow, ice, and water accumulation
• Dustproof Construction: Sealed design for all-weather operation
• Anti-Spark Circuit: AS150 plugs – protects battery connectors from damage during high-voltage connection
• Capacitor Capacity: 4080μF – eliminates need for external capacitors in 1/5–1/8 scale models
• Capacitor Thermal Protection: Integrated – maintains safe operating conditions under load
• Failsafe Systems: Includes battery low voltage, ESC and motor overheat, signal loss, and current protection

Connectivity and Programming

• Bluetooth Module: Built-in – enables direct mobile app control and firmware upgrades
• Programming Methods: Dual – via HW Link app or LCD G2 programmer through independent port
• Data Logging: Real-time and historical graph support – stores up to 10 minutes of recent data
• Firmware Upgrade: Supported – via mobile app or OTA programmer

Wires and Connectors

• Input Wires: 8AWG Red and Black – 20 cm length for secure power delivery
• Output Wires: Not included – user-configurable based on motor setup
• Input Connectors: AS150-F (red shell), AS150-M (black shell) – high-current rated and pre-installed
• Output Connectors: 8.0 mm Gold female plug – supports high-current motor connections

Applications

• Vehicle Type: 1/5th, 1/7th, and 1/8th scale cars – designed for high-speed and violent applications
• Motor Type: Brushless – supports both sensored and sensorless configurations
• Recommended Motor: EZRUN 5690/56118SL G2 – optimized for turbo timing and full-sensored operation

What’s Included

• 1 × EZRUN MAX5 HV Plus G2 ESC

What You Require

• 6–12S LiPo battery pack
• Brushless motor (sensored or sensorless)
• LCD G2 programmer or OTA module (for firmware upgrades and advanced tuning)

Sold Separately

• LCD G2 program box
• OTA programmer
