FEATURES

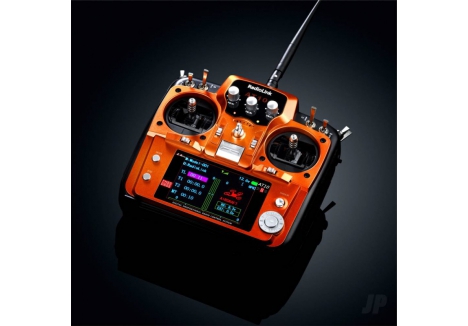

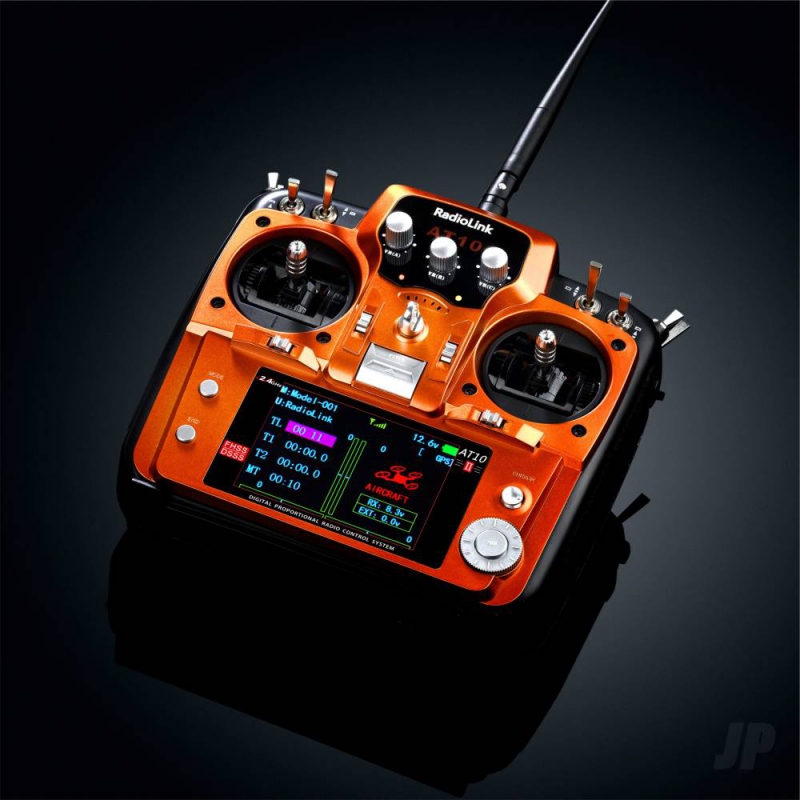

- Colour LCD.
- DSSS & FHSS spread spectrum protocol.
- Rx battery and RSSI (Receiver Signal Strength Indicator) telemetry as standard.
- Mode change capable.
- Wide (7.4 to 15V) voltage range input.

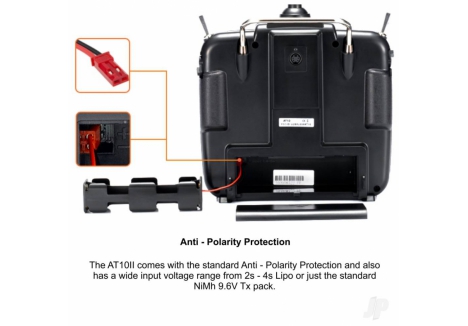

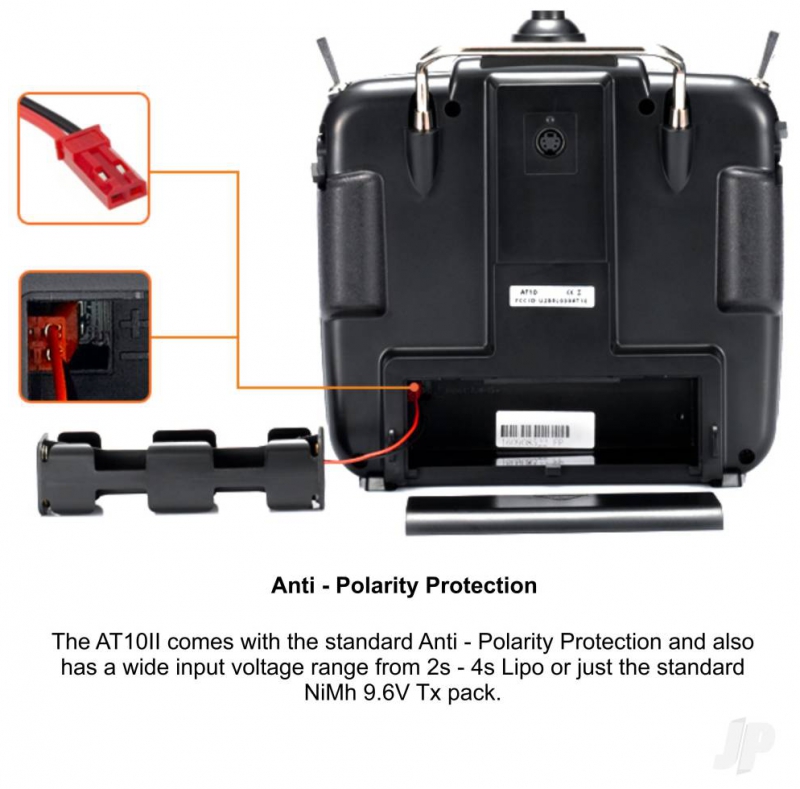

- Tx battery reverse polarity protection.
- Updatable firmware via micro USB port.
- 4096 bit resolution.
- Tx and Rx low battery voltage warning (as standard).
- Motor battery voltage warning (with supplied PRM-01 sensor).
- 90 and 120 CCPM Mixing.

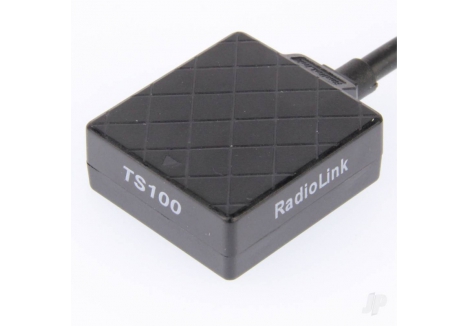

- GPS telemetry (with optional TS100 sensor).

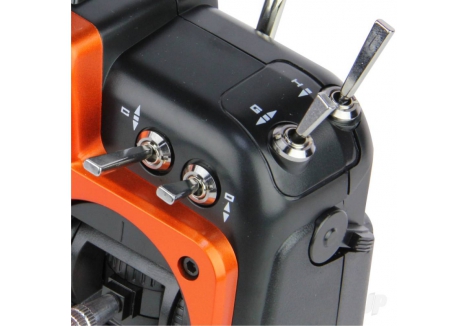

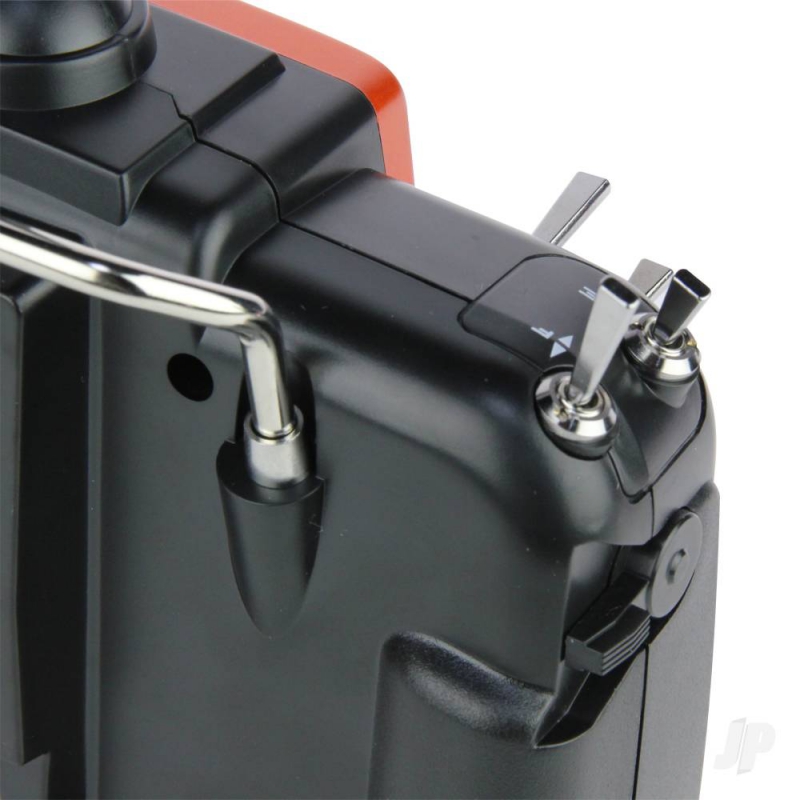

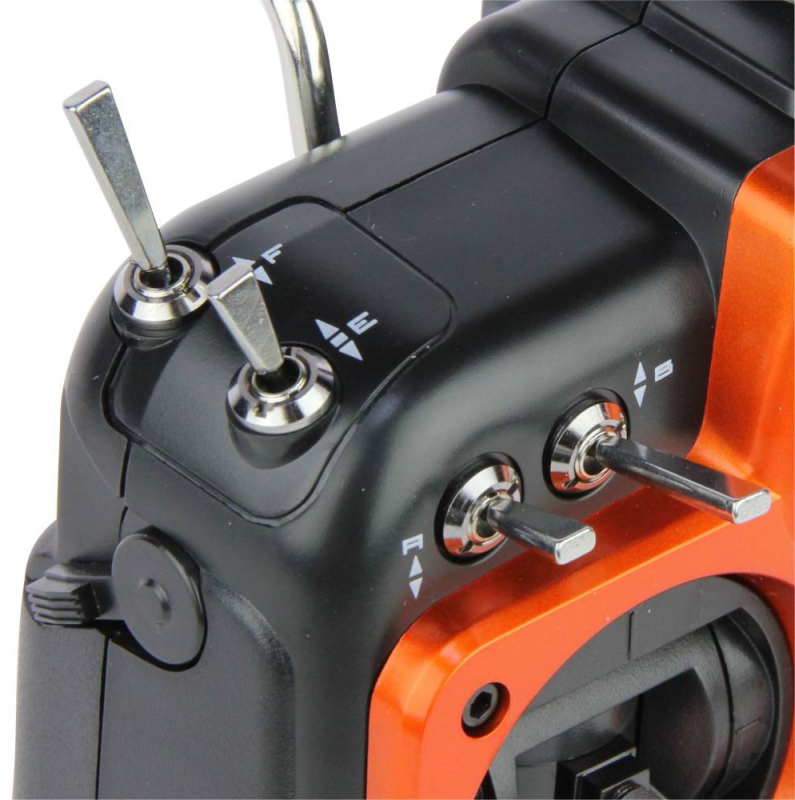

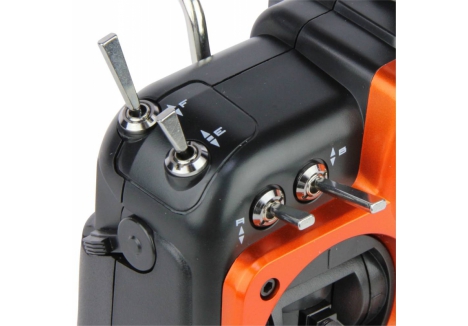

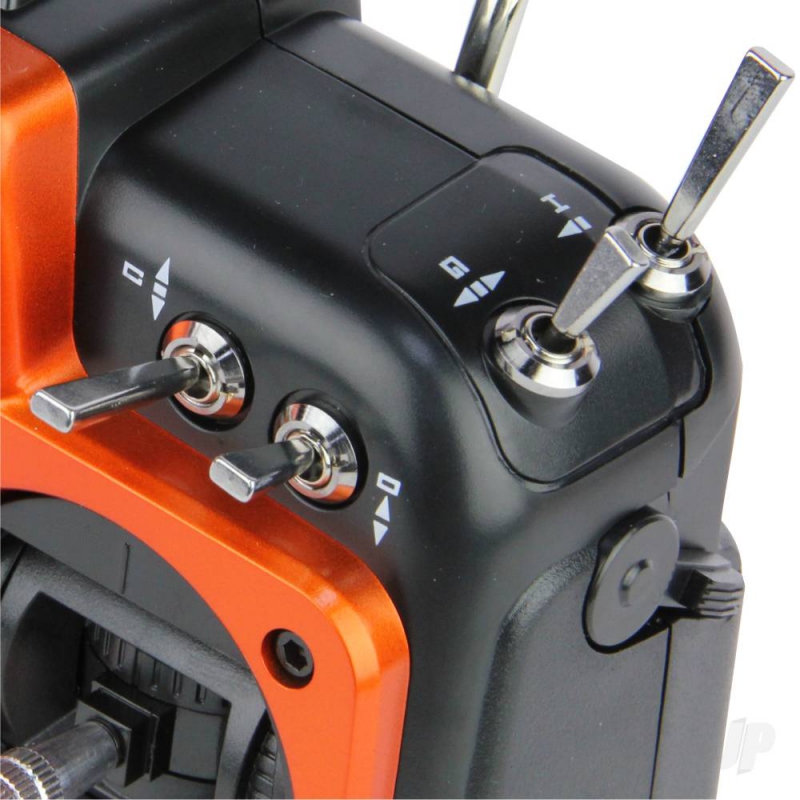

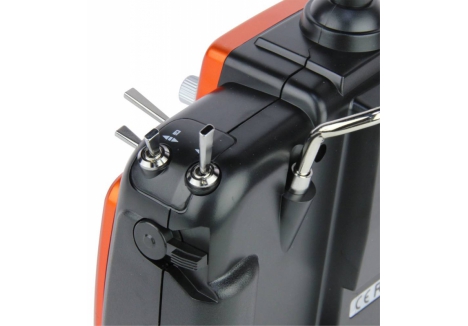

- 4 x two-position, 3 x three-position and 1 x return switch.
- 2 x proportional slider controls.
- Wireless trainer compatibility (with optional R8FM module).
- Intuitive programming.

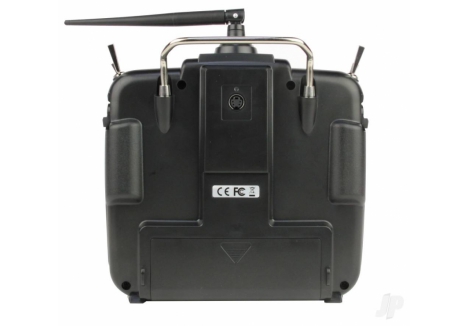

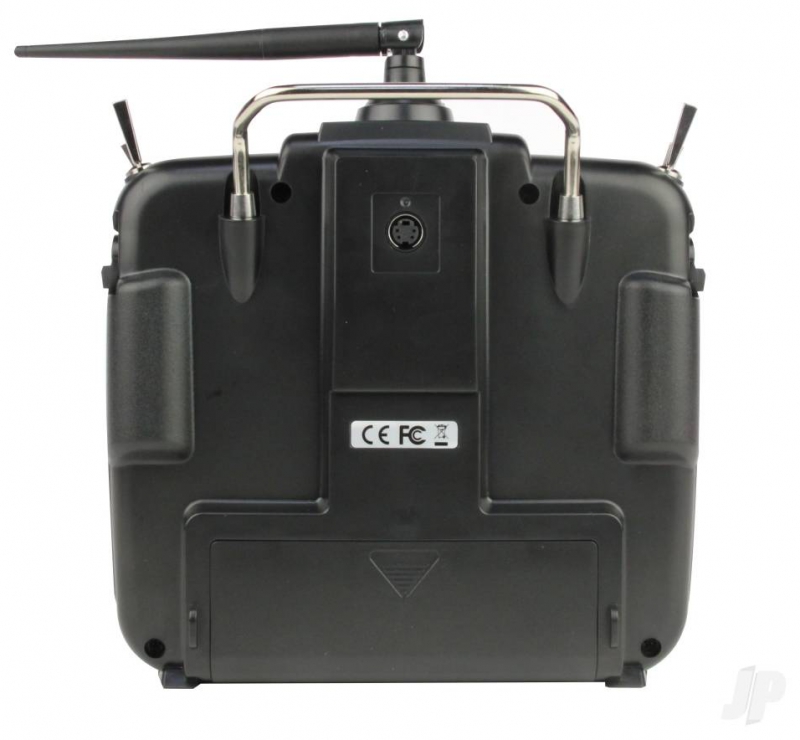

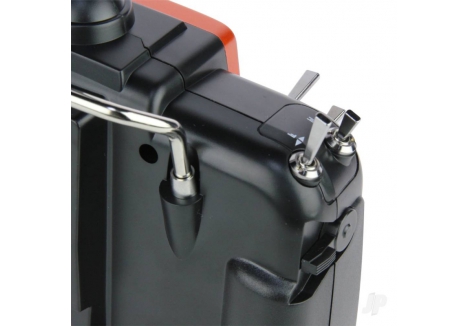

- Sturdy metal carry handle.
- Digital trims.
- Comfortable ergonomic design.
- S-BUS compatible.
CONTENTS

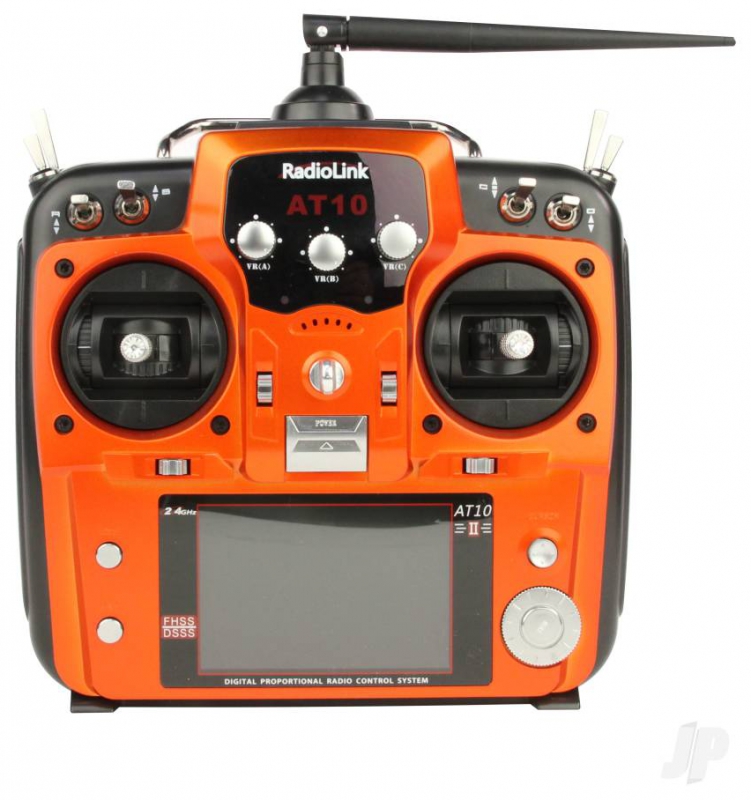

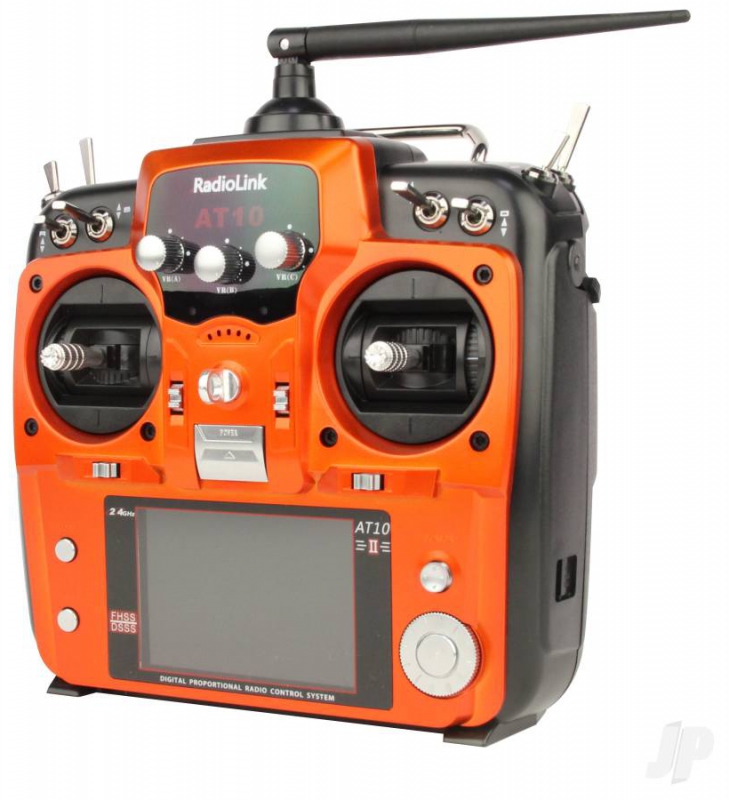

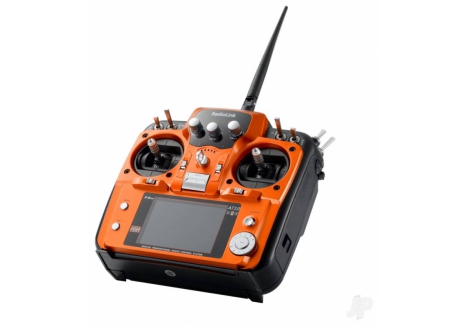

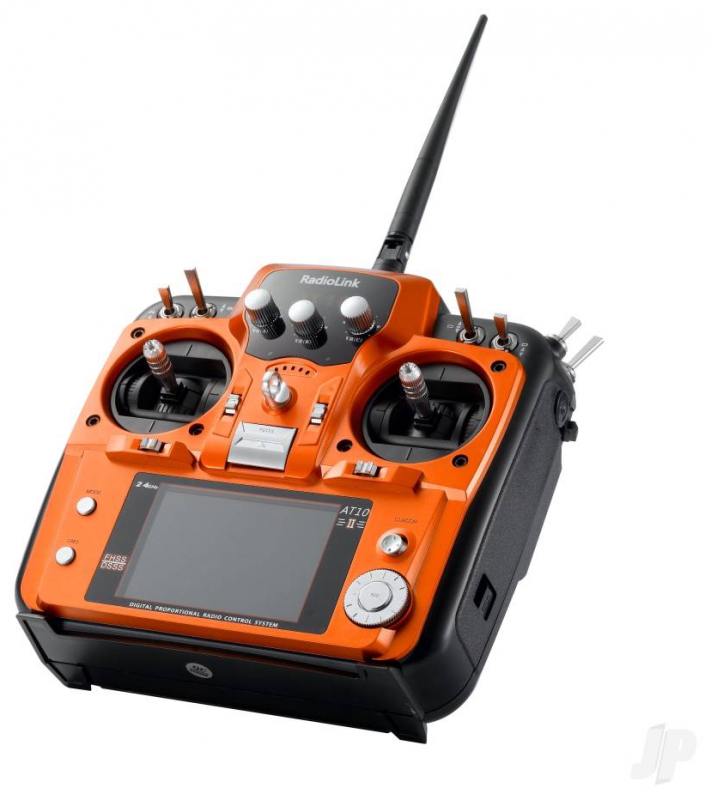

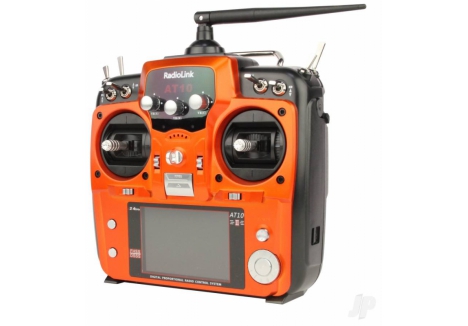

- 1x AT10II 2.4GHz 12-channel transmitter.
- 1x R12DS 12-channel receiver.
- 1x Throttle stick spring retainer.

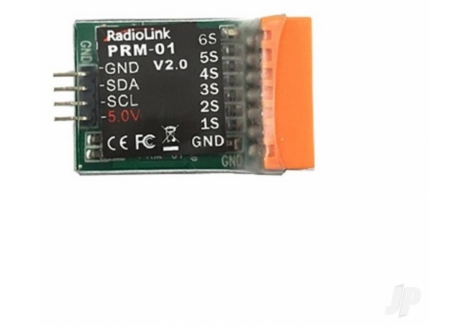

- 1x PRM-01 telemetry voltage sensor (flight pack).
NEEDED TO COMPLETE

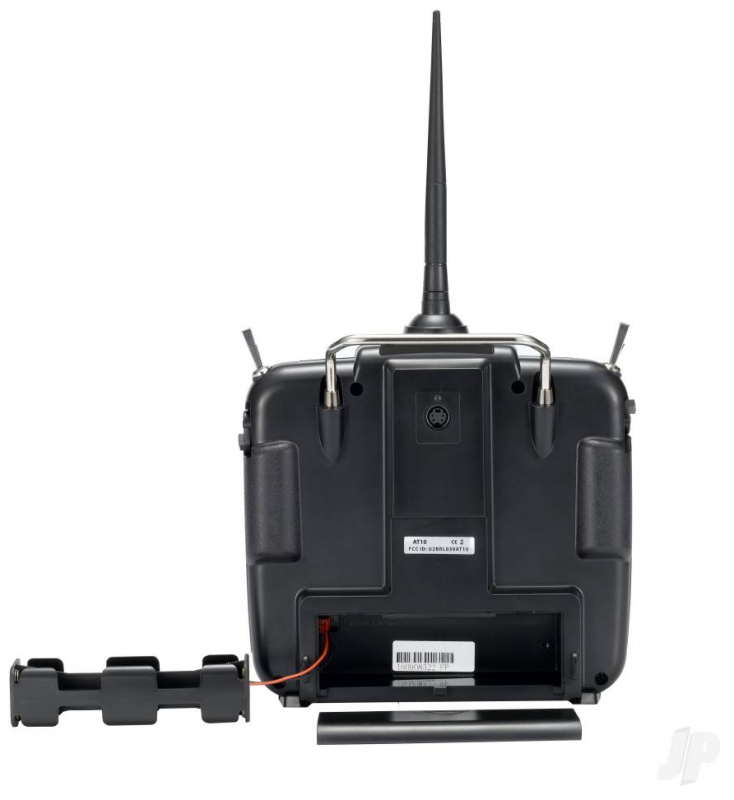

- 8 x AA-size batteries for the transmitter
DETAILS
RadioLink may well be a name that's new to you but, rest assured, the protocol and the brand's assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you'll not only love for its features and flexibility but one you'll grow to adore for its comfort, ease of use and solid dependability. And we haven't even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that'll raise an enlightened eyebrow, and receiver prices that'll have you reaching for your wallet, RadioLink has been radio modelling's the best kept secret of recent times But not anymore!
An updated version of the popular AT10, the AT10II, 2.4GHz upper mid-range, telemetry-capable transmitter now has 12 channels and, like its predecessor, offers a furure-proof feature-set to suit the intermediate / experienced model pilot. With an expanding hangar comes a requirement for a transmitter with an all-encompassing capability and enough channels to cope with the multi-functionality that complex model aircraft so often demand. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid radio link. But, of course, there's far more to it than that. If you're an experienced flyer a quick look at the specification will confirm that this is all the transmitter wants for very little. Moreover, with amazingly competitive receiver pricing you'll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of the AT10II's intuitive programming, colour LCD, telemetry features, wireless trainer link capability and striking good looks.
Comprehensive feature list:
Model categories catered for
- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
Special functions
- End Point Adjustment
- Sub Trim
- Servo Reverse
- Gyro Sense
- Dual Rate
- Exponential
- Throttle Cut
- Fail-safe
- Three timers
- Trainer Function
- Servo Monitor
- Trim Step
- Idle Down
- Flaperon
- 8 programmable mixers
- Flap Trim
- Aileron Differential
- Air Brake
- Elevator / Flap Mixing
- Snap Roll
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Throttle Delay
- Gyro Sense
- Servo Speed
- Ailevator Mixing
- Revolution Mix
- Hover Throttle
- Hover Pitch
- High / Low Pitch
- Governor
- Throttle Mix
- Swash Ring
- Camber Flap
- Camber Mix
- Butterfly
- Butterfly / Elevator Mix
- Spoiler Mix
- Flight Conditions
Specification:
| Length (mm): |
185 |
| Height (mm): |
213 (aerial folded) |
| Width (mm): |
70 (case only) |
| Weight (g): |
859 |
The RadioLink RLKT121006 AT10II 12-channel transmitter with DSSS/FHSS protocol, colour LCD, and telemetry support is a precision-engineered radio system designed for advanced RC pilots who demand robust signal integrity, multi-channel flexibility, and real-time telemetry feedback. Whether you're flying multirotors, fixed-wing aircraft, helicopters, or gliders, this upper mid-range transmitter delivers the control depth and ergonomic refinement needed to manage complex flight systems with confidence. With 4096 resolution, 15 model memory slots, and a wide input voltage range, the AT10II is built to accommodate expanding fleets and evolving control requirements.
Key features of the RadioLink RLKT121006 AT10II transmitter
- 12-channel control – supports multi-servo aircraft, advanced flight modes, and auxiliary functions
- Colour LCD interface – provides clear telemetry feedback and intuitive programming access
- Telemetry support – includes RSSI, receiver voltage, and motor battery voltage via PRM-01 sensor
- Programmable mixers – 8 mixers for flap trim, elevon, V-tail, throttle curve, and more
- Ergonomic orange casing – designed for comfort with a sturdy metal carry handle
- Wide input range – accepts 7.4–15V with reverse polarity protection for safe operation
How does the AT10II enhance multi-channel control?
The RadioLink RLKT121006 programmable transmitter with 15 model memory, 950g weight, and 220mm height is engineered to handle the demands of multi-servo aircraft and complex flight configurations. With 12 channels and 4096-bit resolution, pilots can assign functions across flaps, rudders, gimbals, and auxiliary systems with precision. The transmitter supports CCPM mixing for helicopters, elevon and V-tail mixing for fixed-wing aircraft, and camber flap coordination for gliders. This flexibility makes the AT10II ideal for experienced users managing diverse RC platforms.
What telemetry capabilities are included with the RLKT121006?
The RadioLink RLKT121006 radio system with R12DS receiver, PRM-01 voltage sensor, and 4096 resolution offers comprehensive telemetry support. Standard features include RSSI and receiver battery voltage monitoring, while the included PRM-01 sensor enables motor battery voltage feedback. Optional GPS telemetry is available via the TS100 sensor, allowing pilots to track location data in real time. These telemetry features are displayed clearly on the colour LCD screen, enhancing situational awareness and flight safety.
Is the AT10II suitable for both surface and aerial platforms?
Yes. The Surface and aerial radio system with 8 mixers, 2 proportional sliders, and digital trims for precision control is versatile enough to support multirotors, helicopters, gliders, and fixed-wing aircraft. Its proportional sliders allow for fine-tuned control over throttle, camera gimbals, or auxiliary functions. Digital trims and servo monitors provide granular adjustment and feedback, while the intuitive programming interface simplifies setup across multiple model types.
How does the DSSS/FHSS protocol improve transmission reliability?
The RadioLink RLKT121006 AT10II 12-channel transmitter with DSSS/FHSS protocol, colour LCD, and telemetry support uses dual spread spectrum technologies to ensure stable, interference-resistant communication. DSSS enhances signal clarity, while FHSS provides frequency-hopping resilience in crowded environments. This combination delivers rock-solid transmission across full-range operations, making the AT10II a dependable choice for competitive and recreational flying.
What makes the AT10II ideal for advanced RC pilots?
The RadioLink RLKT121006 with 180mm length, 70mm width, and 2.33lbs shipping weight for advanced RC pilots is designed for comfort and control. Its ergonomic orange casing includes a sturdy metal carry handle, vibration alerts, and a balanced layout of switches and sliders. With 15 model memory slots, pilots can manage multiple aircraft without reprogramming. The transmitter’s firmware upgradability and wireless trainer compatibility ensure long-term adaptability and instructional use.
What’s included with the RLKT121006 AT10II system?
The package includes the AT10II transmitter, an R12DS 12-channel receiver, a throttle stick spring retainer, and a PRM-01 telemetry voltage sensor. These components provide everything needed to begin setup and integration with compatible aircraft. The transmitter is S-BUS compatible and supports wireless trainer functionality with optional modules, making it suitable for both solo and instructional use.
Buy RadioLink RLKT121006 AT10II 12-channel transmitter with R12DS receiver and PRM-01 sensor for multirotor and fixed-wing.
Brand, Model and Product Type
- Brand – RadioLink
- Model – RLKT121006
- Product Type – RadioLink RLKT121006 AT10II 12-channel transmitter with DSSS/FHSS protocol, colour LCD, and telemetry support, RadioLink radio system with R12DS receiver, PRM-01 voltage sensor, and 4096 resolution, RadioLink programmable transmitter with 15 model memory, 950g weight, and 220mm height, RadioLink AT10II transmitter with GPS telemetry support, CCPM mixing, and wireless trainer compatibility, RadioLink surface and aerial radio system with 8 mixers, 2 proportional sliders, and digital trims for precision control
Dimensions
- Product length – 18.0 cm, designed for balanced grip and control across surface and aerial platforms
- Product height – 22.0 cm, offers full visibility and access to controls during operation
- Product height (folded aerial) – 21.3 cm, compact for storage and transport
- Product width – 7.0 cm, slim casing for ergonomic handling and switch accessibility
- Net weight – 950 g (33.51 oz), suitable for extended use without fatigue
- Shipping weight – 1.06 kg (2.33 lbs), includes all accessories and packaging
- Product color – Orange, with a sturdy metal carry handle for durability and visual distinction
Channel and Resolution
- Channel count – 12 channels, supports complex aircraft and multirotor configurations
- Resolution – 4096-bit, enables precise input control and servo response across all channels
Display and Interface
- Screen type – Colour LCD, provides clear telemetry feedback and intuitive programming access
- Interface – digital trims, servo monitor, and intuitive layout for model setup and adjustments
Telemetry and Alerts
- Telemetry support – includes receiver battery voltage and RSSI (signal strength) as standard
- Motor battery telemetry – supported via included PRM-01 voltage sensor
- GPS telemetry – available with optional TS100 sensor for location-based feedback
- Low voltage warning – alerts for both transmitter and receiver battery levels
Mixers and Flight Functions
- Programmable mixers – 8 mixers including elevon, V-tail, flap trim, throttle curve, and more
- CCPM mixing – supports 90 and 120 CCPM configurations for helicopter control
- Flight modes – supports glider, fixed-wing, helicopter, and multirotor categories
- Special functions – includes throttle cut, fail-safe, idle down, camber flap, spoiler mix, and servo speed
- Trim and rate settings – dual rate, exponential, sub trim, and trim step adjustments
Controls and Switches

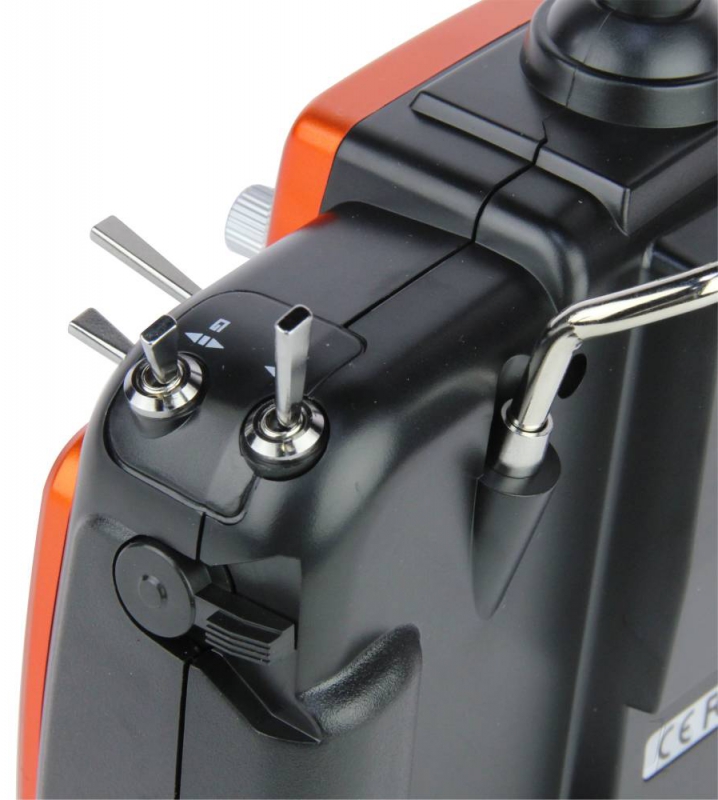

- Switch configuration – 4 two-position, 3 three-position, and 1 return switch for flexible input mapping
- Proportional sliders – 2 sliders for fine-tuned control inputs across throttle and auxiliary channels
Power and Protection
- Input voltage range – 7.4V to 15V, compatible with a wide range of battery setups
- Reverse polarity protection – safeguards transmitter from incorrect battery connection
Connectivity and Compatibility
- Wireless trainer compatibility – supported via optional R8FM module for instructor-student link
- S-BUS compatibility – integrates with S-BUS enabled receivers and systems
- Firmware upgrades – available via micro USB port for long-term feature support
What's in the Box
- 1x AT10II 2.4GHz 12-channel transmitter
- 1x R12DS 12-channel receiver
- 1x Throttle stick spring retainer
- 1x PRM-01 telemetry voltage sensor (flight pack)
