Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05003087-3
• Product Type: Futaba FUT05003087-3 10J air radio Mode 1, Futaba FUT05003087-3 10-channel transmitter with R3008SB, Futaba FUT05003087-3 telemetry radio for aircraft, Futaba FUT05003087-3 with S.Bus and vibration alerts, Futaba air transmitter with model memory and AUX channel control
• Product Color: Black

Dimensions

• Transmitter Shipping Weight: 1.23 kg – balanced for handheld comfort and field portability
• Receiver Size: 2.49 cm × 4.73 cm × 1.43 cm – compact footprint for easy fuselage integration
• Receiver Weight: 10.1 g – lightweight for minimal impact on aircraft balance

Transmitter Specifications

• Channel Count: 10 – supports full control of gliders, helicopters, multicopters, and fixed-wing aircraft
• Transmission Protocols: T-FHSS Air (default), S-FHSS (switchable) – ensures compatibility across multiple receiver types
• Frequency Band: 2.4 GHz – optimized for interference-free signal transmission
• RF Power Output: 100mW EIRP – delivers strong and stable communication
• Mode: Mode 1 – throttle positioned on the right stick for alternative aircraft control preference
• Telemetry System: T-FHSS bidirectional – displays battery voltage, altitude, speed, and temperature when paired with optional sensors
• Speech Output: Enabled – telemetry data can be heard via commercial earphones
• Model Memory: 30 – stores multiple aircraft profiles for quick access and setup
• Mixing Types: Pre-programmed and programmable – supports fixed-wing, glider, helicopter, and multicopter configurations
• Swash Plate Options: 8 types – tailored for helicopter setup flexibility
• Digital Trim: LCD display with audible feedback – allows rapid in-flight adjustments with customizable step size

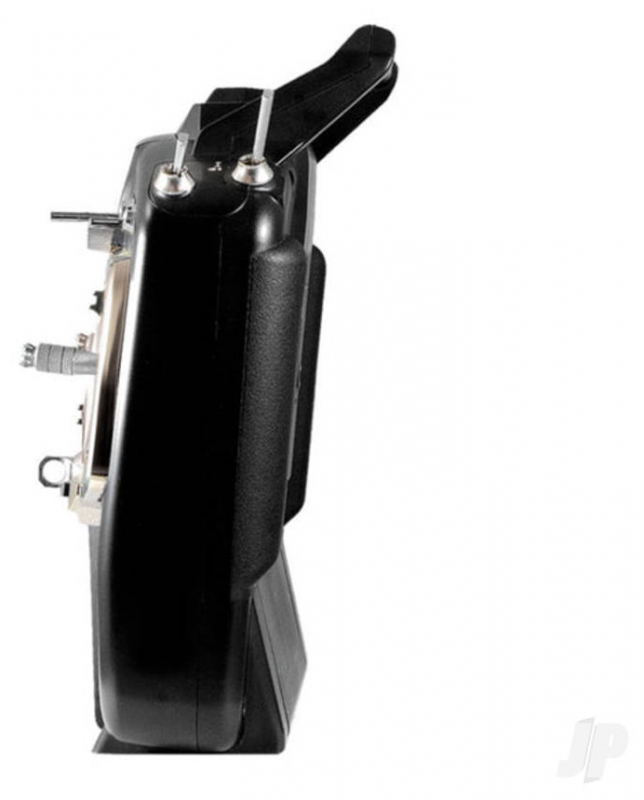

• Lever Head Design: Adjustable length and anti-slip shape – improves grip and control precision
• Vibration Alerts: Selectable – notifies operator of alarms through tactile feedback
• AUX Channel Control: Channels 5–10 – fully assignable for custom mixing and switch/VR position changes
• Model Data Transfer: Wireless – enables sharing between Futaba 10J and 8J transmitters

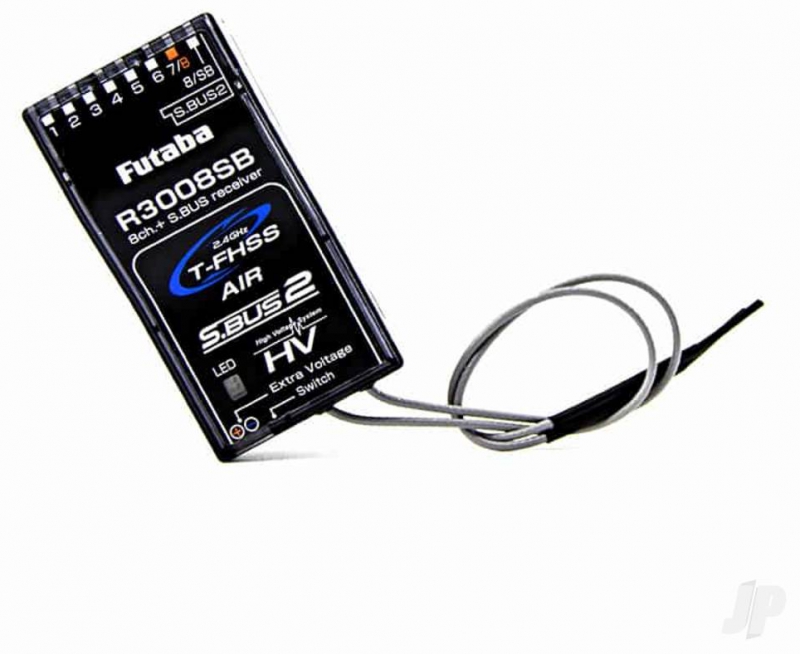

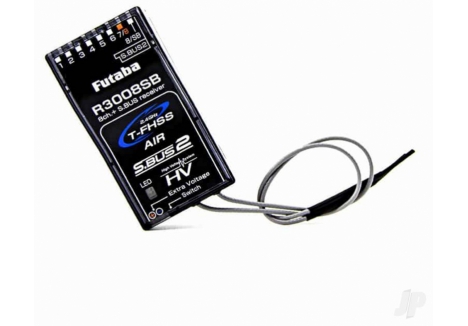

Receiver Specifications – R3008SB

• Receiver Model: R3008SB – included with transmitter for immediate pairing
• Channel Support: 8 PWM channels, up to 18 via S.Bus – flexible output for complex aircraft systems
• Protocol: T-FHSS Air – supports telemetry and S.Bus compatibility
• Voltage Range: Rated 4.8–7.4V, Operating 4.0–8.4V – accommodates standard and high-voltage setups
• Battery Terminal: EXT – supports external power input
• Fail Safe Function: Enabled – protects aircraft in signal loss scenarios

Compatible Receivers

• T-FHSS Air: R3001SB, R3004SB, R3006SB, R3008SB
• S-FHSS: R2001SB, R2008SB, R2006GF, R2106GF
• T-FHSS Mono: R3206SBM, R3106GF

Power Supply Options

• Standard Power: 4 × AA alkaline batteries – accessible and field-friendly
• Optional Batteries: HT5F1800B (NiMH 6.0V, 1800mAh), FT2F2100BV2 (LiFe 6.6V, 2100mAh) – extended runtime and rechargeable options

What’s in the Box

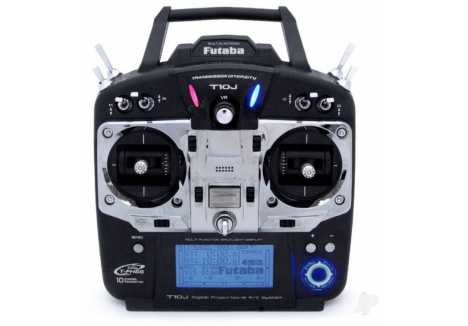

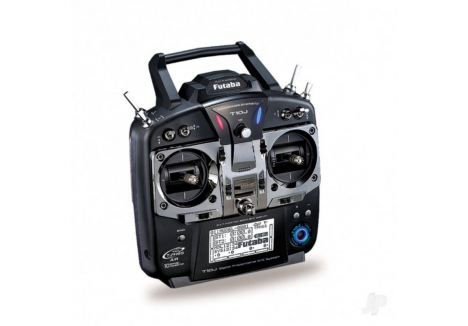

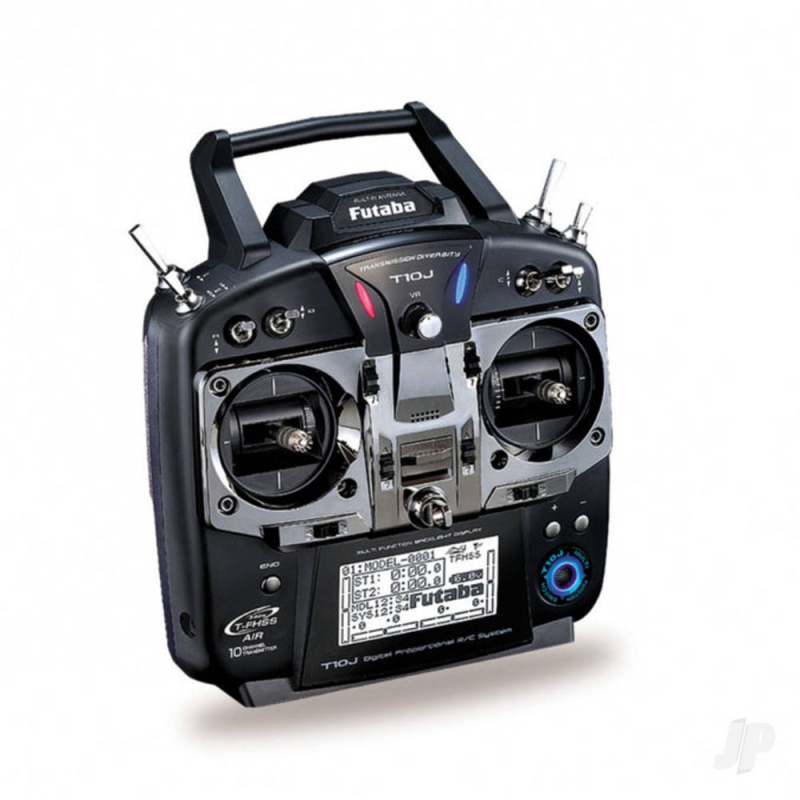

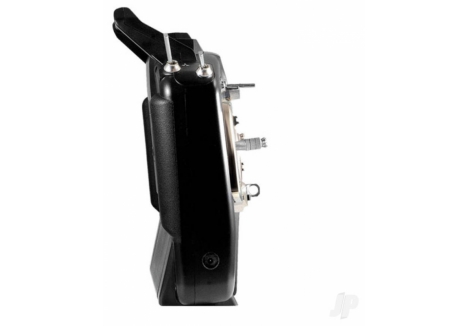

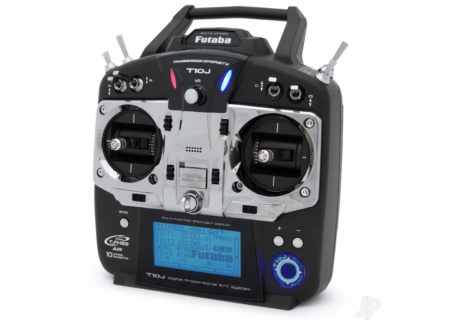

• 1 × Futaba T10J 10-channel transmitter
• 1 × Futaba R3008SB receiver
• 1 × Switch harness

What You Require

• 4 × AA batteries for transmitter operation
• Optional telemetry sensors for advanced data display
• Commercial earphones for speech output functionality

Product Description of Futaba FUT05003087-3 10J air radio Mode 1

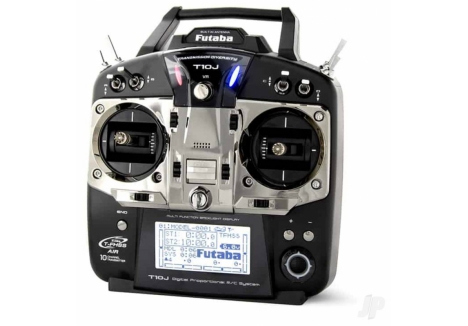

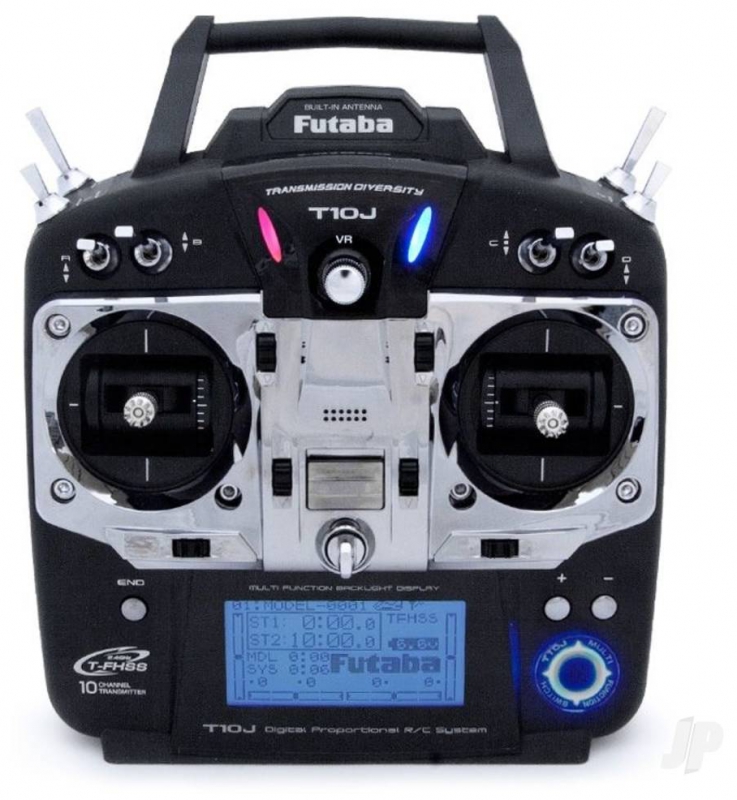

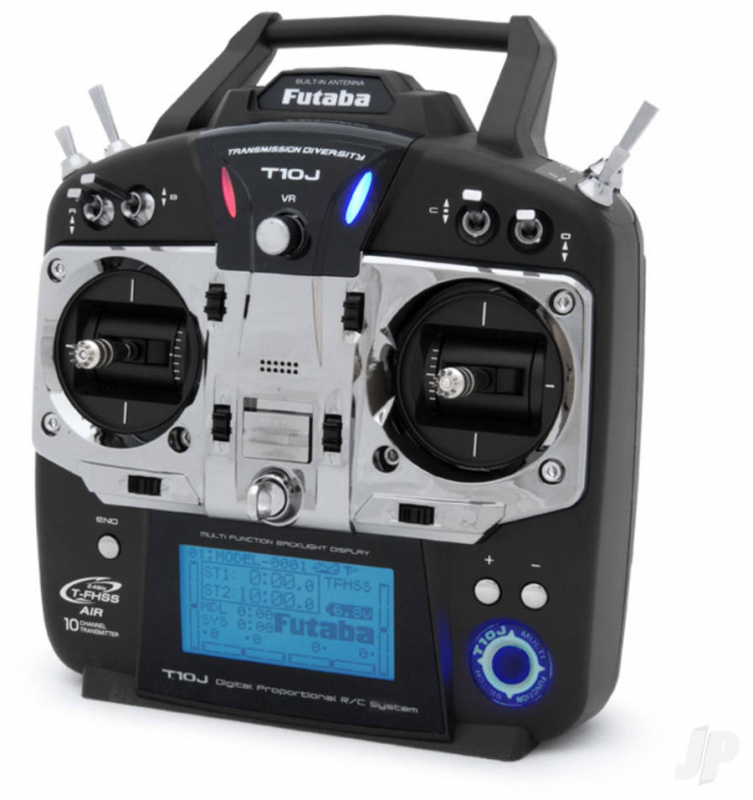

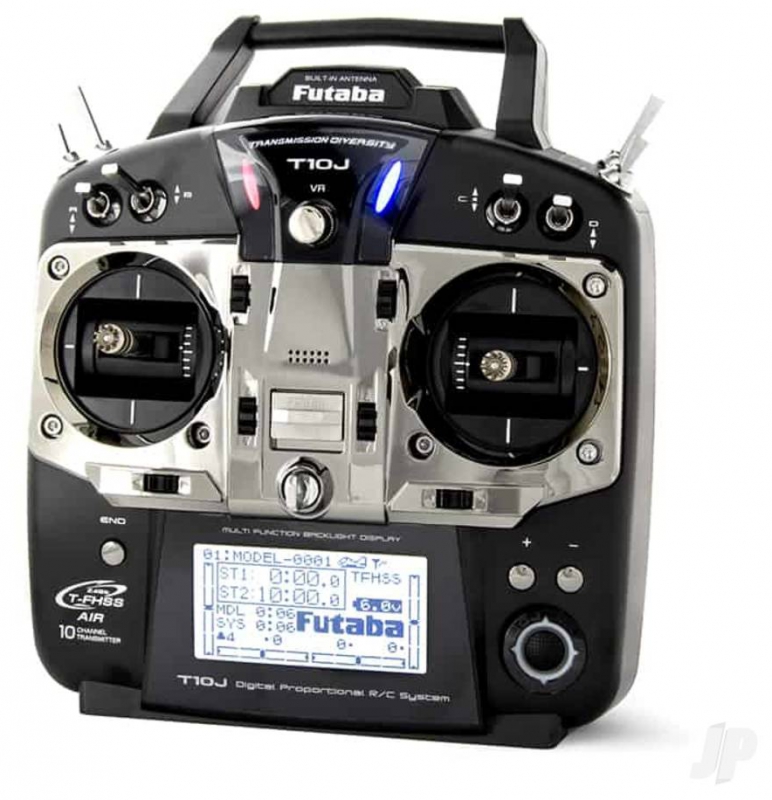

The Futaba FUT05003087-3 10J air radio Mode 1 is a high-performance 10-channel digital proportional transmitter engineered for aircraft pilots who demand precision, telemetry, and customization. Operating on Futaba’s T-FHSS Air protocol, this Mode 1 system (throttle on the right stick) delivers bidirectional telemetry, programmable mixing, and advanced model memory—all housed in a sleek black casing with a built-in diversity antenna for improved handling and signal reliability. Supplied with the R3008SB receiver, the system supports S.Bus and S.Bus2 compatibility, enabling flexible channel output and seamless integration with complex aircraft setups. Whether you're flying gliders, helicopters, or multicopters, the Futaba FUT05003087-3 10-channel transmitter with R3008SB provides the control fidelity and telemetry feedback needed for confident and informed flight.

Key features of the Futaba FUT05003087-3 10J air radio Mode 1

• Telemetry-enabled T-FHSS Air protocol – displays real-time flight data including voltage, altitude, and temperature
• Speech output function – allows telemetry feedback via earphones for hands-free monitoring
• 30-model memory – stores multiple aircraft profiles for quick setup and switching
• Programmable mixing and AUX channel control – supports custom flight configurations and switch assignments
• Vibration alerts – provides tactile feedback for alarms and status notifications
• Digital trim with LCD display – enables precise in-flight adjustments with visual and audible feedback
• R3008SB receiver with S.Bus compatibility – supports up to 18 channels and external battery input

How does the telemetry system improve flight awareness?

The integrated telemetry system in the Futaba FUT05003087-3 telemetry radio for aircraft provides real-time data feedback directly to the transmitter. Pilots can monitor battery voltage, altitude, speed, and temperature during flight, allowing for informed decision-making and safer operation. This data is displayed on the transmitter screen and can also be heard through commercial earphones using the speech output function. By installing optional telemetry sensors in the fuselage, users can expand the range of monitored parameters, making this system ideal for advanced aircraft setups and performance tracking.

Why is programmable mixing essential for aircraft versatility?

The Futaba 10J with programmable mixing and speech output supports both pre-programmed and user-defined mixing configurations. This flexibility allows pilots to tailor control responses to match the unique flight characteristics of gliders, helicopters, and multicopters. With eight swash plate types available for rotorcraft and full AUX channel reassignment (channels 5–10), users can create original mixing setups that go beyond standard presets. This capability is especially valuable for custom builds and competition-grade aircraft where precise control mapping is critical.

How does the R3008SB receiver enhance system integration?

The included Futaba FUT05003087-3 10-channel transmitter with R3008SB receiver is designed for high-performance aircraft requiring multiple channel outputs. Supporting up to 18 channels via S.Bus and 8 PWM outputs, the R3008SB enables seamless integration with servos, sensors, and flight controllers. Its EXT battery terminal and fail-safe function add layers of protection and reliability, while its compact size and lightweight design make it suitable for tight fuselage installations. Operating on the T-FHSS Air protocol, the receiver ensures stable communication and telemetry support throughout the flight.

What makes the 10J transmitter suitable for multi-model pilots?

The Futaba air transmitter with model memory and AUX channel control includes a 30-model memory system that allows pilots to store and switch between aircraft profiles with ease. This feature is particularly useful for users who operate multiple aircraft types, as it eliminates the need for repeated setup and calibration. Vibration alerts provide tactile feedback for alarms, ensuring that pilots remain aware of system status without needing to divert attention from flight. Combined with wireless model data transfer between 10J and 8J transmitters, this system streamlines fleet management and enhances operational efficiency.

How does the digital trim system improve flight control?

The digital trim system on the Futaba FUT05003087-3 10J air radio Mode 1 offers rapid in-flight adjustment with audible feedback and LCD display visibility. Pilots can fine-tune control surfaces with precision, and the trim step size can be customized to match sensitivity preferences. The sound changes at the center of trim, providing an intuitive cue for alignment. This system is especially beneficial during maiden flights or when adapting to changing wind conditions, allowing for real-time correction without interrupting control focus.

Why is the 10J Mode 1 transmitter ideal for advanced and recreational pilots?

The Futaba FUT05003087-3 10J air radio Mode 1 combines professional-grade features with user-friendly design, making it suitable for both seasoned pilots and hobbyists. Its support for multiple transmission protocols, extensive mixing options, and telemetry capabilities provide the tools needed for complex aircraft management. The Mode 1 configuration, vibration alerts, and ergonomic lever head design enhance usability, while the black finish adds a sleek, modern aesthetic. Whether you're flying for sport, competition, or exploration, this transmitter delivers the reliability and customization required for confident control.

For pilots seeking a telemetry-ready Mode 1 control system for air models, buy Futaba FUT05003087-3 with telemetry sensors and switch harness today.

Technical Specifications of Futaba FUT05003087-3 10J air radio Mode 1

Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05003087-3
• Product Type: Futaba FUT05003087-3 10J air radio Mode 1, Futaba FUT05003087-3 10-channel transmitter with R3008SB, Futaba FUT05003087-3 telemetry radio for aircraft, Futaba FUT05003087-3 with S.Bus and vibration alerts, Futaba air transmitter with model memory and AUX channel control
• Product Color: Black

Dimensions

• Transmitter Shipping Weight: 1.23 kg – balanced for handheld comfort and field portability
• Receiver Size: 2.49 cm × 4.73 cm × 1.43 cm – compact footprint for easy fuselage integration
• Receiver Weight: 10.1 g – lightweight for minimal impact on aircraft balance

Transmitter Specifications

• Channel Count: 10 – supports full control of gliders, helicopters, multicopters, and fixed-wing aircraft
• Transmission Protocols: T-FHSS Air (default), S-FHSS (switchable) – ensures compatibility across multiple receiver types
• Frequency Band: 2.4 GHz – optimized for interference-free signal transmission
• RF Power Output: 100mW EIRP – delivers strong and stable communication
• Mode: Mode 1 – throttle positioned on the right stick for alternative aircraft control preference
• Telemetry System: T-FHSS bidirectional – displays battery voltage, altitude, speed, and temperature when paired with optional sensors
• Speech Output: Enabled – telemetry data can be heard via commercial earphones
• Model Memory: 30 – stores multiple aircraft profiles for quick access and setup
• Mixing Types: Pre-programmed and programmable – supports fixed-wing, glider, helicopter, and multicopter configurations
• Swash Plate Options: 8 types – tailored for helicopter setup flexibility
• Digital Trim: LCD display with audible feedback – allows rapid in-flight adjustments with customizable step size
• Lever Head Design: Adjustable length and anti-slip shape – improves grip and control precision
• Vibration Alerts: Selectable – notifies operator of alarms through tactile feedback
• AUX Channel Control: Channels 5–10 – fully assignable for custom mixing and switch/VR position changes
• Model Data Transfer: Wireless – enables sharing between Futaba 10J and 8J transmitters

Receiver Specifications – R3008SB

• Receiver Model: R3008SB – included with transmitter for immediate pairing
• Channel Support: 8 PWM channels, up to 18 via S.Bus – flexible output for complex aircraft systems
• Protocol: T-FHSS Air – supports telemetry and S.Bus compatibility
• Voltage Range: Rated 4.8–7.4V, Operating 4.0–8.4V – accommodates standard and high-voltage setups
• Battery Terminal: EXT – supports external power input
• Fail Safe Function: Enabled – protects aircraft in signal loss scenarios

Compatible Receivers

• T-FHSS Air: R3001SB, R3004SB, R3006SB, R3008SB
• S-FHSS: R2001SB, R2008SB, R2006GF, R2106GF
• T-FHSS Mono: R3206SBM, R3106GF

Power Supply Options

• Standard Power: 4 × AA alkaline batteries – accessible and field-friendly
• Optional Batteries: HT5F1800B (NiMH 6.0V, 1800mAh), FT2F2100BV2 (LiFe 6.6V, 2100mAh) – extended runtime and rechargeable options

What’s in the Box

• 1 × Futaba T10J 10-channel transmitter
• 1 × Futaba R3008SB receiver
• 1 × Switch harness

What You Require

• 4 × AA batteries for transmitter operation
• Optional telemetry sensors for advanced data display
• Commercial earphones for speech output functionality
