FEATURES
- 2.4GHz T-FHSS telemetry system.
- S.Bus2 receiver.
- MC link function.
- Backlit 64x32mm LCD.
- Adjustable stick position.
- Mechanical ATL.
- Advanced Braking System.
- Throttle acceleration.
- Throttle speed.
- Steering speed.
- Programmable mixing.
- Brake mixing.
- Four wheel steer mixing.
- Dual ESC mixing.
- CPS-1 mixing.
- Gyro mixing.
- Fail-safe.
- 40 model memory.
- 10 character model name.
- Boat mode.
- Stick tension adjust.
- Timer up / down / lap.
CONTENTS
- 1x T4GRS 4-channel transmitter.
- 1x R304SB receiver.
- 1x Switch harness.
- 1x Comprehensive instruction manual.
NEEDED TO COMPLETE
- 4x AA batteries for the transmitter.
DETAILS
Futaba's mid range surface stick set has 4 channels, a 64x32mm backlit LCD, 40 model memories and, of course, Futaba s renowned telemetry system, which is crucial for honing the performance of your car ready for racing. Packed with features that are ideal for competition use, for both cars and boats, the T4GRS incorporates FHSS/S-FHSS and T-FHSS transmission modes and a supreme 4.4ms response speed.
Telemetry functions
- Receiver battery voltage
- Temperature
- RPM
- External voltage
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003095-3
- Product Type: Futaba FUT05003095-3 T4GRS surface radio with receiver, Futaba FUT05003095-3 4-channel telemetry transmitter, Futaba FUT05003095-3 twin stick radio for cars and boats, Futaba FUT05003095-3 with LCD screen and MC link function, Futaba T4GRS with brake mixing and 4WS support
- Product Color: Black
Dimensions
- Product Height: 19.5 cm – designed for ergonomic grip and visibility during operation
- Product Width: 5.5 cm (excluding handle) – compact for handheld control and portability
- Product Length: 18 cm – balanced for stable handling across surface platforms
- Product Weight: 556 g – lightweight for fatigue-free use during extended sessions
- Shipping Weight: 1.03 kg – includes transmitter, receiver, and accessories
Transmitter Specifications
- Channel Count: 4 – supports multi-function control for surface vehicles
- Radio Protocols: T-FHSS and S-FHSS – ensures secure, interference-free communication
- Telemetry System: T-FHSS bidirectional – displays receiver battery voltage, temperature, RPM, and external voltage
- LCD Screen: Backlit 64×32 mm – provides clear visibility of telemetry and menu settings
- Model Memory: 40 – stores detailed profiles with 10-character naming and copy functions
- Programmable Mixing: Enabled – supports custom control logic across multiple functions
- Brake Mixing: Adjustable – independent front/rear brake control for large cars
- 4WS Mixing: Supported – enables synchronized or opposing steering for crawlers
- Dual ESC Mixing: Available – controls front and rear ESCs independently
- Gyro Mixing: Sensitivity adjustable – integrates with Futaba car rate gyros
- CPS-1 Mixing: LED control via CPS-1 switch – synchronizes lighting with throttle and steering
- Throttle Acceleration: Reduces clutch/brake lag – improves responsiveness in gas-powered cars
- Throttle Speed: Smooths input – prevents wheel spin and reduces battery consumption
- Steering Speed: Adjustable – fine-tunes servo response for better handling
- Digital Trim: LCD-displayed – step size and direction fully configurable
- Lap Timer: Records up to 100 laps – includes race time, alarms, and auto-start trigger
- Function Select Switch: Assignable – supports digital trim and dial customization
- MC Link Function: ESC tuning interface – compatible with MC950CR, MC850C, MC602C, and others
- Stick Tension Adjustment: Internal – customizes spring resistance for throttle and steering
- Mechanical ATL Adjustment: Configurable – limits throttle/brake travel as needed
- Display Switch: Allows setup without transmission – ideal for pre-race configuration
Receiver Specifications – R304SB
- Receiver Model: R304SB – supplied with transmitter for immediate pairing
- Protocol: T-FHSS – supports telemetry and S.Bus2 compatibility

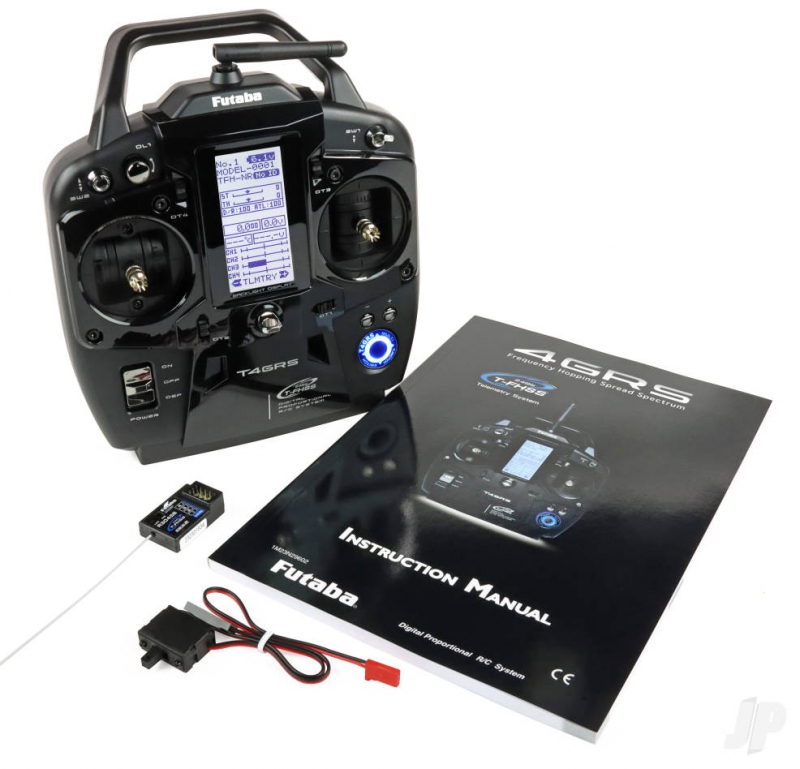

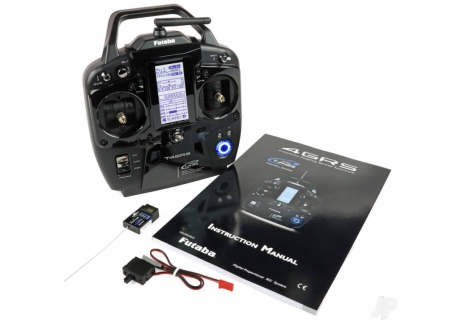

What’s in the Box
- 1 × Futaba T4GRS 4-channel transmitter
- 1 × Futaba R304SB receiver
- 1 × Switch harness
- 1 × Comprehensive instruction manual
What You Require
- 4 × AA batteries for transmitter operation
- Optional telemetry sensors for expanded data monitoring

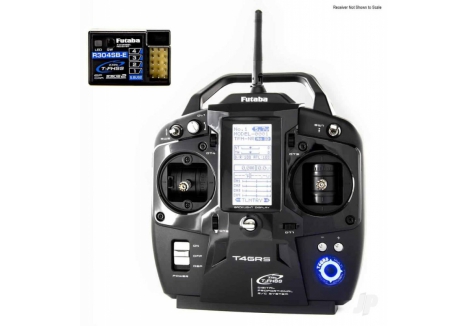

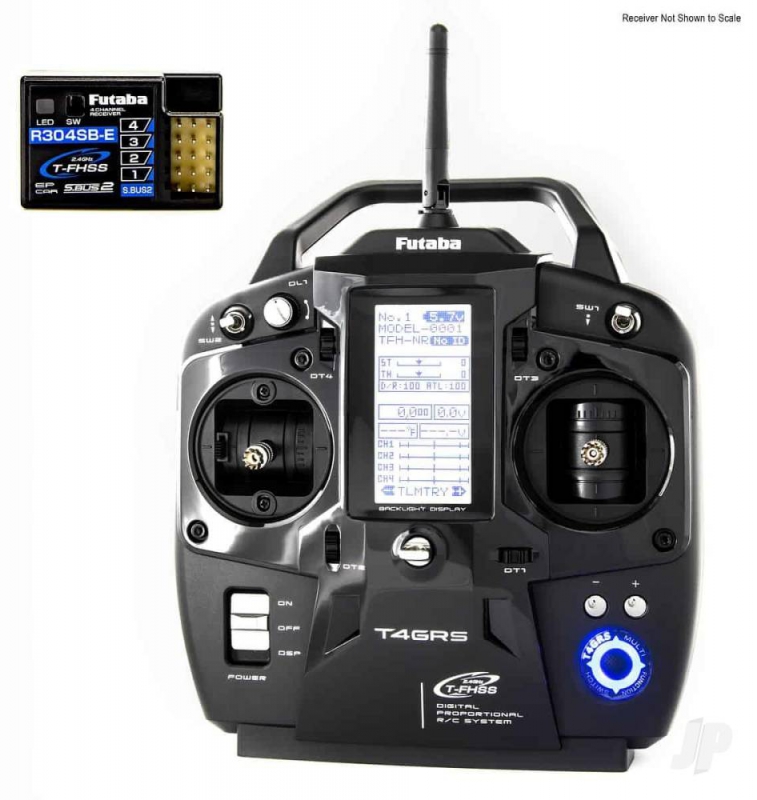

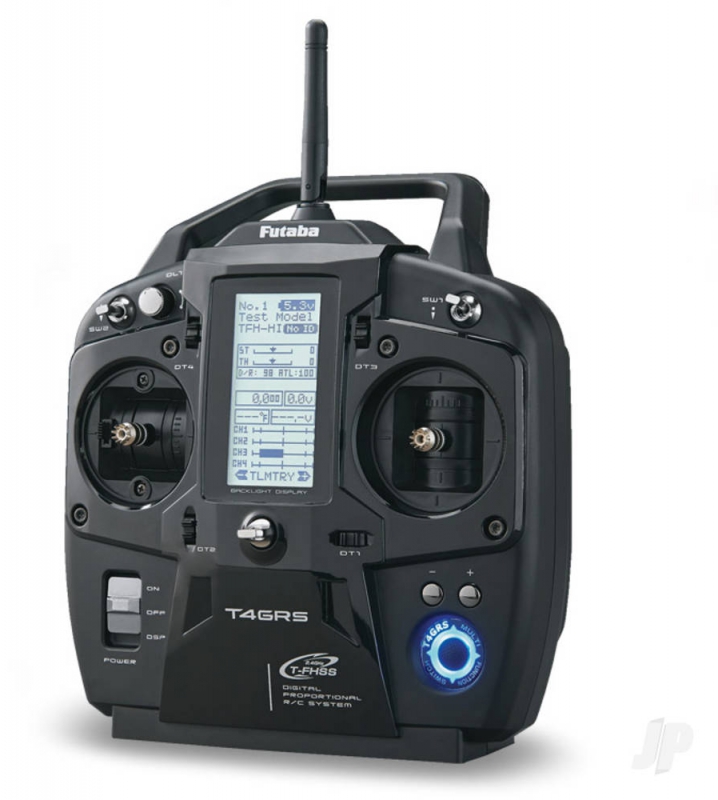

Product Description of Futaba FUT05003095-3 T4GRS surface radio
The Futaba FUT05003095-3 T4GRS surface radio with receiver is a competition-grade 4-channel twin stick transmitter engineered for serious RC drivers who demand precision, telemetry, and advanced control logic. Designed for both cars and boats, this mid-range system integrates Futaba’s T-FHSS telemetry protocol with a 64×32mm backlit LCD screen, delivering real-time data and intuitive menu navigation. Supplied with the R304SB receiver, the system supports S.Bus2 compatibility and a wide array of programmable mixing options tailored for large-scale vehicles, crawlers, and multi-ESC setups. Whether you're tuning throttle response or configuring LED lighting via CPS-1, the Futaba FUT05003095-3 4-channel telemetry transmitter offers the depth and flexibility needed to dominate competitive environments.
Key features of the Futaba FUT05003095-3 T4GRS surface radio with receiver
- Telemetry-enabled T-FHSS protocol – displays battery voltage, temperature, RPM, and external voltage
- MC Link function – enables ESC parameter tuning directly from the transmitter
- Brake mixing and 4WS support – ideal for large cars and crawlers requiring independent control
- CPS-1 mixing – synchronizes LED lighting with throttle and steering inputs
- Stick tension adjust – customizes spring resistance for throttle and steering sticks
- Lap timer and race alarms – records up to 100 laps with audible alerts for refueling and race time
- 40-model memory – stores detailed profiles with customizable naming and copy functions
How does the telemetry system enhance surface vehicle performance?
The integrated telemetry system in the Futaba FUT05003095-3 twin stick radio for cars and boats provides real-time feedback on critical performance metrics. Drivers can monitor receiver battery voltage, motor temperature, RPM, and external voltage directly from the transmitter’s LCD screen. This data enables precise tuning and early fault detection, especially during competitive runs. The telemetry protocol operates on Futaba’s T-FHSS system, ensuring stable bidirectional communication without interference from other 2.4GHz devices. For racers and scale builders alike, telemetry transforms the transmitter into a diagnostic and performance optimization tool.
Why is MC Link functionality important for ESC tuning?
The Futaba FUT05003095-3 with LCD screen and MC Link function allows direct access to ESC parameters via supported Futaba speed controllers. This feature enables drivers to adjust frequency, throttle curves, and braking profiles without needing a separate programming card or PC interface. Compatible with models such as MC950CR, MC850C, and MC602C, MC Link streamlines setup and ensures that ESC behavior matches the demands of the vehicle and track conditions. This integration is especially valuable for competitive drivers who need rapid adjustments between heats or terrain changes.
How does brake mixing and 4WS support improve control?
The Futaba T4GRS with brake mixing and 4WS support includes advanced mixing functions tailored for large-scale and crawler vehicles. Brake mixing allows independent adjustment of front and rear braking force, critical for 1/5 gas-powered cars and heavy platforms. Four-wheel steering (4WS) mixing enables synchronized or opposing steering control for crawlers, enhancing maneuverability over technical terrain. Dual ESC mixing further expands control by allowing separate throttle inputs for front and rear motors. These features give drivers granular control over vehicle dynamics, improving handling and responsiveness across diverse applications.
What makes CPS-1 mixing ideal for scale realism?
The Futaba surface radio with CPS-1 mixing and stick tension adjust supports LED lighting control via Futaba’s CPS-1 channel power switch. This function allows lights to respond to throttle and steering inputs, creating dynamic visual effects such as brake lights, turn signals, and flashing modes. Controlled by switch-only input, CPS-1 mixing adds realism and customization to scale builds. Combined with programmable mixing and digital trim, this feature enables users to create highly personalized setups that reflect both performance and aesthetic goals.
How does the lap timer and model memory benefit competitive drivers?
The built-in lap timer on the Futaba FUT05003095-3 T4GRS surface radio with receiver can record up to 100 laps and total race time, with automatic start triggered by throttle input. Audible alarms notify drivers of refueling intervals and race completion, helping maintain focus during timed events. The 40-model memory allows users to store detailed configurations for multiple vehicles, each with a 10-character name and copy function for quick duplication. These features streamline race preparation and ensure consistent performance across sessions.
Why is the T4GRS transmitter ideal for advanced surface applications?
The Futaba FUT05003095-3 4-channel telemetry transmitter combines competition-grade responsiveness with extensive customization. Its 4.4ms response speed ensures immediate input execution, while features like throttle acceleration, steering speed adjustment, and anti-skid braking enhance control on slippery surfaces. The digital trim system, mechanical ATL adjustment, and stick tension tuning allow users to tailor the feel of the transmitter to their driving style. Whether you're racing large-scale gas cars or navigating technical crawler courses, the T4GRS delivers the precision and adaptability required for high-level performance.
For drivers seeking a telemetry-equipped twin stick system with advanced mixing and race-ready features, buy Futaba FUT05003095-3 with R304SB Rx and telemetry sensors today.
Technical Specifications of Futaba FUT05003095-3 T4GRS surface radio
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003095-3
- Product Type: Futaba FUT05003095-3 T4GRS surface radio with receiver, Futaba FUT05003095-3 4-channel telemetry transmitter, Futaba FUT05003095-3 twin stick radio for cars and boats, Futaba FUT05003095-3 with LCD screen and MC link function, Futaba T4GRS with brake mixing and 4WS support
- Product Color: Black
Dimensions
- Product Height: 19.5 cm – designed for ergonomic grip and visibility during operation
- Product Width: 5.5 cm (excluding handle) – compact for handheld control and portability
- Product Length: 18 cm – balanced for stable handling across surface platforms
- Product Weight: 556 g – lightweight for fatigue-free use during extended sessions
- Shipping Weight: 1.03 kg – includes transmitter, receiver, and accessories
Transmitter Specifications
- Channel Count: 4 – supports multi-function control for surface vehicles
- Radio Protocols: T-FHSS and S-FHSS – ensures secure, interference-free communication
- Telemetry System: T-FHSS bidirectional – displays receiver battery voltage, temperature, RPM, and external voltage
- LCD Screen: Backlit 64×32 mm – provides clear visibility of telemetry and menu settings
- Model Memory: 40 – stores detailed profiles with 10-character naming and copy functions
- Programmable Mixing: Enabled – supports custom control logic across multiple functions
- Brake Mixing: Adjustable – independent front/rear brake control for large cars
- 4WS Mixing: Supported – enables synchronized or opposing steering for crawlers
- Dual ESC Mixing: Available – controls front and rear ESCs independently
- Gyro Mixing: Sensitivity adjustable – integrates with Futaba car rate gyros
- CPS-1 Mixing: LED control via CPS-1 switch – synchronizes lighting with throttle and steering
- Throttle Acceleration: Reduces clutch/brake lag – improves responsiveness in gas-powered cars
- Throttle Speed: Smooths input – prevents wheel spin and reduces battery consumption
- Steering Speed: Adjustable – fine-tunes servo response for better handling
- Digital Trim: LCD-displayed – step size and direction fully configurable
- Lap Timer: Records up to 100 laps – includes race time, alarms, and auto-start trigger
- Function Select Switch: Assignable – supports digital trim and dial customization
- MC Link Function: ESC tuning interface – compatible with MC950CR, MC850C, MC602C, and others
- Stick Tension Adjustment: Internal – customizes spring resistance for throttle and steering
- Mechanical ATL Adjustment: Configurable – limits throttle/brake travel as needed
- Display Switch: Allows setup without transmission – ideal for pre-race configuration
Receiver Specifications – R304SB
- Receiver Model: R304SB – supplied with transmitter for immediate pairing
- Protocol: T-FHSS – supports telemetry and S.Bus2 compatibility
What’s in the Box
- 1 × Futaba T4GRS 4-channel transmitter
- 1 × Futaba R304SB receiver
- 1 × Switch harness
- 1 × Comprehensive instruction manual
What You Require
- 4 × AA batteries for transmitter operation
- Optional telemetry sensors for expanded data monitoring
