FEATURES
- S-FHSS & T-FHSS protocols.

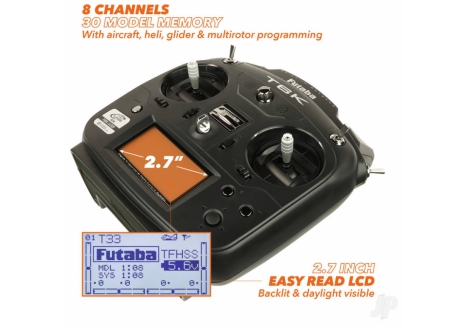

- 8 channels.
- 30 model memory.

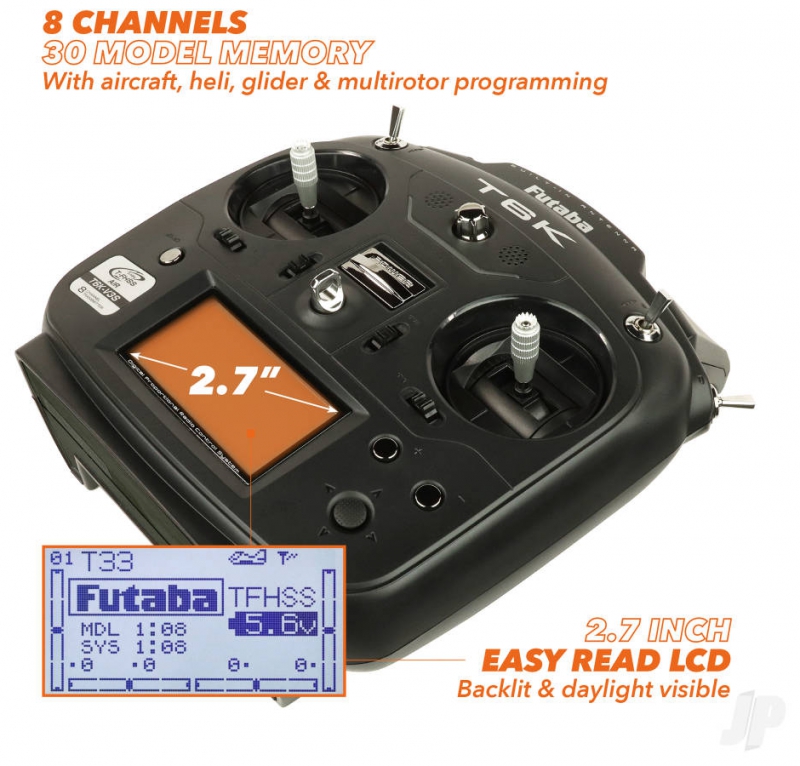

- Backlit LCD with contrast adjust.
- 8-character model name.

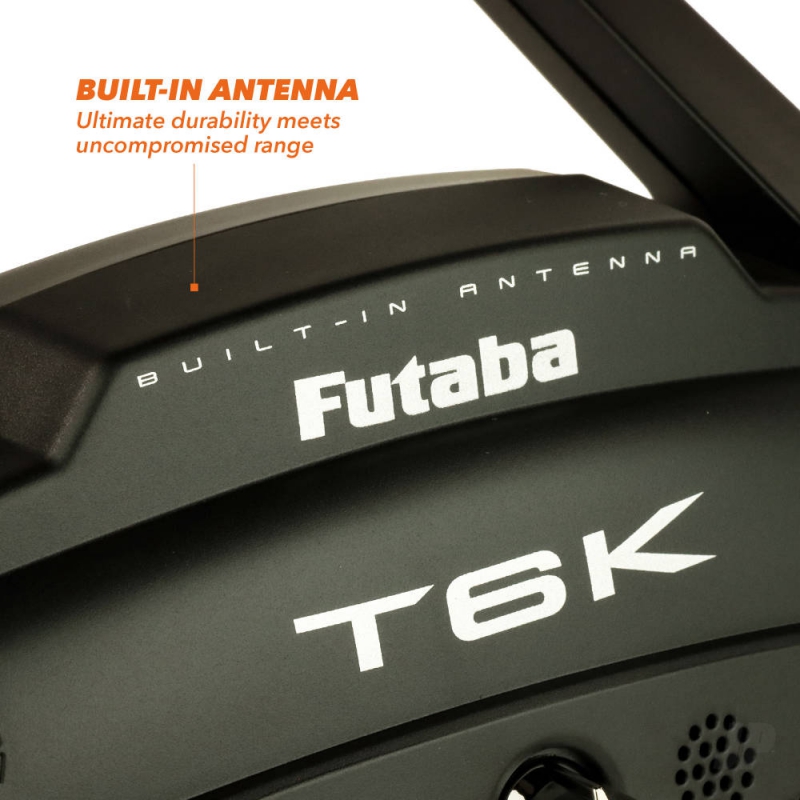

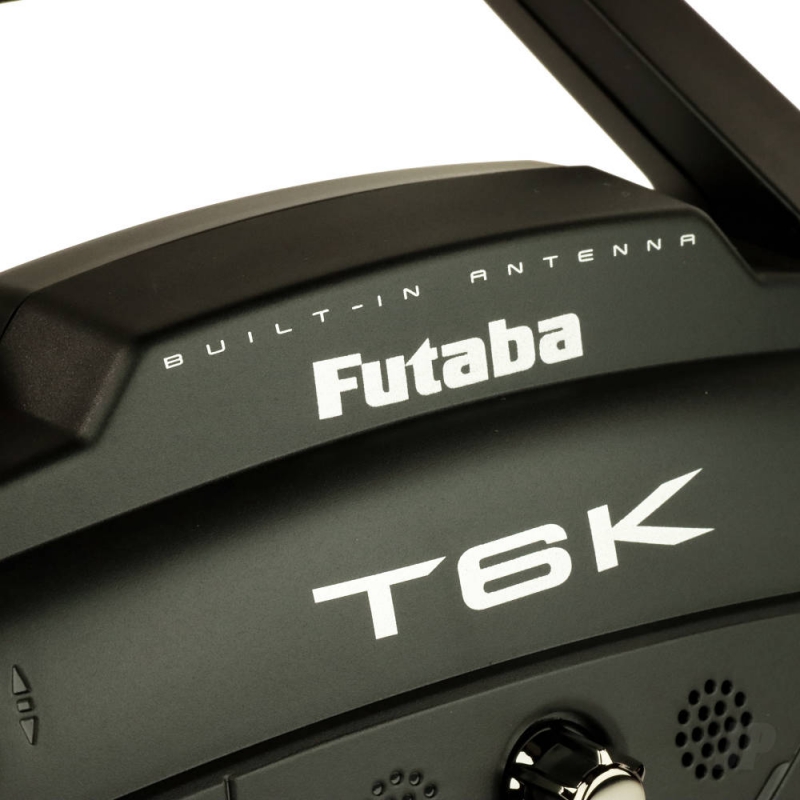

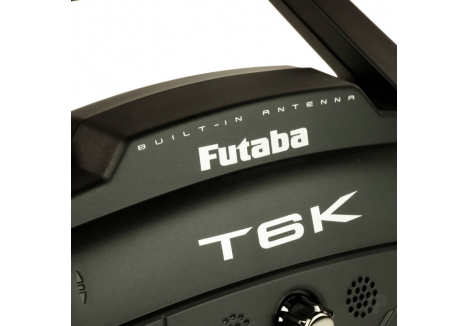

- Built-in antenna.
- Aircraft, glider, helicopter & multirotor programming.
- Vibration alert.
- Telemetry system.
- Earphone jack.
- Software updatable via CIU-3 interface.
- Suits 4x AA dry cells or NiMH / LiFe packs.
- S.Bus / S.Bus2 servo setting via Tx.
- Trainer system.
- Throttle position warning.
- Free programmable mixers.
- 5 fixed-wing types.
- 2 fixed-wing tail types.
- 6 helicopter swash types.
- Supports 5 telemetry sensor types.

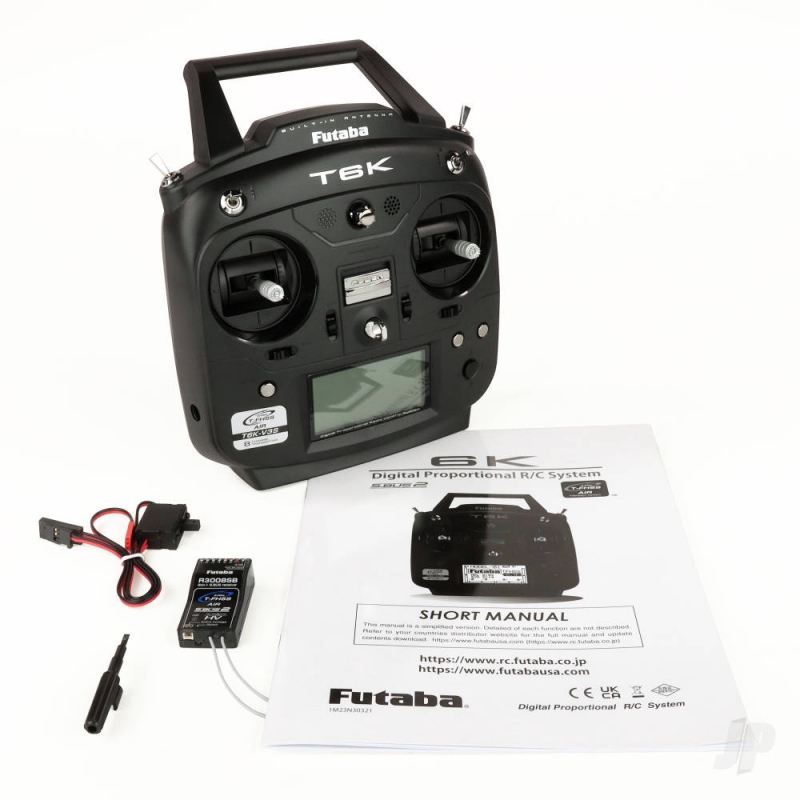

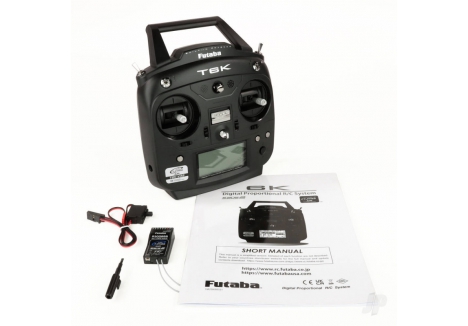

CONTENTS

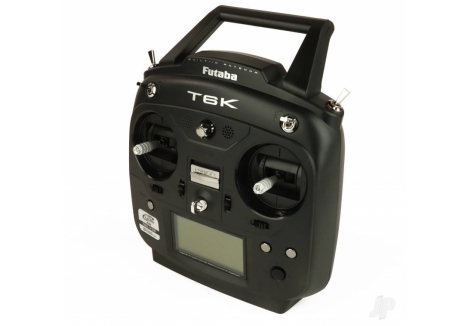

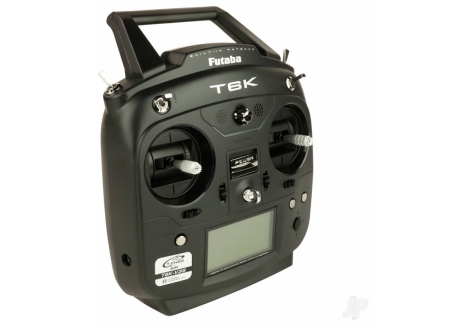

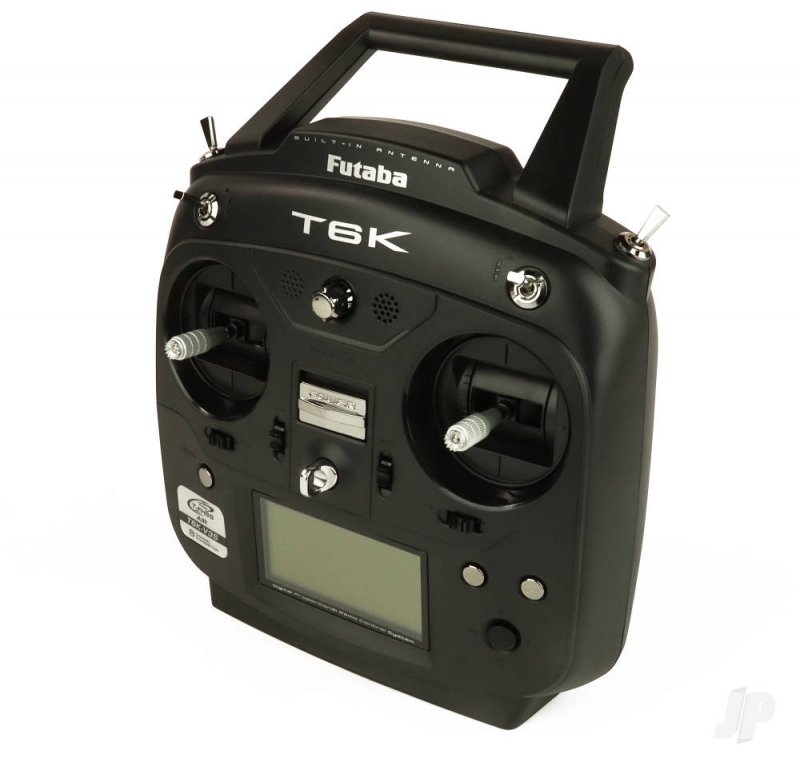

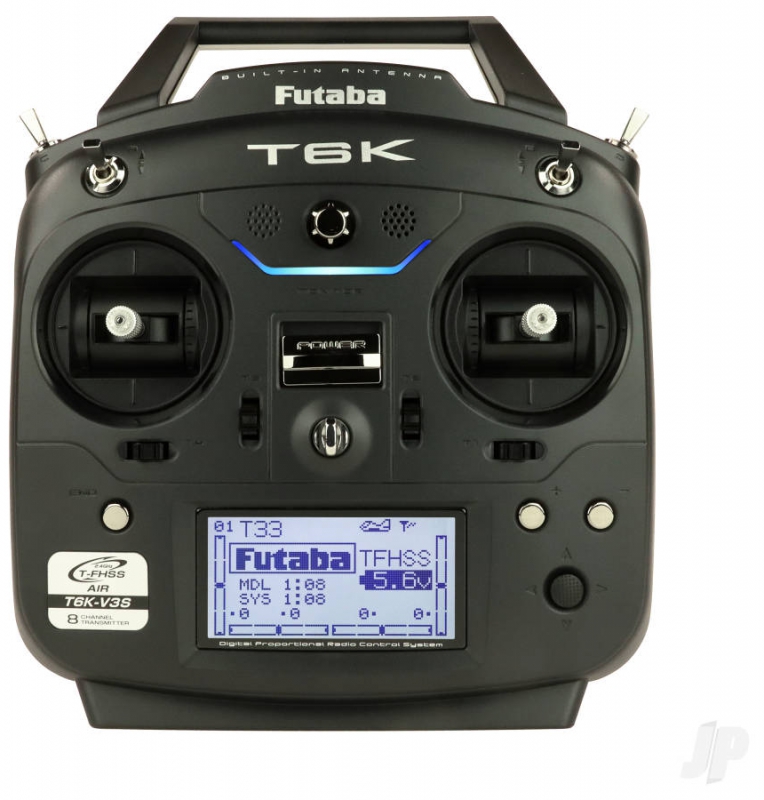

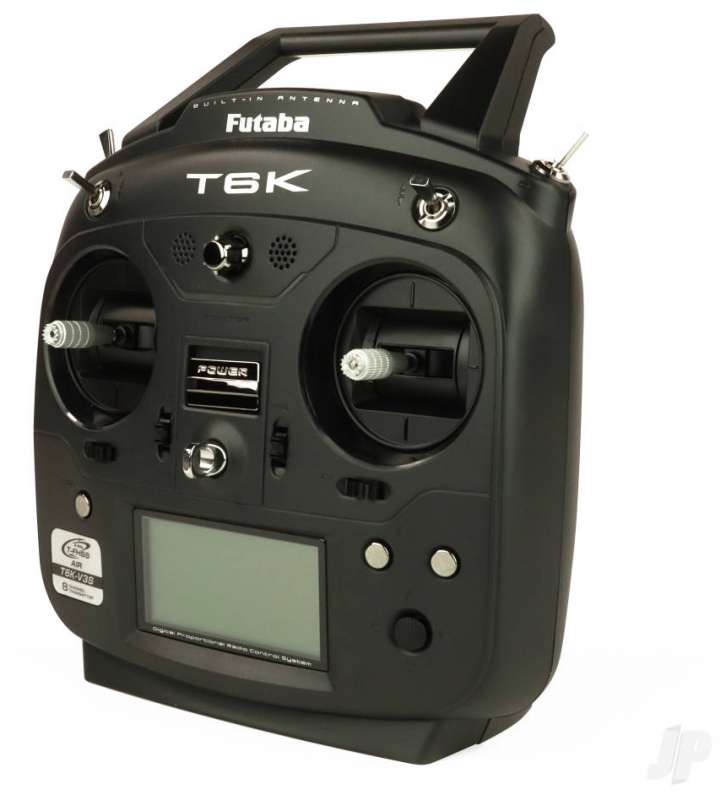

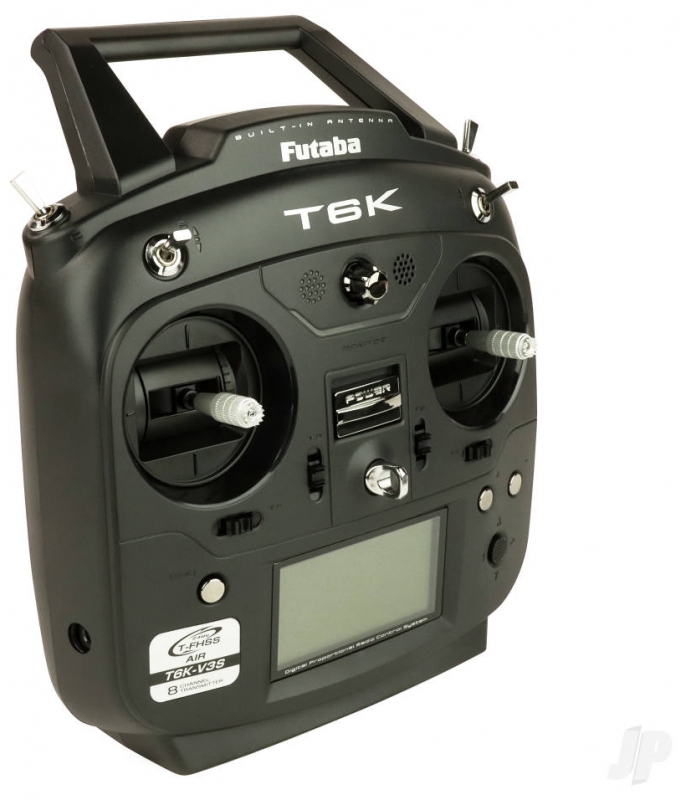

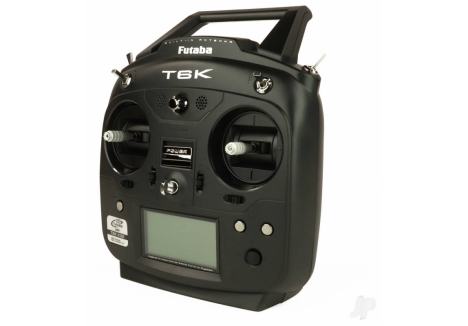

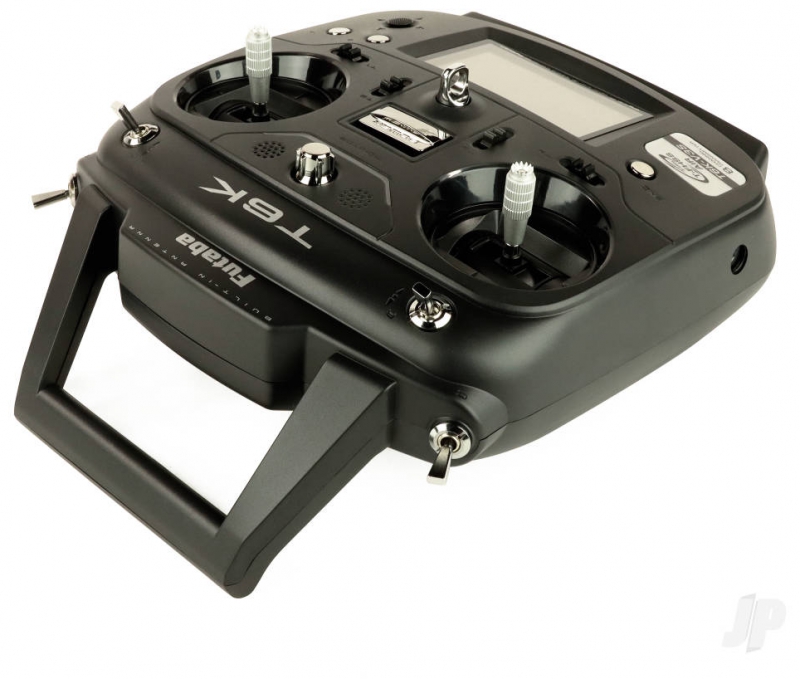

- 1x T6K-V3S 8-channel transmitter.

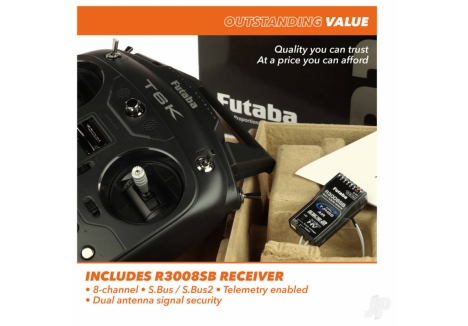

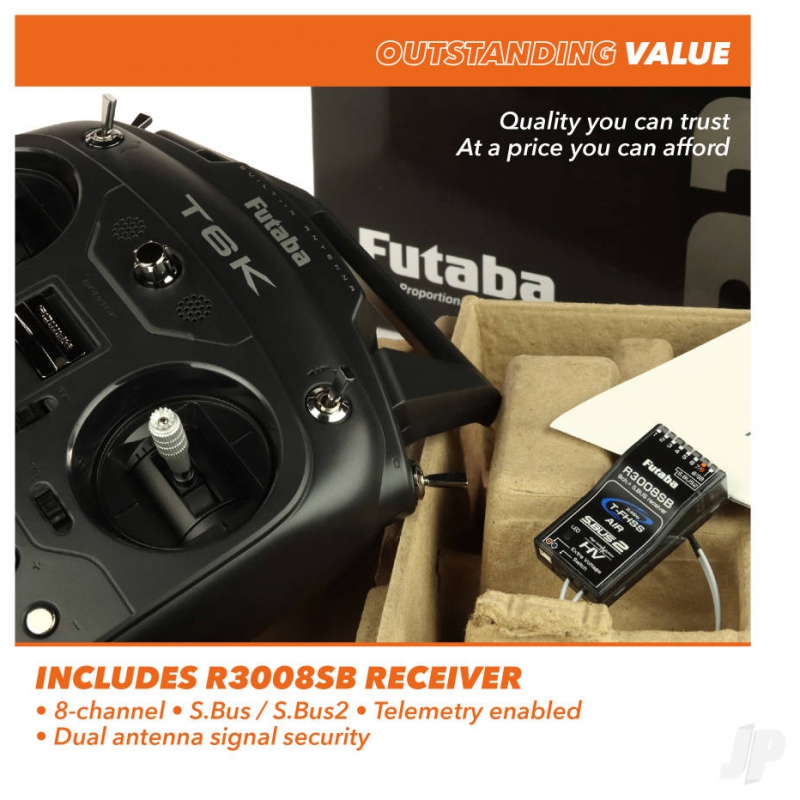

- 1x R3008SB 8-ch S.Bus Rx.
- 1x Switch harness.
- 1x Screwdriver.
- 1x Short manual (full manual download).
NEEDED TO COMPLETE
- 4x AA batteries for the transmitter.
DETAILS
Don't be fooled by the name or the price, the T6K is, in fact, a very capable, telemetry and S.Bus enabled 8-channel, 30 model memory computer radio. Perfect for beginners, returning modellers or those who want a solid second radio as a back-up or rainy day set, this is a winner. With a full 8-channels and a powerful programming feature-set across all four aircraft types (fixed-wing power, gliders, helicopters and multirotors) it s perfect for any number of trainers, sport aerobats, gliders, helis, foamy warbirds, edf jets and much, much more. Designed to sit very comfortably in the hands and with ultra-intuitive programming, the T6K is a transmitter you'll immediately feel at home with and grow to love for its unpretentious functionality, bullet-proof radio link and sheer ease of use
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

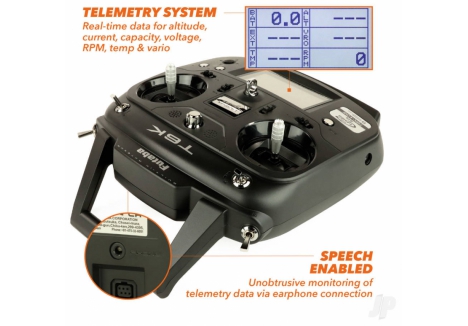

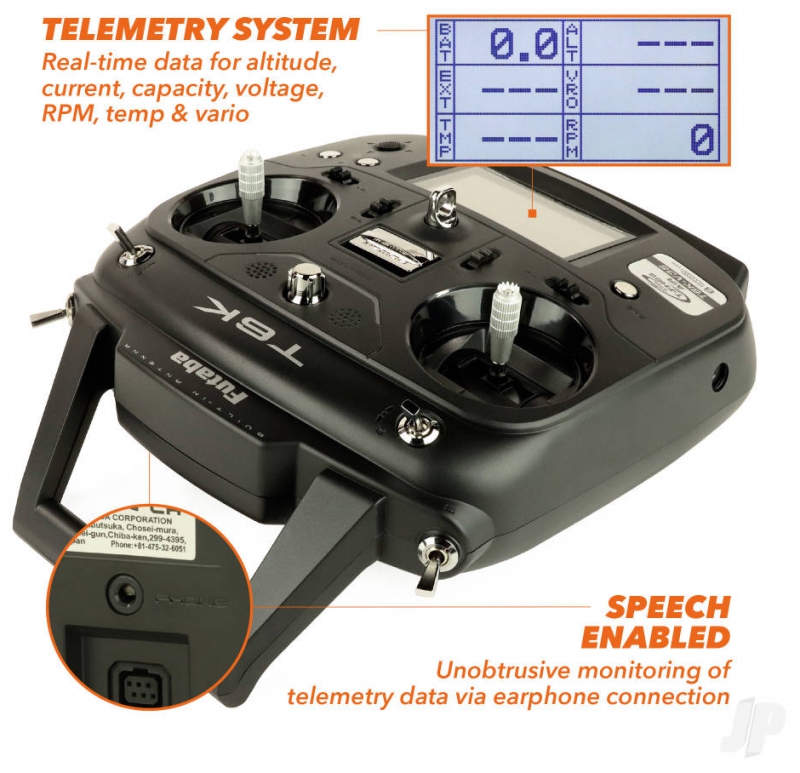

TELEMETRY SYSTEM
The voltage of the on-board battery is displayed on screen during flight whilst altitude, temperature, RPM, current and voltage can also be displayed by installing optional telemetry sensors.
SPEECH
Voiced telemetry data can be heard by plugging commercial earphones into the transmitter.
SOFTWARE UPDATES
Software updates can be made using the CIU-3 USB interface (sold separately).
VIBRATION ALERT
The operator can be notified of selected warnings by vibrating the transmitter.

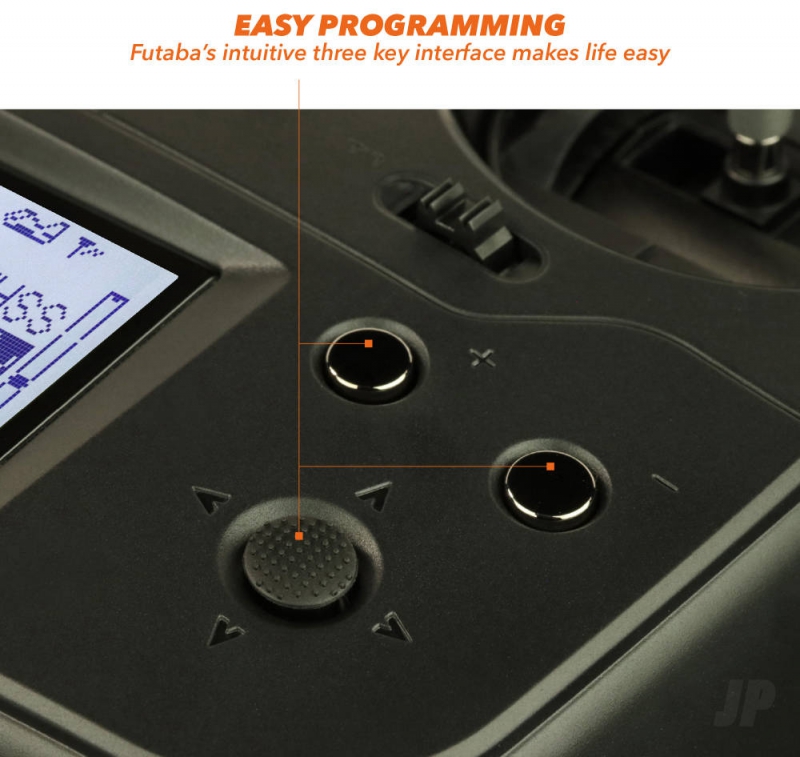

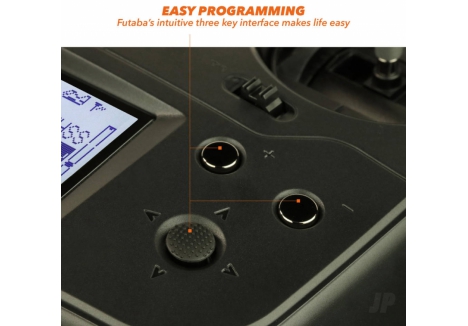

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

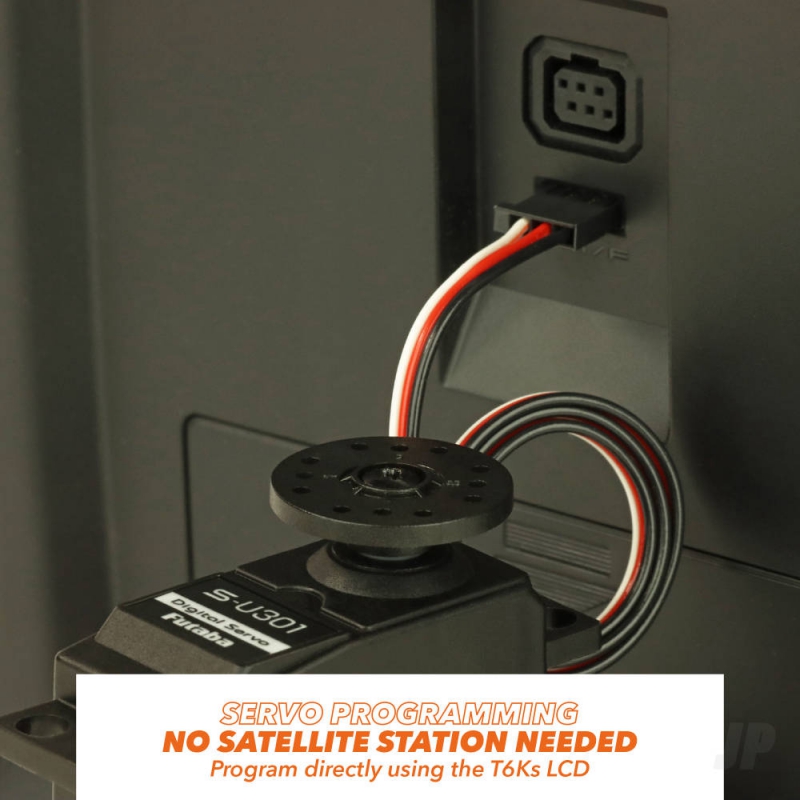

S.BUS / S.BUS2 DEVICE SETTING

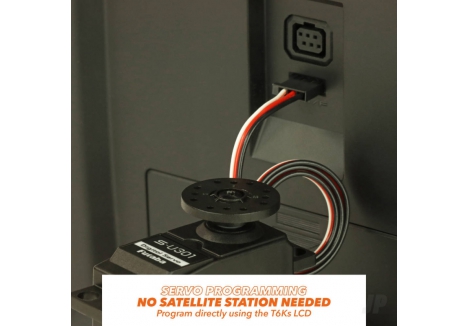

Servos or a telemetry sensor can be connected directly to the T6K where channel setting and other data can be entered for S.BUS / S.BUS2 servos or sensors.
DIGITAL TRIMS
Rapid trimming during flight is possible with an audible indication of the centre point. The step size can also be arbitrarily changed with trim position displayed on the LCD.
Key Programming Features
For full list see manual
- Model name (8 characters)
- Sub trim
- Servo reverse
- Fail-safe
- Exponential
- Throttle cut
- End point / ATV (30 - 140%)
- Trainer function
- Idle down
- Servo monitor
- Trim setting
- AUX channel
- Programmable mixers
- Pre-programmed mixers
- Elevator to flap
- Flap to elevator
- Elevon
- Aileron differential
- Air brake
- Motor switch
- Butterfly
- Camber mix
- Elevator to camber
- Aileron to camber
- V-tail
- Twin timers
- Stick alarm
- Gyro sensor
- AFR (dual rate)
- Acceleration mixing
- Swash mixing
- Governor gain
- Pitch curve
- Throttle curve
- Revolution mixing
- Throttle hold
- Hover throttle
- Hover pitch
- Throttle cut
- Trim offset
- Swash setting
- Swash AFR
- Delay
Telemetry functions
- Temperature
- RPM
- Altitude
- Voltage
- Receiver battery
- Current
- Capacity
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003171-3
- Product Type: Futaba FUT05003171-3 T6K-V3S air radio Mode 2, Futaba FUT05003171-3 8-channel transmitter with R3008SB, Futaba FUT05003171-3 telemetry radio with S.Bus2 support, Futaba FUT05003171-3 with vibration alert and earphone jack, Futaba air transmitter with LCD screen and trainer system
- Product Color: Black
Dimensions
- Transmitter Shipping Weight: 1.14 kg – includes transmitter, receiver, harness, screwdriver, and manual
Transmitter Specifications
- Channel Count: 8 – supports full control of gliders, helicopters, multirotors, and fixed-wing aircraft
- Radio Protocols: T-FHSS Air and S-FHSS Air – ensures secure, interference-free communication with telemetry support
- Frequency Band: 2.4 GHz – optimized for stable signal transmission
- Telemetry System: Enabled – displays receiver battery voltage, altitude, RPM, temperature, current, and capacity
- S.Bus2 Compatibility: Supported – allows multi-servo and sensor integration with minimal wiring
- Model Memory: 30 – stores multiple aircraft profiles with 8-character naming
- LCD Screen: Backlit with contrast adjustment – provides clear visibility of telemetry and menu settings
- Digital Trims: Audible feedback with adjustable step size – trim position displayed on screen
- Programmable Mixers: Available – supports custom control logic across all model types
- Swash Presets: 6 helicopter swash types – simplifies rotorcraft setup
- Fixed-Wing Presets: 5 wing types and 2 tail types – tailored for gliders and airplanes
- Trainer System: Enabled – supports dual-control setups for instructional use
- Vibration Alert: Selectable – provides tactile feedback for alarms and warnings
- Earphone Jack: Integrated – allows voiced telemetry data via commercial earphones
- Software Updates: Supported via CIU-3 USB interface (sold separately)
- Power Supply: Compatible with 4 × AA dry cells, NiMH, or LiFe packs
- Throttle Position Warning: Enabled – alerts user if throttle is not at idle during power-on

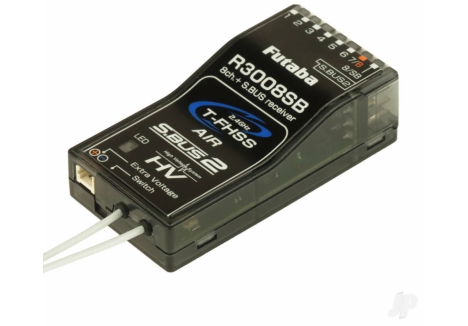

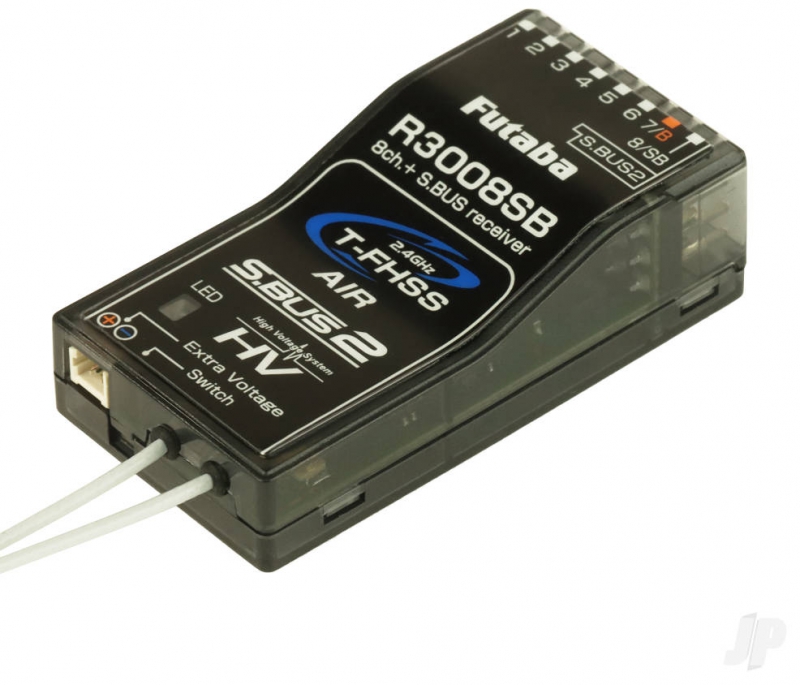

Receiver Specifications – R3008SB
- Receiver Model: R3008SB – supplied with transmitter for immediate pairing
- Channel Support: 8 channels – supports S.Bus and S.Bus2 device integration
What’s in the Box
- 1 × Futaba T6K-V3S 8-channel transmitter
- 1 × Futaba R3008SB receiver
- 1 × Switch harness
- 1 × Screwdriver
- 1 × Short manual (full manual available for download)
What You Require
- 4 × AA batteries or compatible NiMH/LiFe pack for transmitter operation
- Optional telemetry sensors for expanded data monitoring
- CIU-3 USB interface for software updates (sold separately)
- Commercial earphones for voiced telemetry output
Product Description of Futaba FUT05003171-3 T6K-V3S air radio Mode 2
The Futaba FUT05003171-3 T6K-V3S air radio Mode 2 is a feature-rich 8-channel transmitter designed for pilots who want reliable telemetry, intuitive programming, and broad model compatibility. Operating on Futaba’s T-FHSS and S-FHSS protocols, this Mode 2 system (throttle on the left stick) delivers real-time telemetry, S.Bus2 support, and programmable mixers across aircraft, gliders, helicopters, and multirotors. Supplied with the R3008SB receiver, the system supports up to 8 channels and integrates seamlessly with Futaba’s telemetry sensors. With a backlit LCD screen, digital trims, and a trainer system, the Futaba FUT05003171-3 8-channel transmitter with R3008SB offers precision and flexibility for both newcomers and experienced pilots.
Key features of the Futaba FUT05003171-3 T6K-V3S air radio Mode 2
- Telemetry-enabled T-FHSS protocol – displays battery voltage, altitude, RPM, temperature, and current
- S.Bus2 support – simplifies wiring and expands sensor and servo integration
- Programmable mixers and swash presets – supports fixed-wing, glider, helicopter, and multirotor configurations
- Vibration alert and earphone jack – provides tactile and audible feedback for telemetry alarms
- LCD screen and trainer system – enables clear navigation and dual-control training setups
- 30-model memory – stores multiple aircraft profiles with customizable naming
How does the telemetry system enhance flight monitoring?
The integrated telemetry system in the Futaba FUT05003171-3 telemetry radio with S.Bus2 support provides real-time feedback on critical flight data. Pilots can monitor receiver battery voltage, altitude, RPM, temperature, and current directly from the transmitter’s LCD screen. With support for five telemetry sensor types, the system ensures accurate diagnostics and performance tracking. The telemetry protocol operates on Futaba’s T-FHSS standard, offering stable bidirectional communication and compatibility with commercial earphones for voiced alerts.
Why is S.Bus2 compatibility important for advanced setups?
The Futaba air transmitter with LCD screen and trainer system supports S.Bus2, allowing multiple servos, gyros, and telemetry sensors to be connected with minimal cabling. This reduces weight and complexity in aircraft builds and enables direct device configuration from the transmitter. Whether you're setting up a glider with multiple control surfaces or a helicopter with advanced gyro integration, S.Bus2 ensures streamlined installation and precise control mapping.
How do programmable mixers and swash presets simplify setup?
The Futaba T6K-V3S with programmable mixers and swash presets includes five fixed-wing types, two tail configurations, and six helicopter swashplate options. These presets eliminate the need for manual mixing setup, allowing pilots to select the appropriate configuration and begin tuning immediately. The transmitter also supports pre-programmed mixers such as elevon, V-tail, butterfly, and camber mix, making it ideal for gliders and aerobatic aircraft. Custom mixers can be created for specialized control logic, offering flexibility across all model types.
What makes the interface intuitive and responsive?
The backlit LCD screen on the Futaba FUT05003171-3 T6K-V3S air radio Mode 2 provides clear visibility of telemetry data and menu settings. Digital trims offer audible feedback and customizable step size, while the trainer system enables dual-control setups for instructional use. Vibration alerts notify users of alarms without requiring visual confirmation, and the earphone jack allows telemetry data to be heard during flight. These features combine to create a user-friendly interface that supports both casual and competitive flying.
Why is the T6K-V3S ideal for sport and training applications?
The Futaba FUT05003171-3 8-channel transmitter with R3008SB is designed for pilots who need a dependable, feature-rich system for sport flying, training, or backup use. With 30-model memory, programmable mixers, and support for multiple aircraft types, it adapts easily to a wide range of flying styles. The CIU-3 interface (sold separately) allows software updates, ensuring long-term compatibility and performance. Whether you're flying gliders, helicopters, or multirotors, the T6K-V3S delivers the precision and reliability expected from Futaba.
For pilots seeking an affordable and telemetry-ready Mode 2 transmitter with advanced mixing and S.Bus2 support, buy Futaba FUT05003171-3 with 30 model memory and CIU-3 update support today.
Technical Specifications of Futaba FUT05003171-3 T6K-V3S air radio Mode 2
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003171-3
- Product Type: Futaba FUT05003171-3 T6K-V3S air radio Mode 2, Futaba FUT05003171-3 8-channel transmitter with R3008SB, Futaba FUT05003171-3 telemetry radio with S.Bus2 support, Futaba FUT05003171-3 with vibration alert and earphone jack, Futaba air transmitter with LCD screen and trainer system
- Product Color: Black
Dimensions
- Transmitter Shipping Weight: 1.14 kg – includes transmitter, receiver, harness, screwdriver, and manual
Transmitter Specifications
- Channel Count: 8 – supports full control of gliders, helicopters, multirotors, and fixed-wing aircraft
- Radio Protocols: T-FHSS Air and S-FHSS Air – ensures secure, interference-free communication with telemetry support
- Frequency Band: 2.4 GHz – optimized for stable signal transmission
- Telemetry System: Enabled – displays receiver battery voltage, altitude, RPM, temperature, current, and capacity
- S.Bus2 Compatibility: Supported – allows multi-servo and sensor integration with minimal wiring
- Model Memory: 30 – stores multiple aircraft profiles with 8-character naming
- LCD Screen: Backlit with contrast adjustment – provides clear visibility of telemetry and menu settings
- Digital Trims: Audible feedback with adjustable step size – trim position displayed on screen
- Programmable Mixers: Available – supports custom control logic across all model types
- Swash Presets: 6 helicopter swash types – simplifies rotorcraft setup
- Fixed-Wing Presets: 5 wing types and 2 tail types – tailored for gliders and airplanes
- Trainer System: Enabled – supports dual-control setups for instructional use
- Vibration Alert: Selectable – provides tactile feedback for alarms and warnings
- Earphone Jack: Integrated – allows voiced telemetry data via commercial earphones
- Software Updates: Supported via CIU-3 USB interface (sold separately)
- Power Supply: Compatible with 4 × AA dry cells, NiMH, or LiFe packs
- Throttle Position Warning: Enabled – alerts user if throttle is not at idle during power-on
Receiver Specifications – R3008SB
- Receiver Model: R3008SB – supplied with transmitter for immediate pairing
- Channel Support: 8 channels – supports S.Bus and S.Bus2 device integration
What’s in the Box
- 1 × Futaba T6K-V3S 8-channel transmitter
- 1 × Futaba R3008SB receiver
- 1 × Switch harness
- 1 × Screwdriver
- 1 × Short manual (full manual available for download)
What You Require
- 4 × AA batteries or compatible NiMH/LiFe pack for transmitter operation
- Optional telemetry sensors for expanded data monitoring
- CIU-3 USB interface for software updates (sold separately)
- Commercial earphones for voiced telemetry output
