FEATURES
- T-FHSS SR (Super Response) and Telemetry T-FHSS:
In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super Response) system that increased processing speed to further improve response. SR system does not support telemetry function. *R304SB and R304SB-E are not compatible with SR system.
- T-FHSS MINIZ System
By changing to the MINIZ system in the receiver setting menu, you can use Kyosho Mini – Z Evo dedicated receiver RA-42. Dedicated receiver RA-42 requires purchase separately. 01004414-3 comes with no receiver.
- FHSS MINI System
By changing to the MI-FH system in the receiver setting menu, you can use Kyosho Mini – Z FH FS-RM005 module to connect to non-Evo Mini-z.
- Telemetry System
The T4PM+ transmitter has adopted the newly developed bidirectional communication system "T-FHSS".
- 2.4 GHz SS Radio Communication System:
Frequency channel setting is unnecessary: Channel shifting takes place within the 2.4 GHz band automatically. This system minimises the interference from other 2.4 GHz systems.
- Model Memory for 40 Models
Model names can use up to 10 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
- 4 Axis Jog Button
The (JOG) button can be operated in 4 directions: up, down, left, and right.
- ESC-Link Function (MC-LINK)
This dedicated function allows you set up the Link software so that your T4PM can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC970CR, MC850C, MC851C, MC602C, MC402CR, etc.
- S.BUS Servo
This is a special function that allows setting of the parameters of our S.Bus servo whose settings are changed by using PC Link software. In addition to the conventional wired system, it can be set wirelessly in combination with the R334SBS or R334SBS-E.
- Steering Mixing
Smooth cornering is possible by independent left and right steering servo setting.
- Brake Mixing for Larger Cars
Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.
- Gyro Mixing (GYRO MIX)
The sensitivity of Futaba car rate gyros can be adjusted from the T4PM.
- 4WS Mixing for Crawlers and Other 4WS Type (4WS)This function can be used with crawlers and other 4WS type vehicles.
- Dual ESCs Mixing for Crawlers Cars (Dual ESC)
ESCs at the front and rear are controlled independently.
- CPS-1 Mixing (CPS MIX)
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
- Anti-Skid Braking System (TH A.B.S)
This function applies the brakes so that the tyres of gas powered cars, etc. do not lose their grip on the road even when braking at corners.
- Throttle Acceleration (Accel)
Gas power cars have a time lag before the clutch and brakes become effective. The throttle acceleration function reduces this time lag.
- Throttle Speed (Speed)
Sudden trigger operation on a slippery road surface will only cause the tyres to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.
- Steering Speed (Speed)
When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.
- Racing Timer (Timer)
The lap timer can record 100 lap times and total time. The timer can also be started automatically by trigger operation. The race time and audible alarm can be set. Re-/fueling time are indicated by an audible alarm. An up timer is also provided.
- Function Select Switch (SWITCH)/Dial Function (TRIM DIAL)
This assigns functions to 2 switches and dials (digital trim, digital dial). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.
- Trigger Position Can Be Changed
The position of the throttle trigger can be moved forward and backward.
- Tension Adjustment Function
The tension of the steering wheel and throttle trigger springs can be adjusted from the outside.

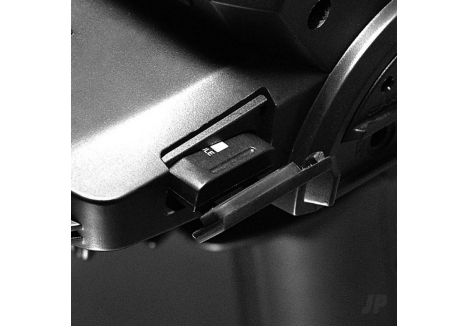

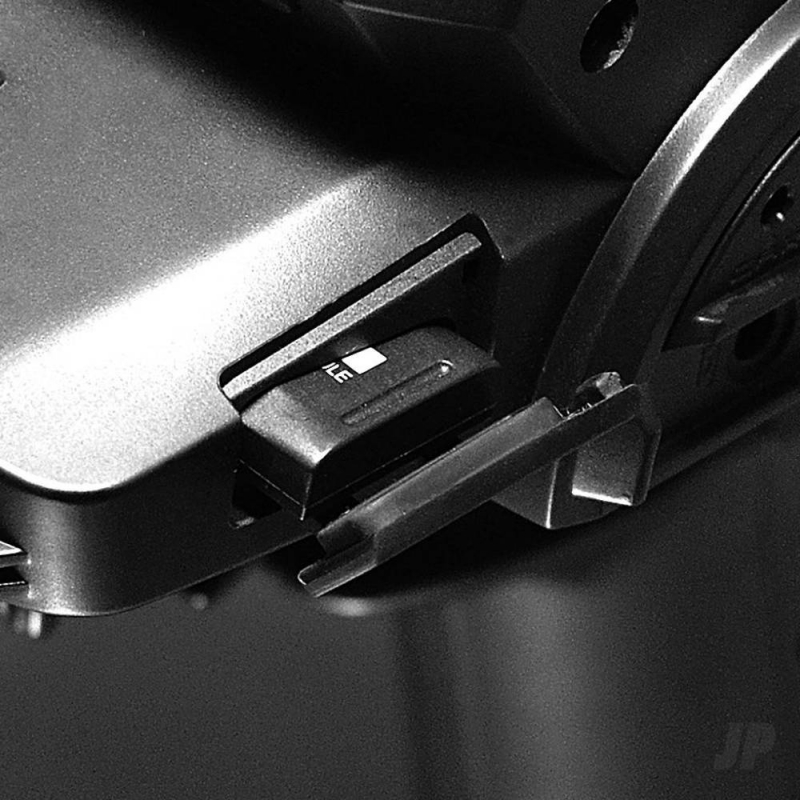

- Mechanical ATL Adjustment
Make this adjustment when you want to decrease the total travel of the brake (push) side of the throttle trigger.
CONTENTS
- 1x T4PM+ Transmitter
- 1x R304SB Receiver
- 1x Dry Battery Holder
- 1x Mini Screwdriver
DETAILS

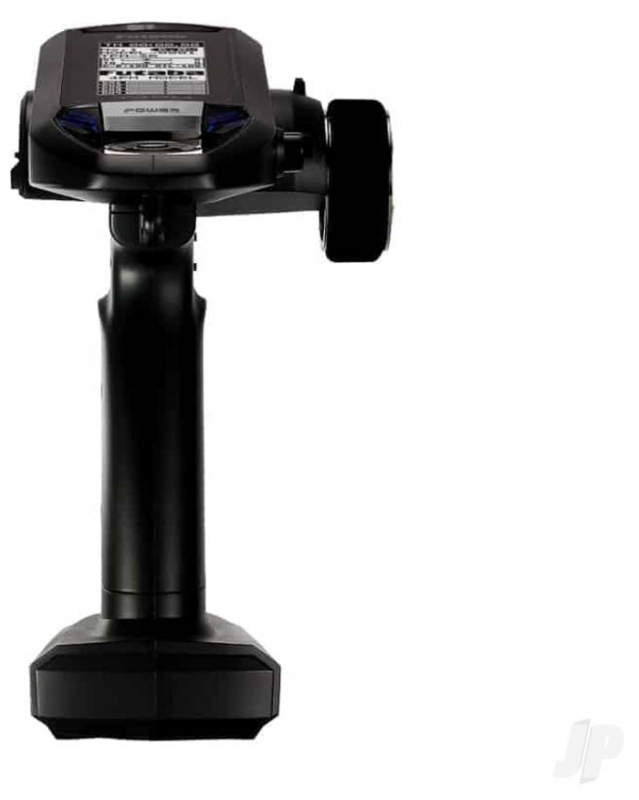

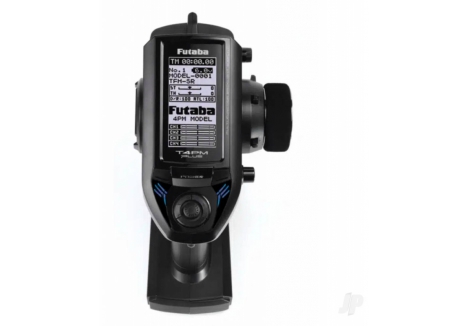

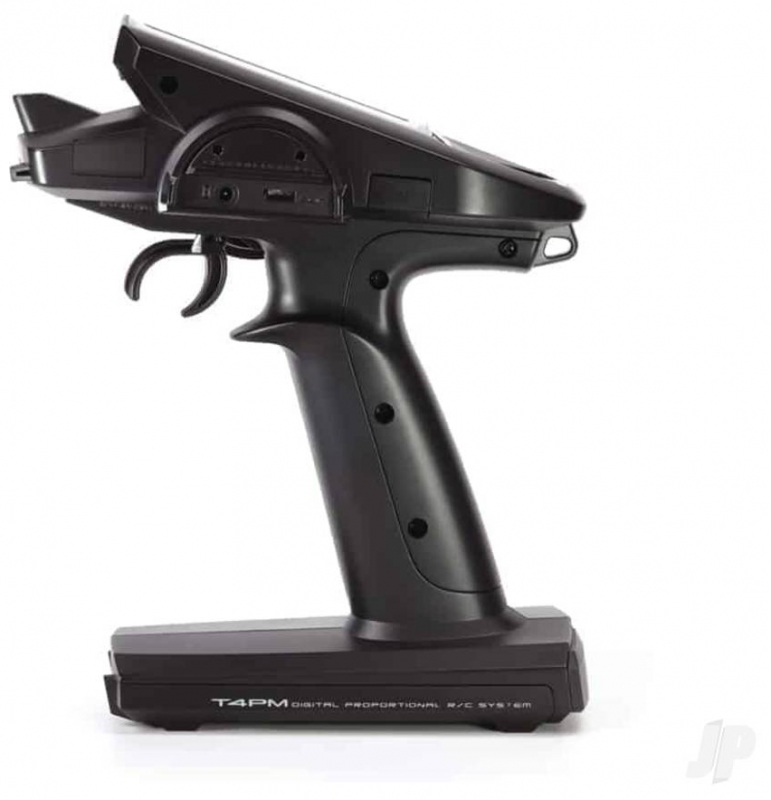

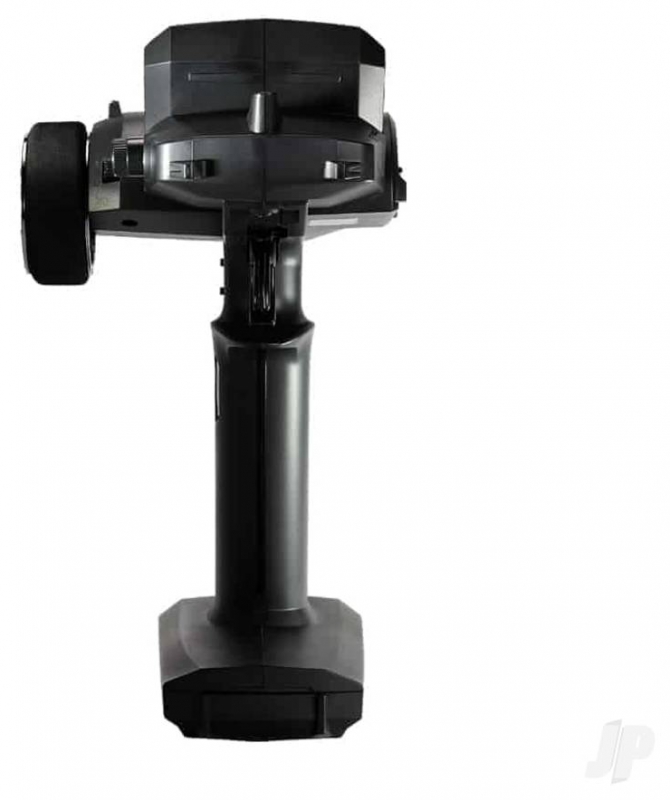

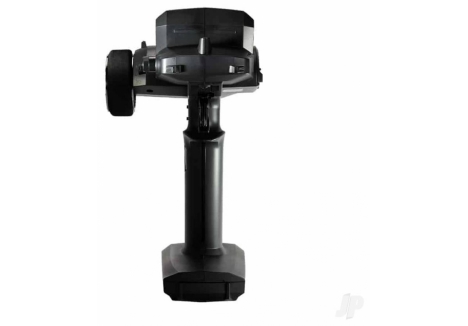

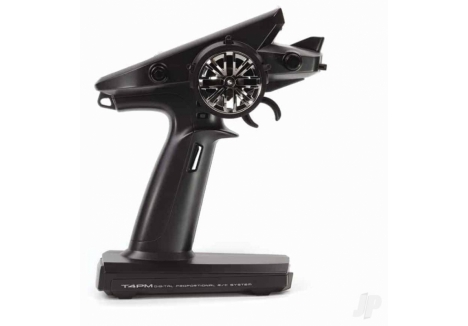

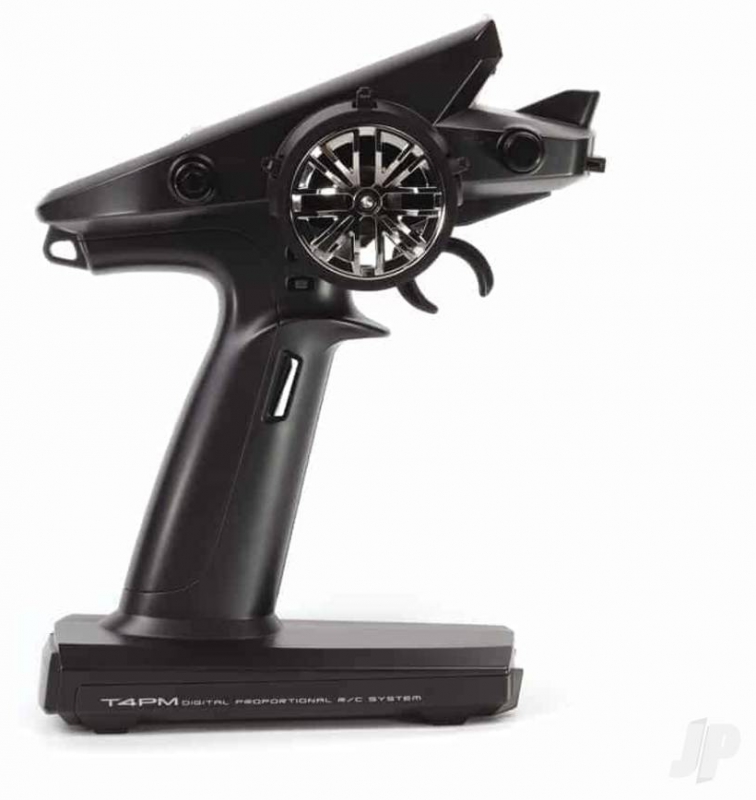

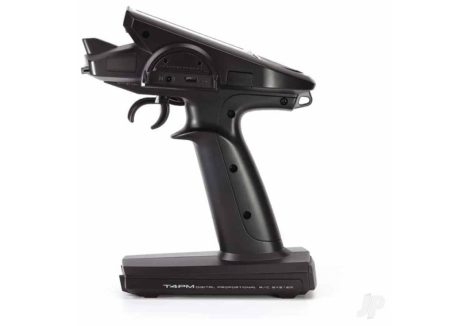

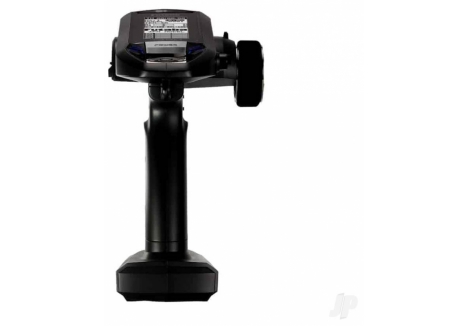

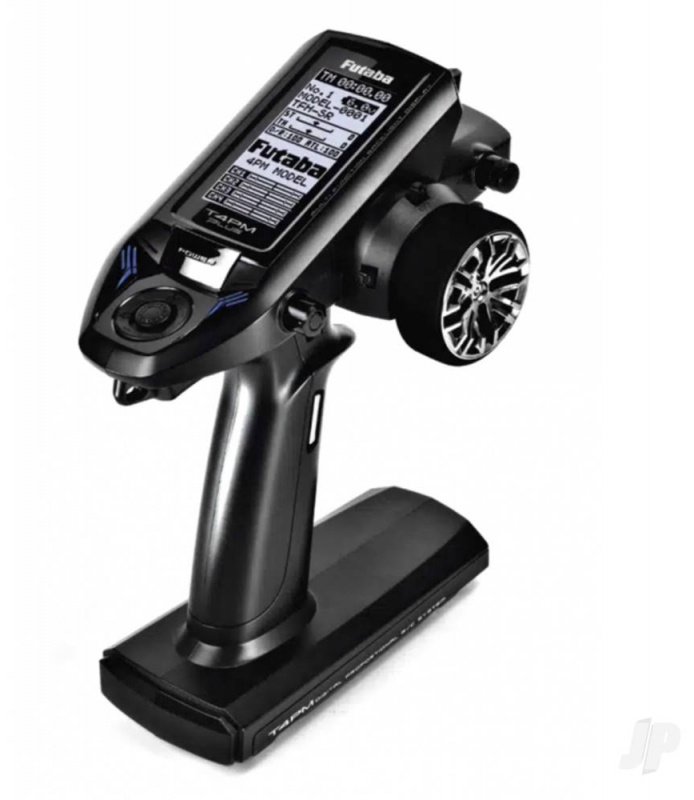

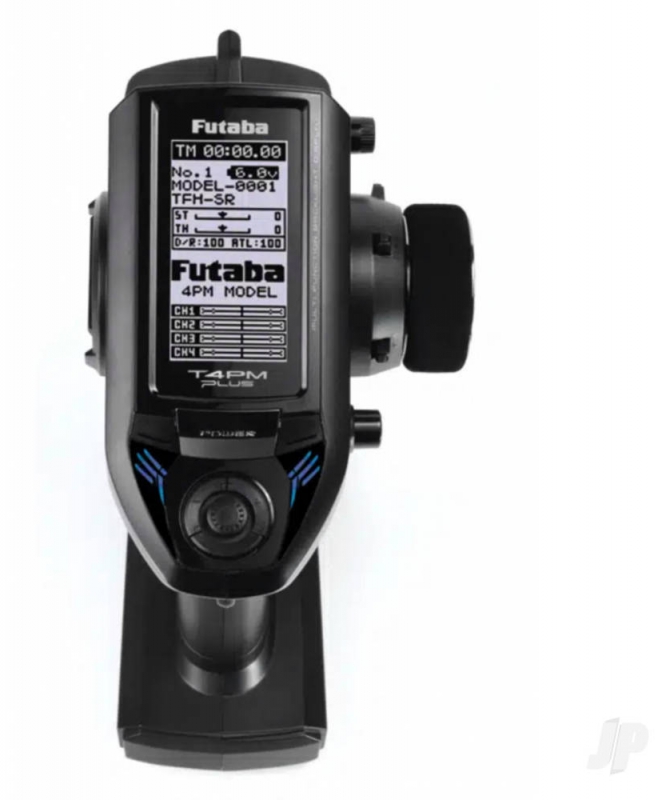

4PM Plus Transmitter Super Response Digital Proportional RC System
Your T4PM+ includes the following components:
- T4PM+ Transmitter
- R304SB/E OR R334SBS OR NO receiver
- Dry Battery Holder
- Mini Screwdriver
Transmitter Specs
T-FHSS SR/T-FHSS/S-FHSS System, Wheel Type, 4 Channels
Communication Method:
Bidirectional protocol
Maximum Operating Range:
100m (Except the MINIT system) (Optimum condition)
For Safety:
F/S, B-F/S, ID
Transmitter Frequency:
2.4 GHz band
RF Power Output:
100mW EIRP
Power Requirement:
(Dry Cell Battery) Penlight x3 (4.5V)
Current Drain:
150 mA or less
Transmission Antenna:
1/2 di-pole
Receiver Specs

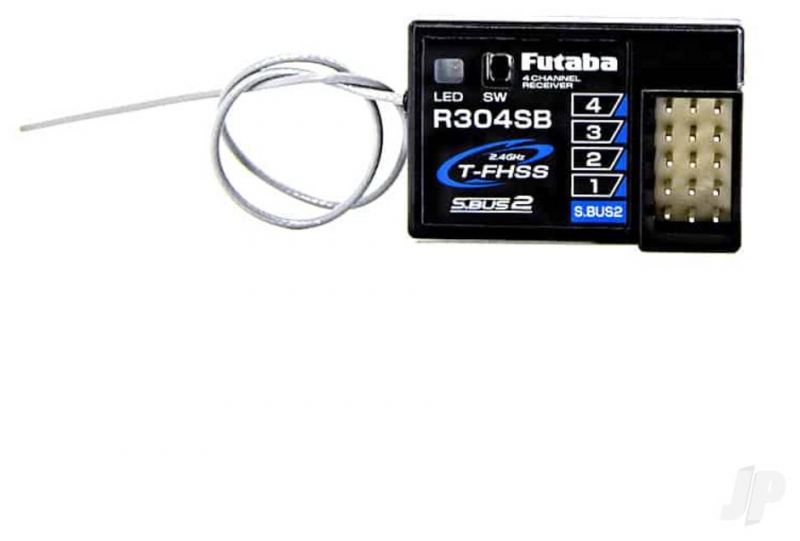

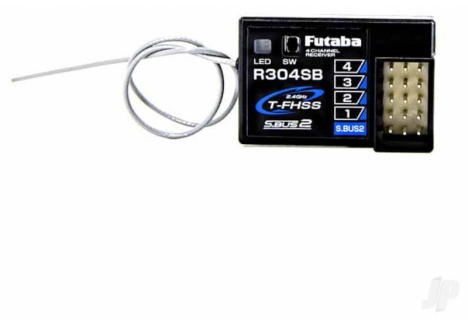

R304SB
- Size:
35.1 x 23.2 x 8.5 mm
1.38 x 0.91 x 0.33 in
- Weight:
6.6 g
- Operating Voltage:
DC 4.8 ~ 7.4V
NEVER USE THE R304SB-E IN GP CARS
R334SBS
T-FHSS SR
- Size:
33.9 x 22.3 x 11.3 mm
1.33 x 0.88 x 0.44 in
- Weight:
7.5 g
0.26 oz.
- Operating Voltage:
DC 3.7 ~ 7.4V
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003191-3
- Product Type: Futaba FUT05003191-3 T4PM Plus surface radio with receiver, Futaba FUT05003191-3 4-channel steerwheel transmitter, Futaba FUT05003191-3 telemetry radio with LCD screen, Futaba FUT05003191-3 with jog button and model memory, Futaba surface radio with throttle speed and CPS-1 mixing
- Product Color: Black
Dimensions
- Transmitter Shipping Weight: 0.97 kg – includes transmitter, receiver, battery holder, and accessories
- Receiver Size: 35.1 × 23.2 × 8.5 mm – compact for easy chassis integration
- Receiver Weight: 6.6 g – lightweight for minimal impact on vehicle balance
Transmitter Specifications
- Channel Count: 4 – supports multi-function control for surface vehicles
- Radio Protocols: T-FHSS SR, T-FHSS, S-FHSS – ensures responsive and interference-free communication
- Frequency Band: 2.4 GHz – stable signal transmission across all channels
- RF Power Output: 100mW EIRP – delivers strong and reliable communication
- Telemetry System: T-FHSS bidirectional – displays voltage, temperature, RPM, and current (SR mode disables telemetry)
- Model Memory: 40 – stores detailed profiles with 10-character naming and copy function
- LCD Screen: Integrated – displays telemetry, timers, and setup menus
- Jog Button: 4-axis – enables intuitive navigation and fast menu access
- ESC-Link Function: Supported – compatible with MC970CR, MC850C, MC602C, and other Futaba ESCs
- S.Bus Servo Setting: Enabled – supports wired and wireless configuration via compatible receivers
- Steering Mixing: Independent left/right servo control – improves cornering precision
- Brake Mixing: Adjustable – ideal for large gas cars with front/rear brake systems
- Gyro Mixing: Sensitivity adjustable – integrates with Futaba car rate gyros
- 4WS Mixing: Supported – enables synchronized or opposing steering for crawlers
- Dual ESC Mixing: Available – controls front and rear ESCs independently
- CPS-1 Mixing: LED control via CPS-1 switch – synchronizes lighting with throttle and steering
- Throttle Acceleration: Reduces clutch/brake lag – improves responsiveness in gas-powered cars
- Throttle Speed: Smooths input – prevents wheel spin and reduces battery consumption
- Steering Speed: Adjustable – fine-tunes servo response for better handling
- Racing Timer: Records up to 100 laps – includes alarms and auto-start trigger
- Function Select Switch: Assignable – supports digital trim and dial customization
- Trigger Position: Adjustable – forward/backward movement for ergonomic tuning
- Tension Adjustment: External – customizes spring resistance for wheel and trigger
- Mechanical ATL Adjustment: Configurable – limits brake travel on throttle trigger
Receiver Specifications – R304SB
- Receiver Model: R304SB – supplied with transmitter for general-purpose surface use
- Channel Support: 4 – matches transmitter output for full functionality
- Operating Voltage: DC 4.8 ~ 7.4V – compatible with standard surface power systems
What’s in the Box
- 1 × Futaba T4PM Plus 4-channel transmitter
- 1 × Futaba R304SB receiver
- 1 × Dry battery holder
- 1 × Mini screwdriver
What You Require
- 3 × AA batteries for transmitter operation
- Optional telemetry sensors for expanded data monitoring
- CPS-1 switch for LED control (optional)
Product Description of Futaba FUT05003191-3 T4PM Plus surface radio
The Futaba FUT05003191-3 T4PM Plus surface radio with receiver is a high-performance 4-channel steerwheel transmitter engineered for competitive RC car and boat drivers who demand precision, telemetry, and advanced control logic. Operating on Futaba’s T-FHSS and S-FHSS protocols, this system delivers real-time telemetry, programmable mixing, and compatibility with Kyosho Mini-Z modules. Supplied with the R304SB receiver, the set is optimized for general-purpose surface vehicles and includes a dry battery holder for immediate use. Whether you're configuring brake balance on a 1/5 gas car or tuning LED lighting on a crawler, the Futaba FUT05003191-3 4-channel steerwheel transmitter offers the responsiveness and customization needed for serious driving.
Key features of the Futaba FUT05003191-3 T4PM Plus surface radio with receiver
- Telemetry-enabled T-FHSS protocol – displays receiver voltage, RPM, temperature, and current
- LCD screen with jog button – enables fast, intuitive menu navigation
- 40-model memory – stores detailed profiles with 10-character naming and copy function
- Brake mixing and gyro support – ideal for large gas cars and advanced handling setups
- Throttle speed and CPS-1 mixing – smooths acceleration and synchronizes LED lighting
- Steering mix and racing timer – supports dual-servo steering and lap tracking with alarms
How does the telemetry system enhance vehicle awareness?
The integrated telemetry system in the Futaba FUT05003191-3 telemetry radio with LCD screen provides real-time feedback on receiver battery voltage, RPM, temperature, and current. This data is displayed on the backlit LCD screen and can be expanded with optional sensors. The system operates on Futaba’s T-FHSS protocol, ensuring stable bidirectional communication and minimizing interference. For racers and scale builders, telemetry transforms the transmitter into a diagnostic and performance optimization tool.
Why is the jog button interface ideal for fast adjustments?
The Futaba FUT05003191-3 with jog button and model memory features a 4-axis jog button that allows quick navigation through menus and settings. With up, down, left, and right input directions, users can make adjustments without scrolling through nested screens. Combined with 40-model memory and digital trim dials, this interface supports rapid setup changes and precise tuning across multiple vehicles.
How does brake mixing and gyro support improve control?
The Futaba T4PM Plus with brake mixing and gyro support includes advanced mixing functions tailored for large-scale and high-speed vehicles. Brake mixing allows independent adjustment of front and rear braking force, critical for 1/5 gas-powered cars. Gyro mixing enables sensitivity tuning for Futaba car rate gyros, improving stability and cornering precision. These features give drivers granular control over vehicle dynamics, enhancing responsiveness and safety.
What makes CPS-1 mixing and throttle speed tuning valuable?
The Futaba surface radio with throttle speed and CPS-1 mixing supports LED lighting control via Futaba’s CPS-1 channel power switch. This function allows lights to respond to throttle and steering inputs, creating dynamic visual effects such as brake lights and turn signals. Throttle speed tuning smooths acceleration on slippery surfaces, reducing wheel spin and battery consumption. Together, these features elevate both performance and realism.
Why is the T4PM Plus ideal for competitive and scale applications?
The Futaba FUT05003191-3 T4PM Plus surface radio with receiver combines high-speed response with extensive customization. Its support for T-FHSS SR (Super Response), programmable mixing, and telemetry makes it suitable for competitive racing, while features like CPS-1 mixing and steering speed adjustment cater to scale realism. The included R304SB receiver is optimized for general-purpose electric vehicles, and the dry battery holder ensures immediate usability. Whether you're racing, crawling, or building a scale masterpiece, this transmitter delivers the precision and adaptability required for top-tier control.
For drivers seeking a telemetry-equipped steerwheel system with advanced mixing and racing features, buy Futaba FUT05003191-3 with R304SB and dry battery holder today.
Technical Specifications of Futaba FUT05003191-3 T4PM Plus surface radio
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05003191-3
- Product Type: Futaba FUT05003191-3 T4PM Plus surface radio with receiver, Futaba FUT05003191-3 4-channel steerwheel transmitter, Futaba FUT05003191-3 telemetry radio with LCD screen, Futaba FUT05003191-3 with jog button and model memory, Futaba surface radio with throttle speed and CPS-1 mixing
- Product Color: Black
Dimensions
- Transmitter Shipping Weight: 0.97 kg – includes transmitter, receiver, battery holder, and accessories
- Receiver Size: 35.1 × 23.2 × 8.5 mm – compact for easy chassis integration
- Receiver Weight: 6.6 g – lightweight for minimal impact on vehicle balance
Transmitter Specifications
- Channel Count: 4 – supports multi-function control for surface vehicles
- Radio Protocols: T-FHSS SR, T-FHSS, S-FHSS – ensures responsive and interference-free communication
- Frequency Band: 2.4 GHz – stable signal transmission across all channels
- RF Power Output: 100mW EIRP – delivers strong and reliable communication
- Telemetry System: T-FHSS bidirectional – displays voltage, temperature, RPM, and current (SR mode disables telemetry)
- Model Memory: 40 – stores detailed profiles with 10-character naming and copy function
- LCD Screen: Integrated – displays telemetry, timers, and setup menus
- Jog Button: 4-axis – enables intuitive navigation and fast menu access
- ESC-Link Function: Supported – compatible with MC970CR, MC850C, MC602C, and other Futaba ESCs
- S.Bus Servo Setting: Enabled – supports wired and wireless configuration via compatible receivers
- Steering Mixing: Independent left/right servo control – improves cornering precision
- Brake Mixing: Adjustable – ideal for large gas cars with front/rear brake systems
- Gyro Mixing: Sensitivity adjustable – integrates with Futaba car rate gyros
- 4WS Mixing: Supported – enables synchronized or opposing steering for crawlers
- Dual ESC Mixing: Available – controls front and rear ESCs independently
- CPS-1 Mixing: LED control via CPS-1 switch – synchronizes lighting with throttle and steering
- Throttle Acceleration: Reduces clutch/brake lag – improves responsiveness in gas-powered cars
- Throttle Speed: Smooths input – prevents wheel spin and reduces battery consumption
- Steering Speed: Adjustable – fine-tunes servo response for better handling
- Racing Timer: Records up to 100 laps – includes alarms and auto-start trigger
- Function Select Switch: Assignable – supports digital trim and dial customization
- Trigger Position: Adjustable – forward/backward movement for ergonomic tuning
- Tension Adjustment: External – customizes spring resistance for wheel and trigger
- Mechanical ATL Adjustment: Configurable – limits brake travel on throttle trigger
Receiver Specifications – R304SB
- Receiver Model: R304SB – supplied with transmitter for general-purpose surface use
- Channel Support: 4 – matches transmitter output for full functionality
- Operating Voltage: DC 4.8 ~ 7.4V – compatible with standard surface power systems
What’s in the Box
- 1 × Futaba T4PM Plus 4-channel transmitter
- 1 × Futaba R304SB receiver
- 1 × Dry battery holder
- 1 × Mini screwdriver
What You Require
- 3 × AA batteries for transmitter operation
- Optional telemetry sensors for expanded data monitoring
- CPS-1 switch for LED control (optional)
