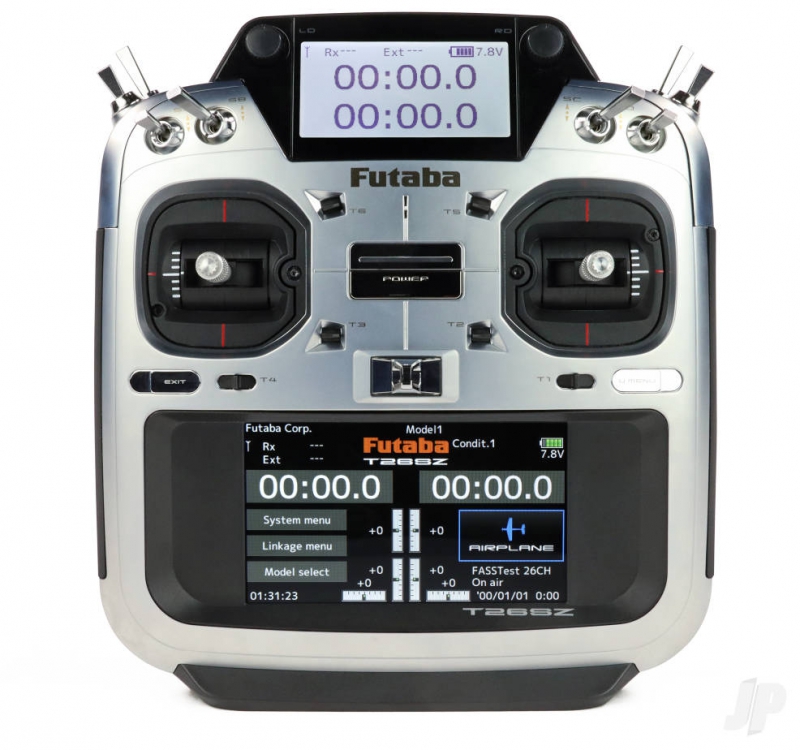

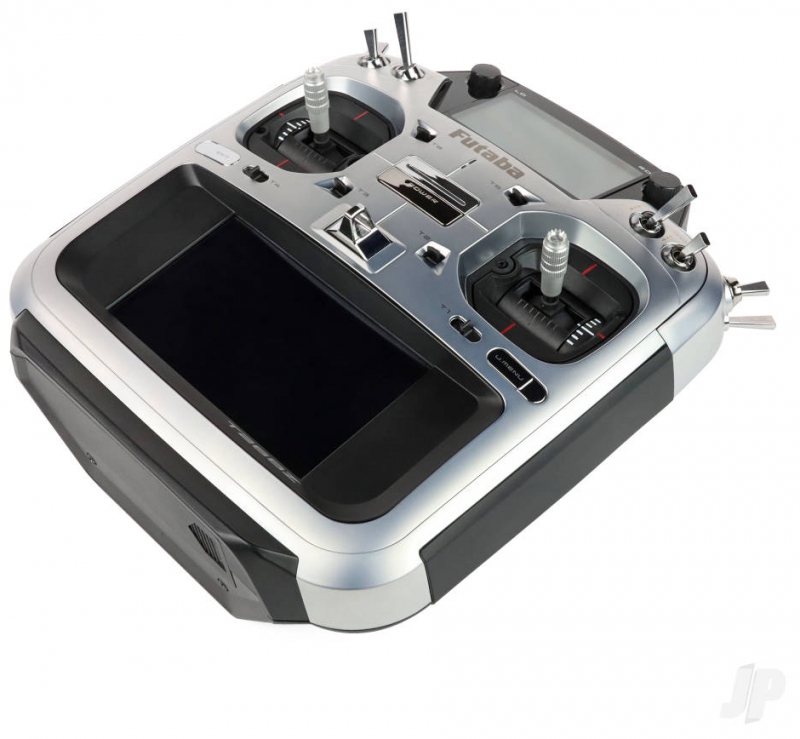

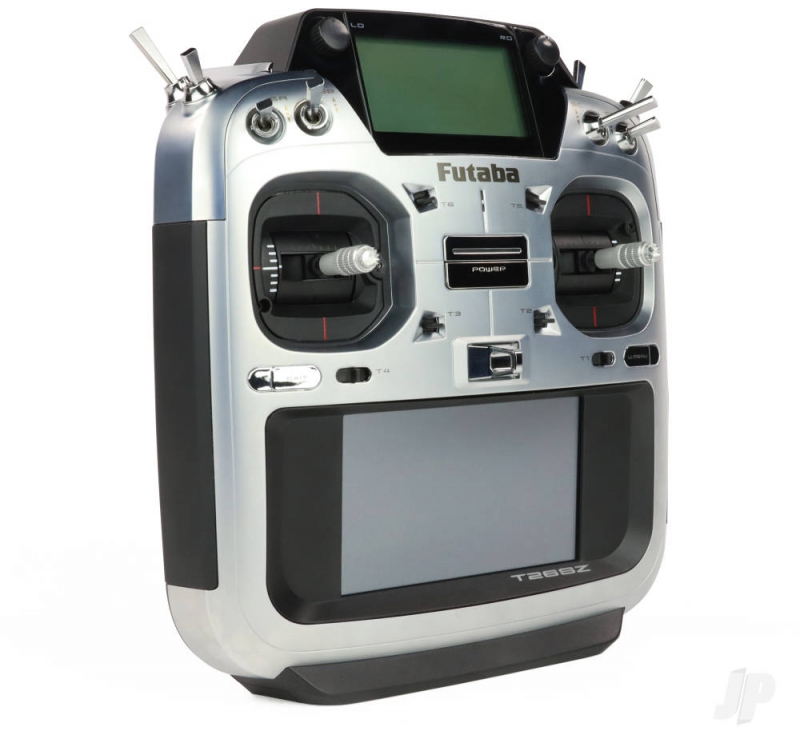

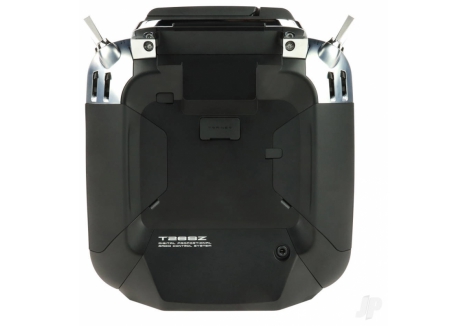

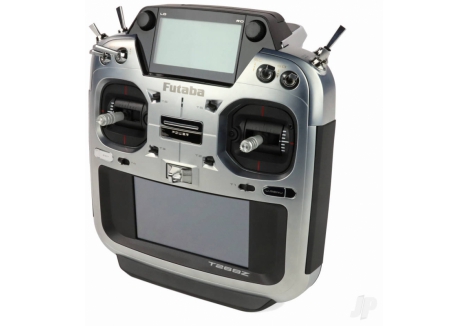

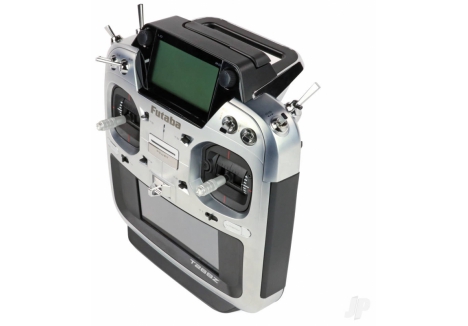

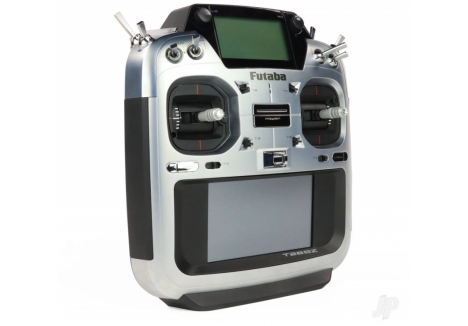

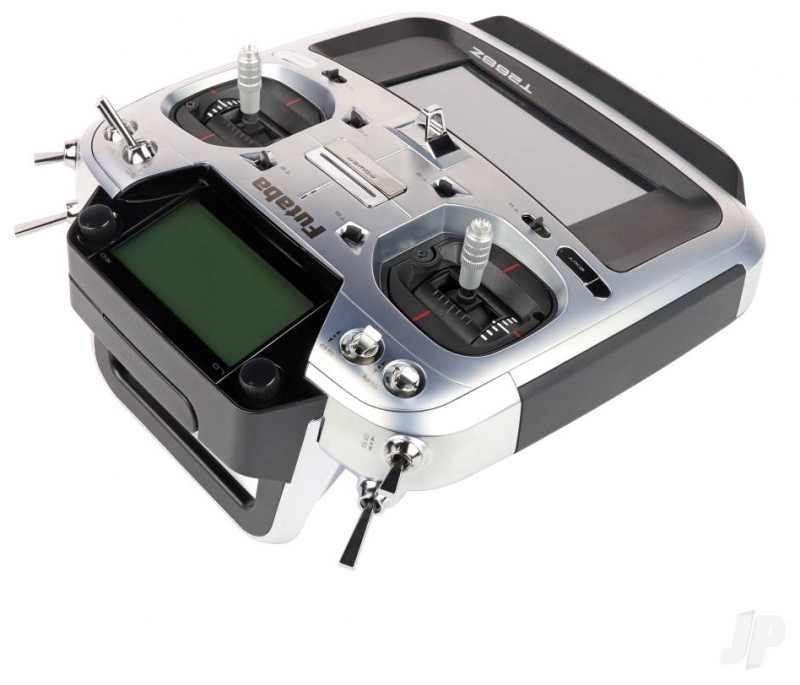

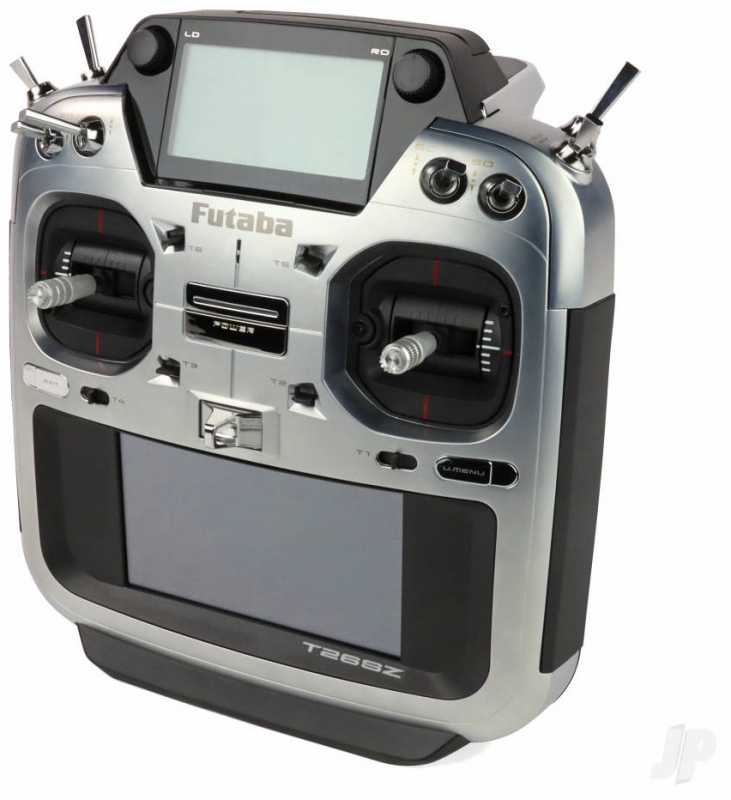

Futaba T26SZ 26-Channel Air Radio with R7214SB Rx, Multi Mode FUT05003226-3

The Futaba T26SZ 26-Channel Air Radio with R7214SB Receiver FUT05003226-3 is a premium, future-proof radio system built for serious RC pilots who fly anything—from scale aircraft to helicopters. It features an HVGA 4.3-inch full-colour backlit touch screen (transflective for outdoor use), a high-capacity 7.4V LiPo battery, and full support for FASSTest, S-BUS2 telemetry, and multiple protocols.

Key features of the Futaba T26SZ FUT05003226-3

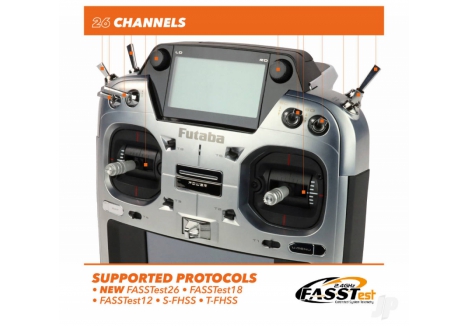

• 26 channels (24 + 2) with support for FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols
• R7214SB receiver included – large-format, full-range receiver with telemetry output

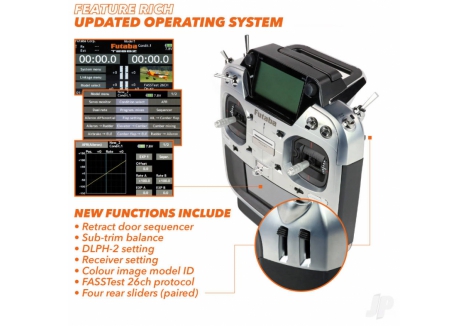

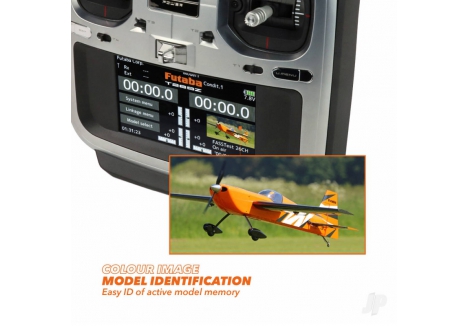

• Full colour 4.3-inch touch screen + secondary sub-LCD display for telemetry and settings
• S.BUS2 system – streamline cable runs with fewer wires and support for multiple accessories

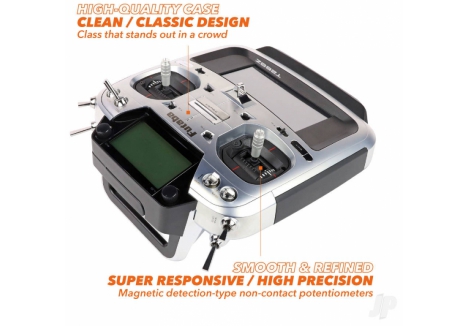

• Smooth non-contact gimbal sticks with hall effect potentiometers for precise control and durability

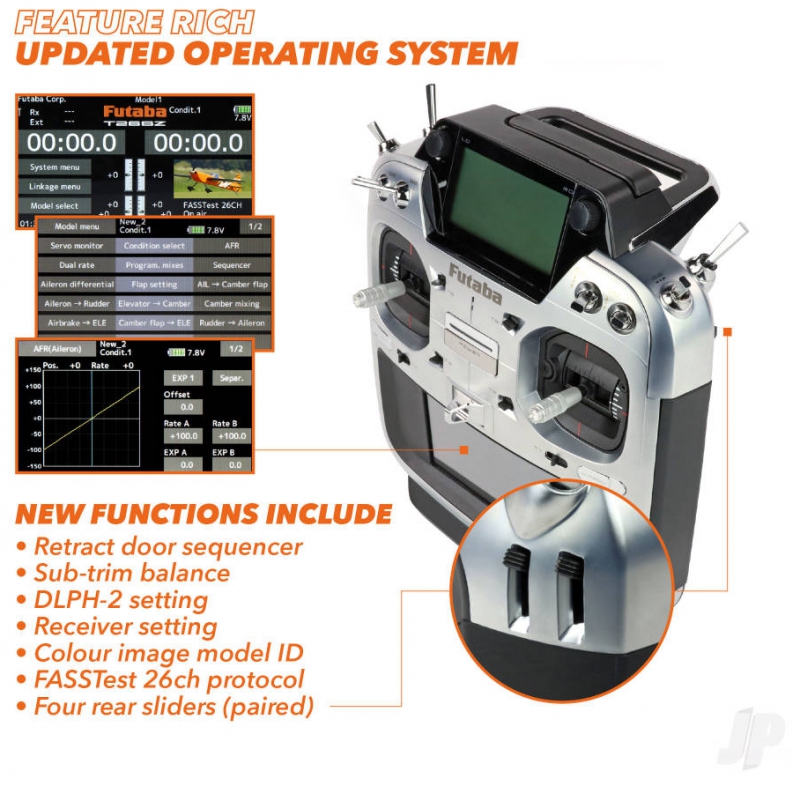

• Features like vibration alert, speech output, rear sliders, voice, USB-C charge lead, SD-card model memory and firmware update support

The T26SZ is designed to handle advanced flight setups. It supports dozens of model types (planes, helicopters, gliders), complex mixing, telemetry sensors (voltage, temperature, GPS etc.), and user-friendly controls like edit buttons, shoulder switch options, and trainer mode.

Performance and build quality

Weighing about 920 g with battery and measuring roughly 190 × 64 × 205 mm, the transmitter feels solid and premium. The included high-capacity LiPo pack (≈ 2,000–2,100 mAh) offers long sessions, while USB-C charging and USB-SD card memory make data transfer and updates straightforward.

Who will get the most from this system?

If you fly multiple models, need telemetry, mix extensively, or demand precision and flexibility, the Futaba T26SZ FUT05003226-3 is made for you. It bridges the gap between top-of-line features and usability, giving you room to grow.

Take your control to the next level. Buy Futaba T26SZ FUT05003226-3 radio today and unlock advanced capability and reliability for all your flying rigs.

Brand, Model & Product Type

• Brand: Futaba
• Model: T26SZ with R7214SB Receiver (combo FUT05003226-3)
• Product Type: Futaba 26-Channel Air Radio System – Multi-Mode / Transmitter + Receiver

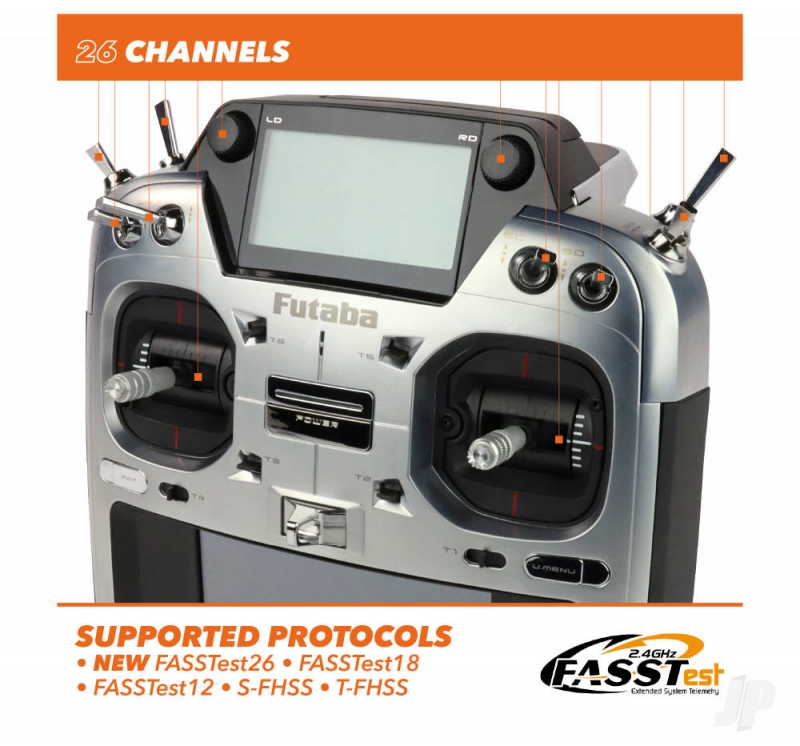

Channels & Protocol Support

• Total Channels: 26 (24 + 2 extra)
• Supported Protocols: FASSTest26, FASSTest18, FASSTest12, S-FHSS, T-FHSS

Display & Controls

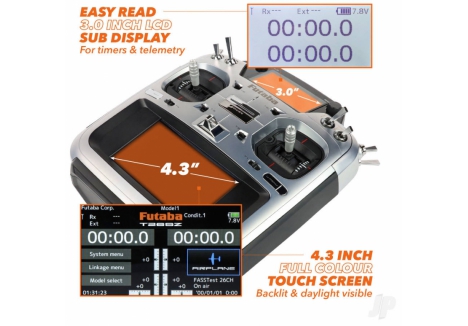

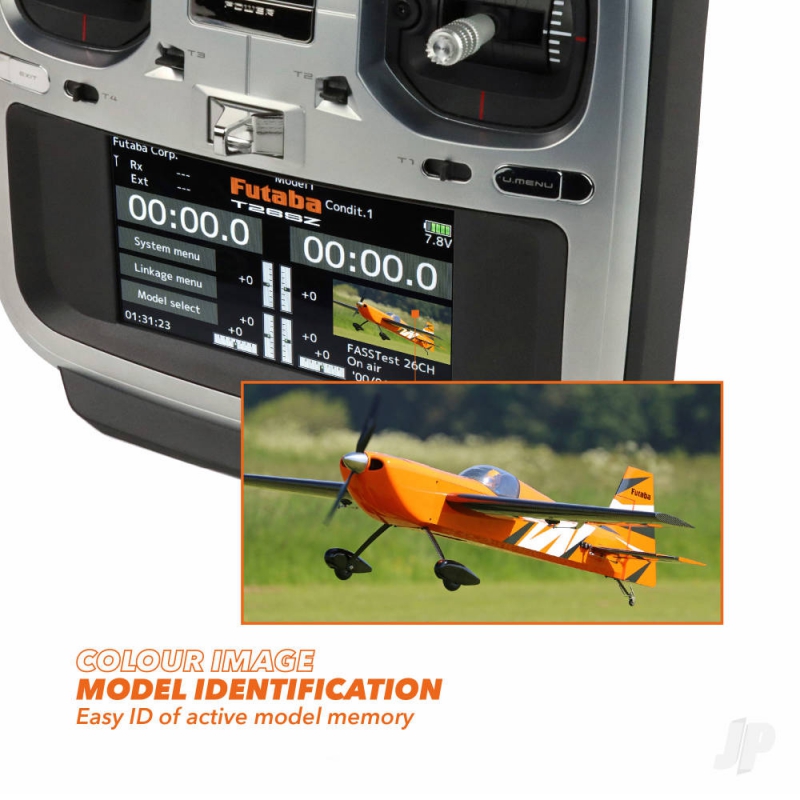

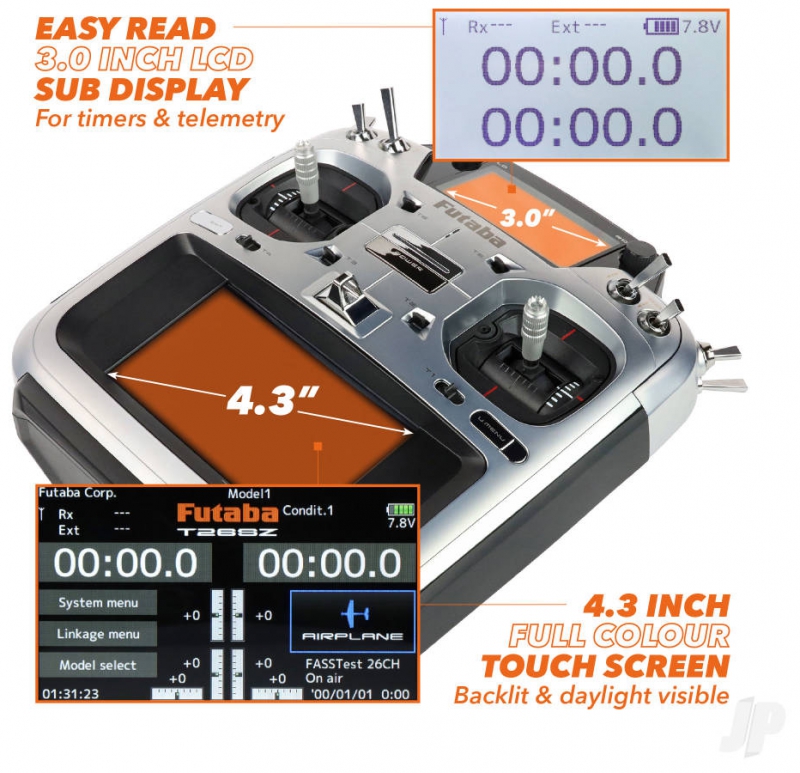

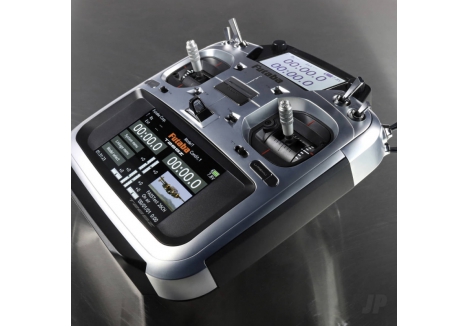

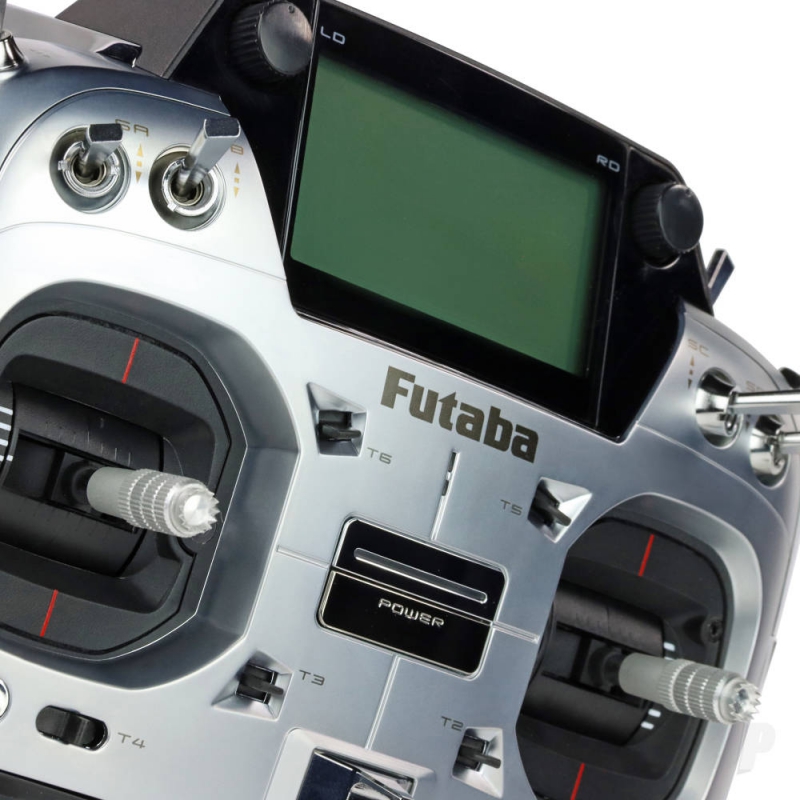

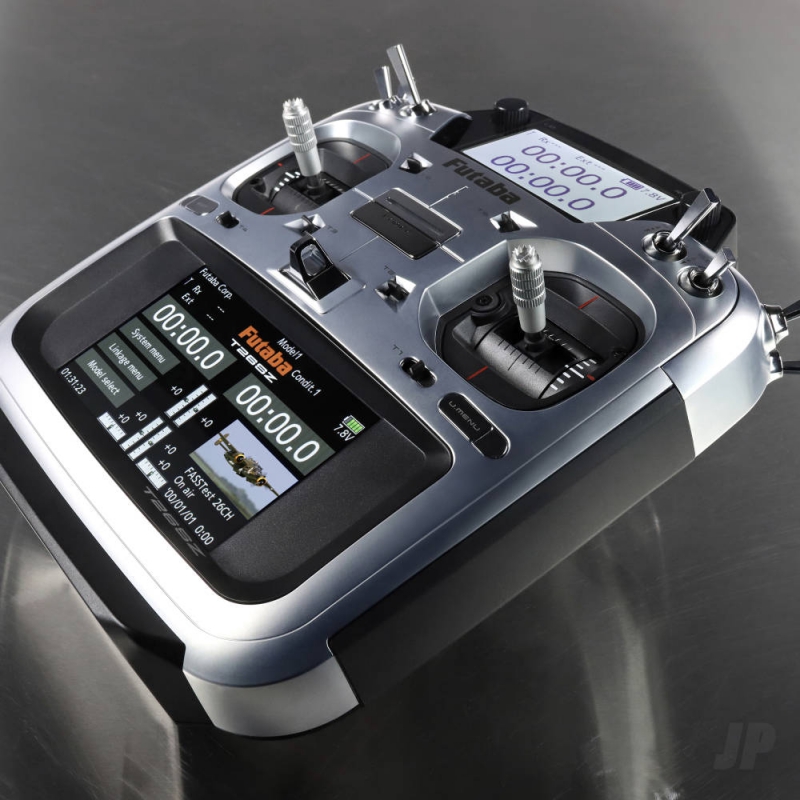

• Main Display: 4.3-inch HVGA full-colour touch screen, transflective for outdoor visibility

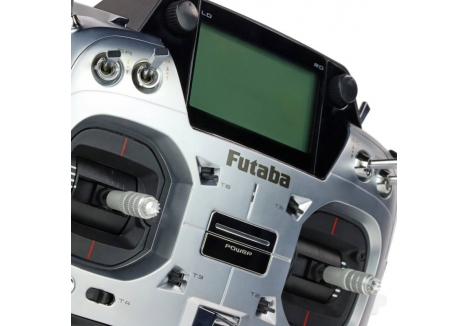

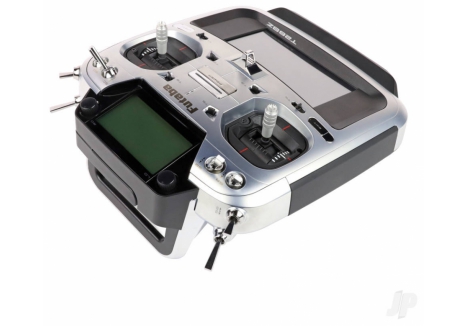

• Secondary Display: Reflective LCD sub-screen for telemetry readouts

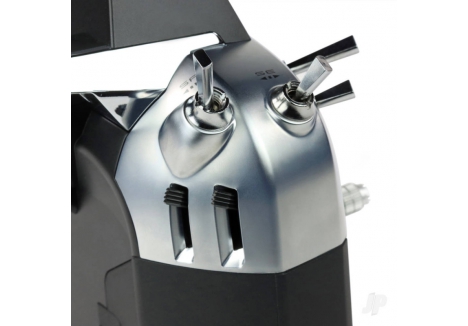

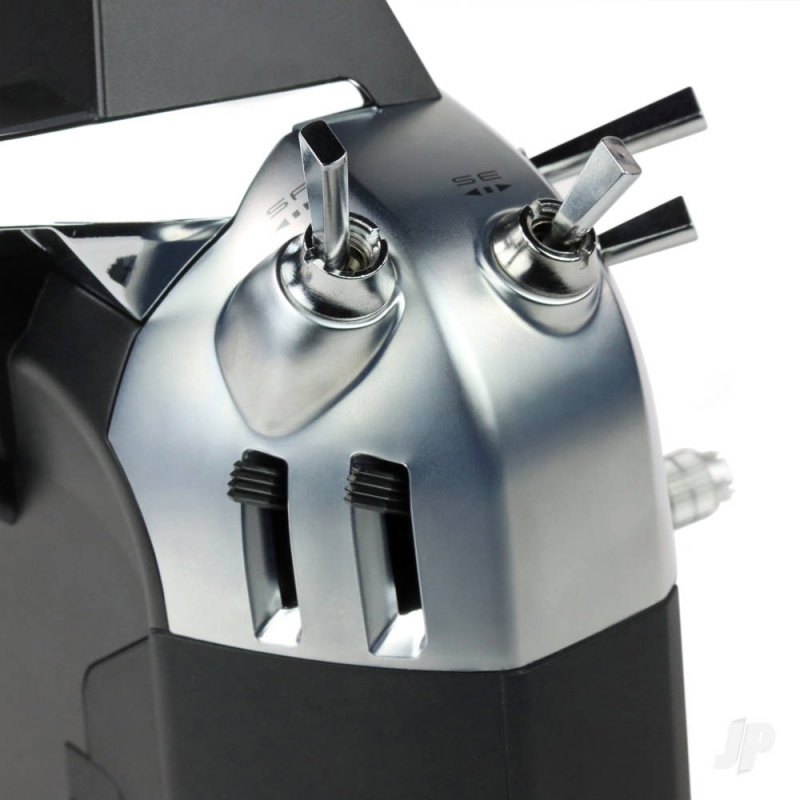

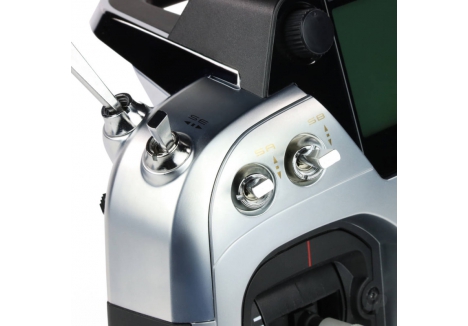

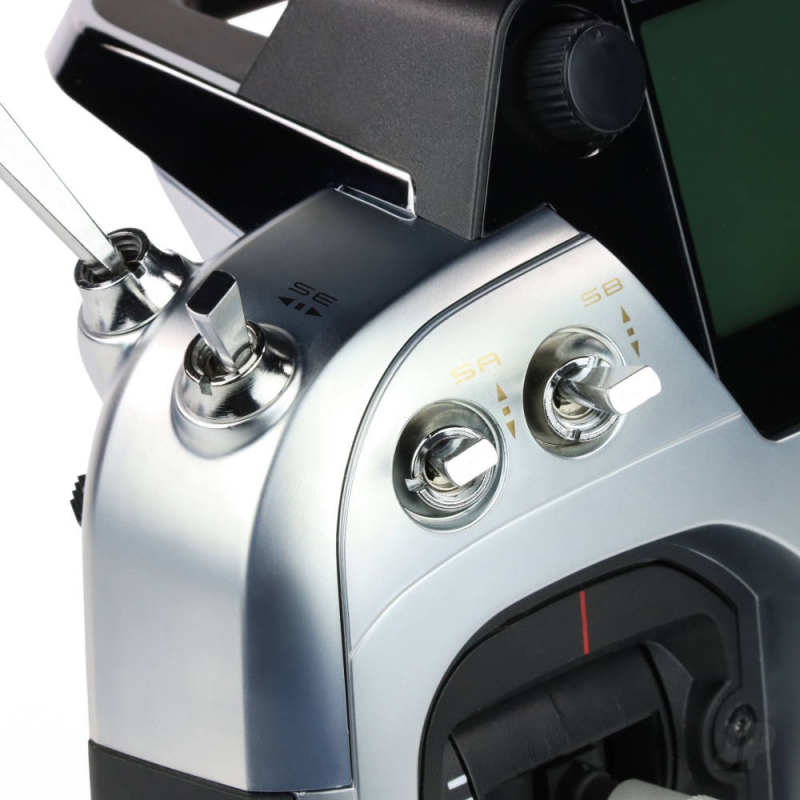

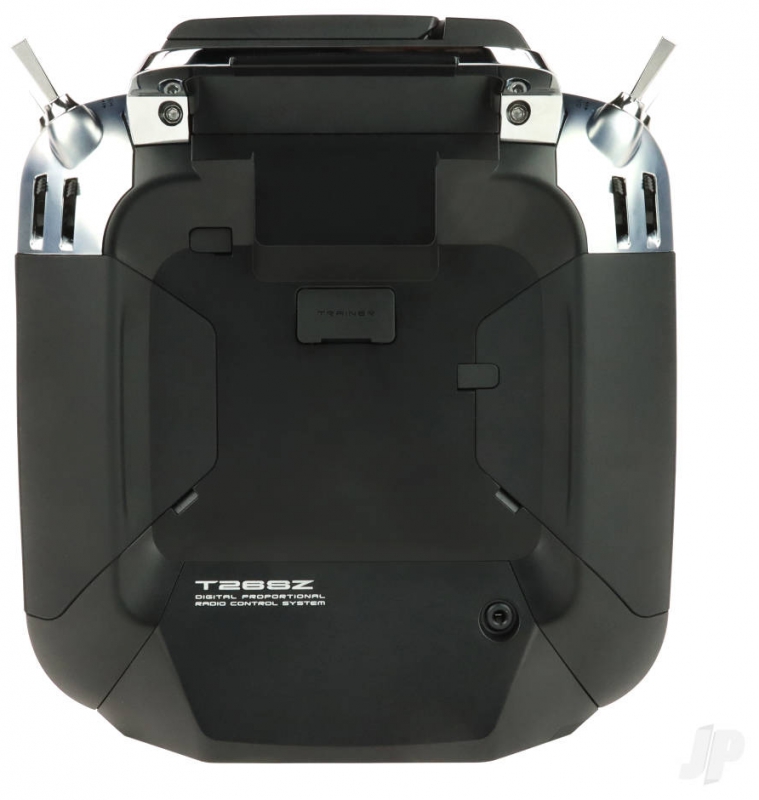

• Switches & Sliders: Four rear sliders, shoulder switch upgrade potential, additional switches

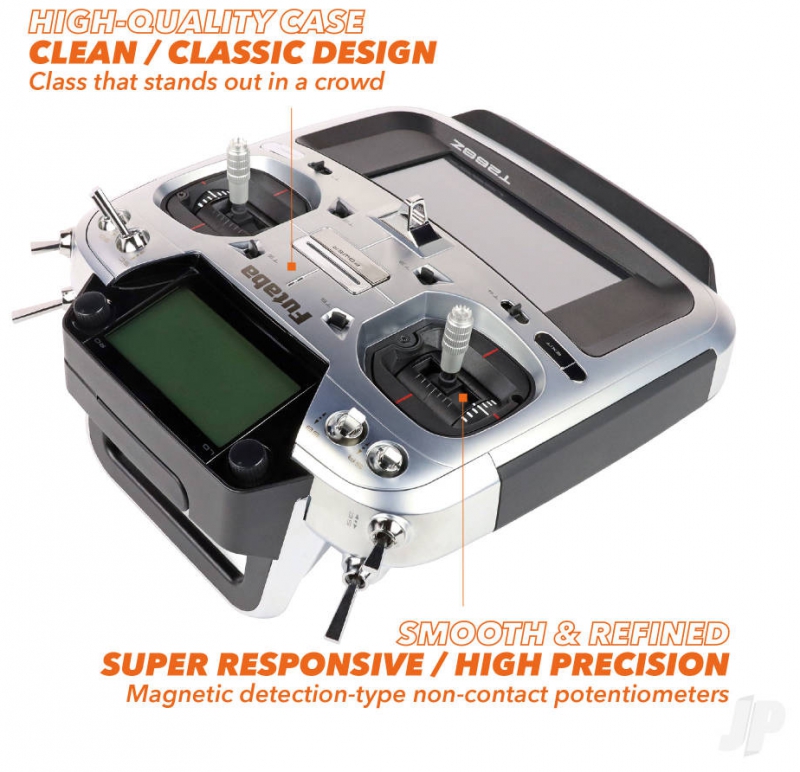

• Gimbals: Non-contact (hall effect) stick potentiometers

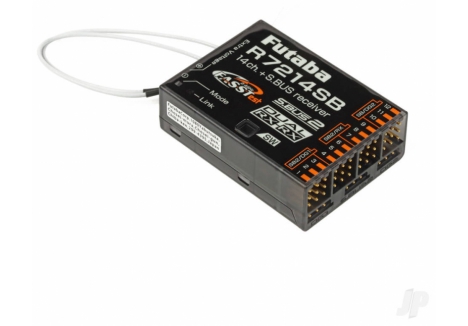

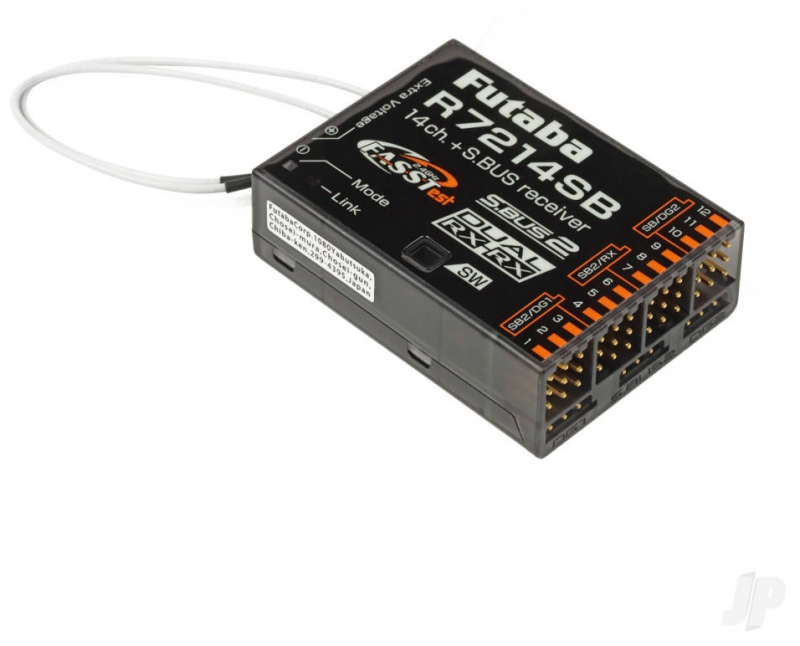

Receiver – R7214SB

• Size: 50.2 × 37.0 × 15.9 mm
• Weight: 20.8 g
• Voltage Range: DC 3.7-7.4 V operation
• Integrations: Telemetry, SBUS2, diversity, etc.

Battery & Power

• Transmitter Battery: 7.4 V / approx. 2,000-2,100 mAh LiPo

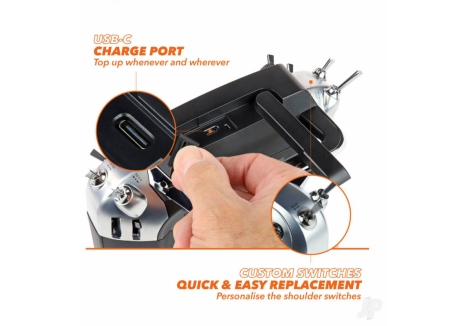

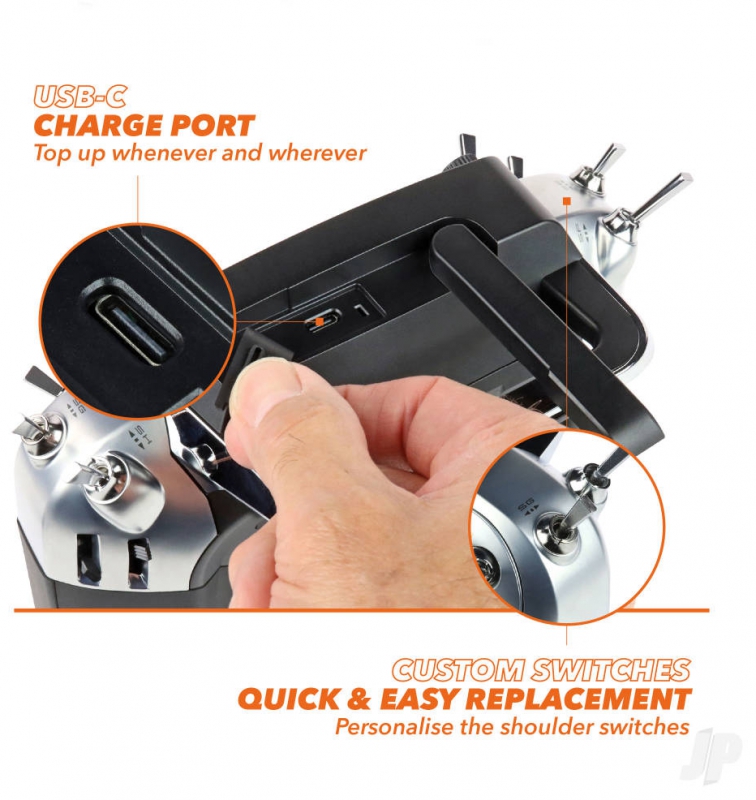

• Charging: USB-C lead supplied

Programming & Mixing

• Model Types: Fixed wing, helicopters, gliders; 13 wing types; 8 swash types
• Mixing: 30 pre-programmed mixers + 10 user-programmable mixers
• Telemetry Support: multiple sensor types (voltage, temperature, RPM, GPS etc.)

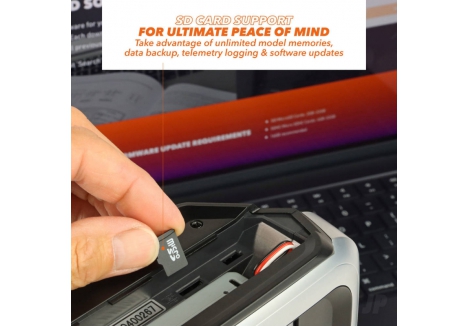

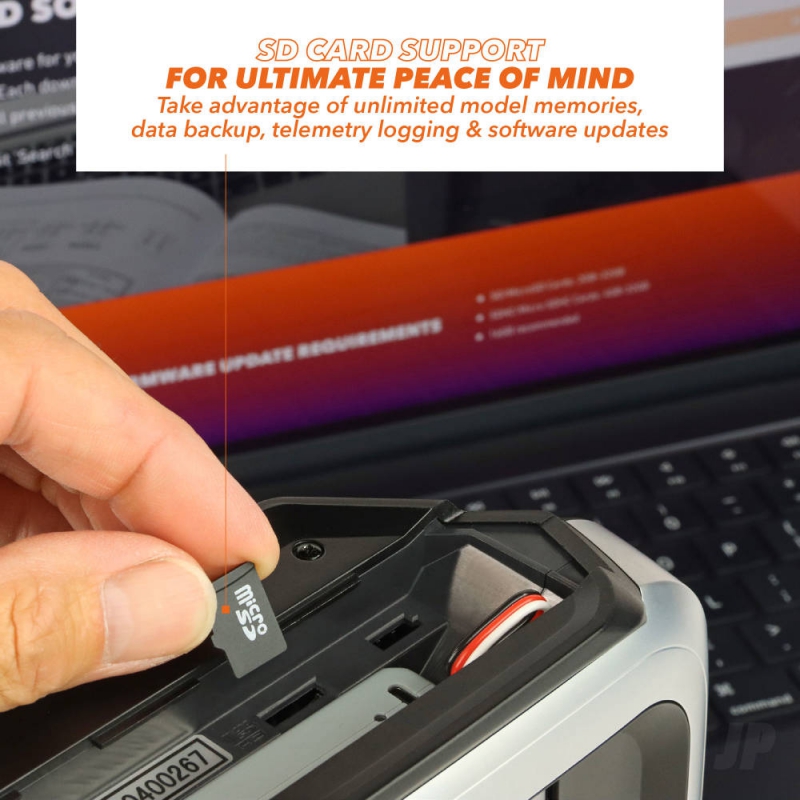

• Storage: microSD card slot for model data & firmware updates

Physical Dimensions & Weight

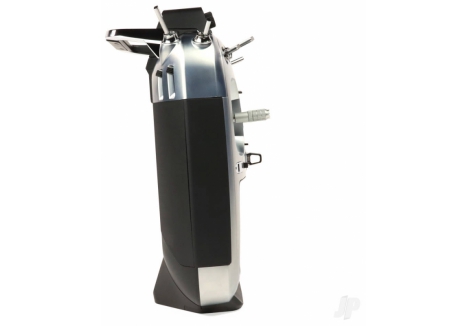

• Transmitter Size (L × W × H): approx. 190 × 64 × 205 mm
• Weight with Battery: about 920 g

Other Features

• Vibration alert and speech feedback
• Multiple stick modes (1-4)
• USB-C charging, earphone jack, neck strap included
• Wireless trainer functionality

Warranty / Guarantee

• Guarantee: 1-Year Manufacturer Guarantee (as per Futaba policy)
