In Stock With Supplier
1 Year Warranty
FEATURES
- Size: 34.5×16.0×25.8mm
- Weight: 26g
- Torque: 7kgf cm (4.8V) / 8.5kgf cm (6.0V)
- Speed: 0.57sec/60° (4.8V) / 0.47sec/60° (6.0V)
CONTENTS
- 1x S3170G Mini Digital Retract Servo
- Horns
- Mounting Hardware
DETAILS
S3170G Standard Analog Airplane Retract Servo
Low Speed High Torque Metal Planetary Gear Servo
Use the horn set screw supplied with the sevo. Screw size: 3mm x 8mm.
Speed:
0.57 sec/60 (4.8V)
0.47 sec/60 (6.0V)
Torque:
7.0 kgf/cm (4.8V)
97.2 ozf/in (4.8V)
8.5 kgf/cm (6.0V
118.1 ozf/in (6.0V)

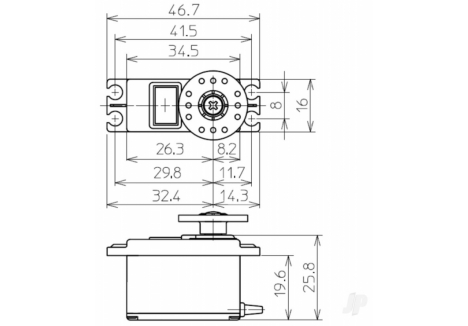

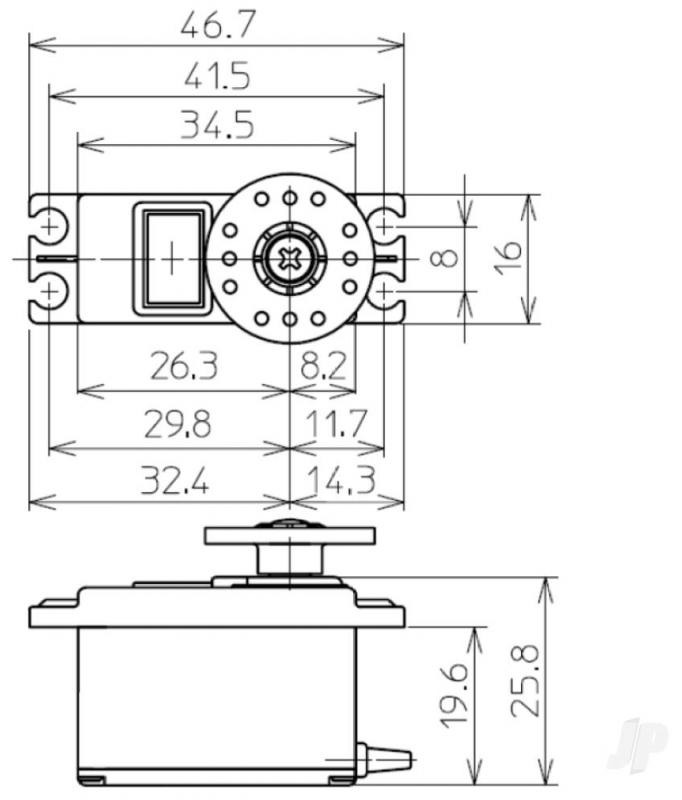

Size:
34.5 x 16 x 25.8 mm
1.36 x 0.63 x 1.02
Weight:
26 g
0.92 oz

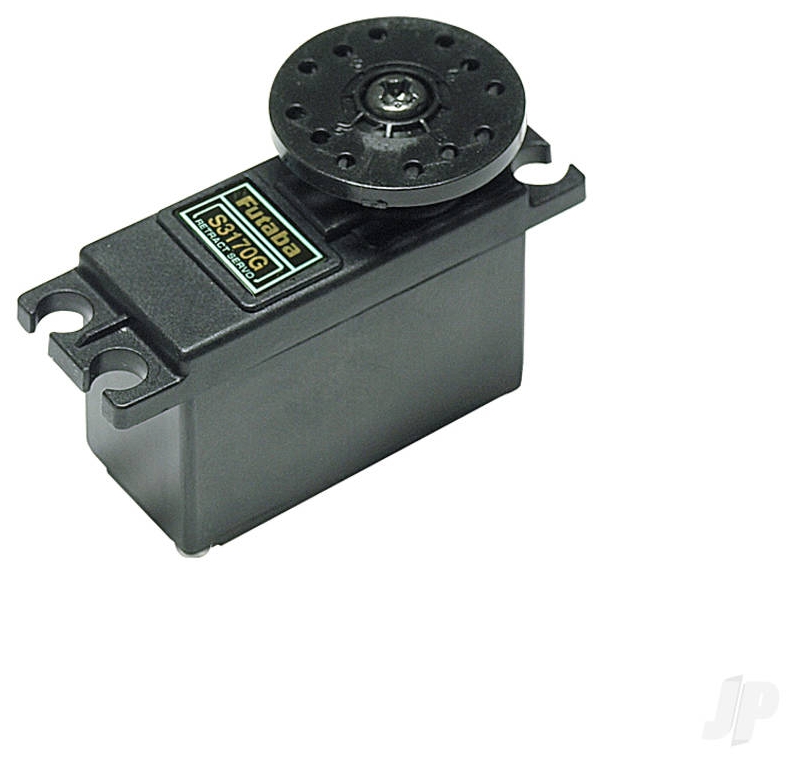

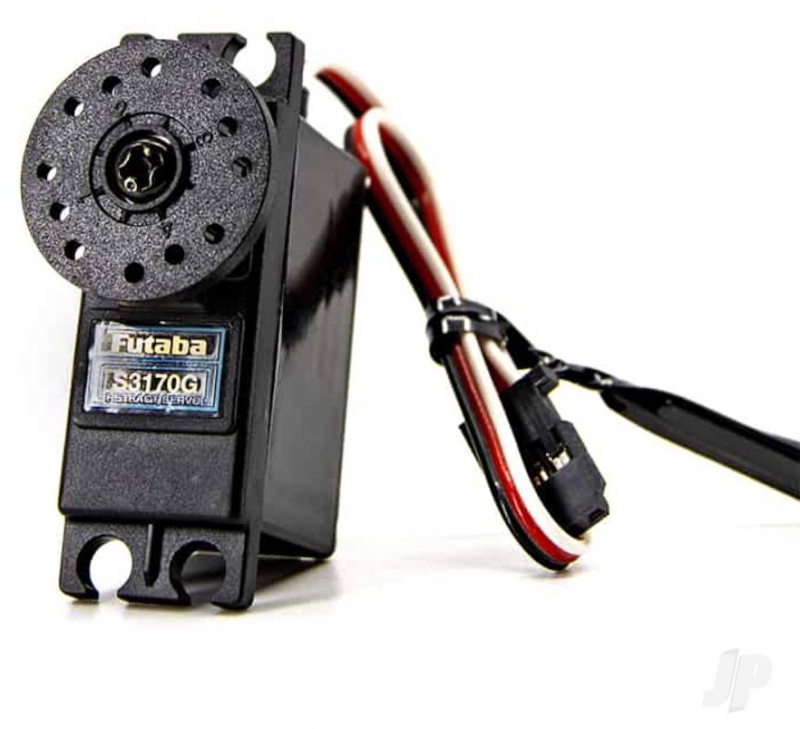

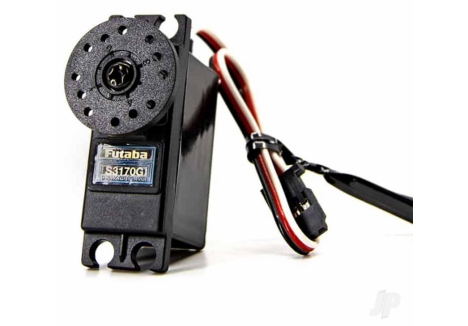

The Futaba S3170G Mini Digital Retract Servo (MG) – model FUT05102422-1 – is a dedicated, high-torque servo specifically designed to drive retractable landing gear in scale models, ensuring smooth deployment and precise position control.
Why the S3170G is the ideal retract solution
With 8.5 kg·cm of torque (at 6 V), a 0.47 s/60° response speed, and rugged metal planetary gears packed into a compact 34.5 × 16 × 25.8 mm body, this servo delivers strong, reliable gear motion without bulk. Its precision and build quality make it a perfect fit for retractable systems needing exact, repeatable movement.
What’s included
- One Futaba S3170G mini retract servo (FUT05102422-1)
- Servo horns and mounting hardware for installation
Performance & mechanical spec
The servo offers a balanced blend of torque and speed ideal for smoothly operating retract systems in EDF jets, scale warbirds, or sport models. Its digital signal ensures precise movement and steadfast reliability under load.
Compact and durable construction
Measuring just 34.5 × 16 × 25.8 mm and weighing only 26 g, this servo fits tight bays. Built with robust metal planetary gears and high-quality digital internals, it withstands the forefront of retract use scenarios.
Control compatibility
Operates via standard PWM signals across a practical voltage range of 4.8–6.0 V, making it compatible with most modern RC receivers and battery systems.
Ideal use cases
- Scale and foam-bodied retract systems in RC jets and warbirds
- Sport aircraft requiring compact gear mechanisms
- Modelers seeking precise, repeatable gear control without bulky components
Installation & usage tips
- Ensure gear is secured and aligned during setup to avoid strain
- Test the retract cycle manually post-install to confirm smooth motion
- Use a quality PWM receiver and ensure stable voltage for best performance
Advantages overview
- High torque packed into a miniature form factor
- Solid durability with metal gear construction
- Quick and responsive, suitable for gear action timing
- Simple PWM interface ensures broad compatibility
- Easy setup with included hardware
Final thoughts
The Futaba S3170G (FUT05102422-1) mini digital retract servo is an elegant solution for scale modelers who demand compact strength. It brings precision, reinforced construction, and compatibility to your retract systems—buy it today for reliable, high-end gear performance.
Product Overview
- Brand: Futaba
- Model: S3170G
- Part Number: FUT05102422-1
- Product Type: Mini Digital Retract Servo (MG)
Performance
- Torque: 8.5 kg·cm at 6.0 V (7.0 kg·cm at 4.8 V)
- Speed: 0.47 s/60° at 6.0 V (0.57 s/60° at 4.8 V)
Physical & Mechanical Details
- Size: 34.5 × 16 × 25.8 mm
- Weight: 26 g
- Gears: Metal planetary
- Command: PWM standard
- Voltage Range: 4.8–6.0 V
