In Stock With Supplier
1 Year Warranty
FEATURES
- Input Voltage: 3.7-7.4 V
- Diversity Antenna
- Gold Plated Connectors
DETAILS

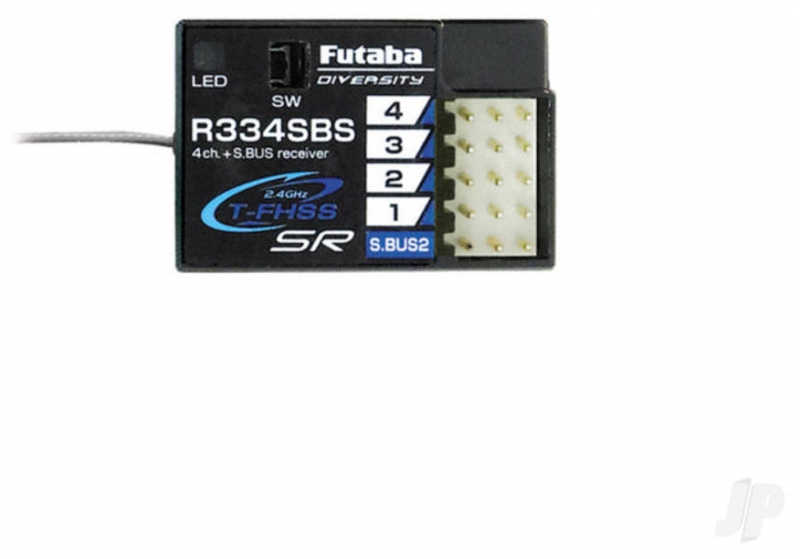

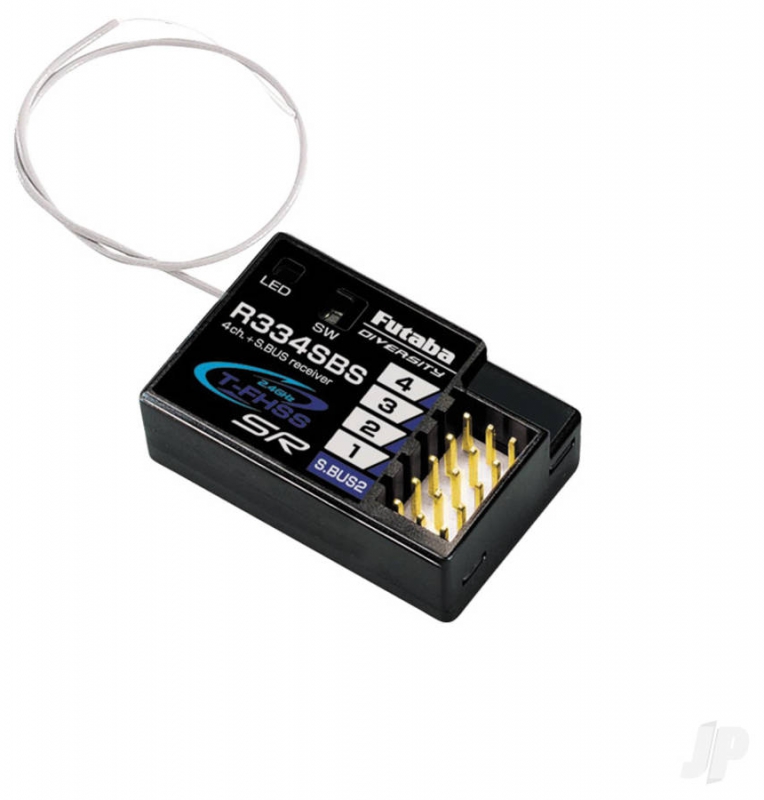

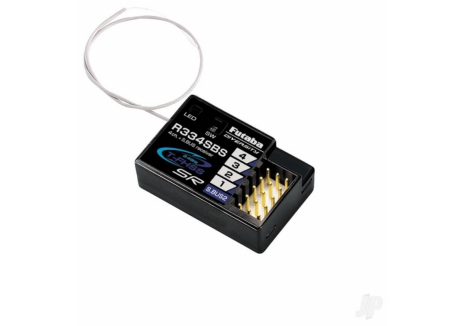

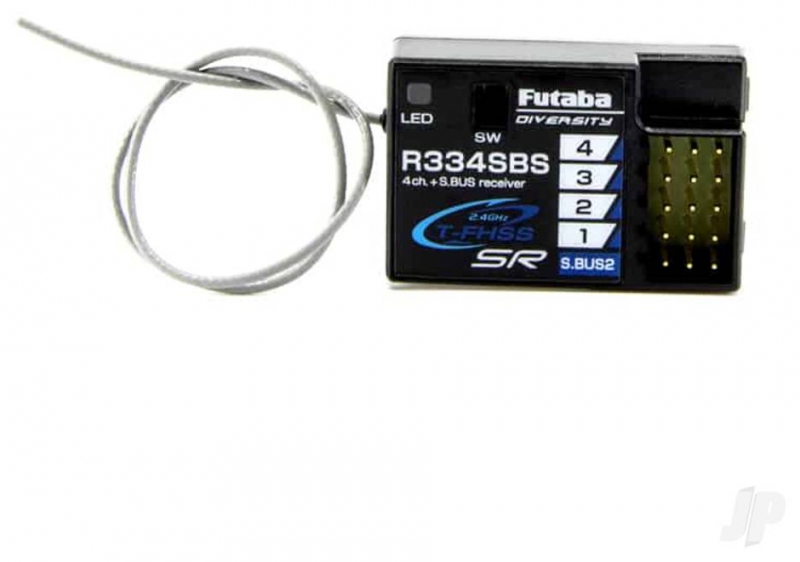

R334SBS Super Response T-FHSS Telemetry 4-Channel Receiver
High Speed Response System for Surface Models
T-FHSS SR
Size:
33.9 x 22.3 x 11.3 mm
1.33 x 0.88 x 0.44 in
Weight:
7.5 g
0.26 oz
Operating Voltage:
DC 3.7V - 7.4V
COMPATIBLE WITH THE T-FHSS SYSTEM TRANSMITTERS.
WHEN USING THE T-FHSS SR MODE, USE AN SR MODE SERVO. NORMAL SERVOS CANNOT BE USED.
THE USE OF NORMAL SERVOS MAY CAUSE SERVO TROUBLE.
Futaba R334SBS 4-Channel Surface Receiver (T-FHSS SR, S.BUS2) FUT05102646-3 delivers ultra-fast control with PWM and S.BUS2 output using the T-FHSS SR protocol.
Featuring dual-antenna diversity, compact dimensions of 33.9 × 22.3 × 11.3 mm, and high-voltage compatibility up to 7.4 V, this receiver provides robust signal performance and rapid response for competitive surface RC applications. It outputs four conventional PWM channels and supports S.BUS2 for advanced telemetry integration.
FAQs
- What protocols does it support? T-FHSS SR (Super Response) and standard T-FHSS.
- What outputs are available? 4 PWM channels plus S.BUS2 output.
- Does it offer redundancy? Yes—dual-antenna diversity enhances signal reliability.
- What is the size and weight? Measures 33.9 × 22.3 × 11.3 mm; weighs 7.5 g.
- What voltage range does it support? 3.7 V to 7.4 V (high-voltage capable up to 7.4 V).
- Part Number: FUT05102646-3
- Product Name: R334SBS 4-Channel Surface Receiver (T-FHSS SR with S.BUS2)
- Channels: 4 PWM
- Radio Protocol: T-FHSS SR (and T-FHSS)
- Output Options: PWM, S.BUS2
- Antenna Design: Dual-antenna diversity
- Voltage Range: 3.7 V – 7.4 V (high-voltage capable)
- Dimensions: 33.9 × 22.3 × 11.3 mm
- Weight: 7.5 g
- Applications: Fast-response surface control with telemetry support
