Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05102724-3
• Product Type: Futaba FUT05102724-3 HPS-A704 brushless servo with S.Bus2, Futaba FUT05102724-3 low profile servo 14kg 0.06s, Futaba FUT05102724-3 programmable servo for F3A aircraft, Futaba FUT05102724-3 with metal gears and plastic case, Futaba HPS-A704 servo with 25T spline and CIU-3 compatibility
• Product Color: Black

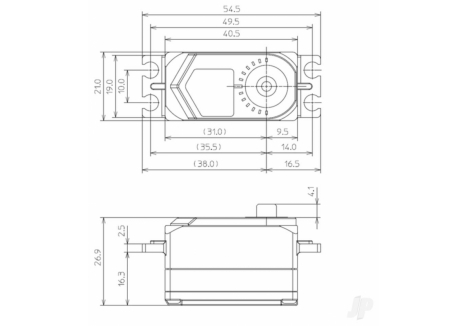

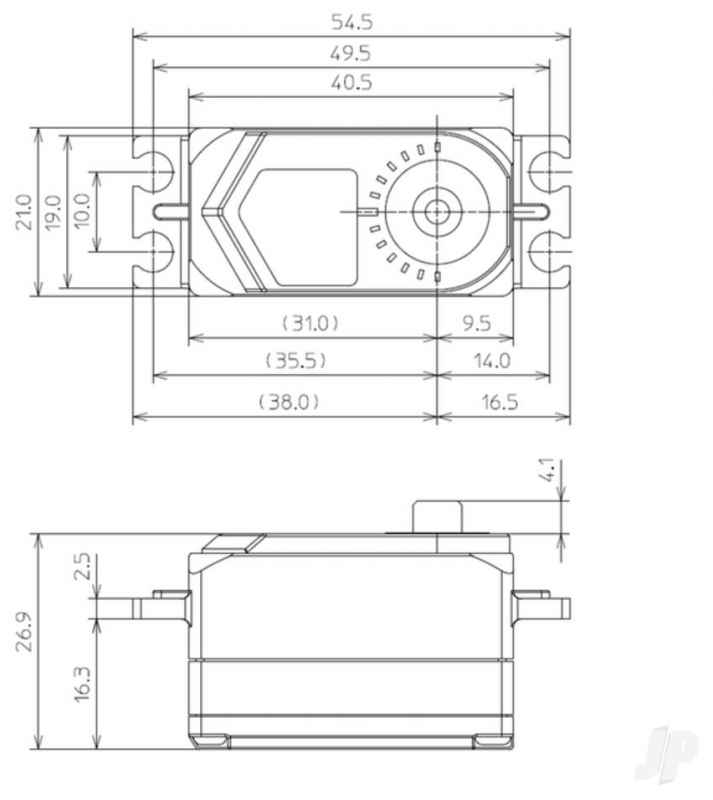

Dimensions

• Product Length: 4.1 cm – compact footprint for wing-mounted installations
• Product Width: 2.1 cm – streamlined for low-profile servo bays
• Product Height: 2.7 cm – optimized for flush mounting in F3A aircraft
• Product Weight: 48 g – lightweight for precision aerobatic builds
• Shipping Weight: 0.10 kg – includes packaging and mounting accessories

Performance Specifications

• Torque at 7.4V: 14.0 kgf.cm – delivers confident control for precision surfaces
• Torque at 6.6V: 12.5 kgf.cm – maintains reliable output under moderate voltage
• Speed at 7.4V: 0.06 sec/60° – ultra-fast actuation for crisp maneuvering
• Speed at 6.6V: 0.07 sec/60° – consistent responsiveness across voltage range

Motor and Signal Control

• Motor Type: Custom high-speed brushless – ensures rapid, efficient operation
• Signal Compatibility: PWM and S.Bus2 – supports both conventional and digital control systems
• PC Connectivity: Compatible with CIU-2 / CIU-3 USB adapter – enables advanced programming and configuration

Construction and Materials

• Gear Type: Metal – built for durability under high-speed cyclic loads
• Bearings: Dual ball bearings – enhances mechanical efficiency and reduces wear
• Spline Count: 25T – compatible with Futaba-standard servo horns
• Case Material: Plastic (upper, middle, bottom) – lightweight housing optimized for aerobatic airframes

Voltage and Power Requirements

• Rated Voltage: DC 6.0V – 7.4V – optimized for high-voltage F3A systems
• Operating Voltage: DC 4.8V – 8.4V – supports a broad range of regulated power sources
• Battery Compatibility: Dry batteries and BEC systems not supported – use regulated LiPo or dedicated power modules only

Application and Use Case

• Servo Type: Low Profile – ideal for F3A aircraft and precision aerobatic control surfaces
• Use Case: Aileron, elevator, and rudder control – engineered for speed and accuracy
• Recommended Aircraft: F3A competition planes and aerobatic platforms

What’s in the Box

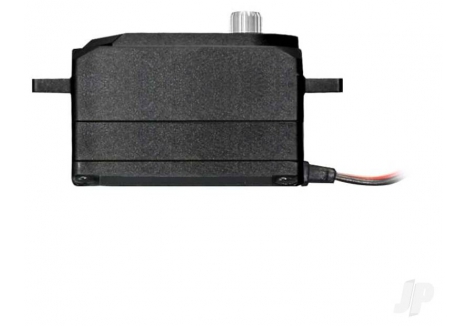

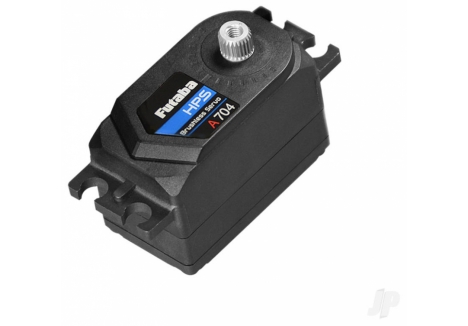

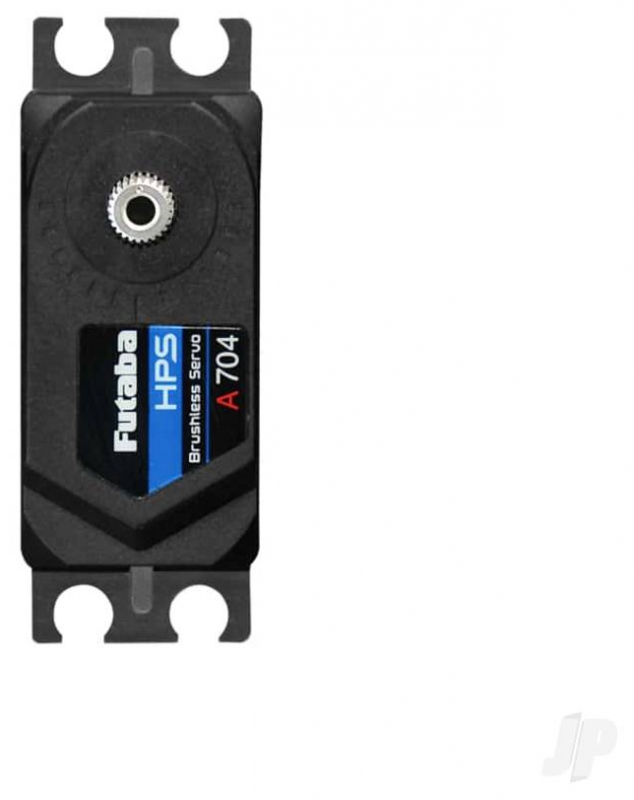

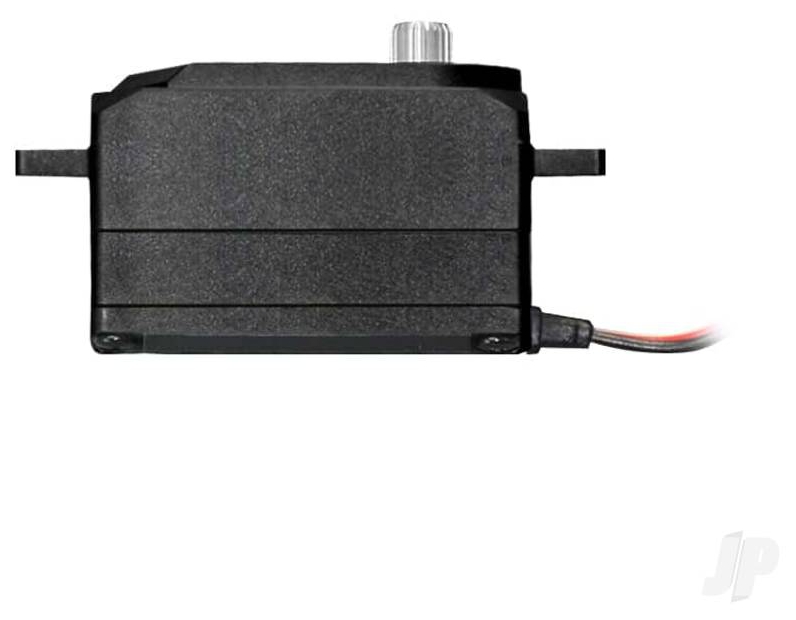

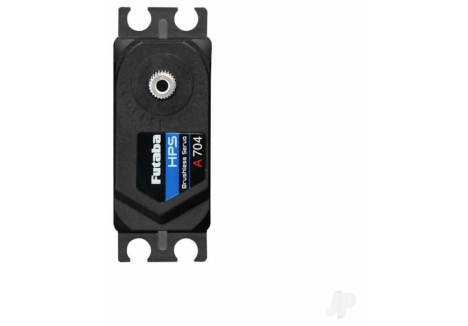

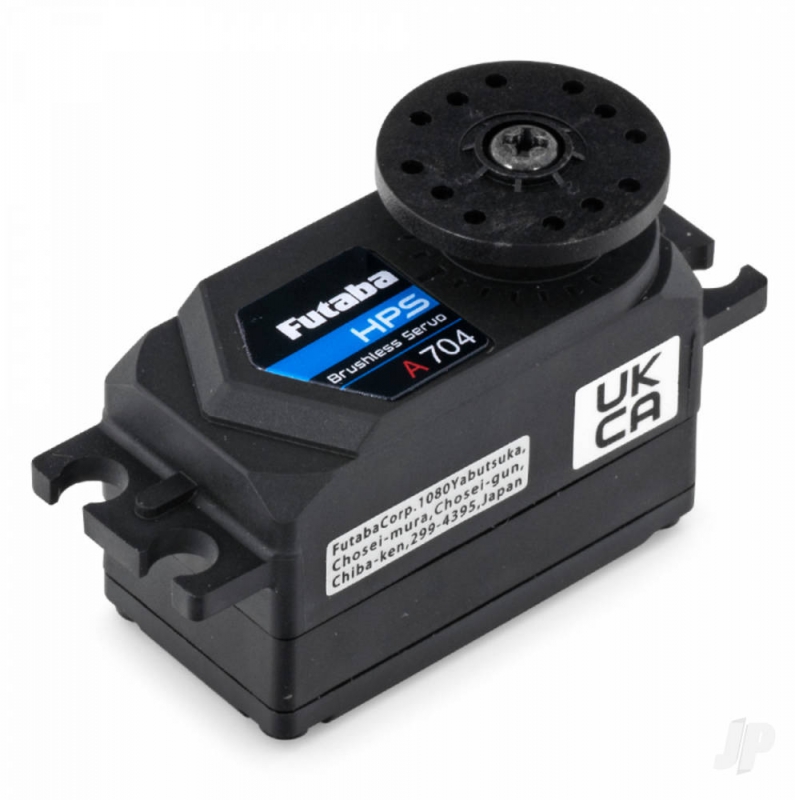

• 1 × Futaba HPS-A704 Low Profile Brushless Servo
• Servo horns
• Mounting hardware

What You Require

• Compatible Futaba transmitter with S.Bus2 support
• Power source within 4.8V to 8.4V range
• CIU-2 or CIU-3 USB adapter for PC programming (sold separately)

Sold Separately

• Futaba transmitter with programmable servo settings
• CIU-2 / CIU-3 USB adapter

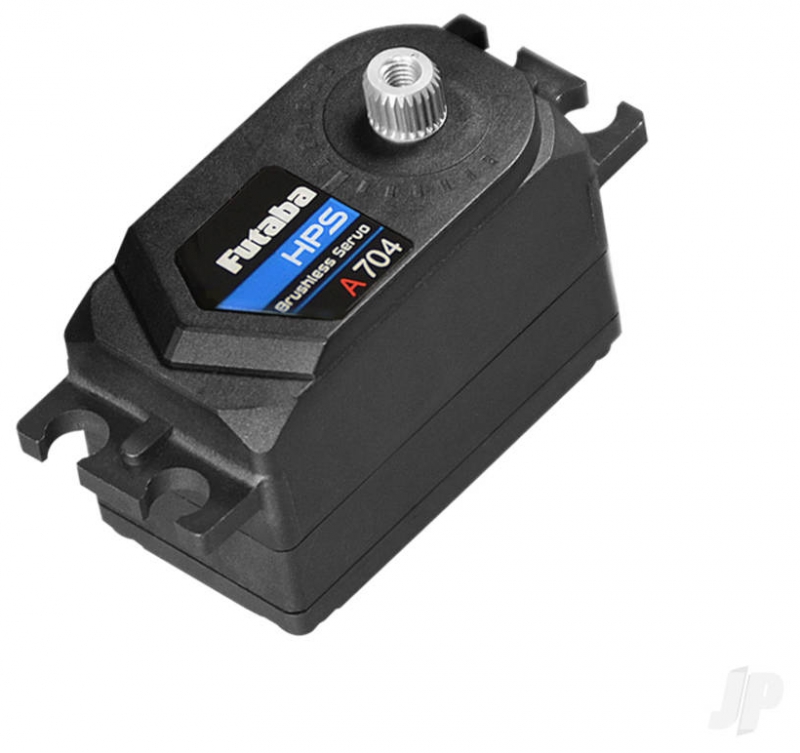

Product Description of Futaba FUT05102724-3 HPS-A704 brushless servo with S.Bus2

The Futaba FUT05102724-3 HPS-A704 brushless servo with S.Bus2 is a precision-engineered low profile servo designed specifically for F3A class competition aircraft. With a lightning-fast response time of 0.06 seconds per 60° and a torque output of 14.0kgf.cm at 7.4V, this servo delivers the speed and authority required for high-precision aerobatic maneuvers. The Futaba FUT05102724-3 low profile servo 14kg 0.06s features a custom high-speed brushless motor, metal gears, and a lightweight plastic case—balancing performance with weight efficiency for optimal airframe integration. Fully programmable and compatible with both PWM and S.Bus2 systems, it offers advanced configurability via CIU-3 for pilots who demand tailored control responses.

Key features of the Futaba FUT05102724-3 HPS-A704 brushless servo

• High-speed brushless motor – engineered for rapid actuation and minimal latency
• Low profile design – ideal for wing-mounted installations in F3A aircraft
• Torque output – 14.0kgf.cm at 7.4V for confident control of precision surfaces
• Response time – 0.06 sec/60° at 7.4V for crisp, accurate maneuver execution
• Metal gear train – ensures durability under repetitive high-speed cycles
• 25T spline – compatible with Futaba-standard servo horns and linkages
• Plastic case – lightweight housing optimized for aerobatic airframes

Why is the Futaba FUT05102724-3 programmable servo for F3A aircraft ideal for competitive flying?

The Futaba FUT05102724-3 programmable servo for F3A aircraft is purpose-built for competitive aerobatics, where precision and responsiveness are non-negotiable. Its low profile form factor allows for flush wing installations, reducing drag and improving control geometry. With programmable parameters accessible via CIU-3, pilots can fine-tune servo behavior to match their flight style and aircraft setup. Whether executing slow rolls or snap maneuvers, this servo delivers the accuracy and speed needed to stay ahead in competition.

How does the Futaba HPS-A704 servo with 25T spline and CIU-3 compatibility enhance setup flexibility?

Setup flexibility is key in aerobatic aircraft, and the Futaba HPS-A704 servo with 25T spline and CIU-3 compatibility offers just that. The 25T spline ensures secure linkage with Futaba-standard horns, while CIU-3 support enables PC-based programming for advanced configuration. This allows pilots to adjust endpoints, speed curves, and signal response to suit specific control surfaces and flight routines. The result is a servo that adapts to your aircraft—not the other way around.

What makes the Futaba FUT05102724-3 with metal gears and plastic case ideal for weight-sensitive builds?

Weight management is critical in F3A aircraft, and the Futaba FUT05102724-3 with metal gears and plastic case strikes the perfect balance. The metal gear train provides mechanical resilience, while the plastic housing keeps overall weight to a minimum. This combination ensures reliable performance without compromising the aircraft’s weight distribution or agility. It’s a smart choice for pilots who need strength without excess mass.

Is the Futaba low profile servo for precision aerobatics and HV setups suitable for advanced control systems?

Absolutely. The Futaba low profile servo for precision aerobatics and HV setups is compatible with both PWM and S.Bus2 protocols, making it suitable for traditional receivers and advanced digital systems. Its high-voltage rating ensures consistent torque and speed across a wide operating range, while its programmable interface allows for granular control adjustments. Whether you're flying with a basic transmitter or a fully integrated telemetry system, this servo fits right in.

For aerobatic pilots seeking a lightweight, high-speed servo with advanced programmability and competition-grade performance, the affordable Futaba HPS-A704 with 0.06s speed and 14kg torque is a top-tier solution. Buy Futaba FUT05102724-3 servo with mounting hardware and horns today.

Technical Specifications of Futaba FUT05102724-3 HPS-A704 brushless servo with S.Bus2

Brand, Model and Product Type

• Brand: Futaba
• Model: FUT05102724-3
• Product Type: Futaba FUT05102724-3 HPS-A704 brushless servo with S.Bus2, Futaba FUT05102724-3 low profile servo 14kg 0.06s, Futaba FUT05102724-3 programmable servo for F3A aircraft, Futaba FUT05102724-3 with metal gears and plastic case, Futaba HPS-A704 servo with 25T spline and CIU-3 compatibility
• Product Color: Black

Dimensions

• Product Length: 4.1 cm – compact footprint for wing-mounted installations
• Product Width: 2.1 cm – streamlined for low-profile servo bays
• Product Height: 2.7 cm – optimized for flush mounting in F3A aircraft
• Product Weight: 48 g – lightweight for precision aerobatic builds
• Shipping Weight: 0.10 kg – includes packaging and mounting accessories

Performance Specifications

• Torque at 7.4V: 14.0 kgf.cm – delivers confident control for precision surfaces
• Torque at 6.6V: 12.5 kgf.cm – maintains reliable output under moderate voltage
• Speed at 7.4V: 0.06 sec/60° – ultra-fast actuation for crisp maneuvering
• Speed at 6.6V: 0.07 sec/60° – consistent responsiveness across voltage range

Motor and Signal Control

• Motor Type: Custom high-speed brushless – ensures rapid, efficient operation
• Signal Compatibility: PWM and S.Bus2 – supports both conventional and digital control systems
• PC Connectivity: Compatible with CIU-2 / CIU-3 USB adapter – enables advanced programming and configuration

Construction and Materials

• Gear Type: Metal – built for durability under high-speed cyclic loads
• Bearings: Dual ball bearings – enhances mechanical efficiency and reduces wear
• Spline Count: 25T – compatible with Futaba-standard servo horns
• Case Material: Plastic (upper, middle, bottom) – lightweight housing optimized for aerobatic airframes

Voltage and Power Requirements

• Rated Voltage: DC 6.0V – 7.4V – optimized for high-voltage F3A systems
• Operating Voltage: DC 4.8V – 8.4V – supports a broad range of regulated power sources
• Battery Compatibility: Dry batteries and BEC systems not supported – use regulated LiPo or dedicated power modules only

Application and Use Case

• Servo Type: Low Profile – ideal for F3A aircraft and precision aerobatic control surfaces
• Use Case: Aileron, elevator, and rudder control – engineered for speed and accuracy
• Recommended Aircraft: F3A competition planes and aerobatic platforms

What’s in the Box

• 1 × Futaba HPS-A704 Low Profile Brushless Servo
• Servo horns
• Mounting hardware

What You Require

• Compatible Futaba transmitter with S.Bus2 support
• Power source within 4.8V to 8.4V range
• CIU-2 or CIU-3 USB adapter for PC programming (sold separately)

Sold Separately

• Futaba transmitter with programmable servo settings
• CIU-2 / CIU-3 USB adapter
