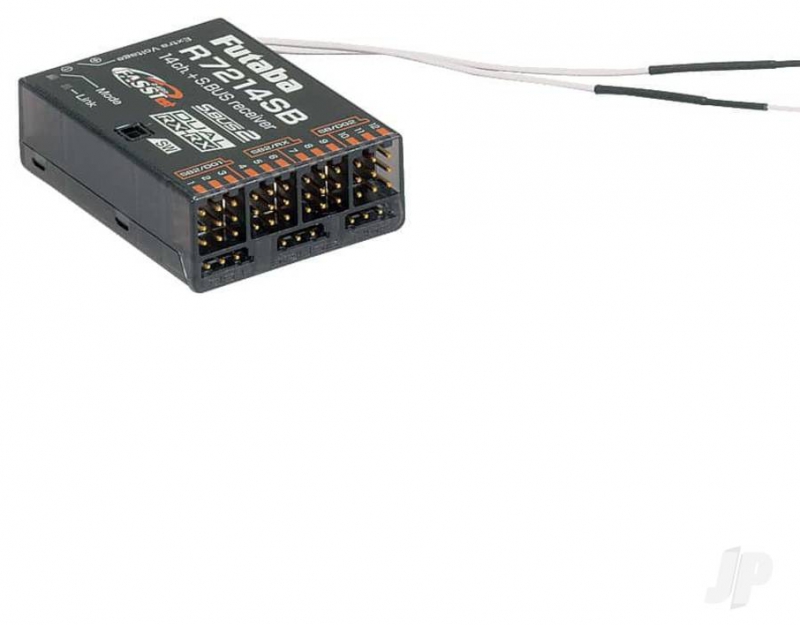

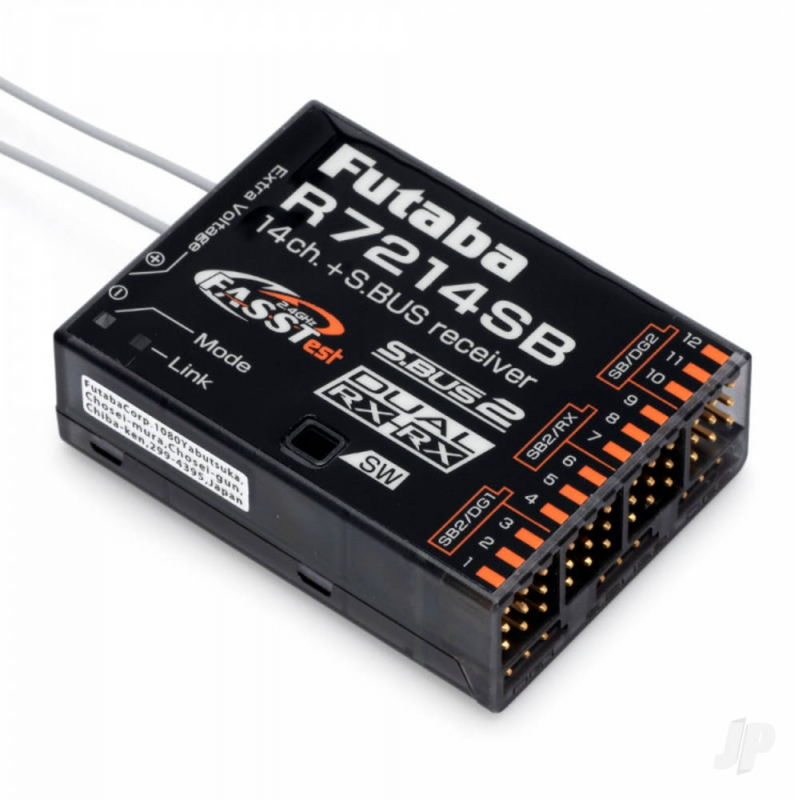

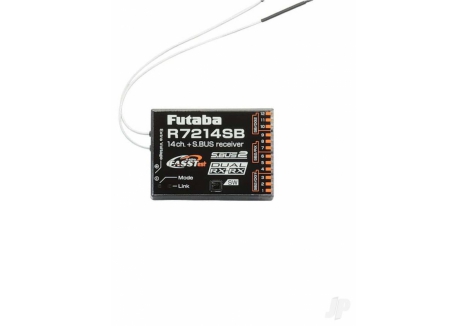

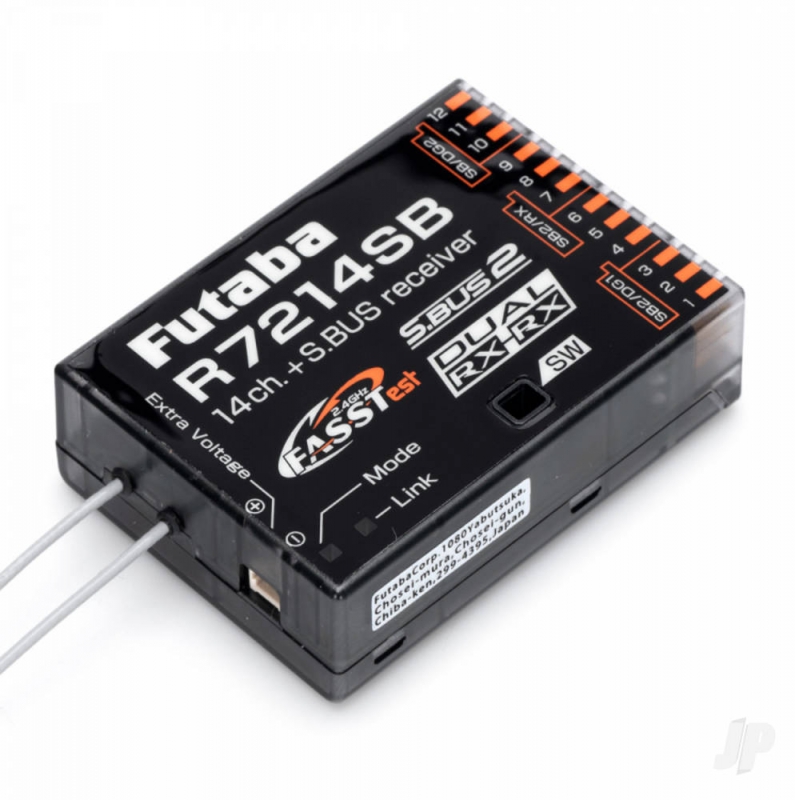

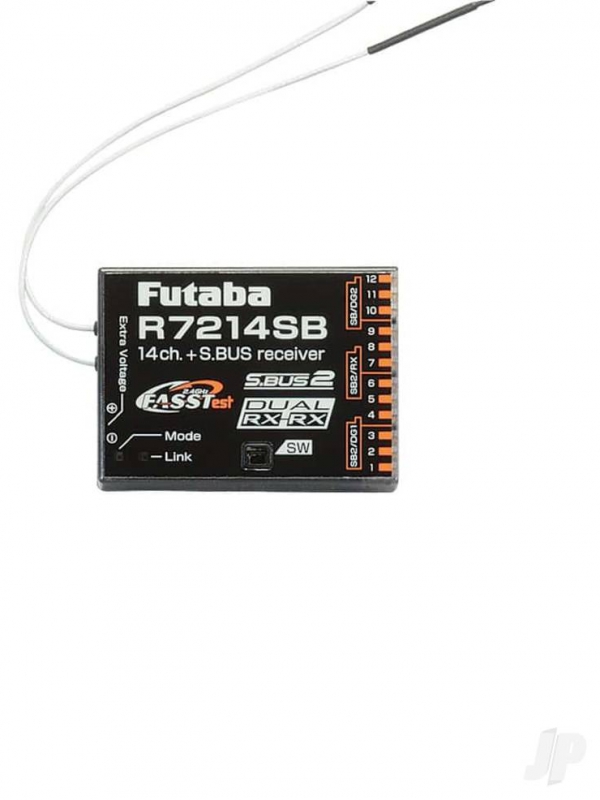

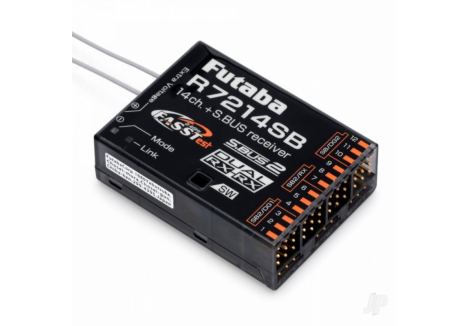

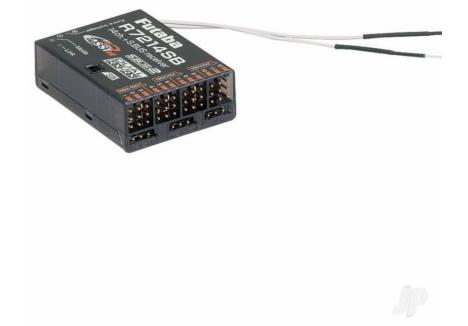

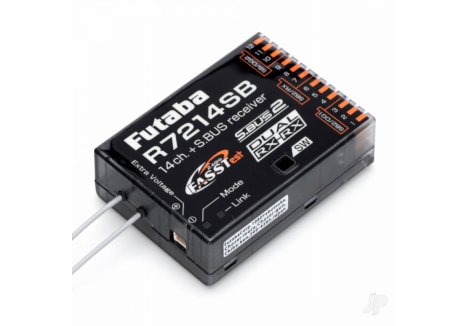

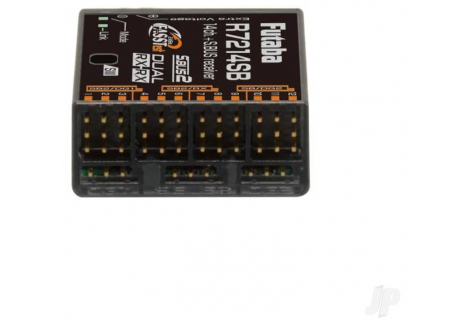

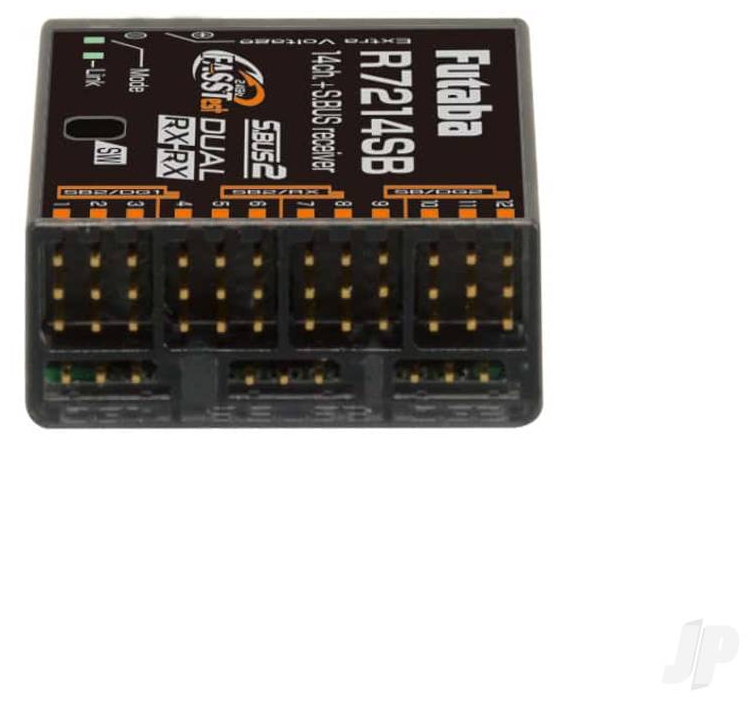

Futaba R7214SB 14-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest FUT05102736-3

Model No: FUT05102736-3


Dispatched Within 3 Working Days

£174.99

£27.00

£147.99

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

FEATURES

  • Diversity Antenna
  • Extra External Voltage Port
  • Dual RX-RX Capable
  • Channels: 10ch (PWM) + S.BUS

DETAILS

R7214SB FASSTest Bi-Directional Communication System S.Bus/S.Bus2 Port and 14 Channels for Conventional System Receiver

For Aircraft Models

Size:
50.2 x 37.0 x 15.9 mm
1.98 x 1.45 x 0.63

Weight:
20.8 g
0.73 oz

Power Requirements:
DC 3.7V ~ 7.4V

Voltage Range:
DC 3.5V ~ 8.4V

Brand, Model and Product Type

  • Brand: Futaba
  • Model: FUT05102736-3
  • Product Type: Futaba FUT05102736-3 R7214SB air receiver with telemetry, Futaba FUT05102736-3 14-channel PWM receiver with S.Bus2, Futaba FUT05102736-3 FASSTest receiver with dual antenna, Futaba FUT05102736-3 with diversity antenna and voltage port, Futaba R7214SB receiver with 26-channel S.Bus and dual RX link
  • Product Colour: Black

Dimensions

  • Product Length: 5.02 cm – compact enough for fuselage and receiver bay installations
  • Product Width: 3.70 cm – designed to fit standard aircraft receiver trays
  • Product Height: 1.59 cm – low-profile for streamlined integration
  • Product Weight: 20.8 g – lightweight for minimal impact on aircraft balance
  • Shipping Weight: 0.06 kg – includes packaging and accessories

Channel and Signal Capabilities

  • Channel Output: 14-channel PWM – supports conventional servo systems
  • S.Bus/S.Bus2 Output: 26-channel – enables digital expansion for advanced configurations
  • Communication Protocol: FASSTest – supports bi-directional telemetry and secure signal transmission
  • Dual RX Link: Supported – allows connection to secondary receiver for redundancy

Connectivity and Telemetry

  • Telemetry Support: Enabled – provides real-time system feedback to compatible transmitters
  • External Voltage Port: Included – allows monitoring of onboard power levels

Antenna and Signal Integrity

  • Diversity Antenna: Dual – ensures stable reception across multiple aircraft orientations
  • Signal Redundancy: Dual RX-RX capable – enhances safety during critical flight operations

Power Requirements

  • Rated Voltage: DC 3.7V – 7.4V – compatible with standard aircraft power systems
  • Operating Voltage Range: DC 3.5V – 8.4V – supports regulated high-voltage setups

Application and Use Case

  • Receiver Type: Air – designed for aircraft models requiring high channel density
  • Use Case: Control signal distribution and telemetry feedback – suitable for large aircraft and advanced builds
  • Recommended Systems: FASSTest bi-directional communication setups

What’s in the Box

  • 1 × Futaba R7214SB Air Receiver

What You Require

  • Compatible Futaba transmitter with FASSTest protocol and telemetry support
  • Power source within 3.5V to 8.4V range

Sold Separately

  • Futaba transmitter with telemetry and S.Bus2 configuration capabilities

Product Description of Futaba FUT05102736-3 R7214SB air receiver with telemetry

The Futaba FUT05102736-3 R7214SB air receiver with telemetry is engineered for advanced aircraft control systems requiring high channel density, robust signal integrity, and bi-directional communication. Designed for FASSTest environments, this receiver supports 14-channel PWM output and up to 26 channels via S.Bus/S.Bus2, offering exceptional flexibility for large-scale aircraft builds. With dual antenna diversity and dual RX link capability, the receiver ensures stable signal reception and redundancy, even in complex flight conditions. The Futaba FUT05102736-3 14-channel PWM receiver with S.Bus2 features a compact footprint, external voltage port, and telemetry support, making it a reliable and scalable solution for modern aircraft systems operating up to 8.4V.

Key features of the Futaba FUT05102736-3 R7214SB air receiver with telemetry

  • 14-channel PWM output – supports conventional servo systems with high channel count
  • 26-channel S.Bus/S.Bus2 – enables digital expansion for advanced aircraft configurations
  • Diversity antenna – ensures stable signal reception across multiple orientations
  • Dual RX link – provides redundancy and safety for critical flight operations
  • Telemetry support – enables real-time data feedback for voltage and system status
  • External voltage port – allows monitoring of onboard power levels
  • Compact design – fits easily into fuselage compartments and receiver bays

Why is the Futaba FUT05102736-3 14-channel PWM receiver with S.Bus2 ideal for large aircraft?

Large aircraft require extensive channel support and robust signal handling, and the Futaba FUT05102736-3 14-channel PWM receiver with S.Bus2 delivers both. Its 14 PWM channels accommodate conventional servos for control surfaces, while the 26-channel S.Bus/S.Bus2 output allows integration of digital devices such as gyros, telemetry sensors, and programmable servos. This dual-mode capability makes the receiver suitable for complex aircraft builds where scalability and signal clarity are essential. Whether managing flaps, retracts, or multi-axis stabilization, this receiver provides the infrastructure needed for precision control.

How does the Futaba R7214SB receiver with 26-channel S.Bus and dual RX link enhance flight safety?

Flight safety is paramount, and the Futaba R7214SB receiver with 26-channel S.Bus and dual RX link is designed to mitigate signal loss and interference. The dual RX link feature allows connection to a secondary receiver, creating a redundant signal path that ensures continuous communication with the transmitter. Combined with diversity antenna technology, which uses two antennas to maintain optimal signal orientation, this receiver offers enhanced reliability during critical flight phases. These features are especially valuable in high-stakes environments such as aerobatics, long-range flights, and large-scale aircraft operations.

Is the Futaba FUT05102736-3 FASSTest receiver with dual antenna compatible with telemetry systems?

Yes, the Futaba FUT05102736-3 FASSTest receiver with dual antenna is fully compatible with telemetry-enabled systems. Operating within the FASSTest protocol, the receiver supports bi-directional communication, allowing real-time transmission of voltage data and system diagnostics back to the transmitter. This feedback loop enhances situational awareness for pilots, enabling proactive responses to power fluctuations or signal anomalies. The inclusion of an external voltage port further expands telemetry capabilities, making the receiver a comprehensive solution for monitoring and control.

What makes the Futaba aircraft receiver for FASSTest bi-directional systems suitable for modern builds?

Modern aircraft builds demand compact, high-performance components, and the Futaba aircraft receiver for FASSTest bi-directional systems meets those requirements. Measuring just 50.2mm × 37.0mm × 15.9mm and weighing 20.8g, the receiver fits easily into tight fuselage spaces without compromising functionality. Its support for both PWM and S.Bus/S.Bus2 outputs allows seamless integration with legacy and digital systems, while the FASSTest protocol ensures fast, secure communication. These attributes make the receiver a versatile choice for builders seeking reliability, scalability, and advanced telemetry support.

How does the Futaba FUT05102736-3 with diversity antenna and voltage port improve signal integrity?

Signal integrity is critical in RC aviation, and the Futaba FUT05102736-3 with diversity antenna and voltage port is designed to maintain consistent communication. The diversity antenna system uses two antennas to optimise signal reception regardless of aircraft orientation, reducing the risk of dropouts during manoeuvres. The external voltage port allows real-time monitoring of onboard power levels, helping pilots detect and respond to voltage irregularities before they impact performance. Together, these features enhance operational confidence and system resilience.

What advantages does the Futaba FUT05102736-3 R7214SB air receiver with telemetry offer for advanced aircraft?

The Futaba FUT05102736-3 R7214SB air receiver with telemetry offers a comprehensive suite of features tailored for advanced aircraft systems. Its dual-mode output supports both traditional and digital control architectures, while telemetry integration provides real-time feedback for informed decision-making. The receiver’s compact size and lightweight design simplify installation, and its dual antenna and dual RX link capabilities ensure robust signal reliability. These advantages make it a strategic upgrade for pilots seeking enhanced control, safety, and system visibility.

For aircraft builders and pilots seeking a scalable, telemetry-ready receiver with robust signal handling and high channel capacity, the affordable Futaba R7214SB with 14 PWM channels and dual-link safety is a top-tier solution. Buy Futaba FUT05102736-3 receiver with telemetry and S.Bus2 support today.

Technical Specifications of Futaba FUT05102736-3 R7214SB air receiver with telemetry

Brand, Model and Product Type

  • Brand: Futaba
  • Model: FUT05102736-3
  • Product Type: Futaba FUT05102736-3 R7214SB air receiver with telemetry, Futaba FUT05102736-3 14-channel PWM receiver with S.Bus2, Futaba FUT05102736-3 FASSTest receiver with dual antenna, Futaba FUT05102736-3 with diversity antenna and voltage port, Futaba R7214SB receiver with 26-channel S.Bus and dual RX link
  • Product Colour: Black

Dimensions

  • Product Length: 5.02 cm – compact enough for fuselage and receiver bay installations
  • Product Width: 3.70 cm – designed to fit standard aircraft receiver trays
  • Product Height: 1.59 cm – low-profile for streamlined integration
  • Product Weight: 20.8 g – lightweight for minimal impact on aircraft balance
  • Shipping Weight: 0.06 kg – includes packaging and accessories

Channel and Signal Capabilities

  • Channel Output: 14-channel PWM – supports conventional servo systems
  • S.Bus/S.Bus2 Output: 26-channel – enables digital expansion for advanced configurations
  • Communication Protocol: FASSTest – supports bi-directional telemetry and secure signal transmission
  • Dual RX Link: Supported – allows connection to secondary receiver for redundancy

Connectivity and Telemetry

  • Telemetry Support: Enabled – provides real-time system feedback to compatible transmitters
  • External Voltage Port: Included – allows monitoring of onboard power levels

Antenna and Signal Integrity

  • Diversity Antenna: Dual – ensures stable reception across multiple aircraft orientations
  • Signal Redundancy: Dual RX-RX capable – enhances safety during critical flight operations

Power Requirements

  • Rated Voltage: DC 3.7V – 7.4V – compatible with standard aircraft power systems
  • Operating Voltage Range: DC 3.5V – 8.4V – supports regulated high-voltage setups

Application and Use Case

  • Receiver Type: Air – designed for aircraft models requiring high channel density
  • Use Case: Control signal distribution and telemetry feedback – suitable for large aircraft and advanced builds
  • Recommended Systems: FASSTest bi-directional communication setups

What’s in the Box

  • 1 × Futaba R7214SB Air Receiver

What You Require

  • Compatible Futaba transmitter with FASSTest protocol and telemetry support
  • Power source within 3.5V to 8.4V range

Sold Separately

  • Futaba transmitter with telemetry and S.Bus2 configuration capabilities
