Futaba R7206SB 6-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest FUT05102739-3

Model No: FUT05102739-3


Dispatched Within 3 Working Days

£94.99

£9.50

£85.49

Inc VAT

We Accept
In Stock With Supplier
1 Year Warranty

FEATURES

  • Input Voltage: 3.5-8.4 V

CONTENTS

  • 1x R7206SB Receiver

DETAILS

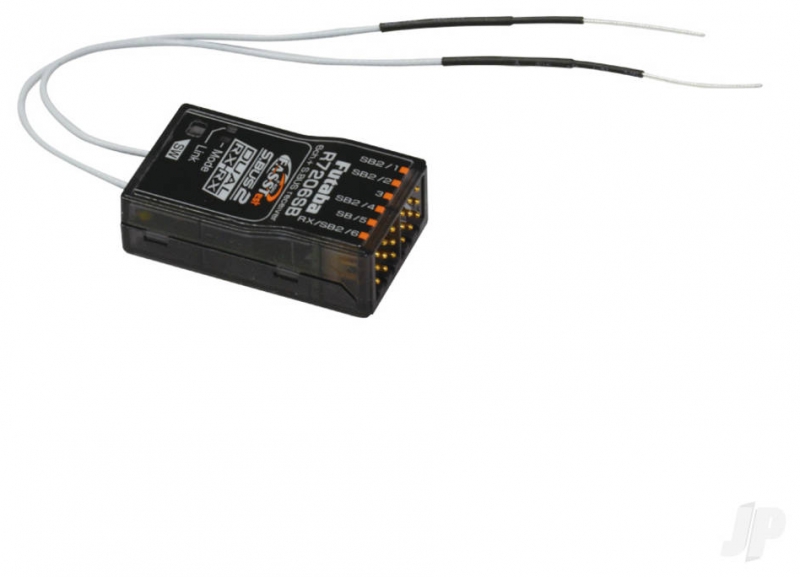

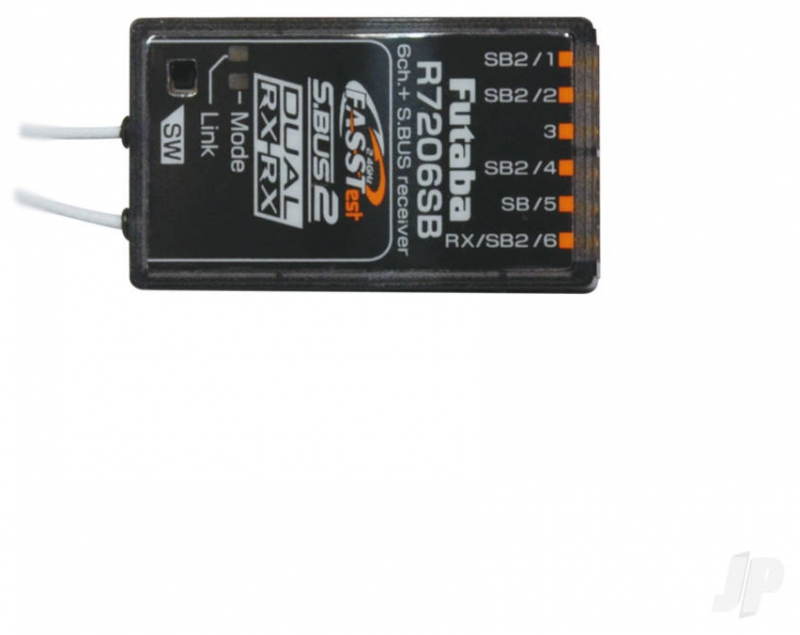

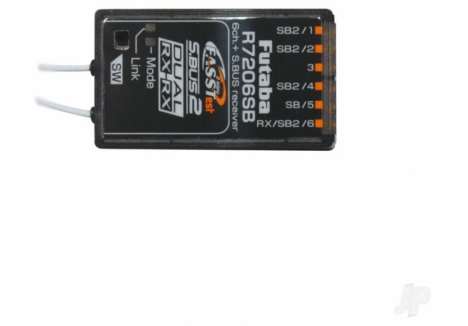

R7206SB FASSTest 6-Channel/S.Bus/S.Bus2 Port Receiver w/Dual link

Bi-Directional Communication System for Aircraft Models

Size:
22.5 x 38.3 x 12.2 mm
0.89 x 1.5 x 0.48 in

Weight:
8.5 g
0.30 oz

Power Requirements:
DC 3.7V ~ 7.4V

Voltage Range:
DC 3.5V ~ 8.4V

Technical note:

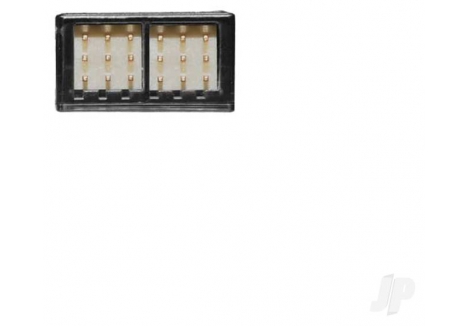

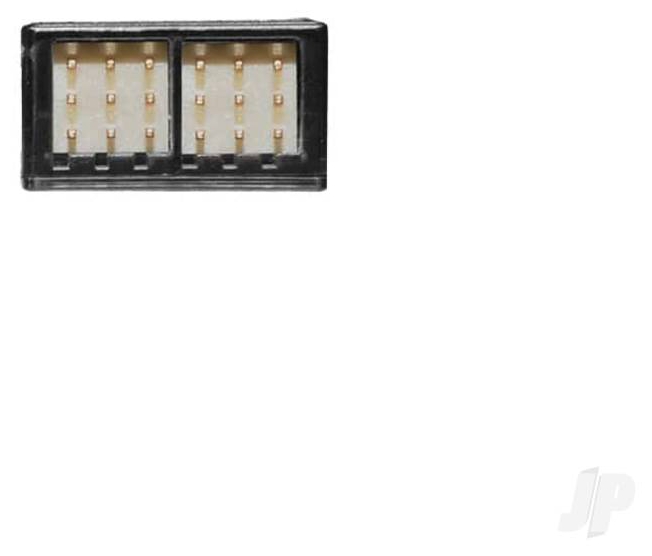

The servo and SBus connections to this receiver are oriented with the Ground pin UP and the signal wire toward the bottom of the receiver!

Futaba R7206SB 6-Channel Air Receiver (18-Channel S.BUS/S.BUS2) FUT05102739-3 offers flexible FASSTest Dual-Link control via PWM, S.BUS, and S.BUS2 interfaces.

Featuring 6 conventional PWM outputs, plus up to 18 S.BUS/S.BUS2 channels, this receiver packs telemetry, dual-antenna diversity, and high-voltage support into a sleek, lightweight (8.8 g) design measuring just 38.3 × 22.5 × 12.2 mm.

FAQs

  • What command protocols are supported? PWM, S.BUS, and S.BUS2 under FASSTest Dual-Link.
  • How many channels are available? 6 via PWM, expandable to 18 via S.BUS/S.BUS2.
  • Does it offer signal redundancy? Yes—features dual-antenna diversity for enhanced reception.
  • What voltage range does it support? Operates between 3.5 V and 8.4 V (high-voltage capable).
  • What are its dimensions and weight? 38.3 × 22.5 × 12.2 mm; 8.8 g.
  • Part Number: FUT05102739-3
  • Product Name: R7206SB 6-Channel Air Receiver (18-Channel via S.BUS/S.BUS2)
  • Channels: 6 PWM or up to 18 via S.BUS/S.BUS2
  • Radio Protocol: FASSTest (Dual-Link)
  • Control Protocols: PWM, S.BUS, S.BUS2
  • Voltage Range: 3.5 V – 8.4 V (high-voltage capable)
  • Telemetry: Supported via FASSTest/S.BUS
  • Antenna: Dual-antenna diversity
  • Dimensions: 38.3 × 22.5 × 12.2 mm
  • Weight: 8.8 g
  • Applications: High-performance RC aircraft control in compact spaces
