Futaba S-C400 Low Profile Digital Servo PWM/S.BUS2 8kg 0.08s 4.8V - 7.4V FUT05102742-3

Futaba S-C400 Low Profile Digital Servo FUT05102742-3 delivers responsive performance with 8 kg·cm torque and versatile control via PWM, S.BUS, or S.BUS2.

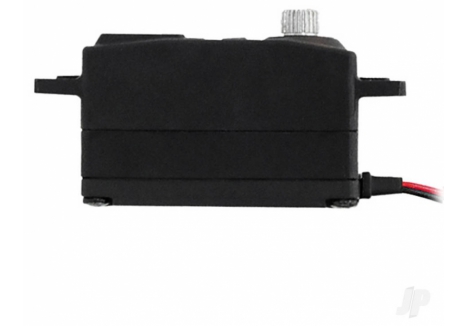

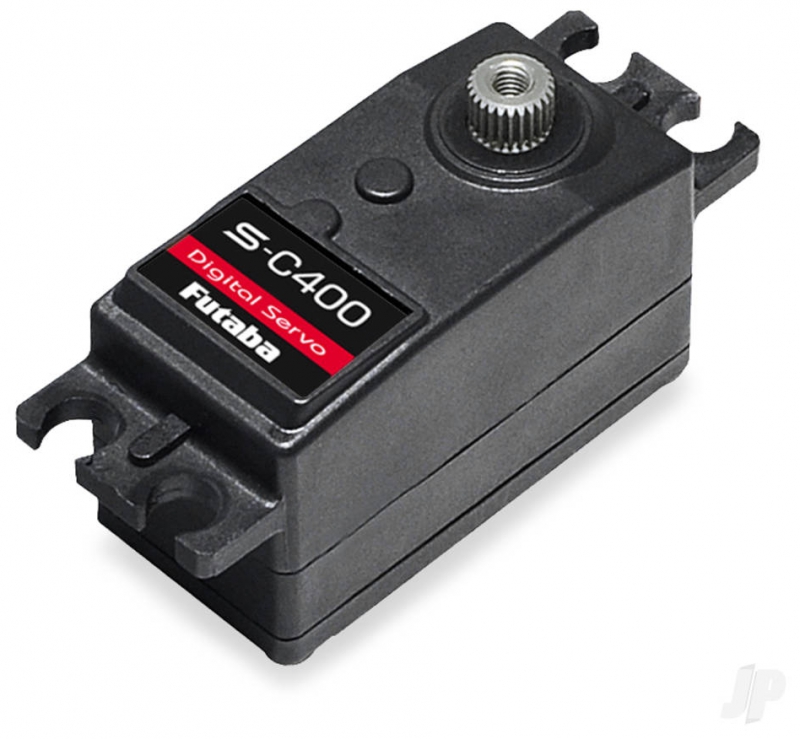

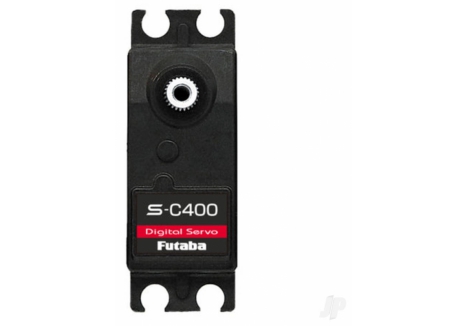

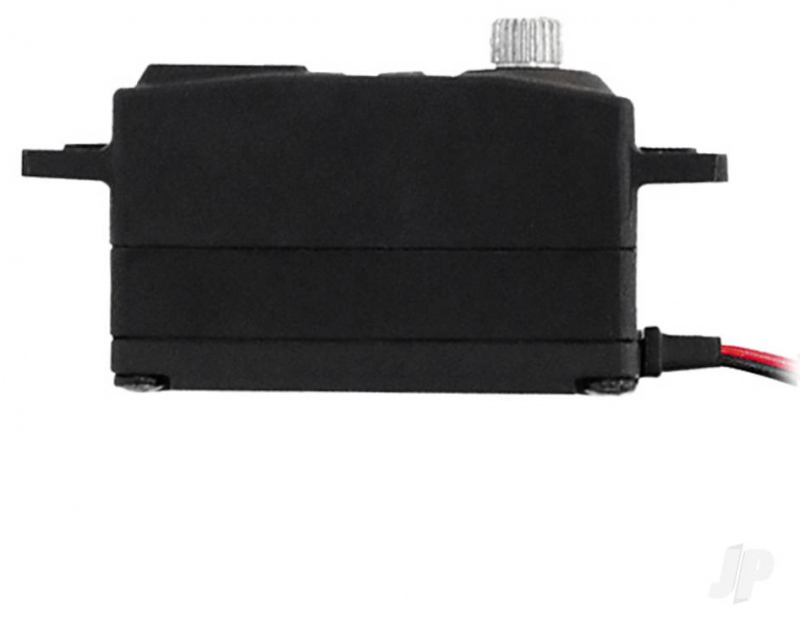

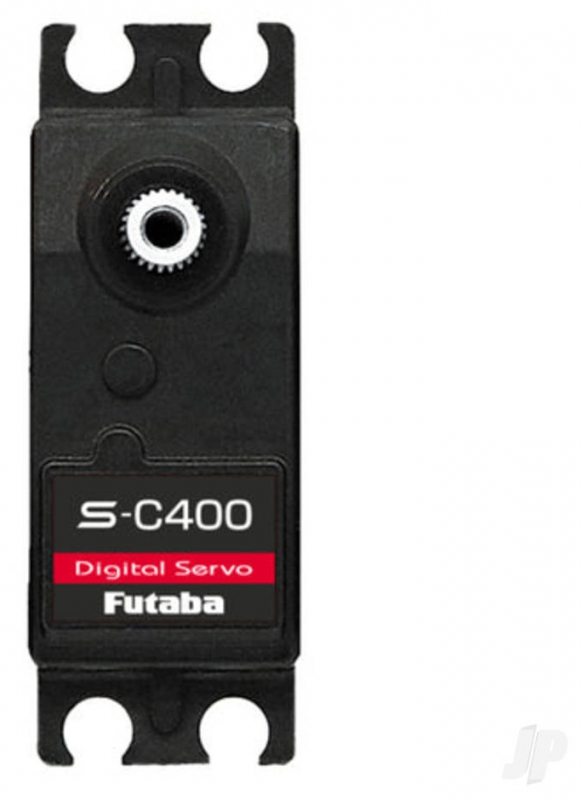

Designed with a coreless motor, durable metal gears, and housed in a compact low-profile body (40.5 × 20 × 25.4 mm, 43 g), it achieves a fast 0.08 s per 60° response at 7.4 V—ideal for tight installations in RC cars and buggies.

FAQs

• Which control modes does it support? PWM, S.BUS, and S.BUS2.
• What is its torque output? 8 kg·cm at 7.4 V; 6.6 kg·cm at 6.0 V.
• How fast is its speed? 0.08 s per 60° at 7.4 V; 0.10 s at 6.0 V.
• What are its dimensions and weight? 40.5 × 20 × 25.4 mm; 43 g.
• What gearing and motor type does it utilize? Coreless motor with metal 2–4 stage gears and an aluminium final gear, with 25T spline.

• Part Number: FUT05102742-3
• Product Name: S-C400 Low Profile Digital Servo
• Torque: 8 kg·cm (7.4 V); 6.6 kg·cm (6.0 V)
• Speed: 0.08 s/60° (7.4 V); 0.10 s (6.0 V)
• Control Protocols: PWM, S.BUS, S.BUS2
• Voltage Range: 4.8 V – 7.4 V (rated); operates up to 8.4 V

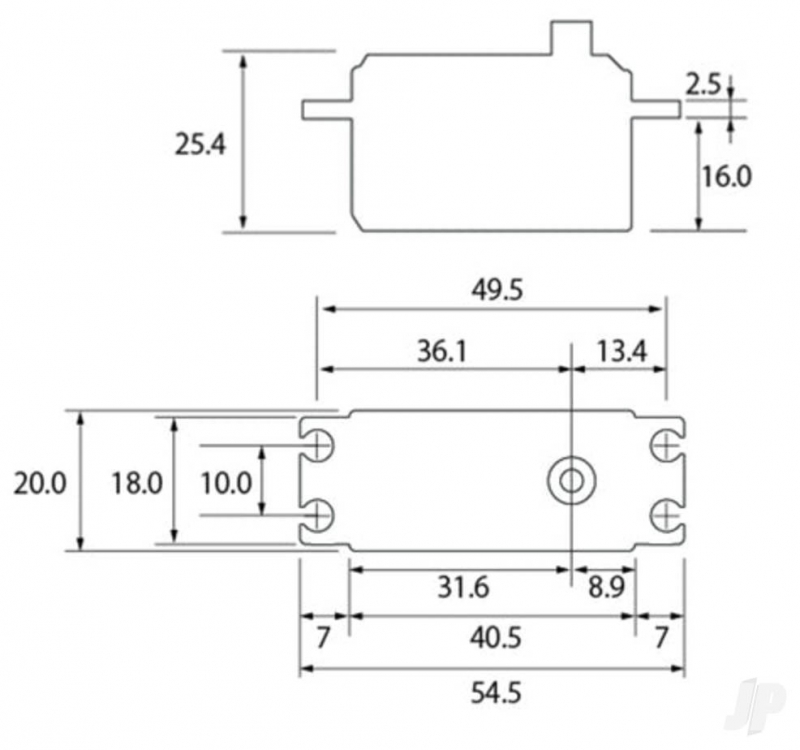

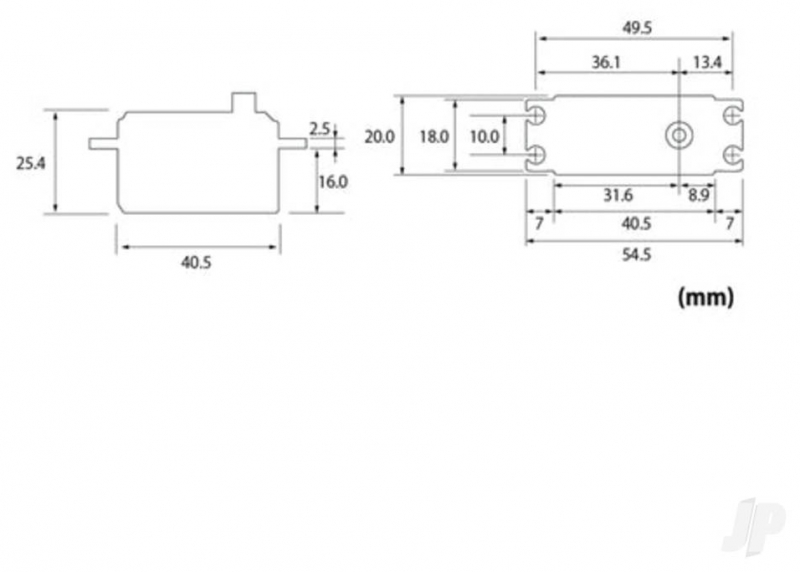

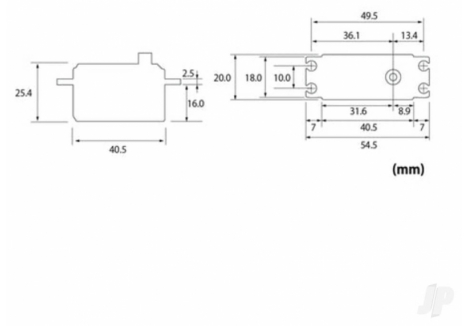

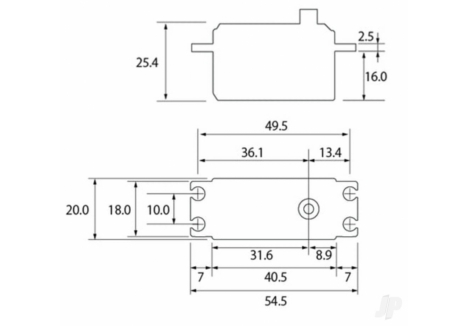

• Dimensions: 40.5 × 20 × 25.4 mm
• Weight: 43 g
• Motor: Coreless
• Gears: Metal (2–4 stage, aluminium final gear), 25T spline (Ø 6 mm)
• Applications: High-performance low-profile servo for RC cars and buggies
