Futaba R7301SB 1-Channel (PWM) Air Receiver (26-Channel S.BUS) FASSTest - High Gain Aerials FUT05102744-3

Model No: FUT05102744-3


Dispatched Within 3 Working Days

£94.99

£9.50

£85.49

Inc VAT

We Accept
In Stock With Supplier
1 Year Warranty

CONTENTS

  • 1x R7301SB-1 1-Channel Receiver

DETAILS

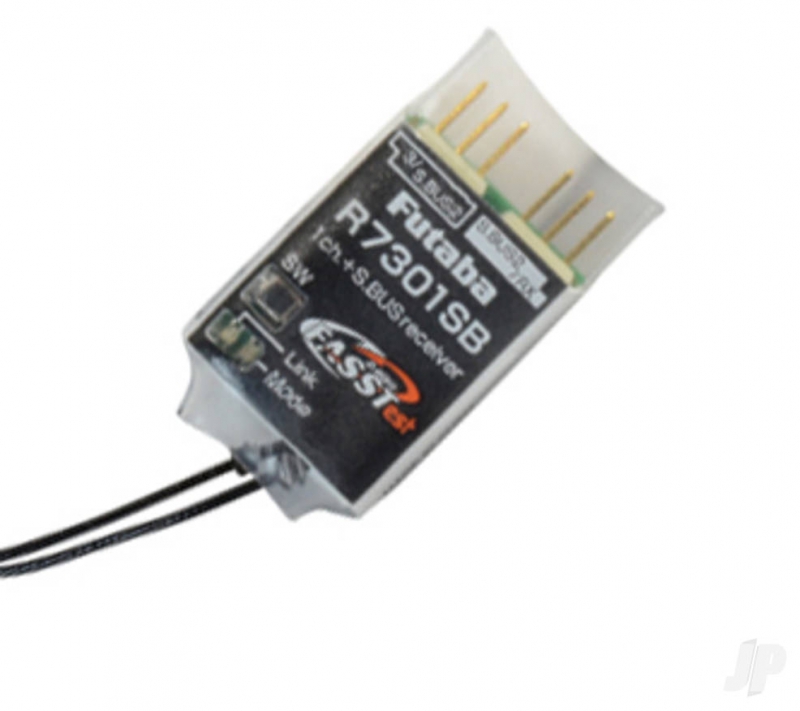

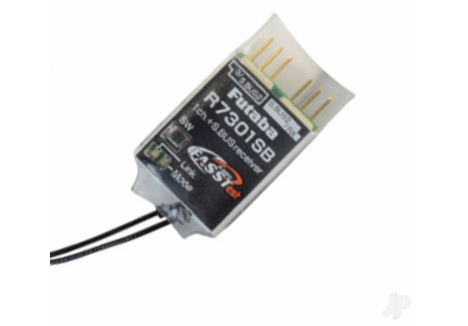

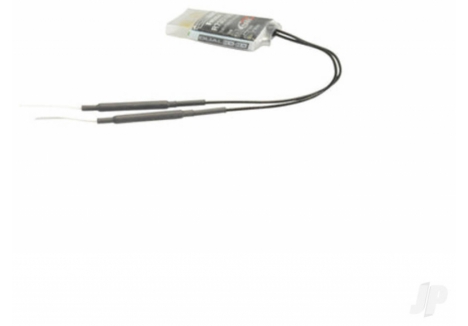

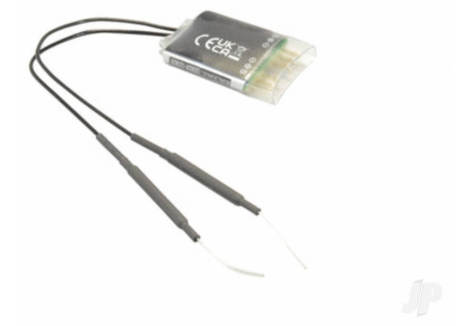

Futaba R7301SB Receiver

This receiver is recommended for aircraft which only require a receive funtion via the S.BUS connection.
As this is a small receiver, it also uses a dual Rc link system.
Also play an active role as a sub-receiver.

  • FASSTest 2.4 GHz (26-Channel/18-Channel/12-Channel mode)
  • S.BUS2 input/output/S.BUS output & classic system output (Channel 3)
  • Equipped with Dual Rx Link System

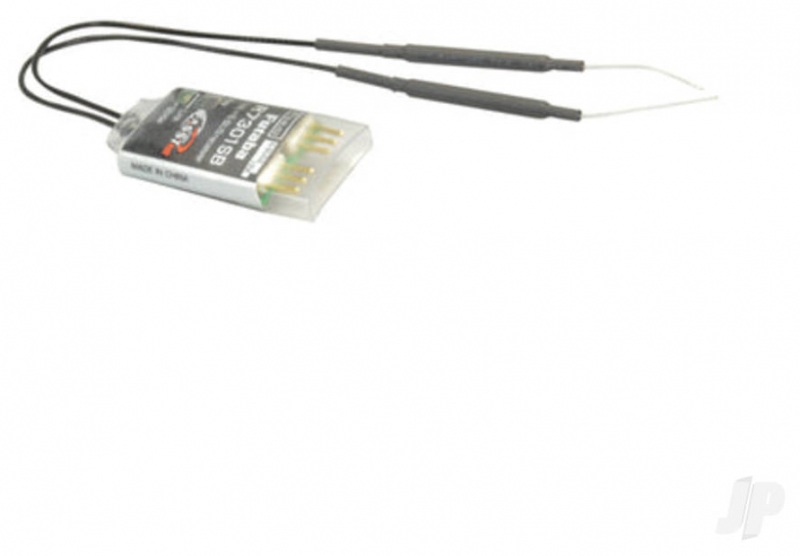

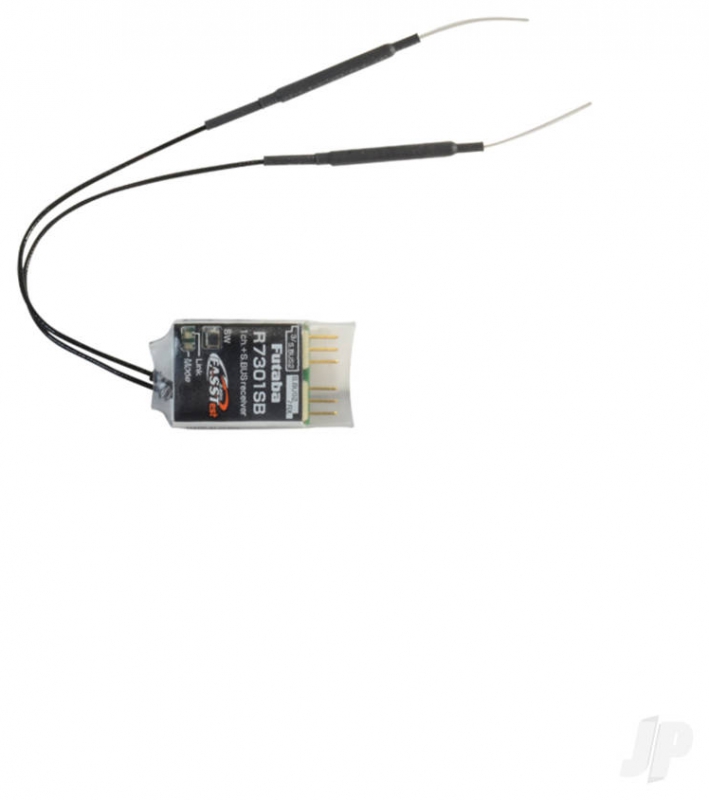

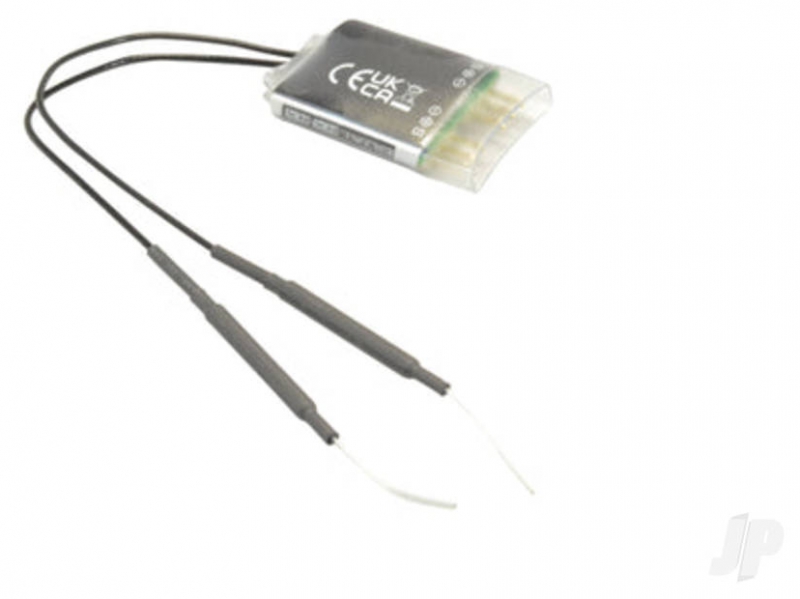

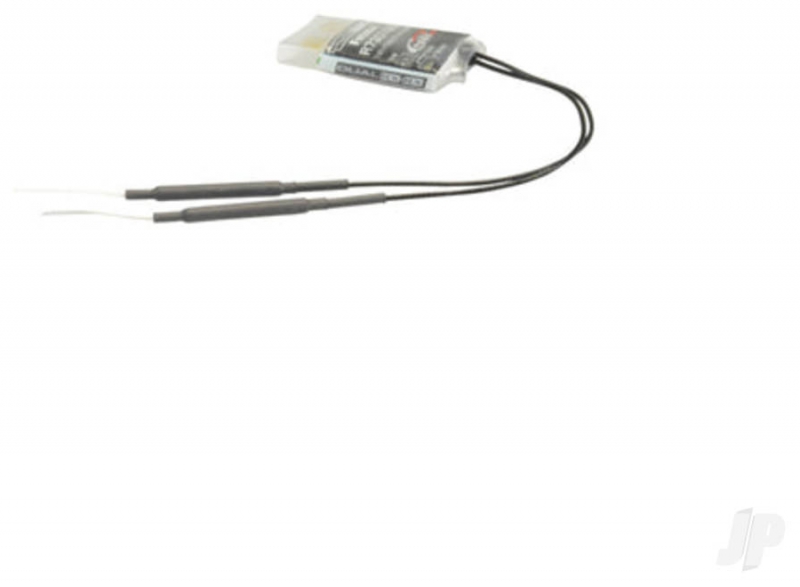

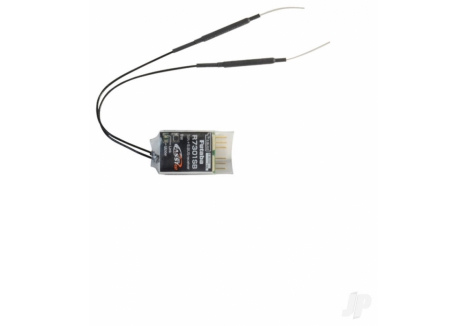

  • Antenna: diversity method, high-performance antenna
  • Dimensions: 21.5 x 39.5 x 6.5 mm
  • Weight: 6.0g
  • Power supply: 3.7 - 7.4V (Dry cells cannot be used)
  • Available voltage range: 3.5 - 8.4V
  • F/S battery voltage: Set via transmitter
  • Standard connection

Futaba R7301SB 1-Channel Air Receiver (26-Channel S.BUS) FUT05102744-3 is a compact FASSTest Dual-Link receiver offering flexible PWM, S.BUS, and S.BUS2 control.

Weighing just 6 g and measuring 39.5 × 21.5 × 6.5 mm, this receiver offers high-voltage capability up to 8.4 V, built-in telemetry, and enhanced signal reliability delivered through dual high-gain antenna diversity.

FAQs

  • Which command protocols does it support? PWM, S.BUS, and S.BUS2 via FASSTest Dual-Link.
  • How many channels are available? 1 PWM channel, expandable to 26 via S.BUS/S.BUS2.
  • Does it support high-voltage input? Yes—supports up to 8.4 V.
  • Is telemetry included? Yes—via S.BUS2.
  • What are its size and weight? Dimensions are 39.5 × 21.5 × 6.5 mm; weight is approximately 6 g.
  • Part Number: FUT05102744-3
  • Product Name: R7301SB 1-Channel Air Receiver
  • Channels: 1 PWM; up to 26 via S.BUS/S.BUS2
  • Radio Protocol: FASSTest Dual-Link
  • Command Protocols: PWM, S.BUS, S.BUS2
  • Voltage Range: 3.5 V – 8.4 V (high-voltage capable)
  • Telemetry: Supported via S.BUS2
  • Antenna: Dual high-gain antenna diversity
  • Dimensions: 39.5 × 21.5 × 6.5 mm
  • Weight: Approximately 6 g
  • Applications: Minimalist airframe receiver with versatile connectivity and compact footprint
