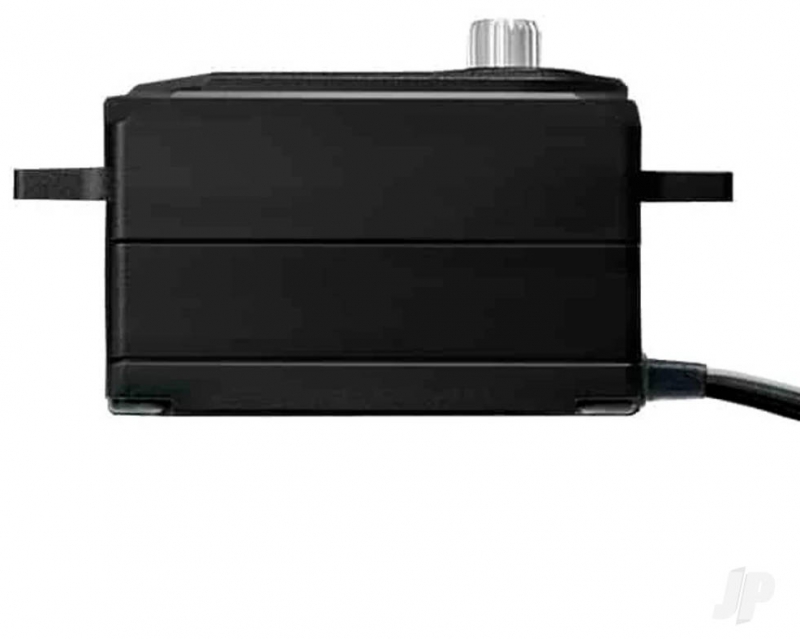

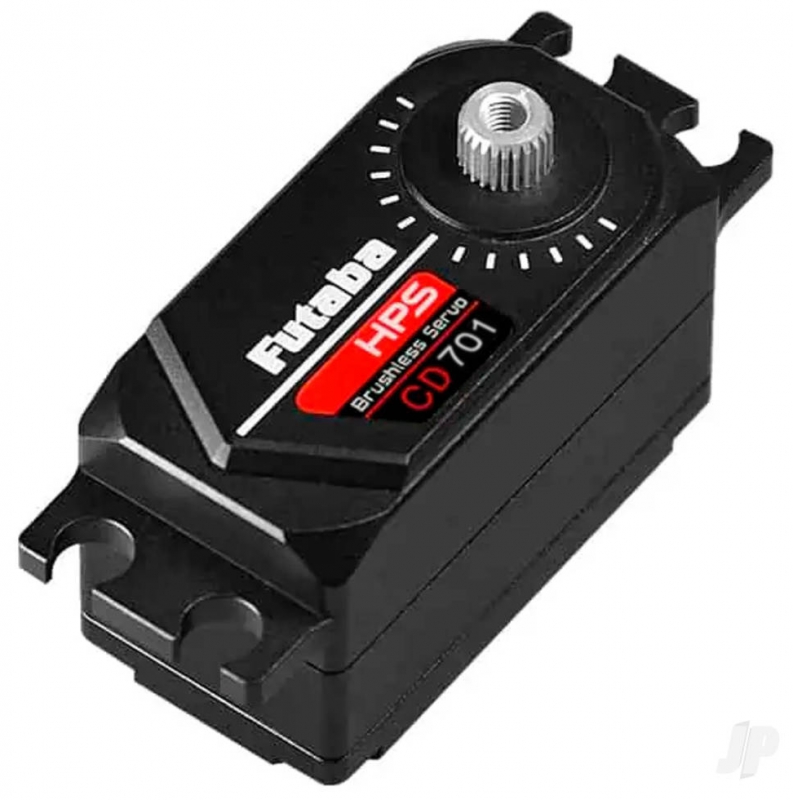

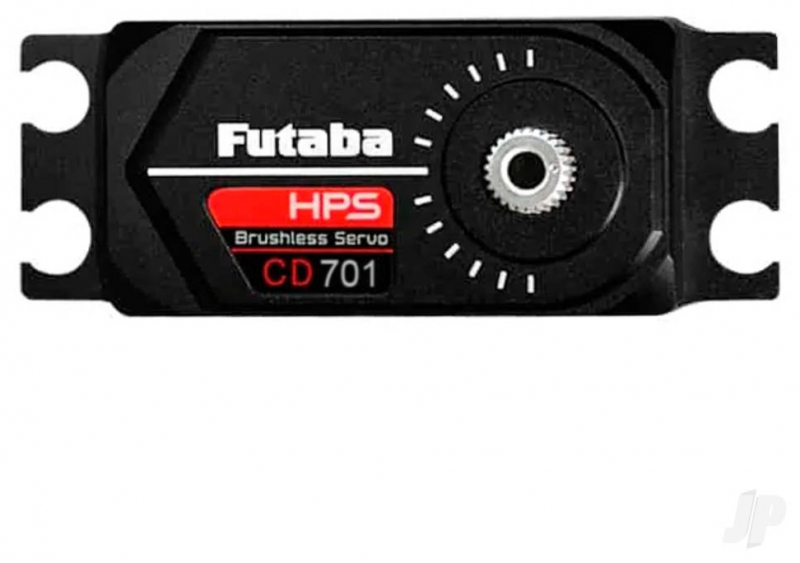

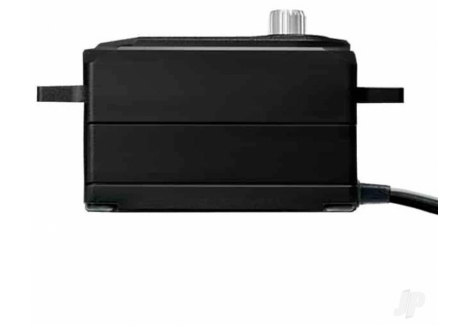

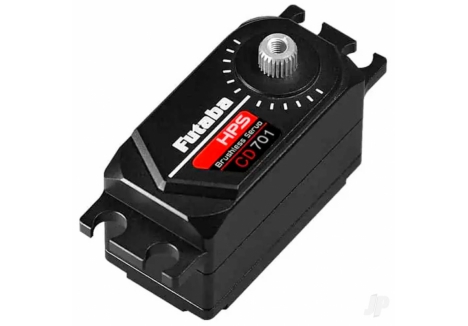

The Futaba FUT05102756-3 HPS-CD701 brushless servo with S.Bus2 is engineered for elite-level control in competitive 1/10 scale RC drift and touring cars. Delivering a blazing-fast response time of 0.045 seconds per 60° and a torque output of 17.0kgf.cm at 7.4V, this servo ensures razor-sharp steering and throttle modulation under high-load conditions. Its CNC-machined aluminium case and reinforced metal geartrain provide long-term durability, while support for PWM and S.Bus2 protocols guarantees seamless integration with Futaba’s advanced radio systems. The Futaba FUT05102756-3 standard servo 17kg 0.045s is a top-tier choice for drivers who demand precision, speed, and reliability in every corner.
Key features of the Futaba FUT05102756-3 HPS-CD701 brushless servo with S.Bus2
- Ultra-fast response – 0.045s actuation at 7.4V for split-second steering input
- High torque output – 17.0kgf.cm at 7.4V for aggressive cornering and high-grip tires
- Brushless motor – delivers efficient, fade-free performance under competitive load
- Metal geartrain – reinforced final stage for impact resistance and long-term reliability
- Aluminium case – CNC-machined for rigidity and heat dissipation
- UR/SR mode support – enables ultra-responsive and super-resolution signal processing
- CIU-3 compatibility – allows PC-based programming for tailored performance
Why is the Futaba FUT05102756-3 standard servo 17kg 0.045s ideal for competitive RC builds?
Competitive RC drivers need components that respond instantly and hold up under pressure. The Futaba FUT05102756-3 standard servo 17kg 0.045s delivers both. Its lightning-fast actuation ensures precise steering control during high-speed manoeuvres, while the 17kgf.cm torque output provides the force needed to handle aggressive setups and high-grip tires. Whether you're navigating tight drift lines or pushing through technical touring circuits, this servo maintains consistent performance lap after lap.
How does the Futaba HPS-CD701 servo with UR/SR mode and CIU-3 compatibility enhance responsiveness?
The Futaba HPS-CD701 servo with UR/SR mode and CIU-3 compatibility is built for adaptability. UR mode, supported by Futaba’s T10PX transmitter, and SR mode, compatible with T7PX and T4PM, enable ultra-fast signal processing and fine-tuned resolution. These modes reduce latency and improve control fidelity, giving drivers the edge in competitive environments. With CIU-3 support, users can program servo behaviour via PC, adjusting endpoints, speed curves, and response profiles to match their driving style and track conditions.
What makes the Futaba FUT05102756-3 HV servo for 1/10 drift and touring cars a top-tier upgrade?
The Futaba FUT05102756-3 HV servo for 1/10 drift and touring cars is designed for high-voltage systems, operating between 4.8V and 8.4V. This flexibility ensures consistent torque and speed across a range of setups. Its low-profile dimensions (40.5×21.0×26.2 mm) allow for easy installation in tight chassis layouts, while the aluminium case and metal geartrain provide durability under repeated stress. These features make the servo a strategic upgrade for serious racers seeking enhanced control and reliability.
Is the Futaba low-profile servo for ultra-responsive steering setups suitable for modern platforms?
Absolutely. The Futaba low-profile servo for ultra-responsive steering setups is tailored for modern 1/10 scale platforms where space and speed are critical. Its compact form factor fits seamlessly into drift and touring car chassis, while the brushless motor ensures fade-free performance. The servo’s reinforced geartrain withstands torque spikes and impacts, making it ideal for aggressive driving styles. Whether you're building from scratch or upgrading an existing setup, this servo delivers the responsiveness needed to dominate the track.
How does the Futaba FUT05102756-3 with aluminium case and metal geartrain improve durability?
Durability is key in competitive RC racing, and the Futaba FUT05102756-3 with aluminium case and metal geartrain is built to last. The CNC-machined aluminium housing provides structural rigidity and efficient heat dissipation, while the metal geartrain—including a reinforced final stage—resists wear and impact. These materials ensure that the servo maintains its performance characteristics over time, even under aggressive driving conditions. For racers who demand reliability without compromise, this construction is a clear advantage.
What performance benefits does the Futaba FUT05102756-3 HPS-CD701 brushless servo offer for serious RC drivers?
The Futaba FUT05102756-3 HPS-CD701 brushless servo offers a blend of speed, strength, and programmability that meets the demands of serious RC drivers. Its ultra-fast response time and high torque output enable precise control during competitive manoeuvres, while UR/SR mode support and CIU-3 compatibility allow for tailored performance. The servo’s robust construction ensures long-term reliability, making it a valuable asset for drivers who push their vehicles to the limit in drift and touring disciplines.
For RC enthusiasts seeking elite-level control, speed, and durability in a compact form factor, the affordable Futaba HPS-CD701 with 0.045s speed and 17kg torque is a standout choice. Buy Futaba FUT05102756-3 servo with horns and mounting hardware today.
Brand, Model and Product Type
- Brand: Futaba
Product Description of
Technical Specifications of
- Model: FUT05102756-3
- Product Type: Futaba FUT05102756-3 HPS-CD701 brushless servo with S.Bus2, Futaba FUT05102756-3 standard servo 17kg 0.045s, Futaba FUT05102756-3 HV servo for 1/10 drift and touring cars, Futaba FUT05102756-3 with aluminium case and metal geartrain, Futaba HPS-CD701 servo with UR/SR mode and CIU-3 compatibility
- Product Colour: Black
Dimensions
- Product Length: 4.05 cm – fits snugly into standard 1/10 scale RC chassis layouts
- Product Width: 2.10 cm – streamlined for low-profile mounting
- Product Height: 2.62 cm – compact enough for tight servo bays
- Product Weight: 53 g – balanced for responsive handling and minimal load
- Shipping Weight: 0.10 kg – includes packaging and mounting accessories
Performance and Power
- Torque at 7.4V: 17.0 kgf.cm – delivers powerful steering control for high-grip surfaces
- Torque at 6.0V: 14.0 kgf.cm – maintains reliable output under moderate voltage
- Speed at 7.4V: 0.045 sec/60° – enables ultra-fast actuation for competitive manoeuvres
- Speed at 6.0V: 0.055 sec/60° – consistent responsiveness across voltage ranges
- Operating Voltage Range: DC 4.8V – 8.4V – supports regulated high-voltage RC systems
Construction and Materials
- Motor Type: HPS Brushless – ensures efficient, fade-free performance under load
- Geartrain: Metal 3-stage with reinforced final gear – built for durability and impact resistance
- Case Material: CNC-machined aluminium – enhances structural rigidity and thermal management
Signal Compatibility and Control Modes
- Signal Support: PWM and S.Bus2 – integrates with both traditional and digital control systems
- UR Mode Compatibility: Supported via Futaba T10PX transmitter – enables ultra-responsive signal processing
- SR Mode Compatibility: Supported via Futaba T7PX and T4PM transmitters – enhances resolution and latency
- Programmability: Compatible with CIU-3 USB adapter – allows PC-based configuration of servo parameters
Application and Use Case
- Servo Type: Standard – designed for ultra-responsive steering and throttle control
- Recommended Vehicles: 1/10 scale RC drift and touring cars – ideal for competitive builds
What’s in the Box
- 1 × Futaba HPS-CD701 Standard Brushless Servo
- Servo horns
- Mounting hardware
What You Require
- Compatible Futaba transmitter with SR/UR mode and S.Bus2 support
- Power source within 4.8V to 8.4V range
- CIU-3 USB adapter for PC programming (sold separately)
Sold Separately
- CIU-3 USB adapter – required for advanced PC-based servo programming
- Futaba transmitter with programmable servo settings and SR/UR mode support
