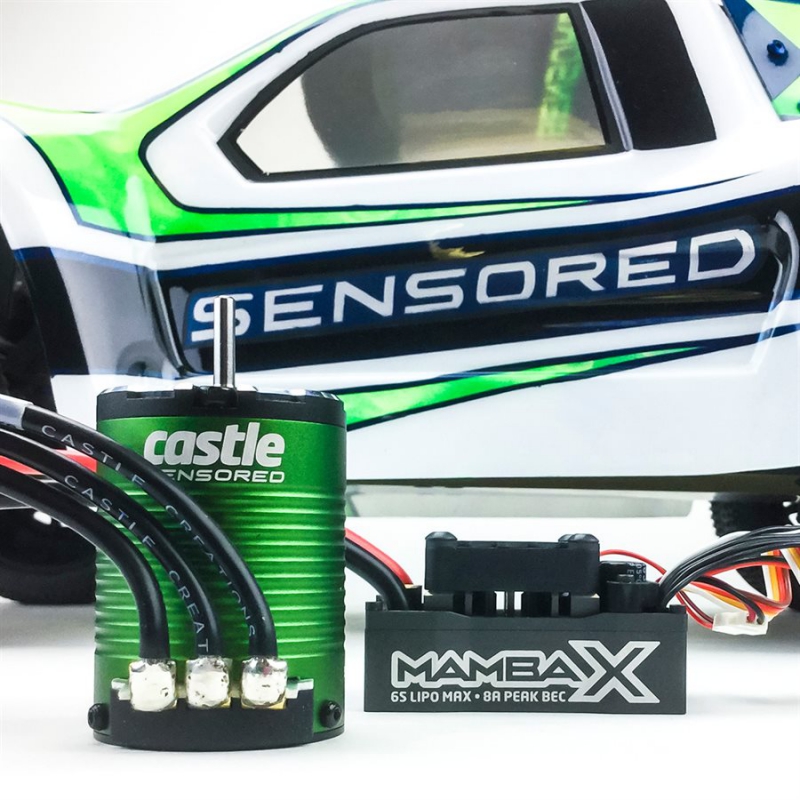

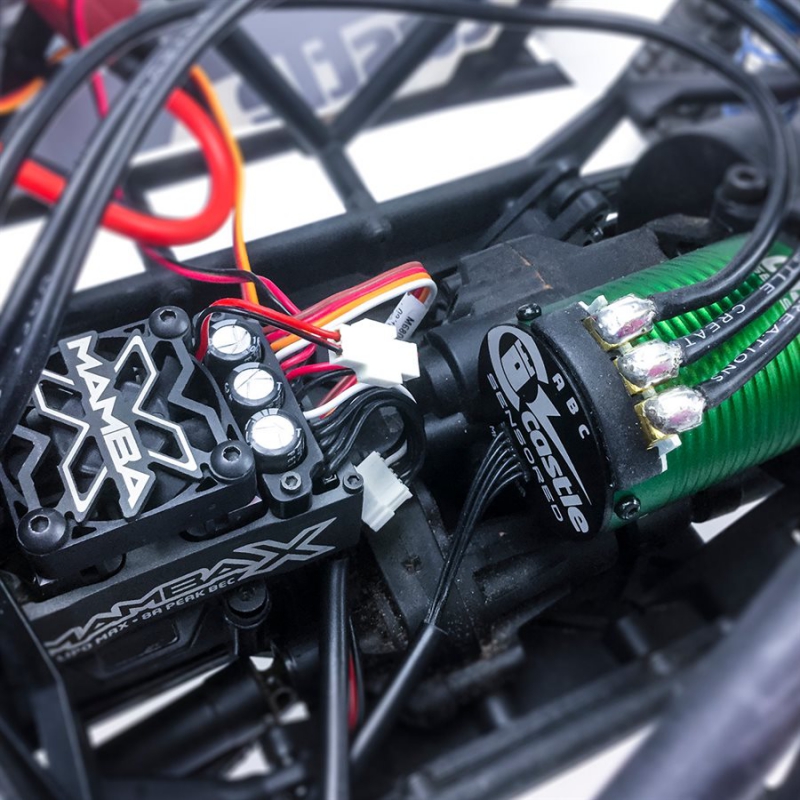

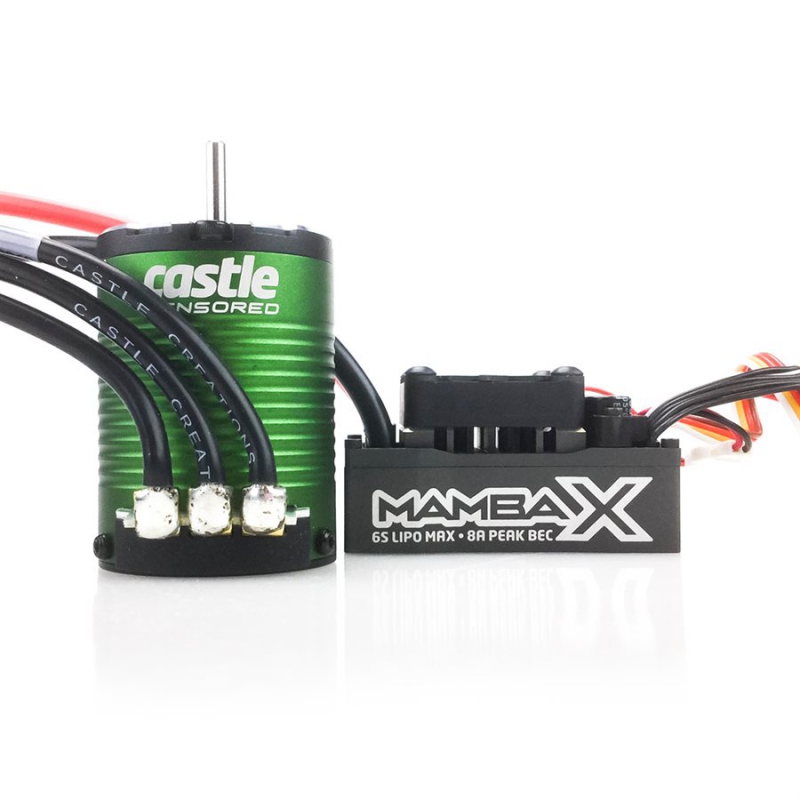

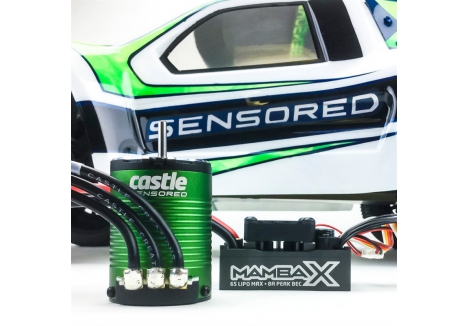

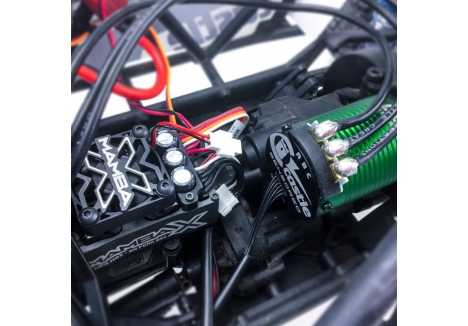

The Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo is not just another high-RPM setup—it’s a precision-engineered system for RC builders who want maximum velocity without sacrificing control. This combo is tailored for lightweight 1/10 scale platforms that thrive on speed: 2WD touring cars, nimble buggies, and short course racers. The 7700kV motor delivers aggressive acceleration and sustained top-end performance, while the ESC’s SMARTSENSE™ mode ensures every launch is smooth and cog-free. With telemetry support, real-time tuning, and a rugged waterproof design, this system is built to dominate straightaways and corners alike.
Key features of the Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo
- Hybrid startup logic – SMARTSENSE™ delivers sensor-driven launches and transitions to efficient sensorless mode
- Selectable BEC output – 8A peak current with voltage options from 5.25V to 8.0V for servo compatibility
- Telemetry integration – real-time feedback on ESC temperature, voltage, and RPM via supported transmitters
- Built-in data logging – records performance metrics for post-run analysis and optimization
- Transmitter-based tuning – AUX wire enables live adjustment of throttle, brake, and torque settings
- Active cooling system – removable 30mm fan for thermal regulation during dry high-speed runs
- Waterproof switch – sealed power control for reliable operation in wet conditions
- Durable CNC aluminum case – protects electronics and enhances heat dissipation
- Secure power delivery – 4mm bullet connectors ensure low-resistance motor-to-ESC interface
- Electronic braking – programmable deceleration for precise control and cornering
What makes the Castle P-CC010-0155-04 waterproof ESC with SMARTSENSE and 8A adjustable BEC ideal for velocity-focused builds?
The Castle P-CC010-0155-04 waterproof ESC with SMARTSENSE and 8A adjustable BEC is designed to handle the demands of high-speed platforms. SMARTSENSE™ technology ensures clean, sensor-driven launches and automatically adjusts timing for optimal efficiency as speed increases. The adjustable BEC supports a wide range of servo voltages, making it compatible with advanced electronics. Its waterproof epoxy potting and CNC-machined aluminum housing provide durability and thermal stability, even in unpredictable terrain. This ESC doesn’t just survive tough conditions—it thrives in them.
How does the Castle sensored combo with auxiliary wire tuning and electronic brakes respond to changing conditions?
The Castle sensored combo with auxiliary wire tuning and electronic brakes gives drivers the ability to adapt on the fly. The AUX wire allows real-time adjustments to torque control, throttle limits, and braking force directly from the transmitter. Whether you're dialing back power for tighter corners or increasing torque for straight-line acceleration, the system responds instantly. Electronic braking adds precision to deceleration, helping maintain control during aggressive maneuvers and technical sections.
Can the Castle P-CC010-0155-04 with CNC aluminum case and 4mm bullet connectors handle sustained high-RPM loads?
Yes. The Castle P-CC010-0155-04 with CNC aluminum case and 4mm bullet connectors is built to maintain performance under continuous high-RPM stress. The aluminum case acts as a heat sink, dissipating energy during extended runs, while the epoxy potting protects internal components from vibration and moisture. The 4mm bullet connectors ensure a secure, low-resistance connection between motor and ESC, supporting consistent power delivery even during peak load conditions. This combo is engineered for speed and built for endurance.
Why is the Castle brushless ESC with removable 30mm fan and waterproof switch a smart choice for mixed environments?
The Castle brushless ESC with removable 30mm fan and waterproof switch is designed for versatility. The fan module provides active cooling during dry, high-speed sessions and can be removed when moisture is present. The waterproof switch ensures reliable power control in damp conditions, making the system suitable for both indoor tracks and outdoor terrain. Whether you're racing in the rain or pushing limits on a dry circuit, this combo adapts without compromise.
Why is this the affordable Castle ESC with SMARTSENSE startup and Castle Link programming?
The affordable Castle ESC with SMARTSENSE startup and Castle Link programming delivers advanced control features at a competitive price. SMARTSENSE™ ensures smooth launches and efficient transitions, while Castle Link software unlocks a full suite of tuning parameters. From throttle curves to brake profiles, every setting is customizable. The included coupon for a Castle Link USB adapter makes setup easy, and firmware updates are free—ensuring your system evolves with your needs.
Why is this the best Castle waterproof ESC with 7700kV motor and telemetry-ready design for high-speed platforms?
The best Castle waterproof ESC with 7700kV motor and telemetry-ready design is built for RC drivers who crave speed and control. The 7700kV motor delivers rapid acceleration and sustained top-end velocity, while telemetry support provides real-time feedback to keep performance in check. Combined with data logging, programmable braking, and a rugged waterproof build, this combo offers a complete solution for high-speed touring cars and lightweight buggies.
For RC builders seeking a velocity-optimized, telemetry-capable brushless system, the Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo delivers uncompromising speed and control. Buy Castle P-CC010-0155-04 ESC combo for 2WD touring cars and lightweight buggies.
Product Description of Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo
The Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo is not just another high-RPM setup—it’s a precision-engineered system for RC builders who want maximum velocity without sacrificing control. This combo is tailored for lightweight 1/10 scale platforms that thrive on speed: 2WD touring cars, nimble buggies, and short course racers. The 7700kV motor delivers aggressive acceleration and sustained top-end performance, while the ESC’s SMARTSENSE™ mode ensures every launch is smooth and cog-free. With telemetry support, real-time tuning, and a rugged waterproof design, this system is built to dominate straightaways and corners alike.
Key features of the Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo
- Hybrid startup logic – SMARTSENSE™ delivers sensor-driven launches and transitions to efficient sensorless mode
- Selectable BEC output – 8A peak current with voltage options from 5.25V to 8.0V for servo compatibility
- Telemetry integration – real-time feedback on ESC temperature, voltage, and RPM via supported transmitters
- Built-in data logging – records performance metrics for post-run analysis and optimization
- Transmitter-based tuning – AUX wire enables live adjustment of throttle, brake, and torque settings
- Active cooling system – removable 30mm fan for thermal regulation during dry high-speed runs
- Waterproof switch – sealed power control for reliable operation in wet conditions
- Durable CNC aluminum case – protects electronics and enhances heat dissipation
- Secure power delivery – 4mm bullet connectors ensure low-resistance motor-to-ESC interface
- Electronic braking – programmable deceleration for precise control and cornering
What makes the Castle P-CC010-0155-04 waterproof ESC with SMARTSENSE and 8A adjustable BEC ideal for velocity-focused builds?
The Castle P-CC010-0155-04 waterproof ESC with SMARTSENSE and 8A adjustable BEC is designed to handle the demands of high-speed platforms. SMARTSENSE™ technology ensures clean, sensor-driven launches and automatically adjusts timing for optimal efficiency as speed increases. The adjustable BEC supports a wide range of servo voltages, making it compatible with advanced electronics. Its waterproof epoxy potting and CNC-machined aluminum housing provide durability and thermal stability, even in unpredictable terrain. This ESC doesn’t just survive tough conditions—it thrives in them.
How does the Castle sensored combo with auxiliary wire tuning and electronic brakes respond to changing conditions?
The Castle sensored combo with auxiliary wire tuning and electronic brakes gives drivers the ability to adapt on the fly. The AUX wire allows real-time adjustments to torque control, throttle limits, and braking force directly from the transmitter. Whether you're dialing back power for tighter corners or increasing torque for straight-line acceleration, the system responds instantly. Electronic braking adds precision to deceleration, helping maintain control during aggressive maneuvers and technical sections.
Can the Castle P-CC010-0155-04 with CNC aluminum case and 4mm bullet connectors handle sustained high-RPM loads?
Yes. The Castle P-CC010-0155-04 with CNC aluminum case and 4mm bullet connectors is built to maintain performance under continuous high-RPM stress. The aluminum case acts as a heat sink, dissipating energy during extended runs, while the epoxy potting protects internal components from vibration and moisture. The 4mm bullet connectors ensure a secure, low-resistance connection between motor and ESC, supporting consistent power delivery even during peak load conditions. This combo is engineered for speed and built for endurance.
Why is the Castle brushless ESC with removable 30mm fan and waterproof switch a smart choice for mixed environments?
The Castle brushless ESC with removable 30mm fan and waterproof switch is designed for versatility. The fan module provides active cooling during dry, high-speed sessions and can be removed when moisture is present. The waterproof switch ensures reliable power control in damp conditions, making the system suitable for both indoor tracks and outdoor terrain. Whether you're racing in the rain or pushing limits on a dry circuit, this combo adapts without compromise.
Why is this the affordable Castle ESC with SMARTSENSE startup and Castle Link programming?
The affordable Castle ESC with SMARTSENSE startup and Castle Link programming delivers advanced control features at a competitive price. SMARTSENSE™ ensures smooth launches and efficient transitions, while Castle Link software unlocks a full suite of tuning parameters. From throttle curves to brake profiles, every setting is customizable. The included coupon for a Castle Link USB adapter makes setup easy, and firmware updates are free—ensuring your system evolves with your needs.
Why is this the best Castle waterproof ESC with 7700kV motor and telemetry-ready design for high-speed platforms?
The best Castle waterproof ESC with 7700kV motor and telemetry-ready design is built for RC drivers who crave speed and control. The 7700kV motor delivers rapid acceleration and sustained top-end velocity, while telemetry support provides real-time feedback to keep performance in check. Combined with data logging, programmable braking, and a rugged waterproof build, this combo offers a complete solution for high-speed touring cars and lightweight buggies.
For RC builders seeking a velocity-optimized, telemetry-capable brushless system, the Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo delivers uncompromising speed and control. Buy Castle P-CC010-0155-04 ESC combo for 2WD touring cars and lightweight buggies.
Technical Specifications of
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0155-04
- Product Type: Castle P-CC010-0155-04 Mamba X ESC and 1406-7700kV sensored motor combo, Castle P-CC010-0155-04 waterproof ESC with SMARTSENSE and 8A adjustable BEC, Castle P-CC010-0155-04 1/10 scale ESC with telemetry and data logging support, Castle P-CC010-0155-04 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and waterproof switch, Castle sensored combo with auxiliary wire tuning and electronic brakes
Dimensions
- ESC Length: 5.44 cm – compact footprint for 1/10 scale chassis integration
- ESC Width: 3.52 cm – fits standard electronics trays with minimal space impact
- ESC Height: 3.0 cm – includes removable 30mm cooling fan for thermal regulation
- ESC Weight: 101 g – potted design for durability and moisture resistance
- Motor Shaft Diameter: 3.17 mm – compatible with standard gear interfaces
Power and Voltage Specifications
- Input Voltage Range: 2S–6S LiPo – supports high-voltage setups for extreme performance
- BEC Output: Adjustable – 5.25V to 8.0V with 8A peak current
- BEC Type: Integrated – housed within ESC for compact design
Cooling and Durability
- Cooling System: Removable 30mm fan – maintains ESC temperature during high-load operation
- ESC Housing: CNC-machined aluminum case – enhances heat dissipation and structural integrity
- Waterproof Rating: Water-resistant epoxy-potted ESC – protects electronics from moisture exposure
Motor Specifications
- Motor Type: Brushless sensored – inrunner design for efficient torque delivery
- Kv Rating: 7700Kv – optimized for high-speed 1/10 scale applications
Connectivity and Interfaces
- Connector Type: 4mm bullet connectors – ensures secure motor-to-ESC interface
- Programming Interface: Castle Link USB or Bluetooth – supports advanced tuning and firmware updates
Control and Operation Modes
- Auxiliary Wire: Programmable – allows on-the-fly tuning of throttle, brake, and torque settings
- Drive Mode: Forward/Brake/Reverse – supports full directional control
- Programming Options: Transmitter-based or via Castle Link Suite – enables full customization
- Timing Advance: Electronic – adjusts automatically for optimal efficiency across load conditions
Diagnostics and Feedback
- Audible Alerts: Yes – notifies users of calibration issues and error conditions
Telemetry and Data Logging
- Telemetry Ready: Yes – compatible with Castle telemetry devices and supported transmitters
- Data Logging: Enabled by default – records performance metrics for post-run analysis
Vehicle Compatibility
- Supported Platforms: 1/10 scale 2WD touring cars, lightweight buggies, and short course setups
- Extended Compatibility: Select 1/8 scale race buggies (as per manufacturer guidance)
What’s in the Box
- 1 × Castle Mamba X ESC with Sensor Harness
- 1 × Castle 1406-7700kV sensored brushless motor
- 1 × Coupon for Castle Link USB adapter
- 1 × Mamba Decal Sheet
- 1 × Driver’s Ed and Quick Start Guide
- 1 × Gearing Chart for Castle Motors
What You Require / What You Will Need
- Castle Link USB or Bluetooth adapter for programming (sold separately)
- Castle telemetry device for real-time monitoring (sold separately)
Sold Separately
- Castle Link USB adapter
- Castle B-Link Bluetooth adapter
- Castle telemetry device
