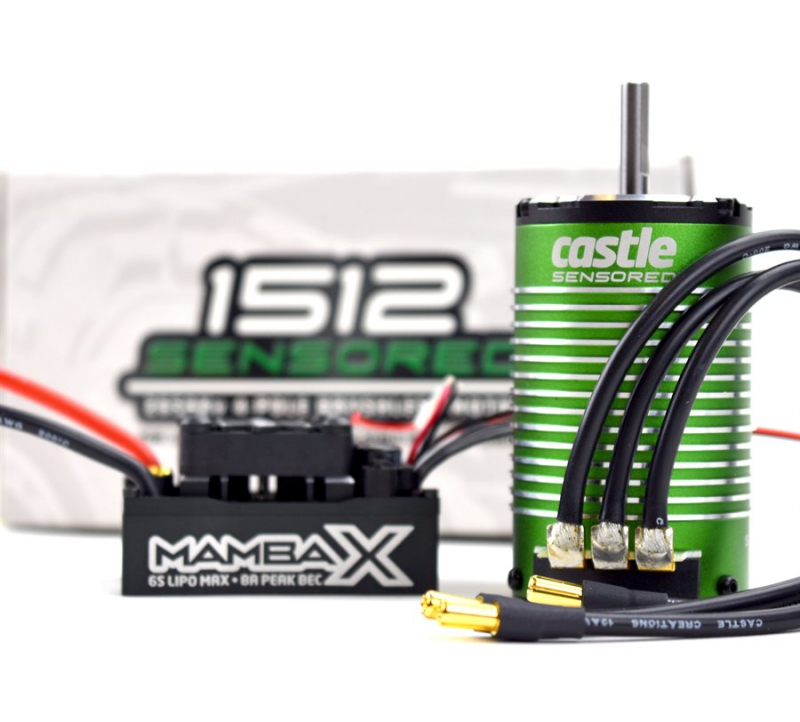

CASTLE MAMBA X, 25.2V WP ESC w/1512-1800kV SENSORED E-BUGGY COMBO P-CC010-0155-06

Model No: P-CC010-0155-06


£369.99

£43.99

£326.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty

The Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo is purpose-built for racers who demand compact power delivery, telemetry insight, and race-approved reliability in lightweight 1/8 scale eBuggy platforms. This combo pairs Castle’s Mamba X ESC with the 1512-1800kV 4-pole sensored motor, offering a streamlined footprint without compromising performance. Recommended for 3S or 4S LiPo setups and vehicles under 9 lbs, it’s engineered to deliver consistent torque and throttle response while staying within a gearing threshold of 45 MPH. Whether you're tuning for track precision or trail endurance, this system is designed to respond with agility and control.

Key features of the Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo

  • Adjustable 8A BEC – supports servo configurations with selectable output at 5.5V, 6.0V, 7.5V, or 8.0V
  • Telemetry-ready interface – compatible with Futaba S.BUS2 and T4PX/T7PX transmitters for live data feedback
  • Integrated data logging – records voltage, current, RPM, temperature, and throttle input for post-run analysis
  • Auxiliary wire tuning – enables real-time adjustment of throttle, brake, and torque settings via transmitter
  • Removable 30mm fan – provides active cooling during dry runs and can be detached for wet terrain use
  • Splashproof epoxy housing – protects ESC internals from moisture and debris in all-weather conditions
  • CNC aluminum case – enhances heat dissipation and structural durability under race stress
  • 4mm bullet connectors – ensures secure and low-resistance motor-to-ESC power delivery
  • ROAR certification – approved for competitive 1/8 scale eBuggy racing

Why is the Castle P-CC010-0155-06 waterproof ESC with telemetry and 8A adjustable BEC ideal for lightweight eBuggy builds?

The Castle P-CC010-0155-06 waterproof ESC with telemetry and 8A adjustable BEC is designed to deliver race-grade control in compact platforms. Its splashproof epoxy potting and CNC aluminum housing ensure durability across unpredictable terrain, while the adjustable BEC supports high-draw servos and advanced electronics. Telemetry compatibility allows drivers to monitor performance metrics in real time, helping prevent thermal spikes and voltage drops during high-load runs. This ESC is built to keep pace with the demands of modern eBuggy racing.

How does the Castle sensored combo with auxiliary wire tuning and ROAR certification support competitive adaptability?

The Castle sensored combo with auxiliary wire tuning and ROAR certification offers dynamic control and race-ready compliance. The auxiliary wire enables real-time tuning of torque, throttle, and braking profiles directly from the transmitter, allowing drivers to adapt instantly to changing track conditions. ROAR approval confirms the combo’s eligibility for sanctioned events, while the sensored motor ensures consistent torque delivery and throttle precision. This system is engineered for racers who rely on responsiveness and configurability to stay ahead.

Can the Castle P-CC010-0155-06 with CNC aluminum case and 4mm bullet connectors handle sustained race stress?

Yes. The Castle P-CC010-0155-06 with CNC aluminum case and 4mm bullet connectors is built to endure the rigors of competitive racing. The aluminum case acts as a heat sink, maintaining thermal stability during extended runs, while the epoxy potting shields internal components from vibration and splash exposure. The 4mm bullet connectors ensure low-resistance power transfer, supporting consistent motor output even under aggressive throttle demands. This combo is engineered for durability without excess weight.

Why is the Castle brushless ESC with removable 30mm fan and splashproof epoxy housing ideal for mixed terrain?

The Castle brushless ESC with removable 30mm fan and splashproof epoxy housing adapts to both dry and damp environments. The fan module provides active cooling during high-speed sessions and can be removed when moisture is present. The epoxy potting shields internal components from water and debris, making the system suitable for outdoor tracks and variable weather conditions. Whether you're racing on a dusty circuit or navigating wet terrain, this combo maintains consistent performance.

Why is this the affordable Castle ESC with Castle Link programming and data logging features?

The affordable Castle ESC with Castle Link programming and data logging features delivers advanced configurability without inflating your budget. Castle Link software unlocks a full suite of tuning parameters, from throttle curves to brake profiles, while data logging captures key metrics for post-run optimization. Firmware updates are free, and the included coupon for a Castle Link USB adapter makes setup seamless. This combo is a smart investment for racers who want control and insight without compromise.

Why is this the best Castle waterproof ESC with 1800kV motor and telemetry-ready design for 1/8 scale eBuggy racing?

The best Castle waterproof ESC with 1800kV motor and telemetry-ready design is built for racers who need speed, control, and data in one package. The 1512-1800kV motor delivers race-grade acceleration, while the telemetry-ready ESC provides real-time feedback to optimize performance. With ROAR approval, splashproof construction, and dynamic tuning capabilities, this combo is the definitive choice for 1/8 scale eBuggy racing under 45 MPH.

For competitive builders seeking a telemetry-capable, race-approved brushless system, the Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo delivers precision, adaptability, and control. Buy Castle P-CC010-0155-06 ESC combo for 1/8 scale eBuggy racing under 45 MPH.

Product Description of Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo

The Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo is purpose-built for racers who demand compact power delivery, telemetry insight, and race-approved reliability in lightweight 1/8 scale eBuggy platforms. This combo pairs Castle’s Mamba X ESC with the 1512-1800kV 4-pole sensored motor, offering a streamlined footprint without compromising performance. Recommended for 3S or 4S LiPo setups and vehicles under 9 lbs, it’s engineered to deliver consistent torque and throttle response while staying within a gearing threshold of 45 MPH. Whether you're tuning for track precision or trail endurance, this system is designed to respond with agility and control.

Key features of the Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo

  • Adjustable 8A BEC – supports servo configurations with selectable output at 5.5V, 6.0V, 7.5V, or 8.0V
  • Telemetry-ready interface – compatible with Futaba S.BUS2 and T4PX/T7PX transmitters for live data feedback
  • Integrated data logging – records voltage, current, RPM, temperature, and throttle input for post-run analysis
  • Auxiliary wire tuning – enables real-time adjustment of throttle, brake, and torque settings via transmitter
  • Removable 30mm fan – provides active cooling during dry runs and can be detached for wet terrain use
  • Splashproof epoxy housing – protects ESC internals from moisture and debris in all-weather conditions
  • CNC aluminum case – enhances heat dissipation and structural durability under race stress
  • 4mm bullet connectors – ensures secure and low-resistance motor-to-ESC power delivery
  • ROAR certification – approved for competitive 1/8 scale eBuggy racing

Why is the Castle P-CC010-0155-06 waterproof ESC with telemetry and 8A adjustable BEC ideal for lightweight eBuggy builds?

The Castle P-CC010-0155-06 waterproof ESC with telemetry and 8A adjustable BEC is designed to deliver race-grade control in compact platforms. Its splashproof epoxy potting and CNC aluminum housing ensure durability across unpredictable terrain, while the adjustable BEC supports high-draw servos and advanced electronics. Telemetry compatibility allows drivers to monitor performance metrics in real time, helping prevent thermal spikes and voltage drops during high-load runs. This ESC is built to keep pace with the demands of modern eBuggy racing.

How does the Castle sensored combo with auxiliary wire tuning and ROAR certification support competitive adaptability?

The Castle sensored combo with auxiliary wire tuning and ROAR certification offers dynamic control and race-ready compliance. The auxiliary wire enables real-time tuning of torque, throttle, and braking profiles directly from the transmitter, allowing drivers to adapt instantly to changing track conditions. ROAR approval confirms the combo’s eligibility for sanctioned events, while the sensored motor ensures consistent torque delivery and throttle precision. This system is engineered for racers who rely on responsiveness and configurability to stay ahead.

Can the Castle P-CC010-0155-06 with CNC aluminum case and 4mm bullet connectors handle sustained race stress?

Yes. The Castle P-CC010-0155-06 with CNC aluminum case and 4mm bullet connectors is built to endure the rigors of competitive racing. The aluminum case acts as a heat sink, maintaining thermal stability during extended runs, while the epoxy potting shields internal components from vibration and splash exposure. The 4mm bullet connectors ensure low-resistance power transfer, supporting consistent motor output even under aggressive throttle demands. This combo is engineered for durability without excess weight.

Why is the Castle brushless ESC with removable 30mm fan and splashproof epoxy housing ideal for mixed terrain?

The Castle brushless ESC with removable 30mm fan and splashproof epoxy housing adapts to both dry and damp environments. The fan module provides active cooling during high-speed sessions and can be removed when moisture is present. The epoxy potting shields internal components from water and debris, making the system suitable for outdoor tracks and variable weather conditions. Whether you're racing on a dusty circuit or navigating wet terrain, this combo maintains consistent performance.

Why is this the affordable Castle ESC with Castle Link programming and data logging features?

The affordable Castle ESC with Castle Link programming and data logging features delivers advanced configurability without inflating your budget. Castle Link software unlocks a full suite of tuning parameters, from throttle curves to brake profiles, while data logging captures key metrics for post-run optimization. Firmware updates are free, and the included coupon for a Castle Link USB adapter makes setup seamless. This combo is a smart investment for racers who want control and insight without compromise.

Why is this the best Castle waterproof ESC with 1800kV motor and telemetry-ready design for 1/8 scale eBuggy racing?

The best Castle waterproof ESC with 1800kV motor and telemetry-ready design is built for racers who need speed, control, and data in one package. The 1512-1800kV motor delivers race-grade acceleration, while the telemetry-ready ESC provides real-time feedback to optimize performance. With ROAR approval, splashproof construction, and dynamic tuning capabilities, this combo is the definitive choice for 1/8 scale eBuggy racing under 45 MPH.

For competitive builders seeking a telemetry-capable, race-approved brushless system, the Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo delivers precision, adaptability, and control. Buy Castle P-CC010-0155-06 ESC combo for 1/8 scale eBuggy racing under 45 MPH.

Technical Specifications of Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo

Brand, Model and Product Type

  • Brand: Castle Creations
  • Model: P-CC010-0155-06
  • Product Type: Castle P-CC010-0155-06 Mamba X ESC and 1512-1800kV sensored motor combo, Castle P-CC010-0155-06 waterproof ESC with telemetry and 8A adjustable BEC, Castle P-CC010-0155-06 1/8 scale ESC for eBuggy platforms under 9 lbs, Castle P-CC010-0155-06 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and splashproof epoxy housing, Castle sensored combo with auxiliary wire tuning and ROAR certification

ESC Specifications

  • ESC Type: Castle Mamba X – waterproof surface ESC
  • Input Voltage Range: 2S–6S LiPo (motor recommended for 3S–4S)
  • BEC Output: Adjustable – 5.5V, 6.0V, 7.5V, or 8.0V with 8A peak current
  • ESC Dimensions: 62.2 × 56.0 × 34.0 mm
  • ESC Weight: ~100 g (excluding connectors)
  • Cooling System: Removable 30mm fan for active cooling
  • ESC Housing: CNC aluminum case, potted in epoxy for splashproof protection

Motor Specifications

  • Motor Type: Castle 1512-1800kV – 4-pole sensored brushless motor
  • Motor Design: Inrunner configuration
  • Kv Rating: 1800Kv – optimized for lightweight 1/8 scale eBuggy platforms
  • Motor Connectors: 4mm bullet connectors – compatible with Mamba X ESC

Programming and Tuning

  • Programming Interface: Castle Link USB and Castle Link Mobile (Bluetooth adapter sold separately)
  • Auxiliary Wire: Yes – supports on-the-fly tuning via transmitter

Telemetry and Data Logging

  • Telemetry Ready: Yes – compatible with Futaba S.BUS2 and T4PX/T7PX transmitters
  • Data Logging: Yes – records voltage, current, RPM, and temperature

Drive and Control Modes

  • Drive Type: Forward/Brake/Reverse
  • Brakes: Electronic – programmable for precision deceleration

Vehicle Compatibility

  • Recommended Use Case: 1/8 scale eBuggy platforms under ~9 lbs
  • Speed Recommendation: Geared for ≤ 45 MPH

Certifications

  • ROAR Approved: Yes – eligible for sanctioned racing
  • RECON G6 Certified: Yes – validated for endurance and trail performance

What’s in the Box

  • 1 × Castle Mamba X ESC
  • 1 × Castle 1512-1800kV sensored brushless motor
  • 1 × Coupon for Castle Link USB adapter
  • 1 × Mamba Decal Sheet
  • 1 × Driver’s Ed and Quick Start Guide
  • 1 × Gearing Chart for Castle Motors

What You Require / What You Will Need

  • Castle Link USB or Bluetooth adapter for programming (sold separately)
  • Castle telemetry device for real-time monitoring (sold separately)

Sold Separately

  • Castle Link USB adapter
  • Castle B-Link Bluetooth adapter
  • Castle telemetry device
