Putting the X in Extreme!
The Mamba X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the high power, ultra reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 3s or 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.
The Auxiliary Advantage
Mamba X features the addition of a new, programmable Auxiliary Wire that allows you to make on-the-go adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!
Telemetry Capability
The Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Package Includes:
- Mamba X Electronic Speed Controller
- 1406-2280kv Sensored Brushless Motor
- 210mm length sensor wire (for sensored operation)
- Castle Sensor Harness Adapter
- Driver's Ed and Quick Start Guides
- Castle decal sheet
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Further Details
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.
ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSenseT allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle's new and improved throttle response keeps you ahead of the competition.
The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations' 1-year warranty and unparalleled make-it-right customer support. Call us, email us, or walk in our front door - we're here to help.
Features
- Wide 2S to 6S input voltage range
- Sensored Motor Support (Castle X-Series Sensor Harness Included)
- Waterproof
- 8A Adjustable BEC (5.25V-8.0V)
- Data-logging

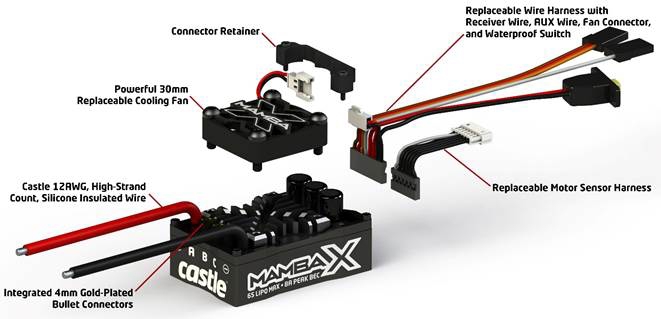

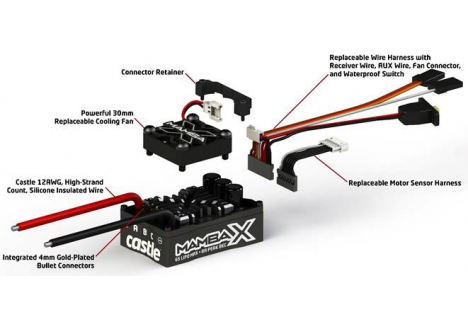

- Rugged CNC Aluminum Case
- Castle Link Programming Support
- SmartSenseT
- Integrated Capacitors
- Removable 30mm Cooling Fan
- Integrated 4mm Bullet Connectors
- 12 AWG Power Wires
- Waterproof Switch
- Audible Alerts

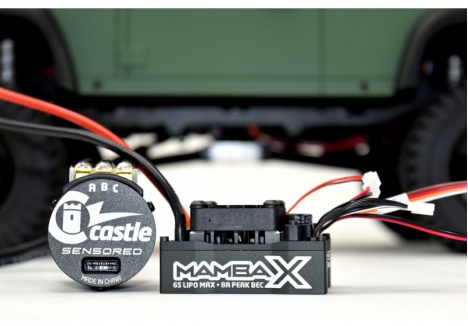

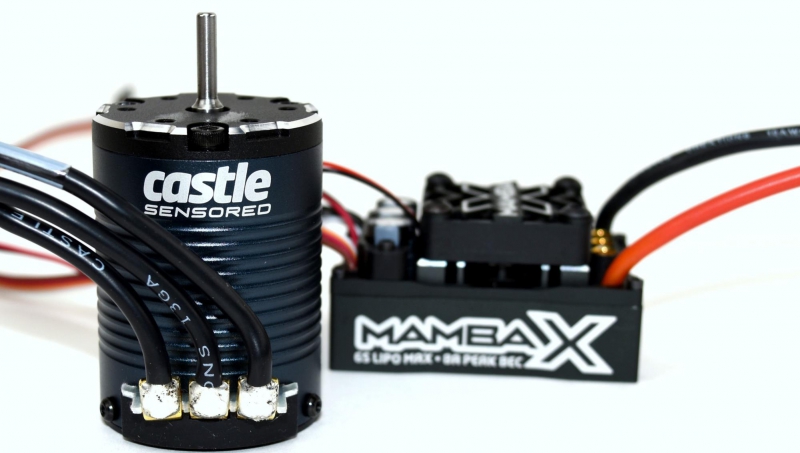

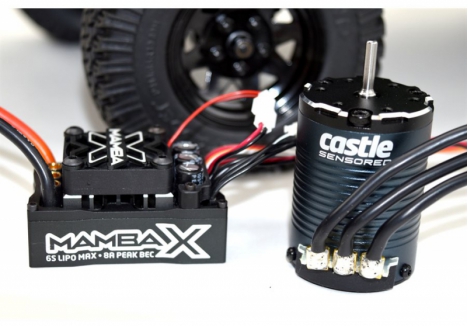

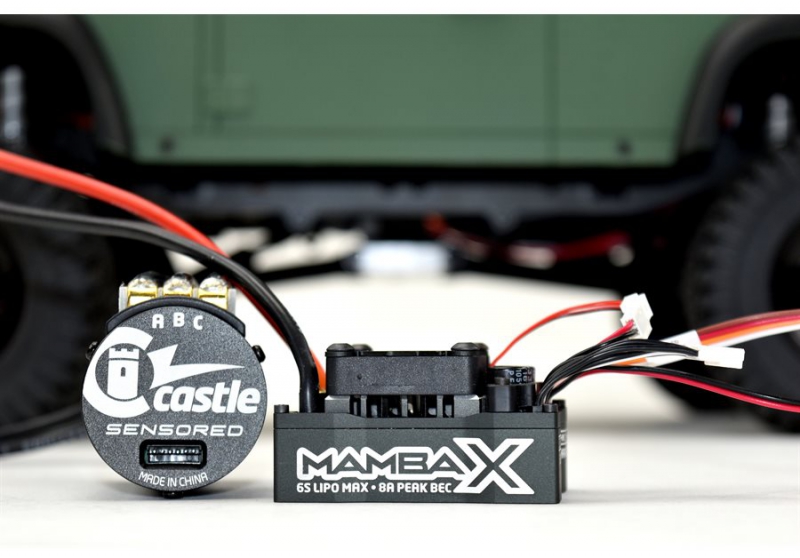

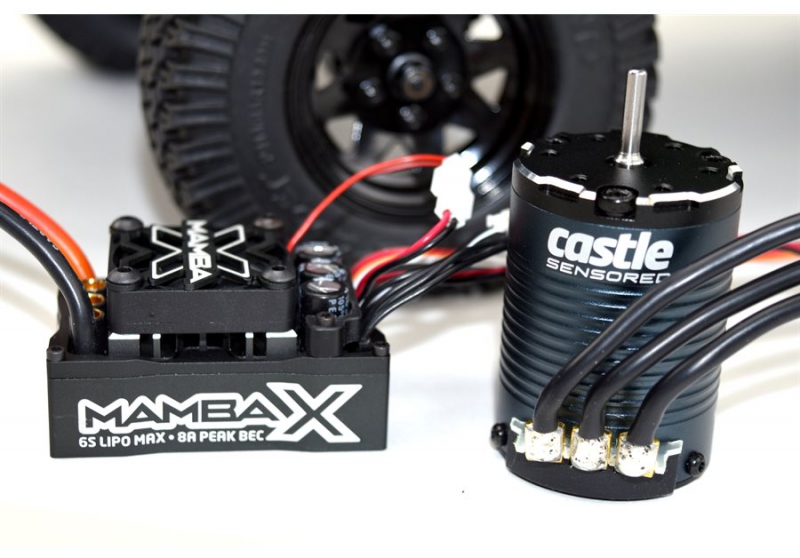

Product Description of Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored motor combo
The Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored motor combo is purpose-built for technical crawling, trail exploration, and aggressive rock racing in vehicles up to 9 lbs. This crawler edition pairs Castle’s ultra-reliable Mamba X ESC with the 1406-2280kV Slate motor, delivering buttery-smooth startups, torque-rich control, and adaptive efficiency across terrain. With V2.02 firmware optimized for sensored crawling, SmartSense™ and QuietSense™ technologies work together to ensure precision throttle response and minimal startup noise. Whether you're scaling rock faces or navigating tight trail lines, this combo offers real-time tuning, telemetry insight, and waterproof resilience for confident control in all conditions.
Key features of the Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored motor combo
- SmartSense™ startup – sensor-driven launches with automatic transition to efficient sensorless mode
- QuietSense™ motor design – reduces startup noise and improves low-speed precision
- 8A adjustable BEC – selectable output from 5.25V to 8.0V for high-draw servo compatibility
- Telemetry-ready – compatible with Futaba S.BUS2 transmitters for live data monitoring
- Data logging – captures voltage, current, RPM, and temperature for post-run optimization
- Auxiliary wire tuning – enables on-the-fly adjustments to torque, throttle, and crawler mode settings
- Removable 30mm fan – provides active cooling during dry runs and can be detached for wet terrain
- Splashproof epoxy housing – protects ESC internals from moisture and trail debris
- CNC aluminum case – enhances heat dissipation and structural durability
- 4mm bullet connectors – ensures secure motor-to-ESC power delivery
- Audible alerts – notify users of calibration issues and error conditions
- RECON G6 certified – validated for endurance crawling and trail performance
Why is the Castle P-CC010-0155-09 waterproof ESC with telemetry and 8A adjustable BEC ideal for crawling platforms?
The Castle P-CC010-0155-09 waterproof ESC with telemetry and 8A adjustable BEC is engineered for terrain where control matters more than speed. Its splashproof epoxy potting and CNC aluminum housing ensure durability in wet, dusty, and rocky environments. The adjustable BEC supports high-voltage servos and auxiliary electronics, while telemetry compatibility allows drivers to monitor system health in real time. Whether you're crawling at low RPM or climbing under load, this ESC delivers consistent control and thermal stability.
How does the Castle crawler combo with auxiliary wire tuning and RECON G6 certification enhance trail adaptability?
The Castle crawler combo with auxiliary wire tuning and RECON G6 certification offers dynamic control for unpredictable terrain. The auxiliary wire enables real-time tuning of torque, throttle, and braking profiles directly from the transmitter, allowing drivers to adapt instantly to changing trail conditions. RECON G6 certification confirms the combo’s readiness for endurance events and technical challenges. Combined with sensored motor feedback, this system responds with precision across rock, dirt, and incline transitions.
Can the Castle P-CC010-0155-09 with CNC aluminum case and 4mm bullet connectors handle rugged crawling conditions?
Absolutely. The Castle P-CC010-0155-09 with CNC aluminum case and 4mm bullet connectors is built to endure the physical demands of crawling and trail driving. The aluminum case acts as a heat sink, maintaining thermal stability during extended low-speed runs, while the epoxy potting protects internal components from vibration and splash exposure. The 4mm bullet connectors ensure low-resistance power transfer, supporting consistent motor output even under high-torque conditions.
Why is the Castle brushless ESC with removable 30mm fan and splashproof epoxy housing ideal for mixed terrain?
The Castle brushless ESC with removable 30mm fan and splashproof epoxy housing adapts to both dry and damp environments. The fan module provides active cooling during high-speed sessions and can be removed when moisture is present. The epoxy potting shields internal components from water and debris, making the system suitable for creek crossings, mud trails, and rocky inclines. This combo is built to perform wherever your crawler goes.
Why is this the affordable Castle ESC with Castle Link programming and data logging support?
The affordable Castle ESC with Castle Link programming and data logging support delivers advanced configurability without inflating your budget. Castle Link software unlocks a full suite of tuning parameters, from throttle curves to brake profiles, while data logging captures key metrics for post-run optimization. Firmware updates are free, and the included coupon for a Castle Link USB adapter makes setup seamless. This combo is a smart investment for trail builders who want control and insight without compromise.
Why is this the best Castle waterproof ESC with 2280kV motor and telemetry-ready design for rock racing and hill climbing?
The best Castle waterproof ESC with 2280kV motor and telemetry-ready design is built for drivers who prioritize torque, control, and configurability. The 1406-2280kV motor delivers smooth, low-speed power ideal for crawling and trail work, while the telemetry-ready ESC provides real-time feedback to optimize performance. With crawler-specific firmware, waterproof construction, and dynamic tuning capabilities, this combo is the definitive choice for technical terrain.
For builders seeking a sensored, trail-optimized brushless system, the Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored motor combo delivers precision, adaptability, and control. Buy Castle P-CC010-0155-09 ESC combo for rock racing and hill climbing under 5 lbs.
Technical Specifications of Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored motor combo
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0155-09
- Product Type: Castle P-CC010-0155-09 Mamba X ESC and 1406-2280kV sensored crawler motor combo, Castle P-CC010-0155-09 waterproof ESC with telemetry and 8A adjustable BEC, Castle P-CC010-0155-09 ESC combo for low-speed crawling and trail running, Castle P-CC010-0155-09 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and splashproof epoxy housing, Castle crawler combo with auxiliary wire tuning and RECON G6 certification
ESC Specifications
- ESC Type: Castle Mamba X – waterproof surface ESC
- Input Voltage Range: 2S–6S LiPo (motor recommended for 2S–4S)
- BEC Output: Adjustable – 5.25V to 8.0V with 8A peak current
- ESC Housing: CNC-machined aluminum case, potted in waterproof epoxy
- Cooling System: Removable 30mm fan for active heat management
- Integrated Capacitors: Yes – for stable voltage delivery
- ESC Alerts: Audible alerts and LED indicators for diagnostics
Motor Specifications
- Motor Type: Castle 1406-2280kV Slate – 4-pole, 12-slot sensored brushless motor
- Motor Design: Inrunner configuration
- Kv Rating: 2280Kv – tuned for crawling, trail running, and rock racing
- Recommended Voltage: 2S–4S LiPo
- Motor Connectors: 4mm bullet connectors – compatible with Mamba X ESC
Programming and Tuning
- Programming Interface: Castle Link USB and Castle Link Mobile (Bluetooth adapter sold separately)
- Transmitter Programming: Yes – supports six common adjustable settings
- Auxiliary Wire: Yes – enables real-time tuning of torque, throttle, and crawler mode
Telemetry and Data Logging
- Telemetry Ready: Yes – compatible with Futaba T4PX and 7PX transmitters via S.BUS2
- Data Logging: Yes – records voltage, current, RPM, and temperature
Drive and Control Modes
- Drive Type: Forward/Brake/Reverse
- Brakes: Electronic – programmable for precision deceleration
- Startup Logic: SmartSense™ – sensor-driven launches with adaptive timing
- Noise Reduction: QuietSense™ – minimizes startup noise and improves low-speed control
Vehicle Compatibility
- Recommended Use Case: Crawling and trail rigs up to 9 lbs on 2S–4S
- Extended Use Case: Rock racing and hill climbing for vehicles up to 5 lbs
Certifications
- RECON G6 Certified: Yes – validated for endurance crawling and trail performance
What’s in the Box
- 1 × Castle Mamba X Electronic Speed Controller
- 1 × Castle 1406-2280kV sensored brushless motor
- 1 × 210mm sensor wire
- 1 × Castle Sensor Harness adapter
- 1 × Coupon for Castle Link USB adapter
- 1 × Driver’s Ed and Quick Start Guides
- 1 × Castle decal sheet
What You Require / What You Will Need
- Castle Link USB or Bluetooth adapter for programming (sold separately)
- Castle telemetry device for real-time monitoring (sold separately)
Sold Separately
- Castle Link USB adapter
- Castle B-Link Bluetooth adapter
- Castle telemetry device
