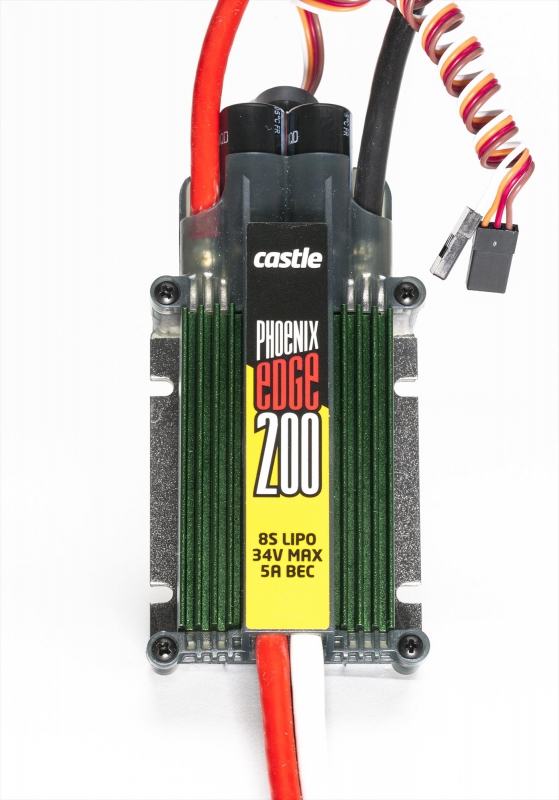

CASTLE Phoenix Edge 200 P-CC09800

Model No: P-CC09800


£424.99

£54.99

£370.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty

The Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC is a high-performance electronic speed controller engineered for scale fixed-wing aircraft and aerobatic platforms requiring precision, reliability, and intelligent control. With a robust 33.6V max voltage capacity and a 200A continuous current rating, this ESC delivers sustained power for demanding flight profiles. Its integrated 5A BEC, telemetry compatibility, and advanced AUX wire functionality make it a versatile solution for pilots seeking enhanced safety, configurability, and real-time system feedback. Whether you're flying high-speed aerobatics or managing complex scale setups, the Castle P-CC09800 offers the control and resilience needed to stay in command.

Key features of the Castle P-CC09800 Phoenix Edge 200

  • Selectable 5–8.4V BEC – supports a wide range of servos and onboard electronics
  • Telemetry compatibility – enables real-time monitoring of voltage, temperature, and system status
  • AUX wire functionality – supports RPM output, governor gain input, and arming lockout
  • Data logging – captures performance metrics for post-flight analysis and optimization
  • USB and Bluetooth programming – allows full access to firmware updates and tuning parameters
  • Flashing LED alerts – provides visual feedback for fault detection and system diagnostics

Why is the Castle P-CC09800 ideal for scale fixed-wing aircraft?

The Castle P-CC09800 ESC for scale fixed-wing aircraft with 33.6V max voltage and arming lockout is designed to meet the power and control demands of large-scale aircraft. Its 200A continuous rating ensures consistent performance during extended throttle operation, while the 8S LiPo input capacity supports high-voltage setups. The ESC’s compact dimensions (108.4mm length, 50.8mm width, 31.5mm depth) and lightweight design (249.6g with wires) make it suitable for fuselage installations where space and airflow are limited. With integrated safety features like arming lockout and LED diagnostics, the Castle P-CC09800 provides peace of mind for pilots flying complex, high-value aircraft.

How does the selectable BEC improve system compatibility?

The Castle P-CC09800 with 5–8.4V selectable BEC, 6.5mm battery connectors, and 4mm/5.5mm motor bullets includes a user-configurable BEC that allows pilots to tailor voltage delivery to match servo specifications. The 5A peak output supports standard and high-voltage digital servos, while the selectable voltage range ensures compatibility across diverse onboard systems. This flexibility eliminates the need for external regulators and simplifies wiring, making the ESC ideal for streamlined aircraft builds. Battery and motor connectors are sold separately, allowing users to choose components based on current requirements and installation preferences.

What can the AUX wire do for advanced flight setups?

The Phoenix Edge 200 ESC with RPM output, governor gain input, and flashing LED alerts features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation. These features make the Castle P-CC09800 a flexible and intelligent control solution for serious flyers.

How does telemetry support improve flight safety?

The Castle telemetry-capable ESC with data logging, AUX wire, and Castle Link programmability integrates seamlessly with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. This allows pilots to monitor ESC temperature, input voltage, and receiver battery status in real time. Audible alerts and LED codes provide immediate feedback on system health, helping prevent unexpected shutdowns or crashes. Telemetry data can also be used to fine-tune flight profiles and identify performance bottlenecks, making the Castle P-CC09800 a smart investment for safety-conscious flyers. Data logging further enhances post-flight analysis, enabling users to review RPM, voltage, and current trends for optimization.

Why is Castle Link programming essential for the Castle P-CC09800?

The Castle ESC for 2S–8S LiPo aircraft with USB and Bluetooth programming options includes a coupon for a free Castle Link USB adapter, giving users access to Castle’s full suite of programming features. Through the Castle Link Windows software or iOS app (with B-Link Bluetooth Adapter), pilots can adjust throttle curves, BEC voltage, and AUX wire functions. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. The intuitive interface and demo mode make it easy to explore features and restore factory defaults when needed. Manual programming via transmitter stick is also supported for basic adjustments.

What makes the Castle P-CC09800 a trusted choice for advanced aircraft?

The Castle programmable ESC with 108mm length, 8.8oz weight, and 33.6V max voltage combines high-current capability, intelligent control features, and robust construction in one compact unit. Its telemetry integration, AUX wire versatility, and USB/Bluetooth programmability offer unmatched configurability for scale and aerobatic aircraft. With built-in safety features like arming lockout and LED diagnostics, the Castle P-CC09800 ensures reliable operation across diverse flight environments. Whether you're flying precision aerobatics or managing complex scale systems, this ESC delivers the power and control required for confident flight.

For pilots seeking a high-current, telemetry-capable solution with advanced programming and safety features, the Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC is a proven choice. Buy Castle P-CC09800 Phoenix Edge 200 ESC for scale fixed-wing and aerobatic aircraft.

Product Description of Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC

The Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC is a high-performance electronic speed controller engineered for scale fixed-wing aircraft and aerobatic platforms requiring precision, reliability, and intelligent control. With a robust 33.6V max voltage capacity and a 200A continuous current rating, this ESC delivers sustained power for demanding flight profiles. Its integrated 5A BEC, telemetry compatibility, and advanced AUX wire functionality make it a versatile solution for pilots seeking enhanced safety, configurability, and real-time system feedback. Whether you're flying high-speed aerobatics or managing complex scale setups, the Castle P-CC09800 offers the control and resilience needed to stay in command.

Key features of the Castle P-CC09800 Phoenix Edge 200

  • Selectable 5–8.4V BEC – supports a wide range of servos and onboard electronics
  • Telemetry compatibility – enables real-time monitoring of voltage, temperature, and system status
  • AUX wire functionality – supports RPM output, governor gain input, and arming lockout
  • Data logging – captures performance metrics for post-flight analysis and optimization
  • USB and Bluetooth programming – allows full access to firmware updates and tuning parameters
  • Flashing LED alerts – provides visual feedback for fault detection and system diagnostics

Why is the Castle P-CC09800 ideal for scale fixed-wing aircraft?

The Castle P-CC09800 ESC for scale fixed-wing aircraft with 33.6V max voltage and arming lockout is designed to meet the power and control demands of large-scale aircraft. Its 200A continuous rating ensures consistent performance during extended throttle operation, while the 8S LiPo input capacity supports high-voltage setups. The ESC’s compact dimensions (108.4mm length, 50.8mm width, 31.5mm depth) and lightweight design (249.6g with wires) make it suitable for fuselage installations where space and airflow are limited. With integrated safety features like arming lockout and LED diagnostics, the Castle P-CC09800 provides peace of mind for pilots flying complex, high-value aircraft.

How does the selectable BEC improve system compatibility?

The Castle P-CC09800 with 5–8.4V selectable BEC, 6.5mm battery connectors, and 4mm/5.5mm motor bullets includes a user-configurable BEC that allows pilots to tailor voltage delivery to match servo specifications. The 5A peak output supports standard and high-voltage digital servos, while the selectable voltage range ensures compatibility across diverse onboard systems. This flexibility eliminates the need for external regulators and simplifies wiring, making the ESC ideal for streamlined aircraft builds. Battery and motor connectors are sold separately, allowing users to choose components based on current requirements and installation preferences.

What can the AUX wire do for advanced flight setups?

The Phoenix Edge 200 ESC with RPM output, governor gain input, and flashing LED alerts features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation. These features make the Castle P-CC09800 a flexible and intelligent control solution for serious flyers.

How does telemetry support improve flight safety?

The Castle telemetry-capable ESC with data logging, AUX wire, and Castle Link programmability integrates seamlessly with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. This allows pilots to monitor ESC temperature, input voltage, and receiver battery status in real time. Audible alerts and LED codes provide immediate feedback on system health, helping prevent unexpected shutdowns or crashes. Telemetry data can also be used to fine-tune flight profiles and identify performance bottlenecks, making the Castle P-CC09800 a smart investment for safety-conscious flyers. Data logging further enhances post-flight analysis, enabling users to review RPM, voltage, and current trends for optimization.

Why is Castle Link programming essential for the Castle P-CC09800?

The Castle ESC for 2S–8S LiPo aircraft with USB and Bluetooth programming options includes a coupon for a free Castle Link USB adapter, giving users access to Castle’s full suite of programming features. Through the Castle Link Windows software or iOS app (with B-Link Bluetooth Adapter), pilots can adjust throttle curves, BEC voltage, and AUX wire functions. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. The intuitive interface and demo mode make it easy to explore features and restore factory defaults when needed. Manual programming via transmitter stick is also supported for basic adjustments.

What makes the Castle P-CC09800 a trusted choice for advanced aircraft?

The Castle programmable ESC with 108mm length, 8.8oz weight, and 33.6V max voltage combines high-current capability, intelligent control features, and robust construction in one compact unit. Its telemetry integration, AUX wire versatility, and USB/Bluetooth programmability offer unmatched configurability for scale and aerobatic aircraft. With built-in safety features like arming lockout and LED diagnostics, the Castle P-CC09800 ensures reliable operation across diverse flight environments. Whether you're flying precision aerobatics or managing complex scale systems, this ESC delivers the power and control required for confident flight.

For pilots seeking a high-current, telemetry-capable solution with advanced programming and safety features, the Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC is a proven choice. Buy Castle P-CC09800 Phoenix Edge 200 ESC for scale fixed-wing and aerobatic aircraft.

Technical Specifications of Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC

Brand, Model and Product Type

  • Brand: Castle
  • Model: P-CC09800
  • Product Type: Castle P-CC09800 Phoenix Edge 200 ESC with 200A continuous rating, 8S max input, and 5A BEC, Castle P-CC09800 telemetry-capable ESC with data logging, AUX wire, and Castle Link programmability, Castle P-CC09800 ESC for scale fixed-wing aircraft with 33.6V max voltage and arming lockout, Castle P-CC09800 with 5–8.4V selectable BEC, 6.5mm battery connectors, and 4mm/5.5mm motor bullets, Castle ESC for 2S–8S LiPo aircraft with USB and Bluetooth programming options

Dimensions

  • Length: 10.84 cm – suitable for fuselage installations in scale and aerobatic aircraft
  • Width: 5.08 cm – compact enough for tight mounting locations
  • Depth: 3.15 cm – accommodates internal components and cooling design
  • Weight (with wires): 249.6 g – robust build for high-current applications
  • Weight (without wires): 148.6 g – lightweight for streamlined installations

Electrical and Performance Specifications

  • Input Voltage Range: 2S–8S LiPo – supports up to 33.6V for high-voltage aircraft systems
  • Max Continuous Amperage: 200A – delivers sustained power for demanding flight profiles
  • Max Voltage: 33.6V – optimized for scale and aerobatic aircraft
  • Internal BEC: Yes – integrated for streamlined power delivery
  • BEC Voltage: Selectable from 5V to 8.4V – configurable to match servo requirements
  • BEC Output: 5A peak – supports standard and high-voltage digital servos

Connectivity and Control Features

  • Battery Connectors: Compatible with Castle 6.5mm polarized connectors – sold separately
  • Motor Connectors: Supports 4mm or 5.5mm bullets – matching connectors required
  • AUX Wire: Yes – enables RPM output, governor gain input, audible beacon, and arming lockout
  • Castle Link Compatibility: Yes – USB programming supported via included coupon
  • Bluetooth Programming: Supported via Castle Link iOS App and B-Link Bluetooth Adapter
  • LED Alerts: Yes – flashing patterns indicate system status and fault conditions

Programming and Software

  • Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
  • Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
  • Setup Profiles: Save and load configurations – supports multiple aircraft setups
  • Factory Reset: Available – restore ESC to default settings via Castle Link

Telemetry and Data Logging

  • Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
  • Data Logging: Yes – records performance metrics for post-flight analysis
  • Recorded Metrics: ESC temperature, input voltage, RPM, and system alerts

Safety and Protection Features

  • Arming Lockout: Yes – supports ESC and receiver arming lock via AUX wire
  • Arm Lock Key: Included – prevents accidental arming during setup or transport
  • RC Arm Lock: Enabled when AUX channel signal is below 50% – enhances safety

Application Guidelines

  • Aircraft Compatibility: Designed for scale fixed-wing and aerobatic aircraft
  • Installation Notes: Always perform range checks at full, half, and zero throttle before flight
  • Futaba Transmitter Users: Must reverse throttle channel signal – refer to Futaba documentation

What’s in the Box

  • 1 × Castle Phoenix Edge 200 ESC
  • 1 × Coupon for Castle Link USB Adapter
  • 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

  • Battery connector – Castle 6.5mm polarized recommended (sold separately)
  • Motor connectors – 4mm or 5.5mm bullets required (sold separately)
  • Castle Link USB Adapter – redeemable via included coupon
  • Windows PC for Castle Link software – required for programming and firmware updates

Sold Separately

  • Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
  • B-Link Bluetooth Adapter – optional for mobile programming via iOS
