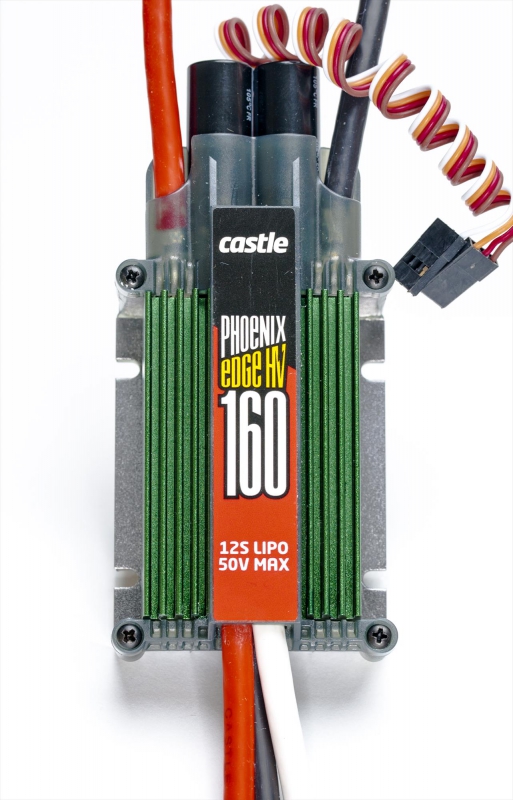

The Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support is a high-voltage electronic speed controller engineered for 700–800 class helicopters and giant scale fixed-wing aircraft. Designed to handle extreme power demands, this ESC supports up to 50.4V and delivers sustained current for aggressive flight profiles. With no internal BEC, it offers clean power isolation for sensitive electronics, while telemetry compatibility, data logging, and AUX wire functionality provide advanced control and real-time system feedback. Whether you're flying precision aerobatics or managing rotor speed in a high-performance heli, the Castle P-CC10300 delivers uncompromising reliability and configurability.
Key features of the Castle P-CC10300 Phoenix Edge 160HV
- 160A continuous current – supports high-output motors and demanding flight systems
- 12S LiPo input – delivers up to 50.4V for giant scale and heli applications
- No internal BEC – ensures clean separation of power systems for sensitive electronics
- Telemetry compatible – supports real-time monitoring of voltage, temperature, and system health
- AUX wire functionality – enables RPM output, governor gain input, and arming lockout
- Data logging – captures flight metrics for post-flight analysis and optimization
- Castle Link USB and Bluetooth programming – unlocks full access to firmware updates and tuning parameters
Why is the Castle P-CC10300 ideal for 700–800 class helis and 12S fixed-wing aircraft?
The Castle P-CC10300 high-voltage ESC for 700–800 class helis and giant scale fixed-wing aircraft is built to support extreme setups with precision and stability. Its 160A continuous rating and 50.4V max voltage allow for aggressive throttle profiles and sustained power delivery. The ESC’s robust dimensions (108.4mm length, 50.8mm width, 31.5mm depth) and weight (232.8g with wires) make it suitable for large aircraft installations where airflow and cooling are critical. With no internal BEC, pilots can isolate receiver power for added safety and reliability, especially in high-current environments.
How does the AUX wire enhance advanced flight control?
The Phoenix Edge 160HV ESC with RPM output, governor gain input, and arming lockout key features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation. These features make the Castle P-CC10300 a flexible and intelligent control solution for serious flyers.
How does telemetry support improve flight safety?
The Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility integrates seamlessly with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. This allows pilots to monitor ESC temperature, input voltage, and receiver battery status in real time. Audible alerts and LED codes provide immediate feedback on system health, helping prevent unexpected shutdowns or crashes. Telemetry data can also be used to fine-tune flight profiles and identify performance bottlenecks, making the Castle P-CC10300 a smart investment for safety-conscious flyers. Data logging further enhances post-flight analysis, enabling users to review RPM, voltage, and current trends for optimization.
Why is Castle Link programming essential for the Castle P-CC10300?
The Castle programmable ESC with 50.4V max voltage, no BEC, and Castle Link USB access includes a coupon for a free Castle Link USB adapter, giving users access to Castle’s full suite of programming features. Through the Castle Link Windows software or iOS app (with B-Link Bluetooth Adapter), pilots can adjust throttle curves, AUX wire functions, and telemetry settings. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. The intuitive interface and demo mode make it easy to explore features and restore factory defaults when needed. Manual programming via transmitter stick is also supported for basic adjustments.
What makes the Castle P-CC10300 a trusted choice for high-voltage aircraft?
The Best 12S ESC with telemetry support, AUX wire functionality, and 160A continuous rating combines high-current capability, intelligent control features, and robust construction in one compact unit. Its telemetry integration, AUX wire versatility, and USB/Bluetooth programmability offer unmatched configurability for giant scale and rotorcraft platforms. With built-in safety features like arming lockout and LED diagnostics, the Castle P-CC10300 ensures reliable operation across extreme flight environments. Whether you're flying precision maneuvers or managing rotor speed, this ESC delivers the power and control required for confident flight.
For pilots seeking a telemetry-capable, programmable solution with advanced safety and control features, the Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support is a proven choice. Buy Castle P-CC10300 Phoenix Edge 160HV ESC for 700–800 class helis and 12S fixed-wing aircraft.
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC10300
- Product Type: Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support, Castle P-CC10300 high-voltage ESC for 700–800 class helis and giant scale fixed-wing aircraft, Castle P-CC10300 programmable ESC with data logging, AUX wire, and Castle Link USB access, Castle P-CC10300 with 50.4V max voltage, 232g weight with wires, and 108mm length, Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility
Dimensions
- Length: 10.84 cm – suitable for large-scale aircraft and heli installations
- Width: 5.08 cm – standard footprint for high-voltage ESCs
- Depth: 3.15 cm – accommodates robust internal components and cooling
- Weight (with wires): 232.8 g – heavy-duty build for sustained current loads
- Weight (without wires): 150.6 g – lighter for flexible mounting options
Electrical and Performance Specifications
- Input Voltage Range: 3S–12S LiPo – supports up to 50.4V for extreme setups
- Max Continuous Amperage: 160A – delivers sustained power for high-performance aircraft
- Max Voltage: 50.4V – optimized for 12S configurations
- Internal BEC: None – requires external BEC or receiver power source
- Receiver Voltage Input: 4.8V–9V – compatible with standard RX systems
Connectivity and Control Features
- Battery Connectors: Required – sold separately, must support high-current draw
- Motor Connectors: Required – sold separately, compatible with bullet-style terminals
- AUX Wire: Yes – enables RPM output, governor gain input, audible beacon, and arming lockout
- Castle Link Compatibility: Yes – USB programming supported via included coupon
- Bluetooth Programming: Supported via Castle Link iOS App and B-Link Bluetooth Adapter
- LED Alerts: Yes – flashing patterns indicate system status and fault conditions
Programming and Software
- Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
- Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
- Setup Profiles: Save and load configurations – supports multiple aircraft setups
- Factory Reset: Available – restore ESC to default settings via Castle Link
Telemetry and Data Logging
- Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
- Data Logging: Yes – records performance metrics for post-flight analysis
- Recorded Metrics: ESC temperature, input voltage, RPM, and system alerts
Safety and Protection Features
- Arming Lockout: Yes – supports ESC and receiver arming lock via AUX wire
- Arm Lock Key: Included – prevents accidental arming during setup or transport
- RC Arm Lock: Enabled when AUX channel signal is below 50% – enhances safety
Application Guidelines
- Aircraft Compatibility: Designed for 700–800 class helicopters and giant scale fixed-wing aircraft
- Installation Notes: Always verify system current draw at full throttle and ensure adequate airflow
What’s in the Box
- 1 × Castle Phoenix Edge 160HV ESC
- 1 × Coupon for Castle Link USB Adapter
- 1 × Coupon for Arming Lockout Key and Harness
What You Require / What You Will Need
- Battery connectors – sold separately, must support required current draw
- Motor connectors – sold separately, compatible with bullet-style terminals
- Castle Link USB Adapter – redeemable via included coupon
- Windows PC for Castle Link software – required for programming and firmware updates
Sold Separately
- Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
- B-Link Bluetooth Adapter – optional for mobile programming via iOS
Product Description of Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support
The Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support is a high-voltage electronic speed controller engineered for 700–800 class helicopters and giant scale fixed-wing aircraft. Designed to handle extreme power demands, this ESC supports up to 50.4V and delivers sustained current for aggressive flight profiles. With no internal BEC, it offers clean power isolation for sensitive electronics, while telemetry compatibility, data logging, and AUX wire functionality provide advanced control and real-time system feedback. Whether you're flying precision aerobatics or managing rotor speed in a high-performance heli, the Castle P-CC10300 delivers uncompromising reliability and configurability.
Key features of the Castle P-CC10300 Phoenix Edge 160HV
- 160A continuous current – supports high-output motors and demanding flight systems
- 12S LiPo input – delivers up to 50.4V for giant scale and heli applications
- No internal BEC – ensures clean separation of power systems for sensitive electronics
- Telemetry compatible – supports real-time monitoring of voltage, temperature, and system health
- AUX wire functionality – enables RPM output, governor gain input, and arming lockout
- Data logging – captures flight metrics for post-flight analysis and optimization
- Castle Link USB and Bluetooth programming – unlocks full access to firmware updates and tuning parameters
Why is the Castle P-CC10300 ideal for 700–800 class helis and 12S fixed-wing aircraft?
The Castle P-CC10300 high-voltage ESC for 700–800 class helis and giant scale fixed-wing aircraft is built to support extreme setups with precision and stability. Its 160A continuous rating and 50.4V max voltage allow for aggressive throttle profiles and sustained power delivery. The ESC’s robust dimensions (108.4mm length, 50.8mm width, 31.5mm depth) and weight (232.8g with wires) make it suitable for large aircraft installations where airflow and cooling are critical. With no internal BEC, pilots can isolate receiver power for added safety and reliability, especially in high-current environments.
How does the AUX wire enhance advanced flight control?
The Phoenix Edge 160HV ESC with RPM output, governor gain input, and arming lockout key features a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, enhancing safety during setup and transport. When connected to a receiver channel programmed as an arm lock switch, the ESC will not arm until the channel signal exceeds 50%, preventing accidental activation. These features make the Castle P-CC10300 a flexible and intelligent control solution for serious flyers.
How does telemetry support improve flight safety?
The Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility integrates seamlessly with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. This allows pilots to monitor ESC temperature, input voltage, and receiver battery status in real time. Audible alerts and LED codes provide immediate feedback on system health, helping prevent unexpected shutdowns or crashes. Telemetry data can also be used to fine-tune flight profiles and identify performance bottlenecks, making the Castle P-CC10300 a smart investment for safety-conscious flyers. Data logging further enhances post-flight analysis, enabling users to review RPM, voltage, and current trends for optimization.
Why is Castle Link programming essential for the Castle P-CC10300?
The Castle programmable ESC with 50.4V max voltage, no BEC, and Castle Link USB access includes a coupon for a free Castle Link USB adapter, giving users access to Castle’s full suite of programming features. Through the Castle Link Windows software or iOS app (with B-Link Bluetooth Adapter), pilots can adjust throttle curves, AUX wire functions, and telemetry settings. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. The intuitive interface and demo mode make it easy to explore features and restore factory defaults when needed. Manual programming via transmitter stick is also supported for basic adjustments.
What makes the Castle P-CC10300 a trusted choice for high-voltage aircraft?
The Best 12S ESC with telemetry support, AUX wire functionality, and 160A continuous rating combines high-current capability, intelligent control features, and robust construction in one compact unit. Its telemetry integration, AUX wire versatility, and USB/Bluetooth programmability offer unmatched configurability for giant scale and rotorcraft platforms. With built-in safety features like arming lockout and LED diagnostics, the Castle P-CC10300 ensures reliable operation across extreme flight environments. Whether you're flying precision maneuvers or managing rotor speed, this ESC delivers the power and control required for confident flight.
For pilots seeking a telemetry-capable, programmable solution with advanced safety and control features, the Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support is a proven choice. Buy Castle P-CC10300 Phoenix Edge 160HV ESC for 700–800 class helis and 12S fixed-wing aircraft.
Technical Specifications of Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC10300
- Product Type: Castle P-CC10300 Phoenix Edge 160HV ESC with 160A continuous rating, 12S max input, and telemetry support, Castle P-CC10300 high-voltage ESC for 700–800 class helis and giant scale fixed-wing aircraft, Castle P-CC10300 programmable ESC with data logging, AUX wire, and Castle Link USB access, Castle P-CC10300 with 50.4V max voltage, 232g weight with wires, and 108mm length, Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility
Dimensions
- Length: 10.84 cm – suitable for large-scale aircraft and heli installations
- Width: 5.08 cm – standard footprint for high-voltage ESCs
- Depth: 3.15 cm – accommodates robust internal components and cooling
- Weight (with wires): 232.8 g – heavy-duty build for sustained current loads
- Weight (without wires): 150.6 g – lighter for flexible mounting options
Electrical and Performance Specifications
- Input Voltage Range: 3S–12S LiPo – supports up to 50.4V for extreme setups
- Max Continuous Amperage: 160A – delivers sustained power for high-performance aircraft
- Max Voltage: 50.4V – optimized for 12S configurations
- Internal BEC: None – requires external BEC or receiver power source
- Receiver Voltage Input: 4.8V–9V – compatible with standard RX systems
Connectivity and Control Features
- Battery Connectors: Required – sold separately, must support high-current draw
- Motor Connectors: Required – sold separately, compatible with bullet-style terminals
- AUX Wire: Yes – enables RPM output, governor gain input, audible beacon, and arming lockout
- Castle Link Compatibility: Yes – USB programming supported via included coupon
- Bluetooth Programming: Supported via Castle Link iOS App and B-Link Bluetooth Adapter
- LED Alerts: Yes – flashing patterns indicate system status and fault conditions
Programming and Software
- Programmability: Fully programmable via Castle Link – includes access to firmware updates and expanded parameters
- Software Compatibility: Castle Link for Windows Vista, 7, 8, 10 – Mac users may use virtualization software
- Setup Profiles: Save and load configurations – supports multiple aircraft setups
- Factory Reset: Available – restore ESC to default settings via Castle Link
Telemetry and Data Logging
- Telemetry Capable: Yes – compatible with Castle Telemetry Link for S.BUS2 and X-BUS systems
- Data Logging: Yes – records performance metrics for post-flight analysis
- Recorded Metrics: ESC temperature, input voltage, RPM, and system alerts
Safety and Protection Features
- Arming Lockout: Yes – supports ESC and receiver arming lock via AUX wire
- Arm Lock Key: Included – prevents accidental arming during setup or transport
- RC Arm Lock: Enabled when AUX channel signal is below 50% – enhances safety
Application Guidelines
- Aircraft Compatibility: Designed for 700–800 class helicopters and giant scale fixed-wing aircraft
- Installation Notes: Always verify system current draw at full throttle and ensure adequate airflow
What’s in the Box
- 1 × Castle Phoenix Edge 160HV ESC
- 1 × Coupon for Castle Link USB Adapter
- 1 × Coupon for Arming Lockout Key and Harness
What You Require / What You Will Need
- Battery connectors – sold separately, must support required current draw
- Motor connectors – sold separately, compatible with bullet-style terminals
- Castle Link USB Adapter – redeemable via included coupon
- Windows PC for Castle Link software – required for programming and firmware updates
Sold Separately
- Castle Telemetry Link for S.BUS2 or X-BUS – required for telemetry integration
- B-Link Bluetooth Adapter – optional for mobile programming via iOS
