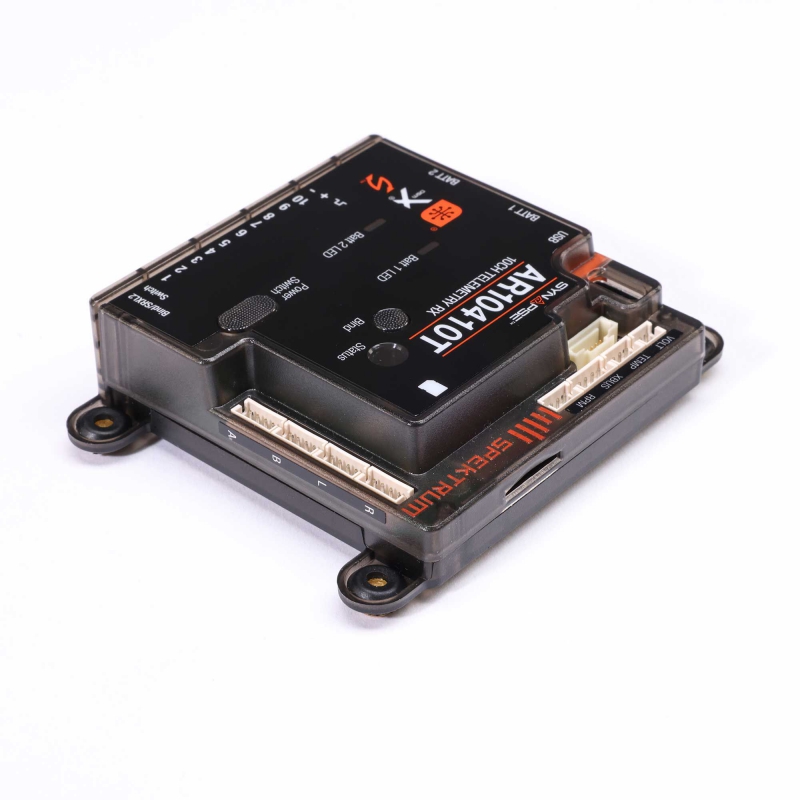

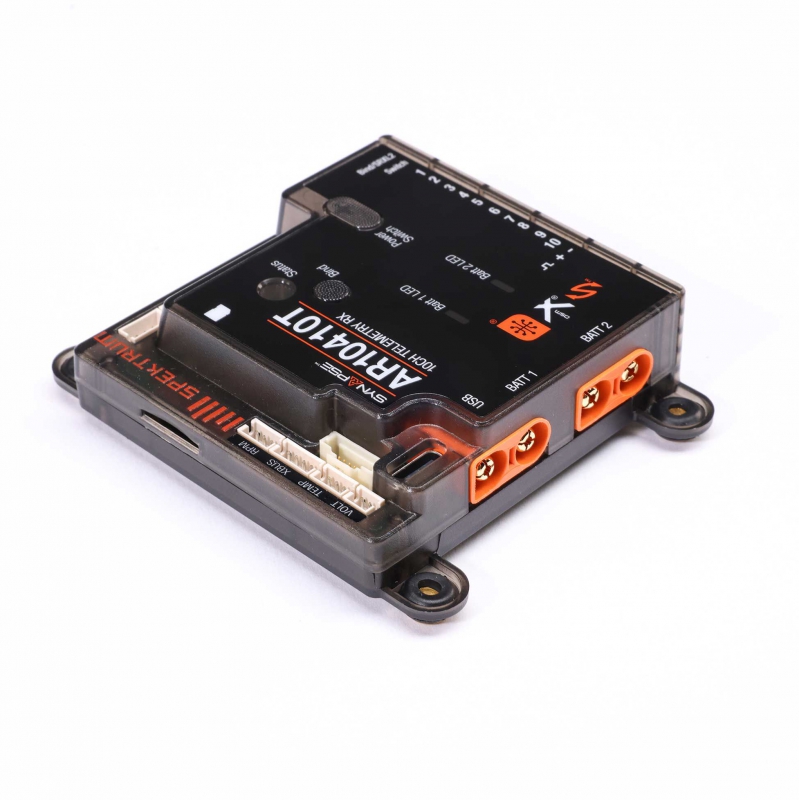

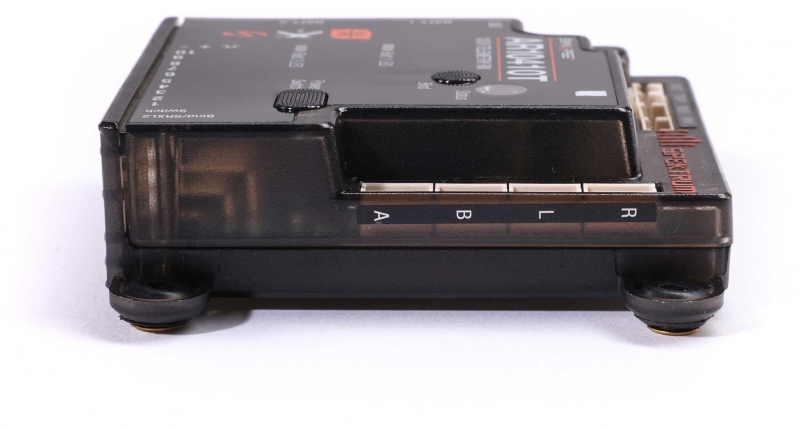

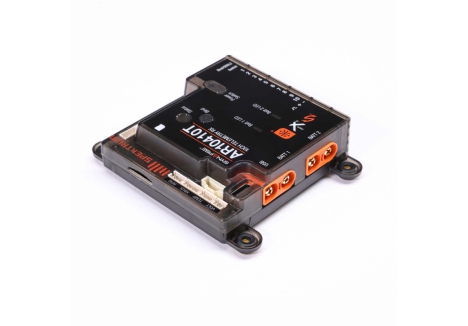

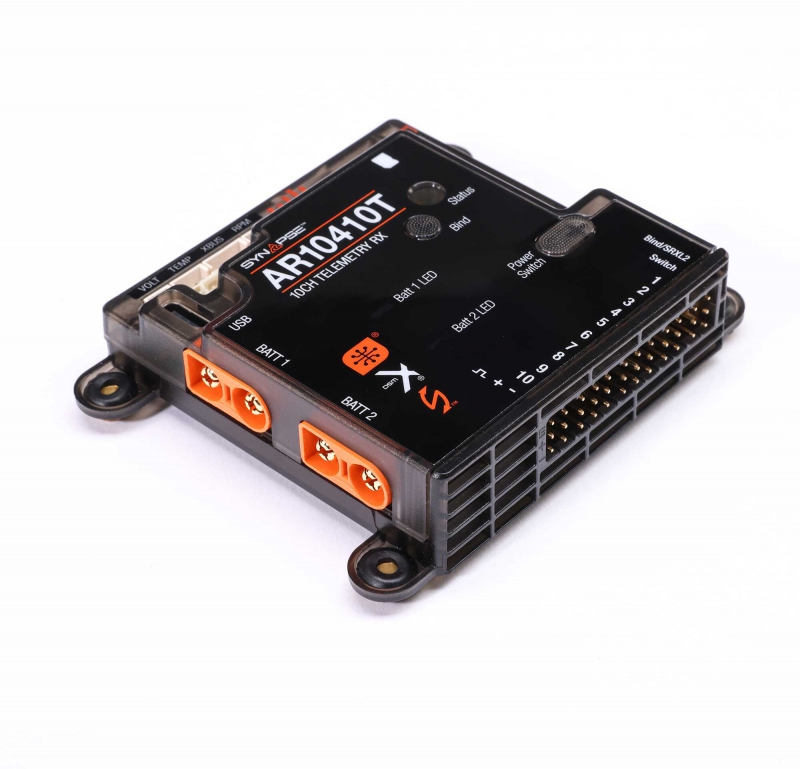

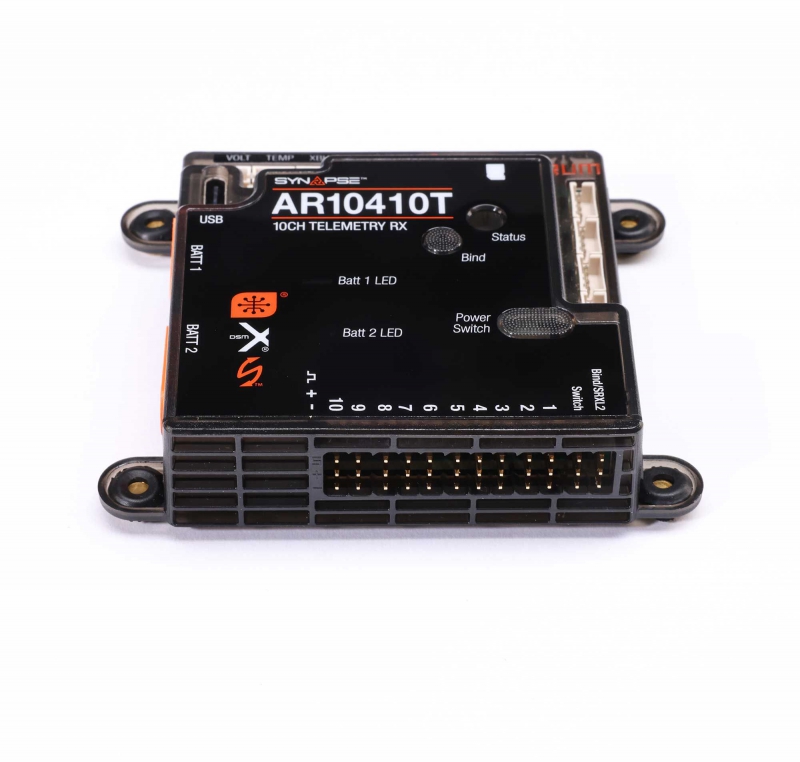

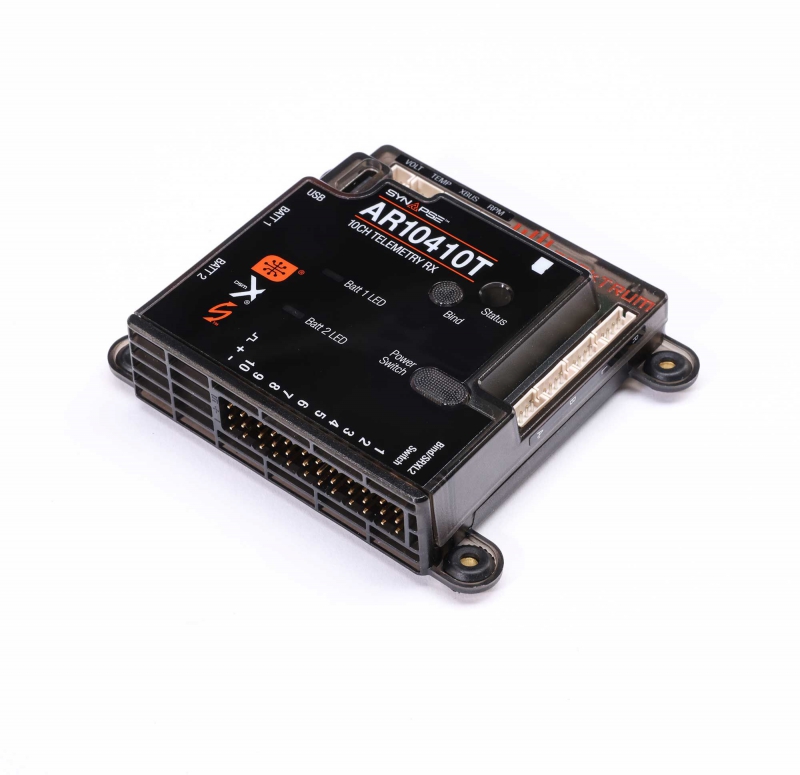

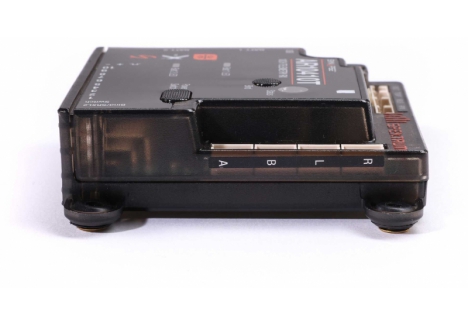

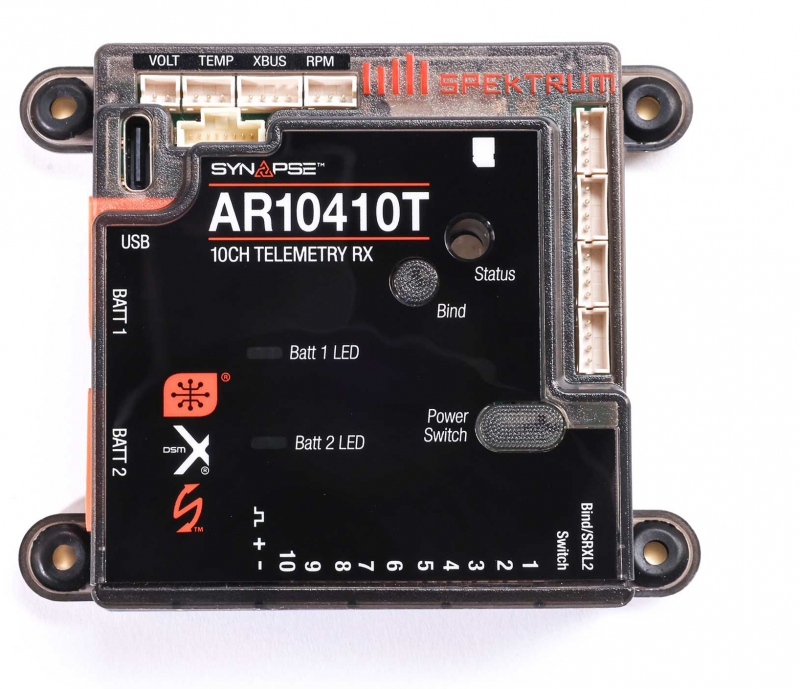

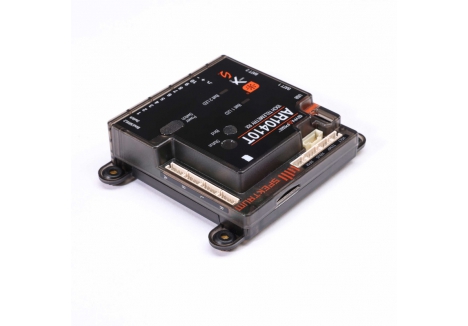

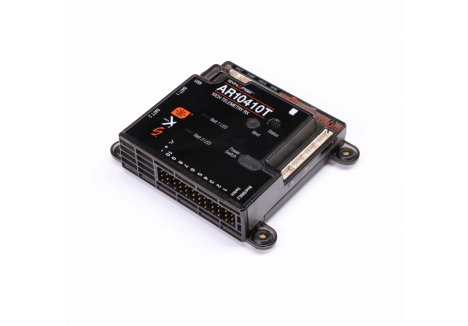

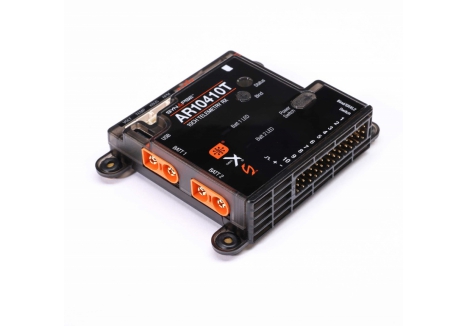

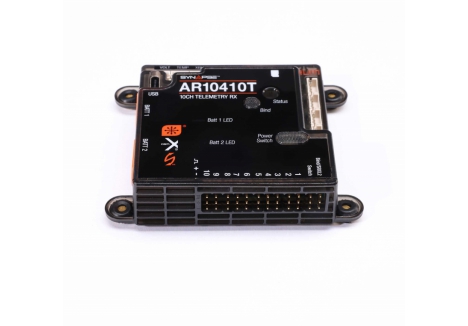

Product Description of Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry
The Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry is engineered for giant-scale aircraft and high-current servo applications where power redundancy, telemetry depth, and RF reliability are non-negotiable. This 10-channel DSMX receiver integrates Spektrum’s patented PowerSafe™ system, offering true dual battery isolation and seamless failover protection. With support for Smart ESCs, AS3X+/SAFE stabilization modules, and expansive telemetry logging via micro SD, the AR10410T delivers a robust, future-ready solution for demanding flight environments.
Key features of the Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry

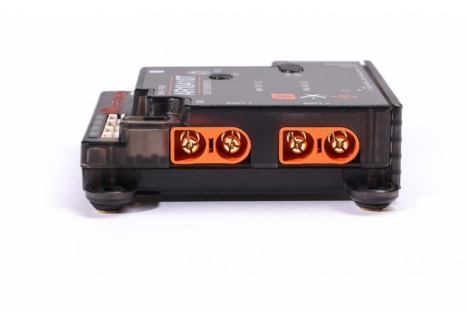

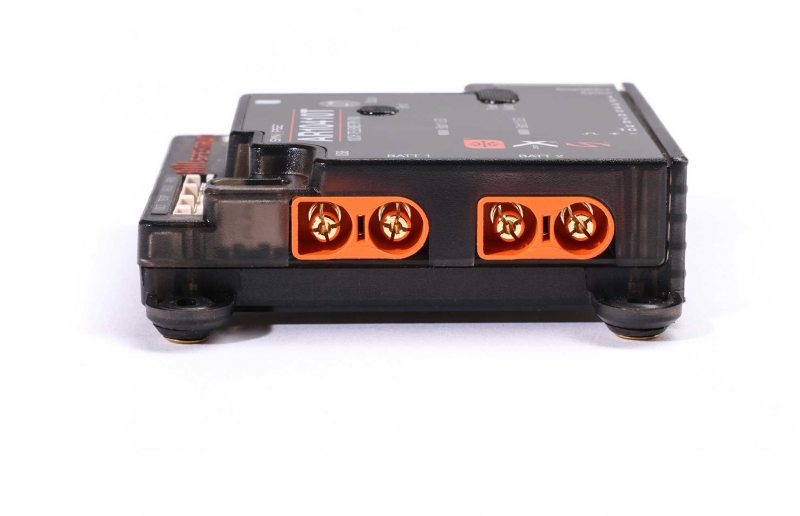

- Dual IC3 battery inputs – ensures uninterrupted power with automatic failover
- Smart telemetry support – includes mAh tracking, altitude, vario, and voltage data
- Integrated barometer – provides altitude and vario telemetry without external sensors
- USB-C firmware updates – simplifies registration and software maintenance
- SRXL2 ports – supports up to four remote receivers for RF path redundancy
- SD flight log support – stores telemetry data for post-flight analysis
- SAFE+ compatibility – integrates with Synapse AS3X+ stabilization module
- Remote sleep mode – allows transmitter-based power control
How does the Spektrum P-SPMAR10410T enhance power reliability?
The PowerSafe receiver for high-current aircraft with SmartSafe failsafe and remote sleep mode is built around Spektrum’s patented PowerSafe™ redundancy system. It features dual IC3 battery inputs that isolate each pack, ensuring that if one fails or shorts, the other seamlessly takes over. This architecture supports continuous current draw up to 35A (with 50A burst capability), making it ideal for power-hungry servos and large-scale aircraft. The included soft switch routes servo current around the switch, so even in the event of switch failure, power delivery remains uninterrupted.
What telemetry capabilities does the AR10410T offer?
The Spektrum P-SPMAR10410T 10-channel DSMX receiver with integrated barometer and SD flight log support delivers full-range telemetry without the need for external modules. Its integrated barometer provides altitude and vario data, while mAh tracking monitors battery consumption across flights. The receiver includes ports for RPM, voltage, and temperature sensors, and supports XBUS expansion for GPS, airspeed, and turbine ECU telemetry. When paired with a micro SD card, the AR10410T logs all telemetry data in CSV format, enabling detailed post-flight analysis and diagnostics.
Is the AR10410T compatible with stabilization systems?

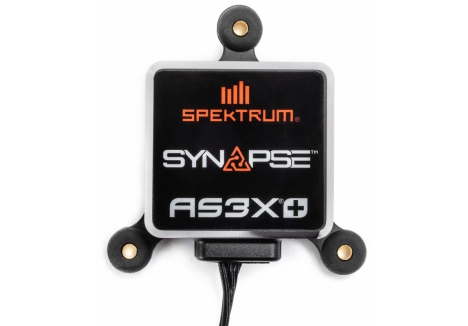

Yes. The Spektrum P-SPMAR10410T telemetry receiver with SRXL2 ports, USB-C updates, and SAFE+ compatibility is fully compatible with the Synapse AS3X+/SAFE stabilization module (SPMAS6000, sold separately). This integration enables advanced flight stabilization, including heading hold, thrust vectoring, and canard support. Setup is streamlined via Forward Programming, allowing pilots to configure stabilization parameters directly from their Spektrum transmitter without external devices.
How does the AR10410T improve RF coverage?
The Spektrum PowerSafe receiver with dual battery monitoring, USB-C updates, and SRXL2 RF redundancy includes four SRXL2 remote receiver ports and ships with three SRXL2 receivers and three extension cables. This configuration ensures robust RF path diversity, critical for large aircraft or installations with complex layouts. Dual external antennas and full-range DSMX modulation further enhance signal integrity, reducing the risk of interference or dropout during flight.
What makes the AR10410T ideal for advanced aircraft setups?
The Spektrum P-SPMAR10410T with 3.5–12.6V input, 2048 resolution, and regenerative servo support is designed for flexibility and scalability. It supports 12V servo applications (via Forward Programming), regenerative servo loads, and high-speed 11ms frame rates. The receiver’s compact form factor and minimalistic labeling enable clean installations, while the integrated status LED provides real-time feedback during startup and operation. These features make the AR10410T a top-tier choice for pilots building complex, high-performance aircraft.
Why choose the AR10410T for your next build?
For pilots seeking uncompromising power management, telemetry depth, and RF reliability, the best 10-channel DSMX receiver with bind button, SD telemetry logging, and AS3X+ stabilization support delivers on every front. With dual battery redundancy, advanced telemetry integration, and compatibility with Spektrum’s stabilization ecosystem, the AR10410T is engineered for serious flight applications. Whether you're flying jets, giant-scale aerobats, or precision gliders, this receiver offers the control, data, and safety features needed to push performance boundaries.
Buy Spektrum P-SPMAR10410T AR10410T receiver for giant-scale aircraft with PowerSafe redundancy.
Technical Specifications of Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMAR10410T
- Product Type: Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry, Spektrum P-SPMAR10410T 10-channel DSMX receiver with integrated barometer and SD flight log support, Spektrum P-SPMAR10410T telemetry receiver with SRXL2 ports, USB-C updates, and SAFE+ compatibility, Spektrum P-SPMAR10410T with 3.5–12.6V input, 2048 resolution, and regenerative servo support, PowerSafe receiver for high-current aircraft with SmartSafe failsafe and remote sleep mode
Dimensions
- Length: 6.6 cm – suitable for giant-scale aircraft and high-current installations
- Width: 6.1 cm – provides ample space for integrated telemetry and power management
- Height: 1.8 cm – compact enough for clean installations with rubber grommet hard mounts
- Weight: 54 g – optimized for structural integration without compromising performance
Channel and Signal Specifications

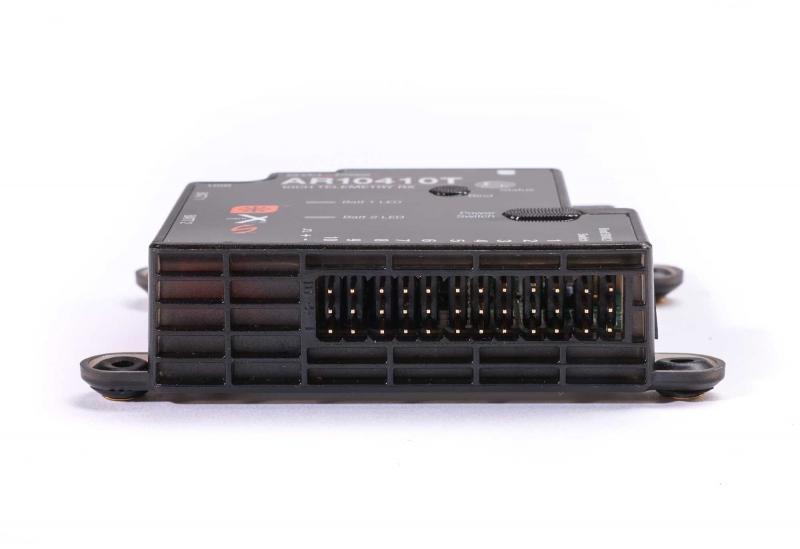

- Channels: 10 – supports complex aircraft configurations and stabilization modules
- Modulation: DSMX/DSM2 – compatible with all Spektrum DSMX and DSM2 transmitters
- Resolution: 2048 resolution – delivers precise control and signal fidelity
- Range: Full – engineered for reliable long-range performance
Telemetry and Sensor Integration
- Telemetry Support: Yes – full-range telemetry with integrated barometer and mAh tracking
- Integrated Barometer: Provides altitude and vario telemetry without external modules
- Smart ESC Compatibility: Spektrum P-SPMAR10410T AR10410T PowerSafe receiver with dual IC3 battery inputs and Smart telemetry – supports one-wire telemetry for voltage, current, RPM, and temperature
- Telemetry Ports: RPM, Flight Pack Voltage, Temperature – supports traditional sensors
- XBUS Expansion: DSMX telemetry receiver with XBUS expansion, RPM/voltage/temp ports, and mAh tracking – enables GPS, airspeed, and turbine telemetry integration
- Flight Log: SD flight log support – stores telemetry data on optional micro SD card
Power and Voltage
- Input Voltage: 3.5–12.6V input – supports high-voltage servo applications
- PowerSafe System: Patented dual IC3 battery redundancy – isolates each battery for seamless failover
- Battery Monitoring: Dual battery capacity telemetry – tracks mAh consumed and resets automatically
- Regenerative Servo Support: Spektrum P-SPMAR10410T with regenerative servo support – handles high-current servo loads up to 35A (50A burst)
Connectivity and Programming
- Bind Method: Bind button and bind plug – four binding options available
- Forward Programming: Yes – configure failsafe, frame rate, and voltage settings via transmitter
- Failsafe Options: SmartSafe failsafe, Hold Last, and per-channel programming
- USB Port: USB-C updates – supports firmware updates and registration via Spektrum PC Programmer
Receiver and RF Coverage
- Remote Receiver Ports: 4 – supports up to four SRXL2 receivers for RF redundancy
- Included Receivers: 1 × SPM4651T SRXL2, 2 × SPM9747 SRXL2 DSMX remote receivers

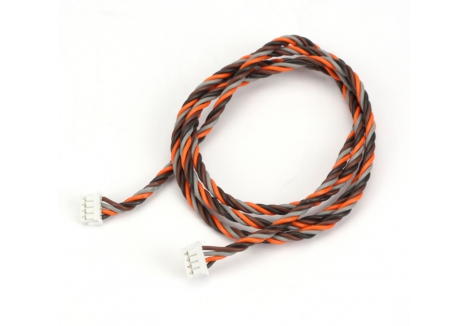

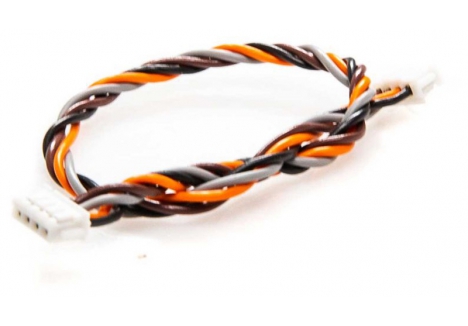

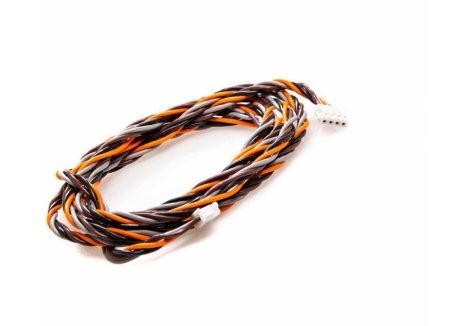

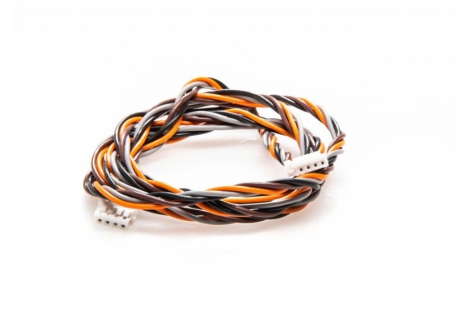

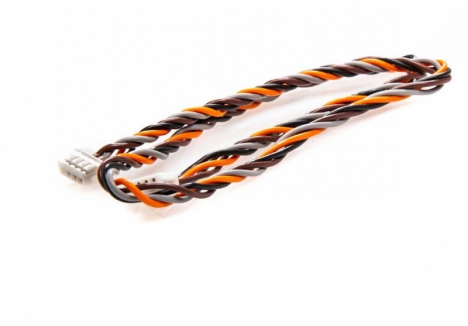

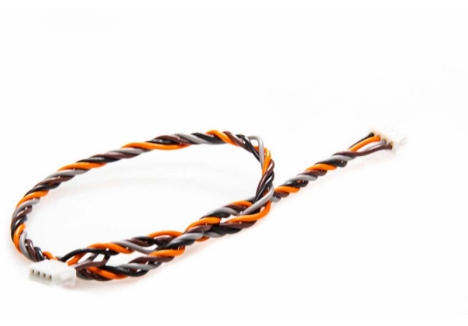

- Extensions Included: 9", 12", and 24" SRXL2 remote receiver extensions
Stabilization and Compatibility
- SAFE+ Compatibility: Spektrum P-SPMAR10410T telemetry receiver with SRXL2 ports, USB-C updates, and SAFE+ compatibility – supports Synapse AS3X+/SAFE stabilization module
- AS3X+ Support: Compatible with SPMAS6000 module (not included) – enables advanced flight stabilization
Sleep Mode and Power Management
- Sleep Mode: Remote sleep mode – allows transmitter-based power control
- Soft Switch: Included – routes servo current around switch for uninterrupted power
- Status LED: Integrated – displays startup, warnings, and mode indicators

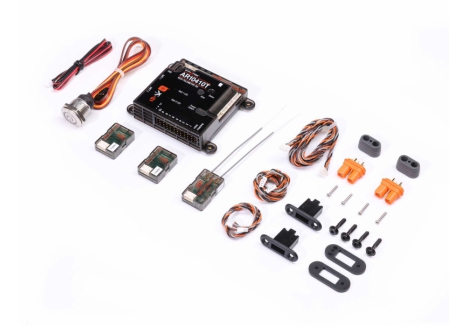

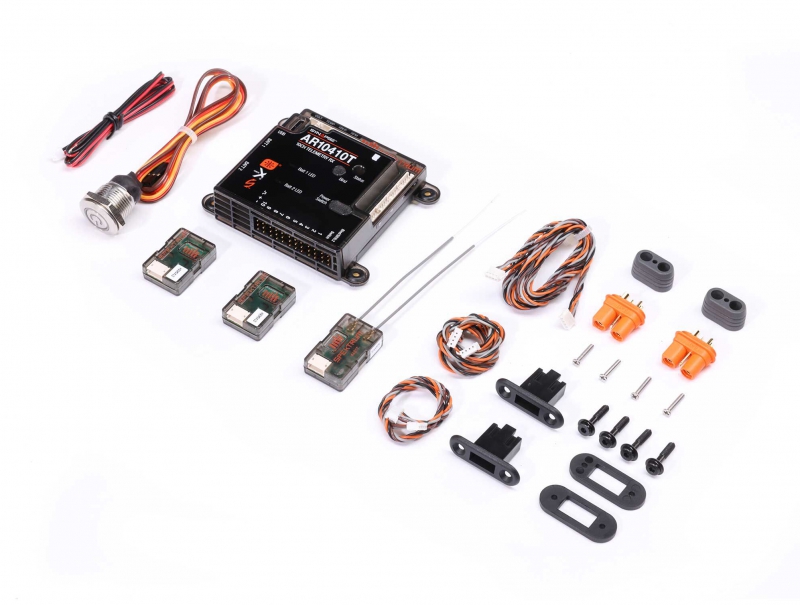

What’s in the Box
- 1 × AR10410T 10-Channel PowerSafe Receiver
- 1 × SPM4651T SRXL2 Remote Serial Telemetry Receiver
- 2 × SPM9747 SRXL2 DSMX Remote Receivers

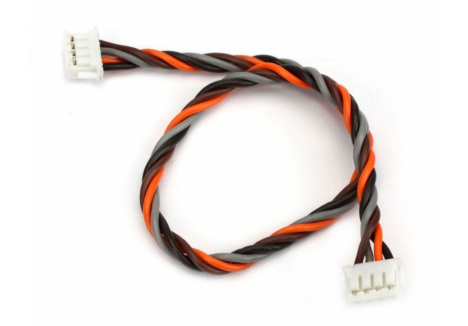

- 1 × 9" SRXL2 Remote Receiver Extension

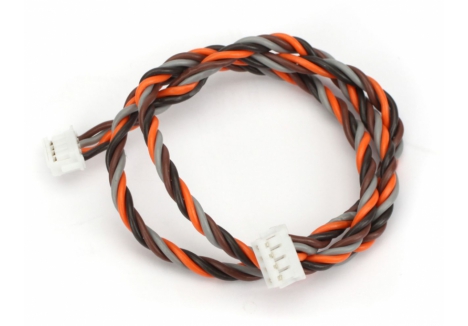

- 1 × 12" SRXL2 Remote Receiver Extension
- 1 × 24" SRXL2 Remote Receiver Extension
- 2 × Battery IC3 Connectors
- 2 × Charge Receptacles
- 1 × Aircraft Telemetry Volt Sensor
- 1 × Soft Switch
- 1 × Instruction Manual
What You Require / What You Will Need
- Compatible Spektrum transmitter with DSMX/DSM2 protocol
- Optional micro SD card – required for flight log storage
- Optional AS3X+/SAFE stabilization module – for enhanced flight control
Sold Separately
- Micro SD card – for telemetry logging
- Synapse AS3X+/SAFE stabilization module (SPMAS6000)
- Additional telemetry sensors – GPS, airspeed, turbine ECU modules
