FEATURES
- For all-purpose giant scale airplane
- Programmable/HV Brushless Servo
- Custom New high power Brushless Motor
- Suggested upgrade for BLS172SV/177SC/AA700
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
- Final gear material is Stainless Steel
- Upper/middle/bottom: Aluminium Case
CONTENTS
- 1x HPS-AA702 Standard Brushless Servo
- Horns
- Mounting Hardware
DETAILS

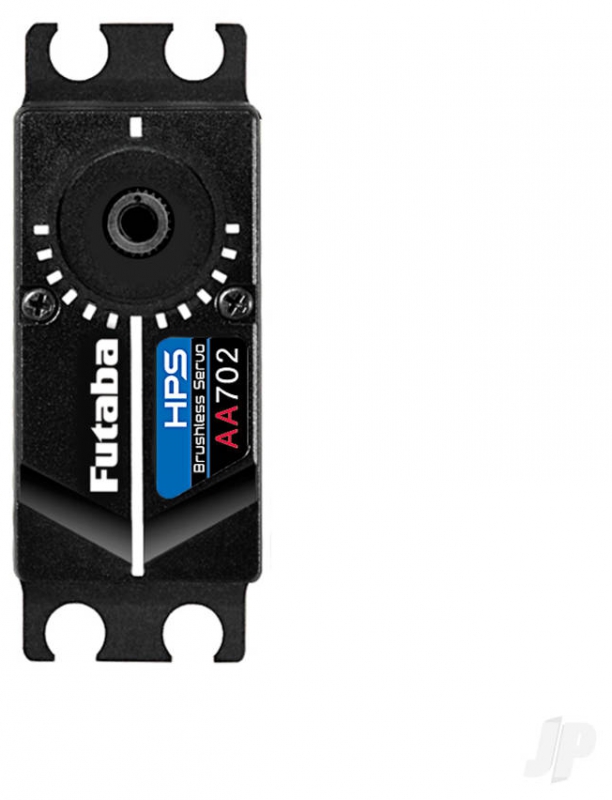

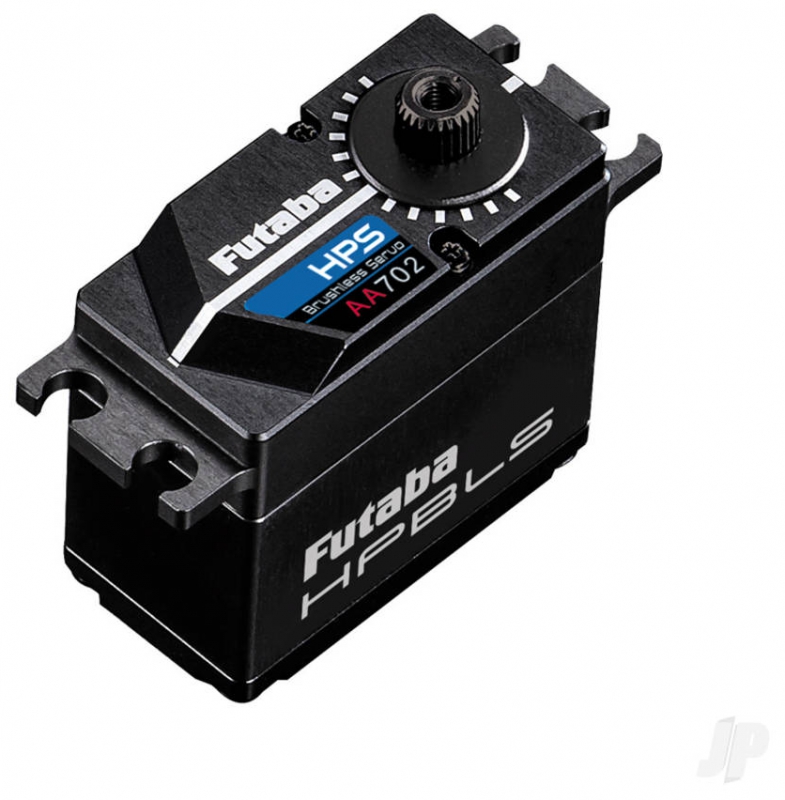

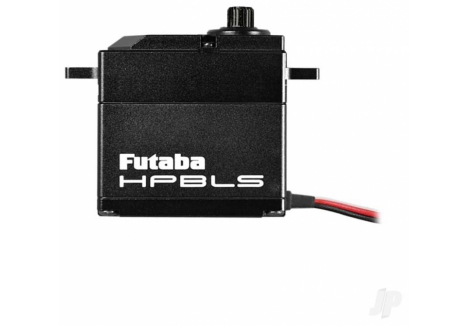

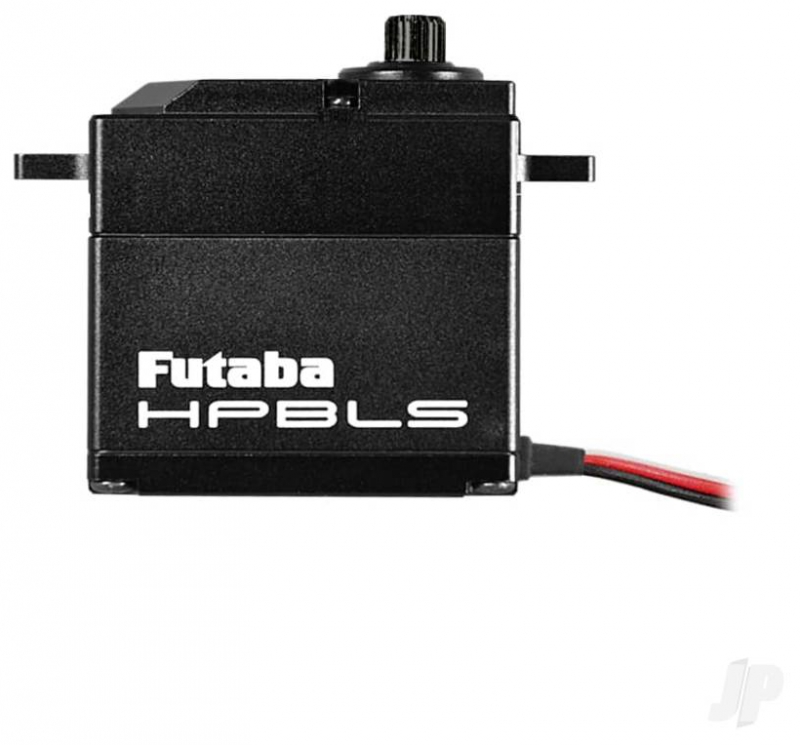

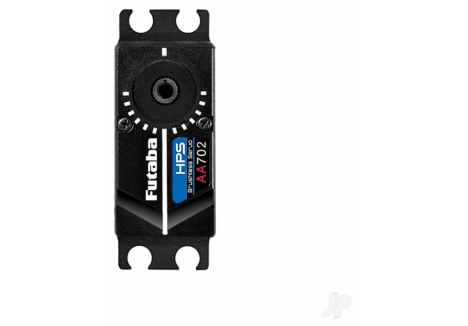

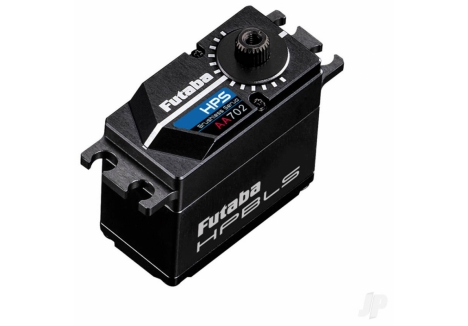

HPS-AA702 S.Bus2 High-Voltage Standard Airplane Servo
High Performance Servo with Brushless Motor
Speed:
0.08 sec/60 (6.6V)
0.075 sec/60 (7.4V)
Torque:
37.0 kgf/cm (6.6V)
513.86 ozf/in (6.6V)
41.0 kgf/cm 7.4V)
569.41 ozf/in (7.4V)

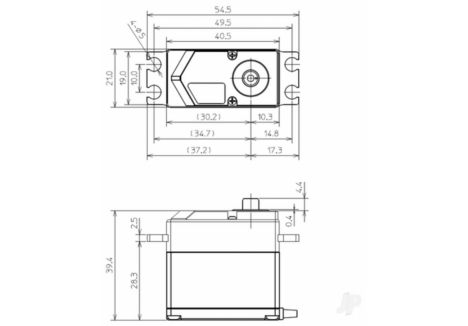

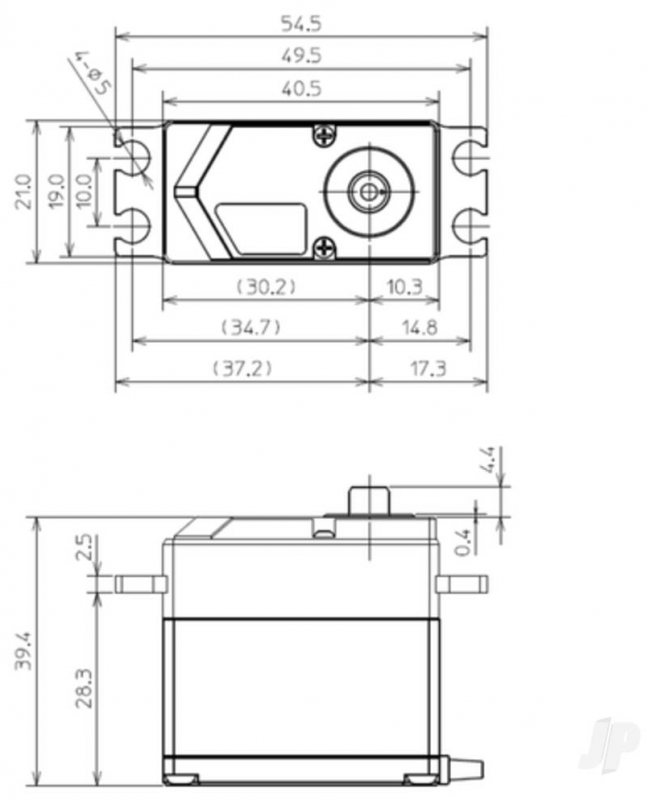

Size:
40.5 x 21.0 x 39.4 mm
1.59 x 0.83 x 1.55 in
Weight:
80 g
2.82 oz
Rated Voltage:
DC 6.0V - 7.4V
Operating Voltage:
DC 4.8 - 8.4V
NO DRY BATTERY OR BEC USE
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05102722-3
- Product Type: Futaba FUT05102722-3 HPS-AA702 brushless servo with S.Bus2, Futaba FUT05102722-3 standard servo 41kg 0.075s, Futaba FUT05102722-3 HV digital servo for giant scale aircraft, Futaba FUT05102722-3 with stainless steel gears and aluminium case, Futaba HPS-AA702 servo with 25T spline and CIU-3 compatibility
- Product Color: Black
Dimensions
- Product Length: 4.1 cm – standard footprint for giant scale aircraft servo bays
- Product Width: 2.1 cm – compact enough for multi-servo installations
- Product Height: 3.9 cm – optimized for vertical mounting in high-load applications
- Product Weight: 80 g – robust build for structural stability and vibration resistance
- Shipping Weight: 0.14 kg – includes packaging and mounting accessories
Performance Specifications
- Torque at 7.4V: 41.0 kgf.cm – delivers extreme control authority for large control surfaces
- Torque at 6.6V: 37.0 kgf.cm – maintains high output under moderate voltage conditions
- Speed at 7.4V: 0.075 sec/60° – ultra-fast actuation for precision maneuvering
- Speed at 6.6V: 0.08 sec/60° – consistent responsiveness across voltage range
Motor and Signal Control
- Motor Type: Custom high-power brushless – ensures smooth, efficient operation with low power consumption
- Signal Compatibility: PWM and S.Bus2 – supports both traditional and digital control systems
- PC Connectivity: Compatible with CIU-2 / CIU-3 USB adapter – enables advanced programming and configuration
Construction and Materials

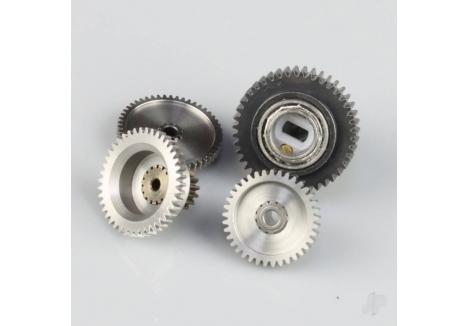

- Gear Type: Stainless steel final gear – built for durability under high-load conditions
- Bearings: Dual ball bearings – enhances mechanical efficiency and reduces wear
- Spline Count: 25T – compatible with Futaba-standard servo horns
- Case Material: Aluminium (upper, middle, bottom) – improves heat dissipation and structural rigidity
Voltage and Power Requirements
- Rated Voltage: DC 6.0V – 7.4V – optimized for high-voltage aircraft systems
- Operating Voltage: DC 4.8V – 8.4V – supports a broad range of regulated power sources
- Battery Compatibility: Dry batteries and BEC systems not supported – use regulated LiPo or dedicated power modules only
Application and Use Case
- Servo Type: Standard – ideal for giant scale aircraft requiring high-torque control
- Use Case: Elevator, rudder, flap, and aileron control – engineered for precision and power
- Recommended Aircraft: Large-scale planes and aerobatic giants with demanding control surfaces
- Upgrade Path: Suggested replacement for BLS172SV, BLS177SC, and AA700 servos
What’s in the Box
- 1 × Futaba HPS-AA702 Standard Brushless Servo
- Servo horns
- Mounting hardware
What You Require
- Compatible Futaba transmitter with S.Bus2 support
- Power source within 4.8V to 8.4V range
- CIU-2 or CIU-3 USB adapter for PC programming (sold separately)
Sold Separately
- Futaba transmitter with programmable servo settings
- CIU-2 / CIU-3 USB adapter
Warranty
- Warranty Coverage: Manufacturer warranty applies – covers eligible defects and workmanship issues
Product Description of Futaba FUT05102722-3 HPS-AA702 brushless servo with S.Bus2
The Futaba FUT05102722-3 HPS-AA702 brushless servo with S.Bus2 is a high-performance standard-size servo engineered for giant scale aircraft requiring extreme torque and precision control. Designed for all-purpose aviation use, this black servo features a custom high-power brushless motor, stainless steel final gear, and a full aluminium case for superior durability and thermal stability. With a torque rating of 41.0kgf.cm at 7.4V and a response time of 0.075 seconds per 60°, the Futaba FUT05102722-3 standard servo 41kg 0.075s delivers the speed and strength needed for demanding control surfaces such as elevators, rudders, and flaps in large aircraft builds. Its compatibility with both PWM and S.Bus2 systems ensures seamless integration into traditional and digital setups, while CIU-3 support enables advanced PC-based programming.
Key features of the Futaba FUT05102722-3 HPS-AA702 brushless servo
- High-power brushless motor – delivers efficient, low-friction performance with reduced power consumption
- Standard-size footprint – fits seamlessly into giant scale aircraft servo bays
- Extreme torque output – 41.0kgf.cm at 7.4V for confident control of large surfaces
- Fast response – 0.075 sec/60° at 7.4V for precise actuation under heavy load
- Stainless steel final gear – ensures long-term durability and resistance to wear
- Dual ball bearings – enhances mechanical efficiency and smooth motion
- 25T spline – compatible with Futaba-standard servo horns and linkages
- Aluminium case – improves heat dissipation and structural rigidity
Why is the Futaba FUT05102722-3 HV digital servo for giant scale aircraft ideal for large builds?
The Futaba FUT05102722-3 HV digital servo for giant scale aircraft is purpose-built for large airframes that demand high torque and responsive control. With a torque rating of 41.0kgf.cm and a speed of 0.075 seconds per 60°, this servo provides the authority and agility needed to manage oversized control surfaces. Its high-voltage compatibility ensures consistent output across a broad operating range, while the programmable interface allows users to fine-tune performance parameters. Whether you're flying aerobatic giants or scale aircraft, this servo offers the reliability and precision required for confident flight.
How does the Futaba HPS-AA702 servo with 25T spline and CIU-3 compatibility support advanced setups?
Advanced aircraft setups benefit from the configurability of the Futaba HPS-AA702 servo with 25T spline and CIU-3 compatibility. The 25T spline ensures secure linkage with standard Futaba horns, while CIU-3 support enables PC-based programming for detailed parameter adjustments. This allows users to customize servo behavior to match specific flight profiles, control surface loads, and transmitter settings. The result is a servo that not only performs reliably but also adapts to the unique demands of each aircraft configuration.
What makes the Futaba FUT05102722-3 with stainless steel gears and aluminium case durable under stress?
Durability is a hallmark of the Futaba FUT05102722-3 with stainless steel gears and aluminium case. The stainless steel final gear resists deformation and wear, even under continuous high-load conditions. The full aluminium housing provides excellent heat dissipation and structural integrity, protecting internal components from vibration and thermal stress. These materials work together to ensure long-term reliability, making the servo suitable for high-performance aircraft that operate in demanding environments.
Is the Futaba brushless servo for BLS172SV/177SC upgrade path compatible with legacy systems?
The Futaba brushless servo for BLS172SV/177SC upgrade path is designed to offer a seamless transition from previous-generation servos. With support for both PWM and S.Bus2 protocols, it integrates easily into legacy receiver systems while providing access to advanced digital features. Its performance profile exceeds that of its predecessors, delivering higher torque, faster response, and improved thermal management. This makes it a compelling upgrade for pilots looking to enhance control fidelity without overhauling their entire setup.
How does the Futaba FUT05102722-3 standard servo 41kg 0.075s improve flight precision?
Flight precision depends on responsive and consistent control, and the Futaba FUT05102722-3 standard servo 41kg 0.075s delivers both. Its brushless motor ensures smooth actuation with minimal latency, while the high torque rating provides the authority needed to maintain control during rapid transitions. The servo’s digital signal processing ensures accurate interpretation of input commands, reducing drift and improving overall flight stability. These attributes make it a top-tier choice for pilots who demand exacting performance from their control systems.
For aircraft builders seeking a high-torque, fast-response servo with advanced signal support and rugged construction, the affordable Futaba HPS-AA702 with 0.075s speed and 41kg torque offers unmatched value and reliability. Buy Futaba FUT05102722-3 servo with mounting hardware and horns today.
Technical Specifications of Futaba FUT05102722-3 HPS-AA702 brushless servo with S.Bus2
Brand, Model and Product Type
- Brand: Futaba
- Model: FUT05102722-3
- Product Type: Futaba FUT05102722-3 HPS-AA702 brushless servo with S.Bus2, Futaba FUT05102722-3 standard servo 41kg 0.075s, Futaba FUT05102722-3 HV digital servo for giant scale aircraft, Futaba FUT05102722-3 with stainless steel gears and aluminium case, Futaba HPS-AA702 servo with 25T spline and CIU-3 compatibility
- Product Color: Black
Dimensions
- Product Length: 4.1 cm – standard footprint for giant scale aircraft servo bays
- Product Width: 2.1 cm – compact enough for multi-servo installations
- Product Height: 3.9 cm – optimized for vertical mounting in high-load applications
- Product Weight: 80 g – robust build for structural stability and vibration resistance
- Shipping Weight: 0.14 kg – includes packaging and mounting accessories
Performance Specifications
- Torque at 7.4V: 41.0 kgf.cm – delivers extreme control authority for large control surfaces
- Torque at 6.6V: 37.0 kgf.cm – maintains high output under moderate voltage conditions
- Speed at 7.4V: 0.075 sec/60° – ultra-fast actuation for precision maneuvering
- Speed at 6.6V: 0.08 sec/60° – consistent responsiveness across voltage range
Motor and Signal Control
- Motor Type: Custom high-power brushless – ensures smooth, efficient operation with low power consumption
- Signal Compatibility: PWM and S.Bus2 – supports both traditional and digital control systems
- PC Connectivity: Compatible with CIU-2 / CIU-3 USB adapter – enables advanced programming and configuration
Construction and Materials
- Gear Type: Stainless steel final gear – built for durability under high-load conditions
- Bearings: Dual ball bearings – enhances mechanical efficiency and reduces wear
- Spline Count: 25T – compatible with Futaba-standard servo horns
- Case Material: Aluminium (upper, middle, bottom) – improves heat dissipation and structural rigidity
Voltage and Power Requirements
- Rated Voltage: DC 6.0V – 7.4V – optimized for high-voltage aircraft systems
- Operating Voltage: DC 4.8V – 8.4V – supports a broad range of regulated power sources
- Battery Compatibility: Dry batteries and BEC systems not supported – use regulated LiPo or dedicated power modules only
Application and Use Case
- Servo Type: Standard – ideal for giant scale aircraft requiring high-torque control
- Use Case: Elevator, rudder, flap, and aileron control – engineered for precision and power
- Recommended Aircraft: Large-scale planes and aerobatic giants with demanding control surfaces
- Upgrade Path: Suggested replacement for BLS172SV, BLS177SC, and AA700 servos
What’s in the Box
- 1 × Futaba HPS-AA702 Standard Brushless Servo
- Servo horns
- Mounting hardware
What You Require
- Compatible Futaba transmitter with S.Bus2 support
- Power source within 4.8V to 8.4V range
- CIU-2 or CIU-3 USB adapter for PC programming (sold separately)
Sold Separately
- Futaba transmitter with programmable servo settings
- CIU-2 / CIU-3 USB adapter
