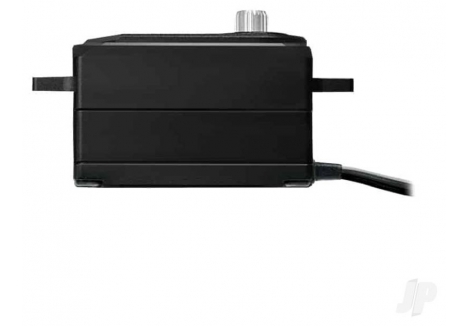

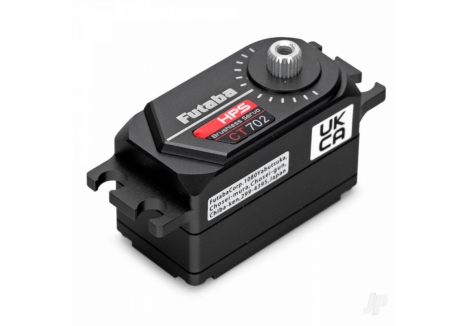

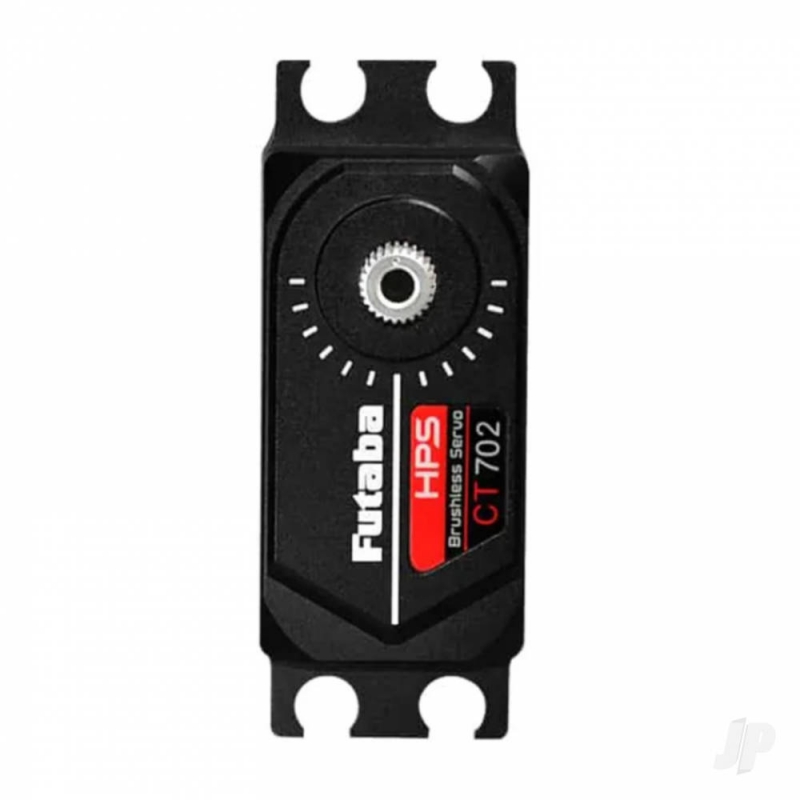

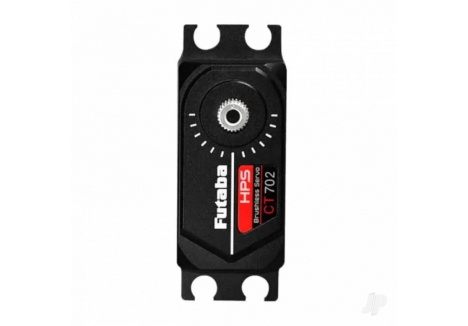

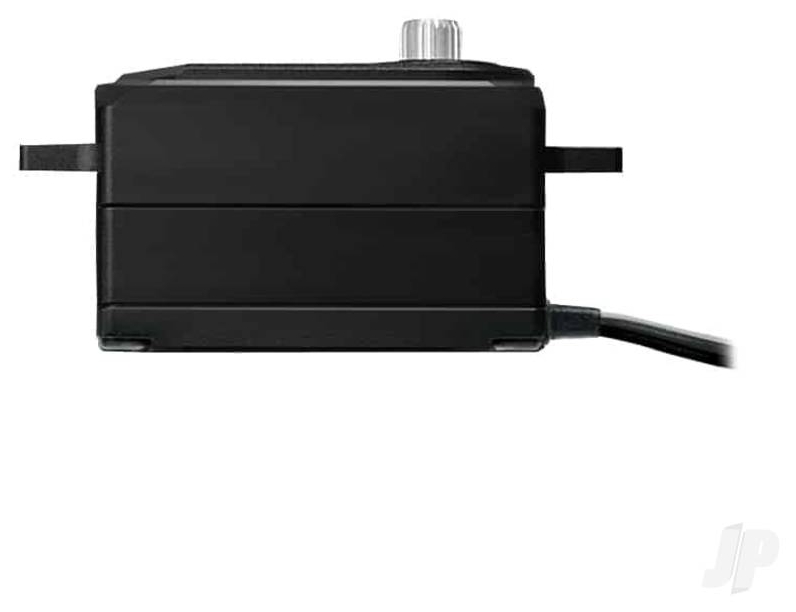

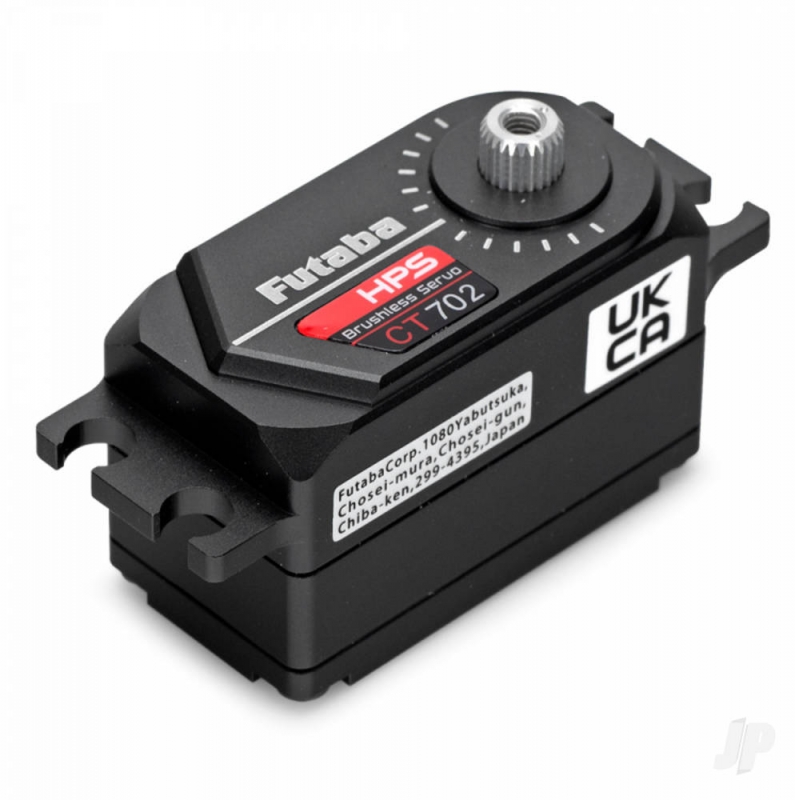

Futaba HPS-CT702 Low Profile Brushless Servo PWM/S.BUS 30.0kg 0.07s 4.8V - 7.4V FUT05102726-3

Model No: FUT05102726-3


Dispatched Within 3 Working Days

£229.99

£23.00

£206.99

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

FEATURES

  • S,Bus
  • S.Bus2
  • SR Mode (Super Response)
  • Brushless
  • HV
  • Metal Case
  • Size: 40.5×21.0×26.2mm
  • Weight: 53g
  • Torque: 30.0kgf cm (7.4V) / 23.0kgf cm (6.0V)
  • Speed: 0.07sec/60° (7.4V) / 0.08sec/60° (6.0V)

CONTENTS

  • 1x HPS-CT702 Low Profile Brushless Servo
  • Horns
  • Mounting Hardware

DETAILS

HPS-CT702 S.Bus2 High-Voltage Low-Profile Surface Servo

High-Performance Servo with Brushless Motor

Speed:
0.07 sec/60 (7.4V)
0.08 sec/60 (6.0V)

Torque:
30.0kgfcm (7.4V)
23.0kgfcm (6.0V)

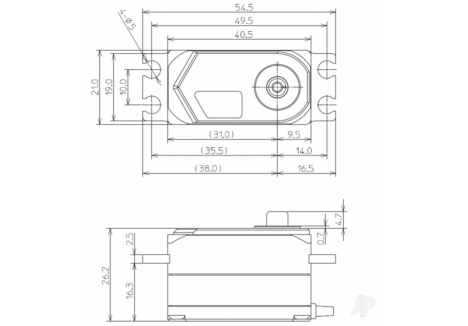

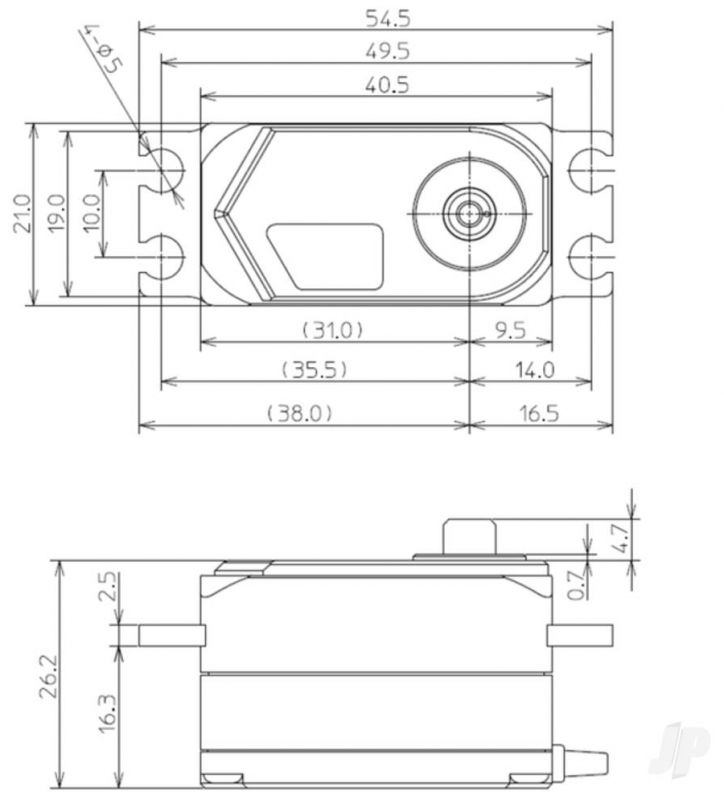

Dimensions:
40.5 x 21.0 x 26.2 mm

Weight:
53 g
1.86 oz

Rated Voltage:
DC 6.0V - 7.4V

Operating Voltage:
DC 4.8 - 8.4V

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE

Brand, Model and Product Type

  • Brand: Futaba
  • Model: FUT05102726-3
  • Product Type: Futaba FUT05102726-3 HPS-CT702 brushless servo with S.Bus2, Futaba FUT05102726-3 low profile servo 30kg 0.07s, Futaba FUT05102726-3 programmable HV servo for drift cars, Futaba FUT05102726-3 with metal gears and aluminium case, Futaba HPS-CT702 servo with SR/UR mode and CIU-3 compatibility
  • Product Colour: Black

Dimensions

  • Product Length: 4.05 cm – compact enough for tight 1/10 scale RC chassis layouts
  • Product Width: 2.10 cm – streamlined for low profile servo bays
  • Product Height: 2.62 cm – optimised for flush mounting in competitive drift and touring setups
  • Product Weight: 53 g – lightweight construction for responsive handling and reduced load
  • Shipping Weight: 0.10 kg – includes packaging and accessories for secure transport

Performance and Power

  • Torque Output at 7.4V: 30.0 kgf.cm – delivers high-force steering control for aggressive manoeuvres
  • Torque Output at 6.0V: 23.0 kgf.cm – maintains reliable performance under moderate voltage conditions
  • Speed at 7.4V: 0.07 sec/60° – enables rapid actuation for precision cornering
  • Speed at 6.0V: 0.08 sec/60° – consistent responsiveness across voltage ranges
  • Rated Voltage: DC 6.0V – 7.4V – supports high-voltage RC systems for stable output
  • Operating Voltage Range: DC 4.8V – 8.4V – accommodates a wide spectrum of regulated power sources

Construction and Materials

  • Case Material: Aluminium – enhances structural rigidity and dissipates heat during extended use
  • Gear Material: Metal (1st, 2nd, 3rd, final) – ensures long-term durability under high-load conditions
  • Cable Colour: Black-grey – matches modern RC chassis aesthetics

Signal Compatibility and Control Modes

  • Signal Support: PWM and S.Bus2 – integrates with both conventional and digital control systems
  • SR Mode Compatibility: Supported via Futaba T7PX and 7PXR transmitters – enables super responsive signal processing
  • UR Mode Compatibility: Supported via Futaba T10PX transmitter – enhances control resolution for advanced setups
  • Programmability: Compatible with CIU-2 / CIU-3 USB adapter – allows PC-based configuration of servo parameters

Application and Use Case

  • Servo Type: Low Profile – ideal for 1/10 scale RC drift and touring cars
  • Recommended Vehicle Scale: Only for RC cars smaller than 1/5 scale – optimised for compact platforms

What’s in the Box

  • 1 × Futaba HPS-CT702 Low Profile Brushless Servo
  • Servo horns
  • Mounting hardware

What You Require

  • Compatible Futaba transmitter with SR/UR mode and S.Bus2 support
  • Power source within 4.8V to 8.4V range
  • CIU-2 or CIU-3 USB adapter for PC programming (sold separately)

Sold Separately

  • CIU-2 / CIU-3 USB adapter – required for advanced PC-based servo programming
  • Futaba transmitter with programmable servo settings and SR/UR mode support

Product Description of Futaba FUT05102726-3 HPS-CT702 brushless servo with S.Bus2

The Futaba FUT05102726-3 HPS-CT702 brushless servo with S.Bus2 is engineered for precision control in competitive 1/10 scale RC drift and touring cars. Designed with a low profile architecture, this high-performance servo delivers a torque output of 30.0kgf.cm and a rapid response time of 0.07 seconds per 60° at 7.4V, making it ideal for high-speed manoeuvres and tight cornering. The robust aluminium case in sleek black not only enhances durability but also improves heat dissipation during extended use. With support for SR and UR modes and full compatibility with S.Bus2 systems, the Futaba FUT05102726-3 low profile servo 30kg 0.07s offers advanced signal processing and programmable flexibility for serious RC enthusiasts. Every component, from the metal gear train to the brushless motor, is optimised for performance, making this servo a standout choice for demanding surface applications.

Key features of the Futaba FUT05102726-3 HPS-CT702 brushless servo

  • Low profile design – fits seamlessly into compact 1/10 scale RC chassis without compromising steering geometry
  • High torque output – delivers 30.0kgf.cm at 7.4V for confident control under competitive load conditions
  • Fast response time – actuates in just 0.07 seconds per 60° for sharp, accurate manoeuvres
  • Aluminium case – enhances structural rigidity and thermal management during prolonged operation
  • SR and UR mode support – enables ultra-responsive signal processing with compatible Futaba transmitters
  • Programmable via CIU-3 – allows detailed configuration of speed curves, endpoints, and control behaviour
  • Metal gear train – ensures long-term durability and resistance to wear under aggressive driving

What makes the Futaba FUT05102726-3 low profile servo 30kg 0.07s ideal for competitive RC driving?

Precision and speed are critical in competitive RC environments, and the Futaba FUT05102726-3 low profile servo 30kg 0.07s is built to deliver both. Its compact dimensions—just 26.2mm in height—allow for seamless integration into tight chassis layouts, preserving optimal steering geometry. The servo’s brushless motor is tuned for high-speed actuation, enabling drivers to execute rapid directional changes with minimal delay. Whether navigating technical drift courses or high-speed touring tracks, the servo’s 30.0kgf.cm torque output ensures consistent control authority, even under extreme load conditions. This combination of compact design and powerful performance makes the servo a strategic asset for competitive setups.

How does the aluminium case improve performance in the Futaba FUT05102726-3 with metal gears and aluminium case?

The Futaba FUT05102726-3 with metal gears and aluminium case is designed to withstand the rigours of high-intensity RC racing. The aluminium housing provides enhanced structural rigidity, reducing flex and vibration during operation. This stability translates into smoother servo movement and more accurate control inputs. Additionally, aluminium’s thermal conductivity helps dissipate heat generated during prolonged use, protecting internal components and maintaining consistent performance. Paired with a full metal gear train, the servo offers exceptional durability, ensuring reliable operation across multiple race sessions without degradation in responsiveness or torque delivery.

Can the Futaba HPS-CT702 servo with SR/UR mode and CIU-3 compatibility be customised for different driving styles?

Absolutely. The Futaba HPS-CT702 servo with SR/UR mode and CIU-3 compatibility is built for adaptability. SR mode, supported by Futaba’s T7PX and 7PXR transmitters, and UR mode, compatible with the T10PX, enable ultra-fast signal processing, reducing latency and enhancing control resolution. These modes are particularly beneficial in drift and touring applications where split-second adjustments can determine race outcomes. Through CIU-3 connectivity, users can access PC-based programming to fine-tune servo parameters such as speed curves, endpoints, and response behaviour. This level of customisation allows drivers to align servo performance with their unique driving style and track conditions, offering a competitive edge in dynamic environments.

Why is the Futaba low profile servo for 1/10 scale on-road and off-road RC suitable for diverse terrain?

The Futaba low profile servo for 1/10 scale on-road and off-road RC is engineered for versatility. Its compact form factor ensures compatibility with a wide range of chassis designs, while the robust torque output supports both high-speed on-road racing and rugged off-road navigation. The servo’s metal gear train provides the resilience needed to handle uneven terrain and sudden impacts, while the aluminium case protects against environmental stressors. Whether tackling asphalt circuits or dirt tracks, the servo maintains consistent performance, making it a reliable choice for drivers who compete across multiple disciplines.

Is the Futaba FUT05102726-3 programmable HV servo for drift cars optimised for precision steering?

Yes, the Futaba FUT05102726-3 programmable HV servo for drift cars is specifically designed to enhance steering precision. Drift racing demands exact control over steering angles and timing, and this servo’s rapid response time of 0.07 seconds per 60° ensures that inputs are executed with minimal delay. The high-voltage brushless motor maintains consistent torque delivery, allowing for smooth transitions and controlled slides. Programmability via CIU-3 further enhances precision, enabling drivers to adjust servo behaviour to match specific drift setups. This level of control is essential for mastering complex drift techniques and maintaining competitive consistency.

How does the metal gear train in the Futaba FUT05102726-3 HPS-CT702 brushless servo support long-term reliability?

Durability is a cornerstone of the Futaba FUT05102726-3 HPS-CT702 brushless servo, and its metal gear train plays a pivotal role. Comprising all key gear stages—first, second, third, and final—the metal construction resists wear and deformation under high torque loads. This ensures that the servo maintains its performance characteristics over time, even in demanding racing conditions. The gear train’s precision machining contributes to smooth motion and reduced backlash, enhancing control accuracy. For drivers who participate in frequent competitions or extended practice sessions, this reliability translates into fewer maintenance intervals and sustained performance.

What makes the Futaba FUT05102726-3 HPS-CT702 brushless servo a strategic upgrade for serious RC racers?

The Futaba FUT05102726-3 HPS-CT702 brushless servo represents a strategic upgrade for racers seeking enhanced control, speed, and durability. Its combination of high torque, fast response, and advanced signal compatibility positions it as a top-tier component for competitive RC setups. The aluminium case and metal gear train ensure mechanical resilience, while SR and UR mode support deliver superior signal fidelity. Programmability via CIU-3 allows for tailored performance, giving drivers the flexibility to adapt to different tracks and driving styles. These attributes make the servo a valuable investment for those aiming to elevate their racing capabilities.

For RC enthusiasts looking to enhance their vehicle’s responsiveness and durability, affordable Futaba HPS-CT702 with 0.07s speed and 30kg torque offers exceptional value and performance. Buy Futaba FUT05102726-3 servo with horns and mounting hardware today.

Technical Specifications of Futaba FUT05102726-3 HPS-CT702 brushless servo with S.Bus2

Brand, Model and Product Type

  • Brand: Futaba
  • Model: FUT05102726-3
  • Product Type: Futaba FUT05102726-3 HPS-CT702 brushless servo with S.Bus2, Futaba FUT05102726-3 low profile servo 30kg 0.07s, Futaba FUT05102726-3 programmable HV servo for drift cars, Futaba FUT05102726-3 with metal gears and aluminium case, Futaba HPS-CT702 servo with SR/UR mode and CIU-3 compatibility
  • Product Colour: Black

Dimensions

  • Product Length: 4.05 cm – compact enough for tight 1/10 scale RC chassis layouts
  • Product Width: 2.10 cm – streamlined for low profile servo bays
  • Product Height: 2.62 cm – optimised for flush mounting in competitive drift and touring setups
  • Product Weight: 53 g – lightweight construction for responsive handling and reduced load
  • Shipping Weight: 0.10 kg – includes packaging and accessories for secure transport

Performance and Power

  • Torque Output at 7.4V: 30.0 kgf.cm – delivers high-force steering control for aggressive manoeuvres
  • Torque Output at 6.0V: 23.0 kgf.cm – maintains reliable performance under moderate voltage conditions
  • Speed at 7.4V: 0.07 sec/60° – enables rapid actuation for precision cornering
  • Speed at 6.0V: 0.08 sec/60° – consistent responsiveness across voltage ranges
  • Rated Voltage: DC 6.0V – 7.4V – supports high-voltage RC systems for stable output
  • Operating Voltage Range: DC 4.8V – 8.4V – accommodates a wide spectrum of regulated power sources

Construction and Materials

  • Case Material: Aluminium – enhances structural rigidity and dissipates heat during extended use
  • Gear Material: Metal (1st, 2nd, 3rd, final) – ensures long-term durability under high-load conditions
  • Cable Colour: Black-grey – matches modern RC chassis aesthetics

Signal Compatibility and Control Modes

  • Signal Support: PWM and S.Bus2 – integrates with both conventional and digital control systems
  • SR Mode Compatibility: Supported via Futaba T7PX and 7PXR transmitters – enables super responsive signal processing
  • UR Mode Compatibility: Supported via Futaba T10PX transmitter – enhances control resolution for advanced setups
  • Programmability: Compatible with CIU-2 / CIU-3 USB adapter – allows PC-based configuration of servo parameters

Application and Use Case

  • Servo Type: Low Profile – ideal for 1/10 scale RC drift and touring cars
  • Recommended Vehicle Scale: Only for RC cars smaller than 1/5 scale – optimised for compact platforms

What’s in the Box

  • 1 × Futaba HPS-CT702 Low Profile Brushless Servo
  • Servo horns
  • Mounting hardware

What You Require

  • Compatible Futaba transmitter with SR/UR mode and S.Bus2 support
  • Power source within 4.8V to 8.4V range
  • CIU-2 or CIU-3 USB adapter for PC programming (sold separately)

Sold Separately

  • CIU-2 / CIU-3 USB adapter – required for advanced PC-based servo programming
  • Futaba transmitter with programmable servo settings and SR/UR mode support
