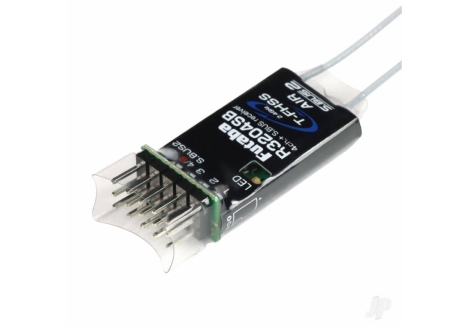

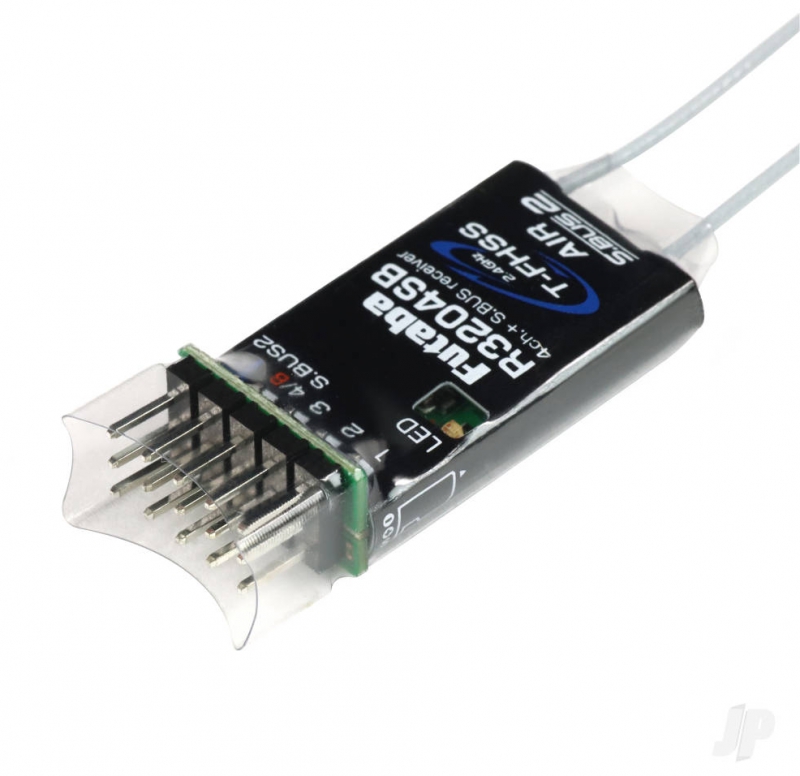

R3204SB T-FHSS Air Telemetry System 4-Channel + S.Bus Receiver
For Aircraft Models
T-FHSS Air (Link ID supported)
1S LiPo capable
Size:
18 x 41.4 x 9.9 mm
0.71 x 1.63 x 0.39 in
Weight:
4.8 g
0.17 oz
Operating Voltage:
DC 3.7 ~ 7.4V

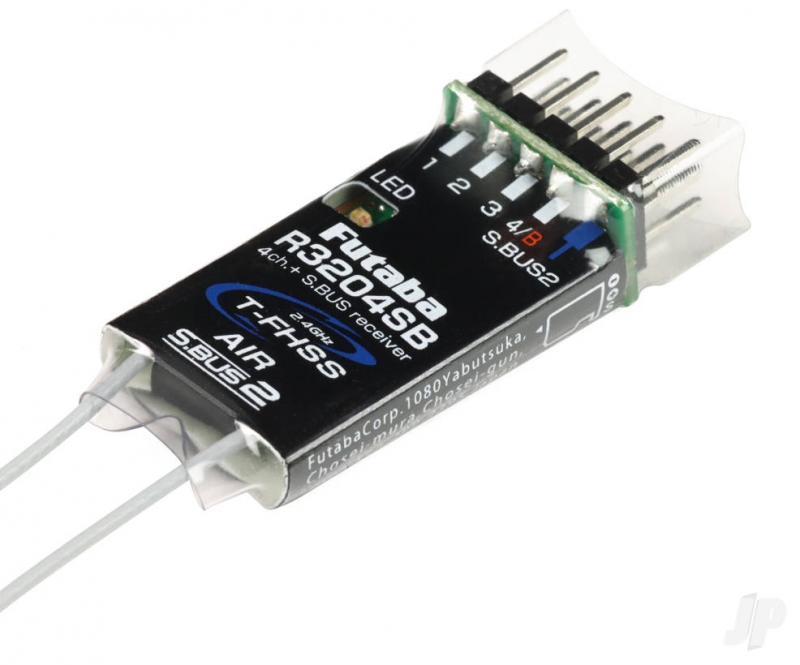

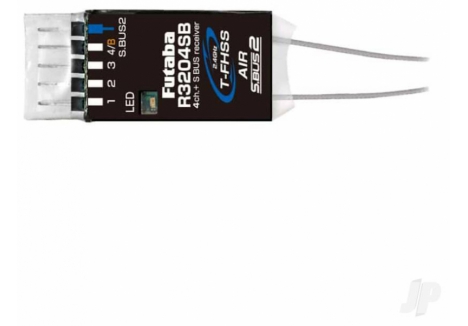

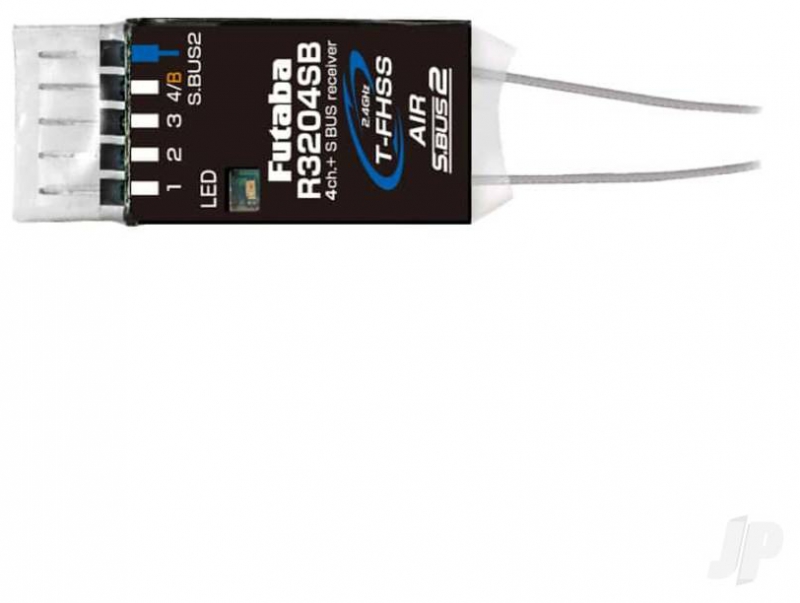

Futaba R3204SB 4-Channel Air Receiver (18-Channel S.BUS/S.BUS2) FUT05102738-3 provides compact, lightweight connectivity for PWM and serial S.BUS control using the T-FHSS [Air] protocol.
Measuring just 41.4 × 18 × 9.9 mm and weighing only 4.8 g, this receiver delivers full telemetry, dual antenna diversity, and high-voltage support up to 8.4 V—all in an ultra-slim form factor ideal for tight installations.
FAQs
- What protocols does it support? T-FHSS [Air] with PWM, S.BUS, and S.BUS2 command options.
- How many channels does it provide? 4 PWM outputs or up to 18 via S.BUS/S.BUS2.
- Is it high-voltage capable? Yes—up to 8.4 V, suitable for 1S LiPo-powered setups.

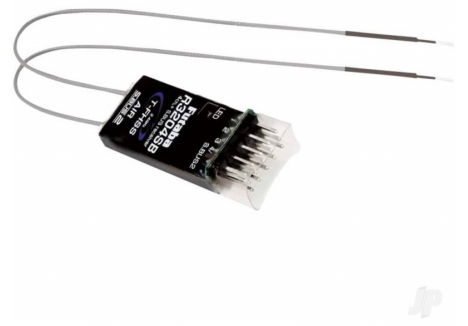

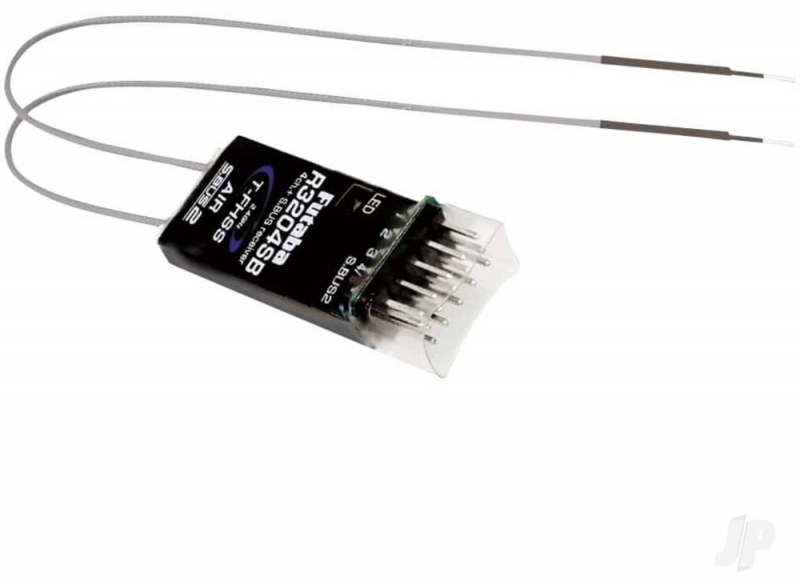

- Does it offer telemetry and signal diversity? Yes—provides telemetry and dual-antenna diversity.
- What are its size and weight? Measures 41.4 × 18 × 9.9 mm and weighs 4.8 g.
- Part Number: FUT05102738-3
- Product Name: R3204SB 4-Channel T-FHSS Air Receiver
- Channels: 4 PWM or up to 18 via S.BUS/S.BUS2
- Radio Protocol: T-FHSS [Air]
- Command Protocols: PWM, S.BUS, S.BUS2
- Voltage Range: 3.7 – 8.4 V (1S LiPo compatible)
- Telemetry: Included via S.BUS2
- Antenna: Dual-antenna diversity
- Dimensions: 41.4 × 18 × 9.9 mm
- Weight: 4.8 g
- Applications: Lightweight, slim-profile air receiver with full telemetry support
