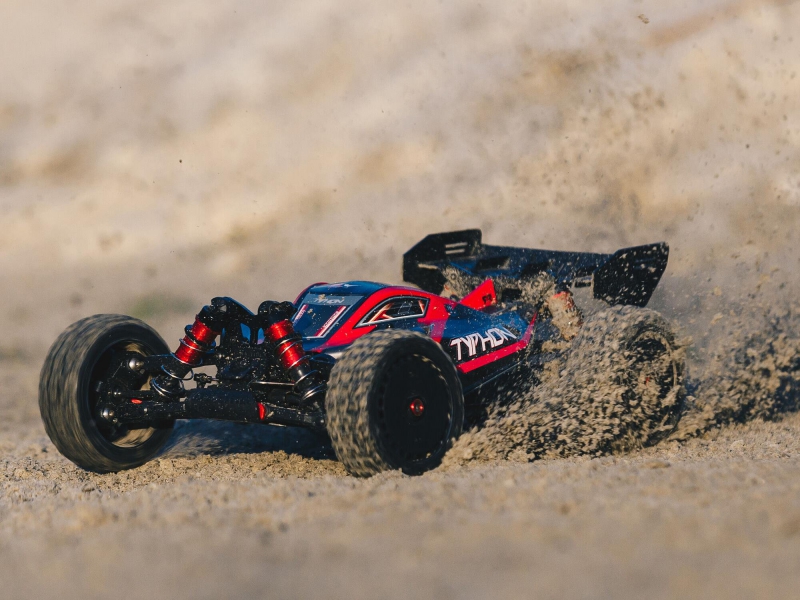

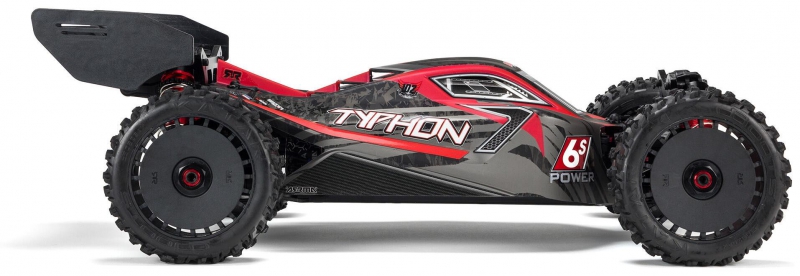

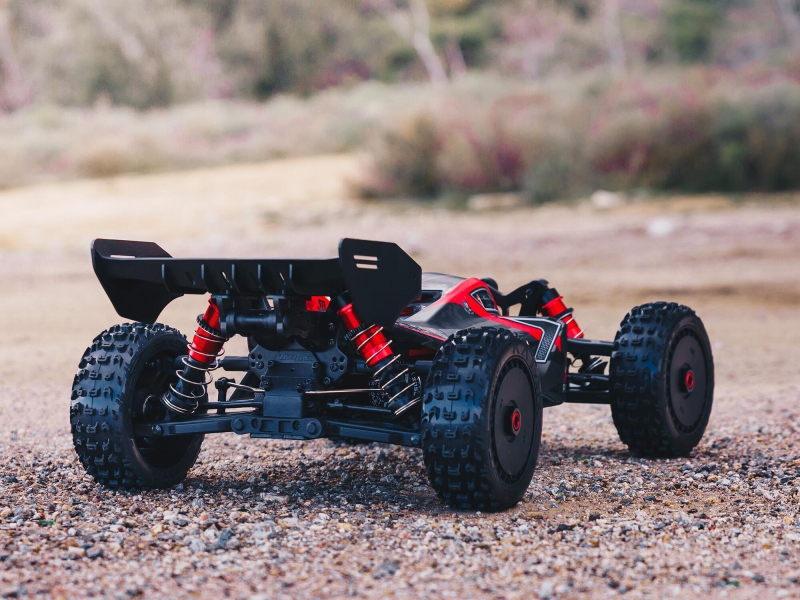

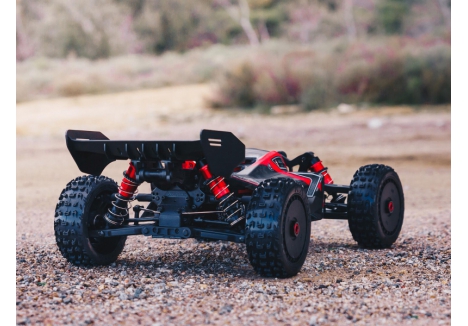

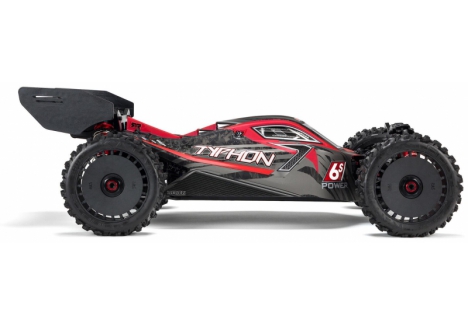

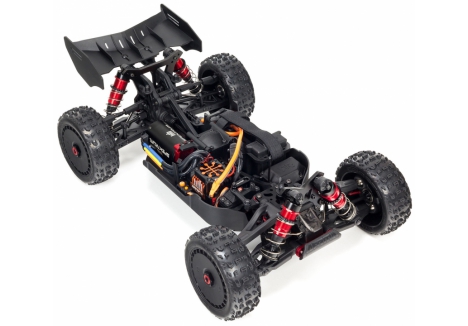

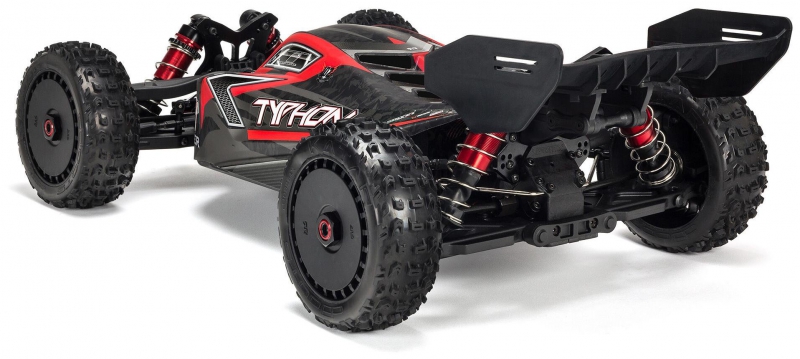

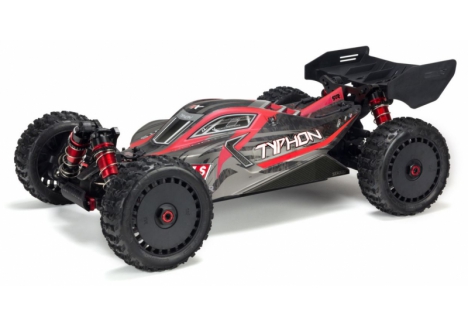

ARRMA 1/8 TYPHON 6S 4X4 BLX Buggy RTR C-ARA8606V5

Model No: C-ARA8606V5


Dispatched Within 3 Working Days

£599.99

£60.99

£539.00

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

Product Details

Designed fast and designed tough, the ARRMA TYPHON 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills - with a Spektrum SLT3 radio, dual protocol receiver, Smart ESC, stronger servo and more.

Key Features

  • Updated with Spektrum components and Smart compatible
  • 70+ MPH (113km/h) speeds achievable in optimum conditions using a 6S LiPo battery and optional pinion gear, not included

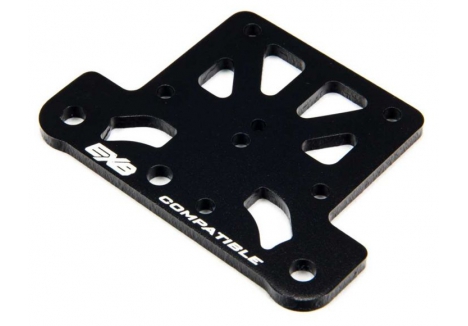

  • EXB compatible front brace
  • Large volume waterproof receiver box
  • Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
In The Box
  • ARRMA TYPHON 6S BLX 1/8 Speed Buggy 4WD RTR
  • Spektrum Firma 150A Smart 4S/6S ESC (installed)
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • Spektrum S652 Metal-Geared Digital Servo (installed)
  • Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
  • Spektrum SLT3 2.4GHz 3-Channel Radio
  • Product Manual
Needed to Complete
  • 4S or 6S LiPo Battery
  • LiPo Compatible Charger

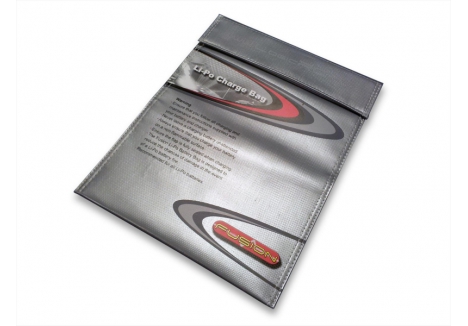

  • LiPo Charging Bag
  • (4) AA Batteries

Introduction

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum 3-channel radio system and Firma brushless electronics, it's all set for fast action on all terrain, in all conditions.

Features

  • Ready-to-run
  • Spektrum SLT3 2.4GHz 3-Channel Radio
  • Spektrum SR315 Dual Protocol 3-Channel Receiver
  • Spektrum S652 Digital Servo
  • Spektrum Firma 150A Smart ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • EXB compatible front brace
  • Stronger chassis design
  • Large volume waterproof* receiver box
  • +1mm wheel hexes
  • Anodised aluminium chassis
  • Strong composite chassis side pods
  • Strong front and rear composite chassis brace

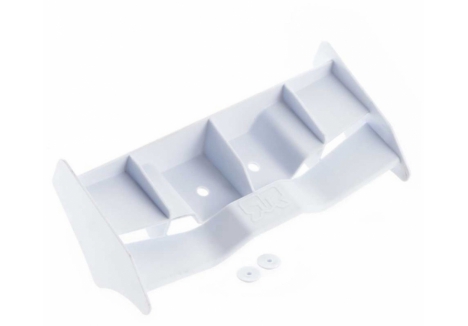

  • High-speed low downforce wing and strong mounts

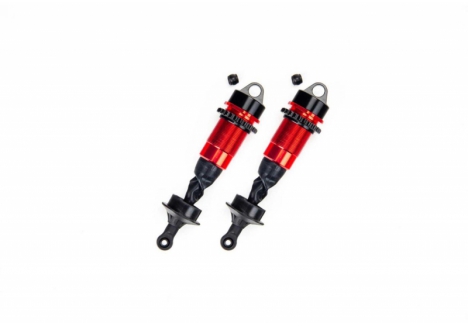

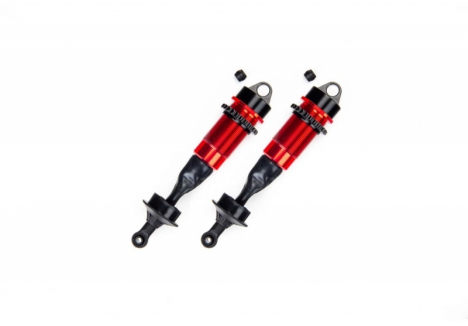

  • Oil-filled adjustable shocks
  • Aluminium shock caps and protectors
  • Black-anodized aluminium front and rear shock towers
  • Durable steel driveshafts throughout
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Never-loose red aluminium servo saver
  • Never-pop ball ends
  • 4-Bolt centre diff removal
  • Easy-access sliding motor mount for quick motor removal
  • Super-durable wheel hubs for increased strength
  • Low drag wheels
  • Multi-terrain dBoots® KATAR tires
  • Forged composite style matte paint scheme
  • IC5® connectors (EC5 compatible)
  • 2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual



Overview

ARRMA® engineers have updated the TYPHON 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminium and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic® SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR® protocols, you can easily upgrade to a Spektrum DSMR® transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

The TYPHON 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminium towers and include aluminium shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminium chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminium steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

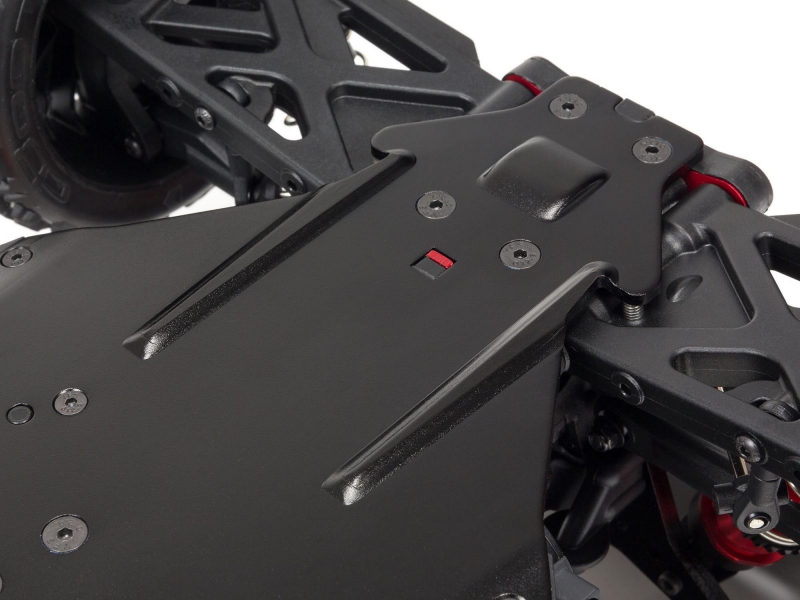

UPDATED CHASSIS DESIGN

UPDATED CHASSIS DESIGN

Wider rear section and 3D form introduced in key areas to greatly improve strength.



SAFE-D FIRST

SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

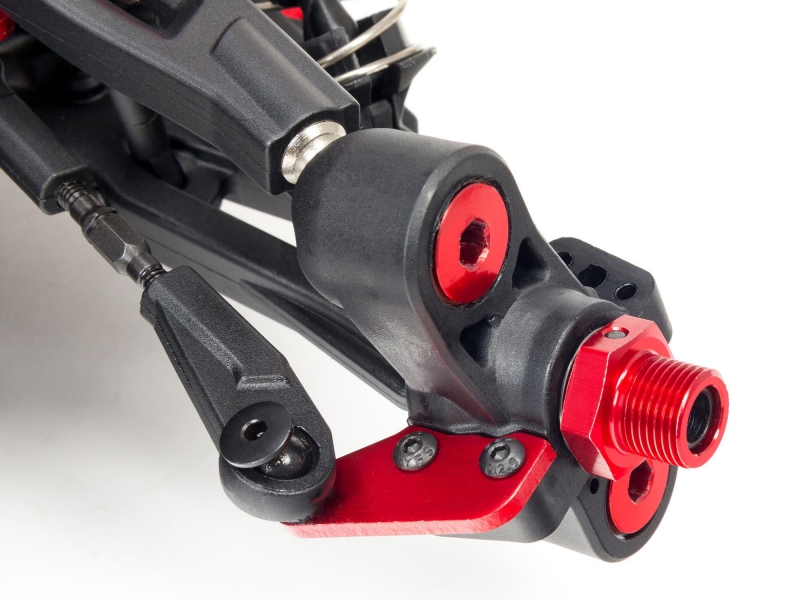

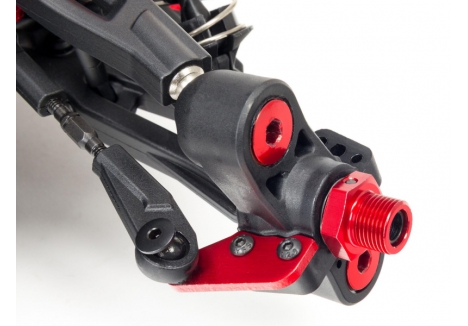

FRONT PIVOT BALL SUSPENSION

FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds



QUICK MAINTENANCE

QUICK MAINTENANCE

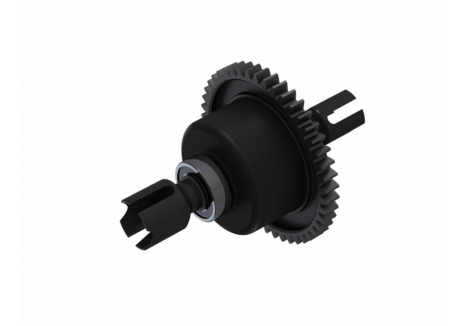

4 bolt center diff removal for easy access



SPEKTRUM<sup>®</sup> SMART TECHNOLOGY INCLUDED

SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA 150A SMART Brushless ESC and FIRMA 4074 2050Kv Brushless Motor

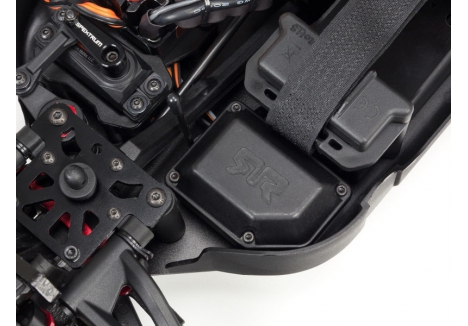

GO LARGE

GO LARGE

Large volume waterproof receiver box

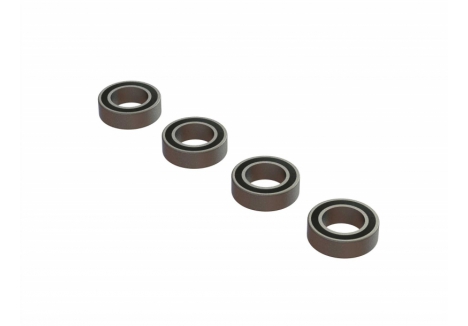

RUBBER SHIELDED BEARINGS

RUBBER SHIELDED BEARINGS

Longer life, less maintenance

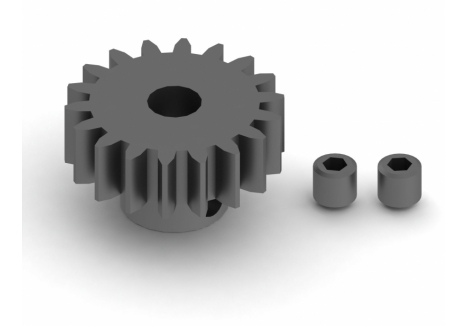

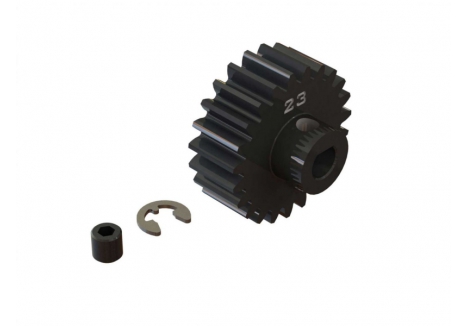

OPTIONAL SPEED PINION INCLUDED

OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

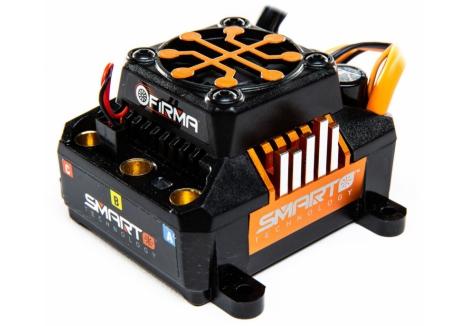

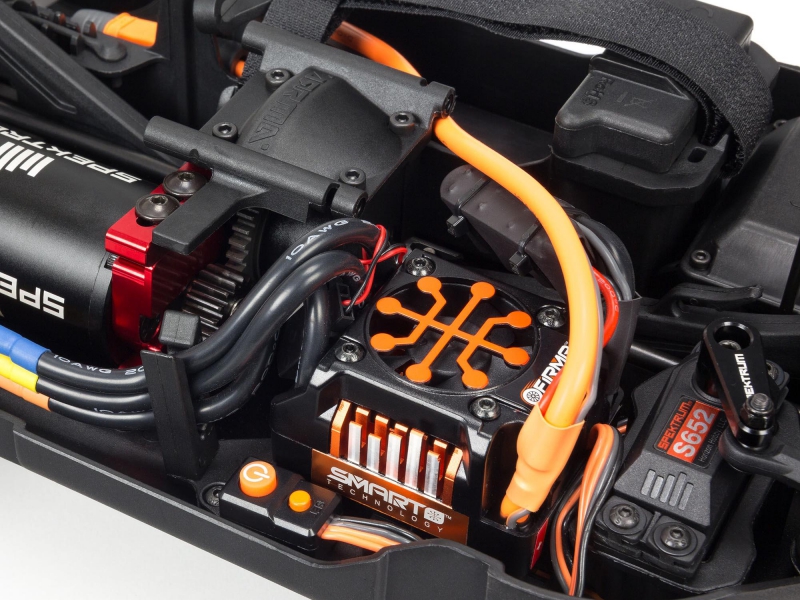

FIRMA 150A SMART Brushless ESC

FIRMA 150A SMART Brushless ESC

  • Waterproof* and dustproof design
  • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
  • Spektrum® SMART Technology
  • Fitted with reliable IC5® connectors (EC5 compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual

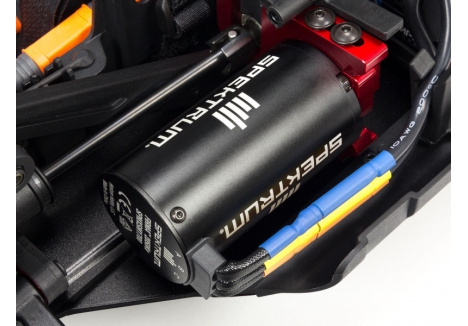

FIRMA 4074 2050Kv Brushless Motor

FIRMA 4074 2050Kv Brushless Motor

  • 2050Kv 4074 size 6S brushless motor
  • Beautifully etched aluminium can
  • 4-pole construction for smooth and consistent power
  • 4mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminium motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

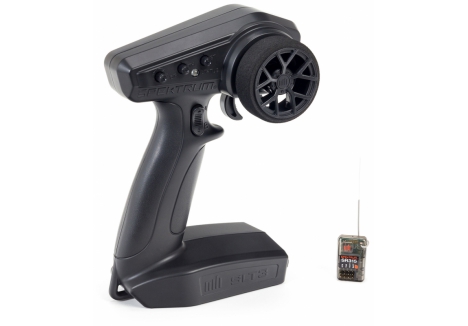

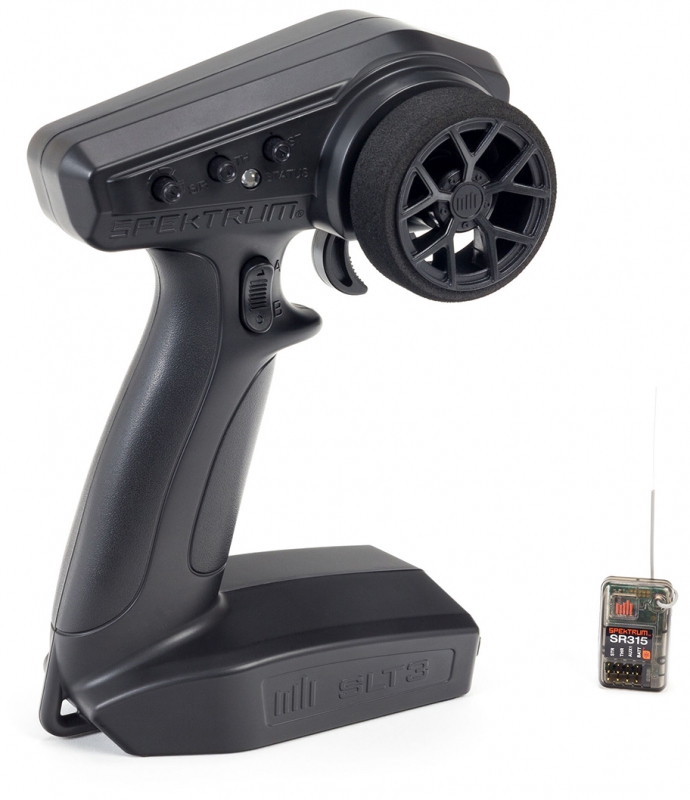

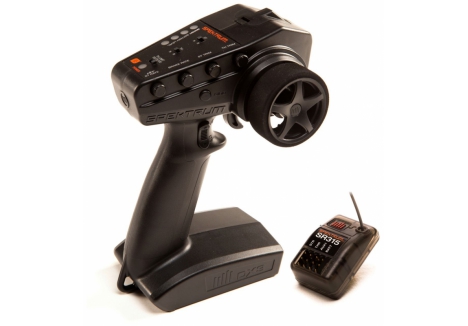

SPEKTRUM SLT3 RADIO

SPEKTRUM® SLT3® RADIO

  • Superb SLT response rate
  • 50% and 75% throttle limited switch - great for beginners
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • Foam steering wheel grip
  • Compatible with Tactic Receivers

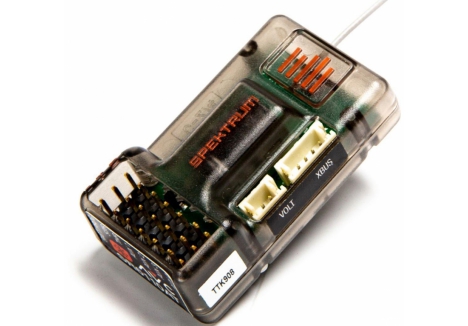

SPEKTRUM SR315 RECEIVER

SPEKTRUM® SR315 RECEIVER

  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
  • Fast reponse rate and outstanding range
  • No tool binding and protocol switching
  • SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
  • 3-Channels



SPEKTRUM SPMS652 DIGITAL SERVO

SPEKTRUM® SPMS652 DIGITAL SERVO

  • All Steel Gears
  • Waterproof*
  • 19.08kg-cm/265oz-in Torque @7.4V
  • 32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards, please refer to the product instruction manual

Brand, Model and Product Type

  • Brand: ARRMA
  • Model: C-ARA8606V5
  • Color: Black – matte forged composite finish with red detailing
  • Product Type: ARRMA C-ARA8606V5 brushless speed buggy, ARRMA C-ARA8606V5 1/8 scale RC basher, ARRMA C-ARA8606V5 4WD Smart buggy, ARRMA C-ARA8606V5 with 2050Kv motor and 150A Smart ESC, ARRMA RC car with S652 servo and dBoots KATAR tyres

Dimensions

  • Product Length: 51.0 cm – extended chassis for high-speed stability
  • Product Width: 31.0 cm – wide track improves grip and rollover resistance
  • Product Height: 19.0 cm – aerodynamic profile supports downforce and control
  • Wheelbase: 32.8 cm – balanced geometry for responsive handling
  • Ground Clearance: 2.7 cm – suitable for off-road terrain and obstacle clearance
  • Product Weight: 3.42 kg – reinforced aluminium and composite structure for durability
  • Max Battery Dimensions: 6S soft pack only – compatible with EC5 or IC5 connectors

Power System and Electronics

  • Motor: Spektrum Firma 4074 2050Kv brushless – 4-pole construction with 5 mm shaft and gold bullet connectors
  • ESC: Spektrum Firma 150A Smart ESC – waterproof, programmable, and telemetry-enabled
  • Power Type: Electric – 6S LiPo compatible for maximum output
  • Connector Type: IC5 – EC5 compatible for secure power delivery
  • Drive Modes: Forward / Brake / Reverse – user programmable via ESC settings
  • Radio System: Spektrum SLT3 2.4GHz 3-channel – ergonomic design with throttle limit switch
  • Receiver: Spektrum SR315 – dual protocol DSMR/SLT with Smart telemetry support
  • Servo: Spektrum S652 – waterproof, metal-geared, 19.08 kg-cm torque @ 7.4V

Drivetrain and Transmission

  • Drive Type: 4WD – shaft-driven system for consistent traction and acceleration
  • Differentials: Three gear-type – all-metal internals for durability under load
  • Gear Pitch: 1.0 MOD – Mod 1 gearing for torque transfer and reliability
  • Internal Gear Ratio: 3.3 – tuned for acceleration and control
  • Final Drive Ratio: 10.31 – supports high-speed output with stability
  • Pinion Gear: 16T – paired with 50T spur gear for balanced gearing
  • Spur Gear: 50T – steel construction for long-term durability
  • Motor Mount: Sliding – quick access for maintenance and gear changes

Suspension and Handling

  • Suspension Type: Independent – front pivot ball design for precise handling
  • Shock Type: Oil-filled adjustable – aluminium bodies with protectors and anodized towers
  • Front Shock Spring Rate: 75.5 gf/mm – tuned for rebound and terrain absorption
  • Rear Shock Spring Rate: 56.6 gf/mm – supports stability and jump recovery
  • Shock Towers: Black-anodized aluminium – rigid mounting for consistent damping
  • Ball Ends: Never-pop design – prevents detachment during high-impact use

Tyres and Wheels

  • Tire Type: Multi-surface – aggressive tread for dirt, grass, and asphalt
  • Tire Tread: dBoots KATAR B – mounted on low-drag buggy wheels
  • Wheel Type: 1/8 scale buggy – forged composite style with matte finish
  • Wheel Width: 4.4 cm – supports traction and stability
  • Wheel Hex Size: 17 mm – compatible with standard 1/8 scale buggy hubs

Chassis and Body

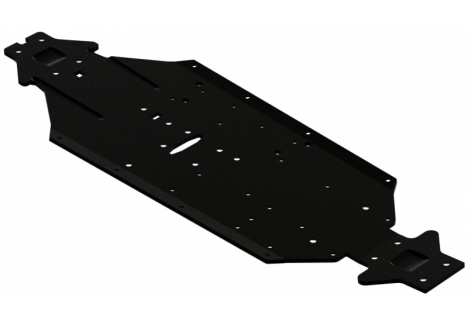

  • Chassis Material: 3 mm 6061-T6 aluminium – anodized and reinforced for strength
  • Chassis Braces: Composite front and rear – adds rigidity under load
  • Side Pods: Composite – protects electronics and supports structure
  • Body: Painted, decaled, and trimmed – matte black with forged composite styling
  • Wing: Low-drag – mounted for downforce and high-speed stability

Technology and Features

  • Smart Technology: Enabled – telemetry-ready with real-time data via Spektrum Dashboard
  • Water-Resistant: Yes – receiver box and electronics protected against splashes
  • Ball Bearings: Full set – rubber shielded for reduced maintenance
  • Brakes: User programmable – adjustable via ESC settings
  • Completion Level: Ready-To-Run – no assembly required

What’s in the Box

  • 1 × ARRMA C-ARA8606V5 brushless speed buggy – fully assembled
  • 1 × Spektrum Firma 150A Smart ESC (installed)
  • 1 × Spektrum Firma 4074 2050Kv brushless motor (installed)
  • 1 × Spektrum S652 digital servo (installed)
  • 1 × Spektrum SR315 receiver (installed)
  • 1 × Spektrum SLT3 2.4GHz 3-channel radio
  • 1 × ARRMA TYPHON 6S V5 4WD BLX manual

What You Require

  • 2 × 2S or 3S LiPo batteries or 1 × 4S or 6S LiPo soft pack with EC5 or IC5 connector
  • 1 × Compatible LiPo battery charger
  • 4 × AA alkaline batteries for transmitter

Sold Separately

  • Battery – required for operation
  • Charger – compatible with selected battery type
  • Optional speed pinion gear – for achieving 70+ mph

Product Description of ARRMA C-ARA8606V5 brushless speed buggy

The ARRMA C-ARA8606V5 brushless speed buggy is a 1/8 scale RC basher engineered for extreme terrain, high-speed control, and Smart-enabled performance. Finished in a forged composite matte black scheme, the ARRMA C-ARA8606V5 1/8 scale RC basher combines a 2050Kv brushless motor, 150A Smart ESC, and heavy-duty aluminium chassis to deliver 70+ mph capability with precision handling. Whether you're tearing through dirt, launching off ramps, or pushing limits on asphalt, the ARRMA C-ARA8606V5 4WD Smart buggy is built to dominate with torque, durability, and real-time telemetry. With EXB-compatible bracing, dBoots KATAR tyres, and a sliding motor mount, this buggy is ready for serious bashing straight out of the box.

Key features of the ARRMA C-ARA8606V5 brushless speed buggy

  • Smart ESC and motor – integrated telemetry with 6S brushless power and programmable performance
  • Aluminium chassis – 3 mm anodized plate with reinforced composite side pods and braces
  • Adjustable oil-filled shocks – aluminium bodies with protectors and black-anodized towers
  • Heavy-duty drivetrain – steel driveshafts, all-metal diff outdrives, and gearbox internals
  • Clipless body system – streamlined matte finish with rugged wing and composite detailing
  • S652 servo – waterproof, metal-geared, and 32% stronger than previous generation
  • dBoots KATAR tyres – multi-surface tread mounted on low-drag buggy wheels

What makes the Smart ESC and motor system a performance breakthrough?

The ARRMA C-ARA8606V5 with 2050Kv motor and 150A Smart ESC features Spektrum Firma electronics that deliver 6S brushless power with integrated telemetry. The 4074-size motor offers smooth 4-pole torque with a 5 mm shaft and gold bullet connectors, while the 150A ESC includes a cooling fan, IC5 connectors, and programmable punch, brake, and timing settings. With Smart telemetry, drivers can monitor ESC temperature, motor RPM, and battery voltage in real time via the Spektrum Dashboard app. This system transforms the ARRMA RC car with S652 servo and dBoots KATAR tyres into a data-driven, high-performance machine built for serious speed.

How does the aluminium chassis improve durability and control?

The 3 mm 6061-T6 anodized aluminium chassis in the ARRMA buggy with aluminium chassis and EXB-compatible front brace is reinforced with composite side pods and front/rear braces for maximum rigidity. The EXB-compatible front brace adds structural integrity under extreme loads, while the wide rear section and 3D form improve impact resistance. Combined with a low-drag wing and streamlined body, the chassis layout supports high-speed stability and responsive handling. This foundation allows the ARRMA C-ARA8606V5 4WD Smart buggy to absorb terrain shocks and maintain composure during aggressive bashing.

Why are adjustable oil-filled shocks essential for terrain versatility?

The ARRMA C-ARA8606V5 brushless speed buggy features aluminium-bodied, oil-filled shocks mounted on black-anodized towers with aluminium caps and protectors. These shocks offer adjustable damping to suit different surfaces, from loose dirt to hard-packed tracks. With spring rates of 75.5 gf/mm in the front and 56.6 gf/mm in the rear, the suspension system balances rebound and compression for optimal control. Whether you're landing jumps or navigating uneven terrain, the shocks ensure the ARRMA C-ARA8606V5 1/8 scale RC basher remains planted and predictable.

How does the drivetrain support 70+ mph capability?

The ARRMA buggy with aluminium chassis and EXB-compatible front brace is equipped with steel driveshafts, all-metal diff outdrives, and hardened gearbox internals. The drivetrain includes a 50T spur gear, 16T pinion, and Mod 1 gearing for torque transfer and durability. A 4-bolt center diff allows quick access, while the sliding motor mount simplifies maintenance. With a final drive ratio of 10.31 and internal gear ratio of 3.3, the system is tuned for acceleration and top-end speed. This setup enables the best ARRMA 1/8 scale RC car with adjustable shocks and heavy-duty drivetrain to reach 70+ mph with optional gearing and 6S power.

What makes the S652 servo a steering upgrade?

The Spektrum S652 digital servo in the ARRMA RC car with S652 servo and dBoots KATAR tyres delivers 19.08 kg-cm torque at 7.4V, making it 32% stronger and 5% faster than its predecessor. With waterproof construction and all-steel gears, the servo maintains precision under load and resists damage during collisions. Paired with a never-loose red aluminium servo saver and dual protocol receiver, the steering system ensures responsive control and reliability. This upgrade enhances the handling of the ARRMA C-ARA8606V5 4WD Smart buggy across all terrain types.

How do dBoots KATAR tyres enhance grip and control?

The multi-surface dBoots KATAR B tyres on the ARRMA RC car with S652 servo and dBoots KATAR tyres are mounted on low-drag buggy wheels with 17 mm hexes and 44 mm width. Their aggressive tread pattern provides traction on dirt, grass, and asphalt, while the rubber compound ensures durability and grip. Combined with forged composite styling and aerodynamic wing design, the tyres contribute to confident handling and high-speed stability. These features make the ARRMA C-ARA8606V5 brushless speed buggy a versatile performer across varied terrain.

Is this the best ARRMA buggy for Smart-enabled bashing?

For drivers seeking the best ARRMA 1/8 scale RC car with adjustable shocks and heavy-duty drivetrain, the TYPHON 6S BLX delivers a complete package of speed, strength, and Smart technology. With a 2050Kv motor, 150A ESC, and telemetry-ready electronics, this buggy is built for serious performance. The aluminium chassis, EXB-compatible bracing, and sliding motor mount support durability and ease of maintenance. Whether you're a seasoned basher or upgrading from a 3S platform, the ARRMA C-ARA8606V5 1/8 scale RC basher offers unmatched control and excitement.

For those looking for an affordable ARRMA speed buggy with sliding motor mount and 70+ mph capability, the TYPHON 6S BLX combines premium features with ready-to-run convenience. Buy ARRMA C-ARA8606V5 buggy with Smart telemetry and waterproof electronics and unleash full-throttle performance with confidence and control.

Technical Specifications of ARRMA C-ARA8606V5 brushless speed buggy

Brand, Model and Product Type

  • Brand: ARRMA
  • Model: C-ARA8606V5
  • Color: Black – matte forged composite finish with red detailing
  • Product Type: ARRMA C-ARA8606V5 brushless speed buggy, ARRMA C-ARA8606V5 1/8 scale RC basher, ARRMA C-ARA8606V5 4WD Smart buggy, ARRMA C-ARA8606V5 with 2050Kv motor and 150A Smart ESC, ARRMA RC car with S652 servo and dBoots KATAR tyres

Dimensions

  • Product Length: 51.0 cm – extended chassis for high-speed stability
  • Product Width: 31.0 cm – wide track improves grip and rollover resistance
  • Product Height: 19.0 cm – aerodynamic profile supports downforce and control
  • Wheelbase: 32.8 cm – balanced geometry for responsive handling
  • Ground Clearance: 2.7 cm – suitable for off-road terrain and obstacle clearance
  • Product Weight: 3.42 kg – reinforced aluminium and composite structure for durability
  • Max Battery Dimensions: 6S soft pack only – compatible with EC5 or IC5 connectors

Power System and Electronics

  • Motor: Spektrum Firma 4074 2050Kv brushless – 4-pole construction with 5 mm shaft and gold bullet connectors
  • ESC: Spektrum Firma 150A Smart ESC – waterproof, programmable, and telemetry-enabled
  • Power Type: Electric – 6S LiPo compatible for maximum output
  • Connector Type: IC5 – EC5 compatible for secure power delivery

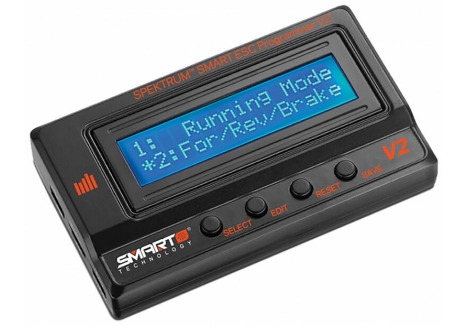

  • Drive Modes: Forward / Brake / Reverse – user programmable via ESC settings
  • Radio System: Spektrum SLT3 2.4GHz 3-channel – ergonomic design with throttle limit switch

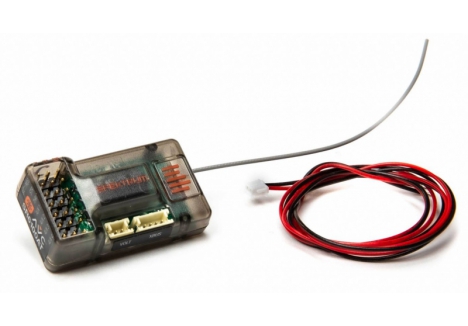

  • Receiver: Spektrum SR315 – dual protocol DSMR/SLT with Smart telemetry support
  • Servo: Spektrum S652 – waterproof, metal-geared, 19.08 kg-cm torque @ 7.4V

Drivetrain and Transmission

  • Drive Type: 4WD – shaft-driven system for consistent traction and acceleration

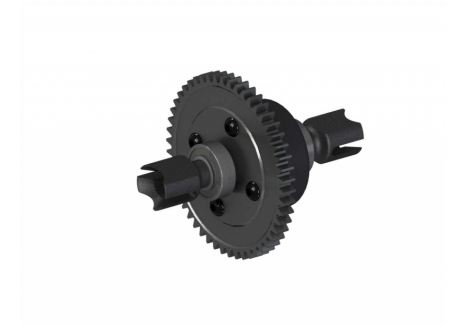

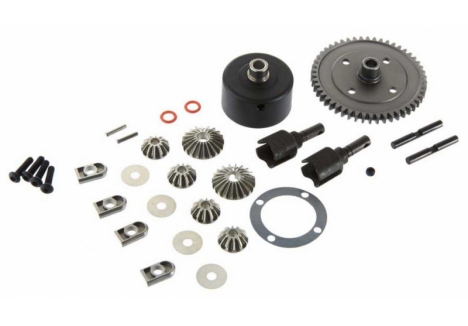

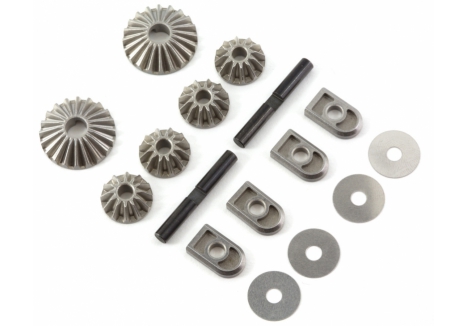

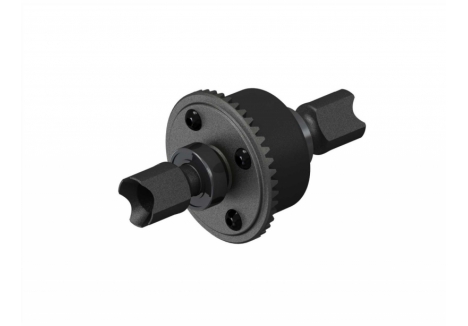

  • Differentials: Three gear-type – all-metal internals for durability under load
  • Gear Pitch: 1.0 MOD – Mod 1 gearing for torque transfer and reliability
  • Internal Gear Ratio: 3.3 – tuned for acceleration and control
  • Final Drive Ratio: 10.31 – supports high-speed output with stability

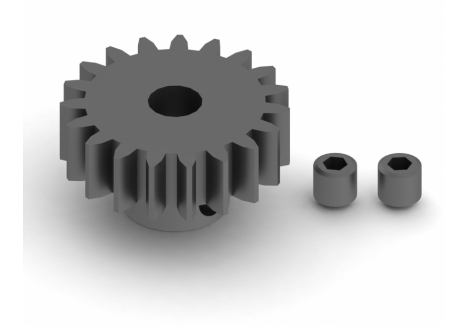

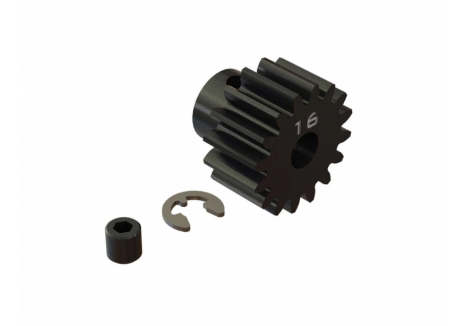

  • Pinion Gear: 16T – paired with 50T spur gear for balanced gearing
  • Spur Gear: 50T – steel construction for long-term durability
  • Motor Mount: Sliding – quick access for maintenance and gear changes

Suspension and Handling

  • Suspension Type: Independent – front pivot ball design for precise handling

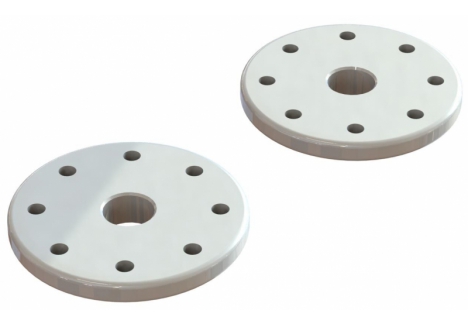

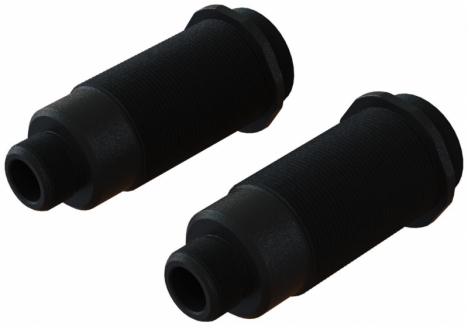

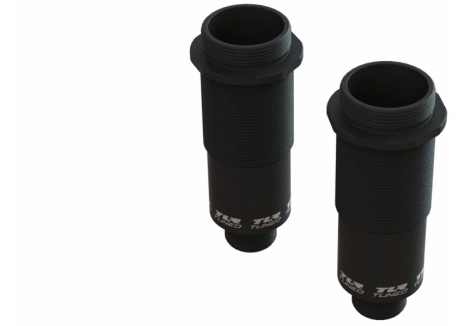

  • Shock Type: Oil-filled adjustable – aluminium bodies with protectors and anodized towers
  • Front Shock Spring Rate: 75.5 gf/mm – tuned for rebound and terrain absorption
  • Rear Shock Spring Rate: 56.6 gf/mm – supports stability and jump recovery

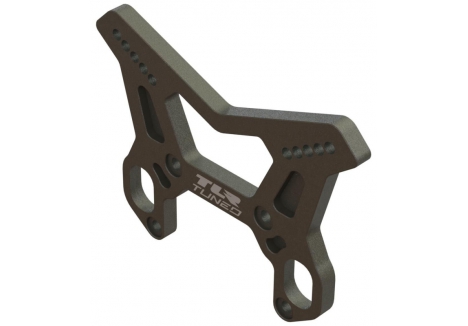

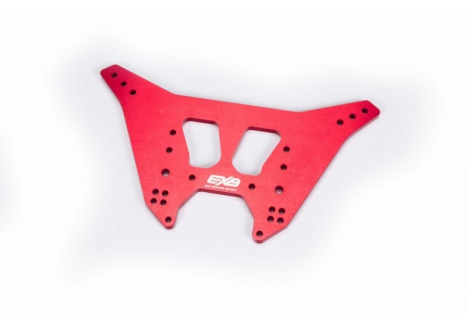

  • Shock Towers: Black-anodized aluminium – rigid mounting for consistent damping

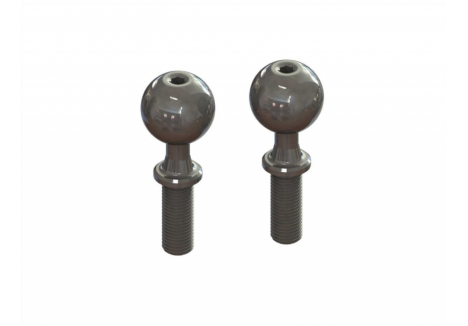

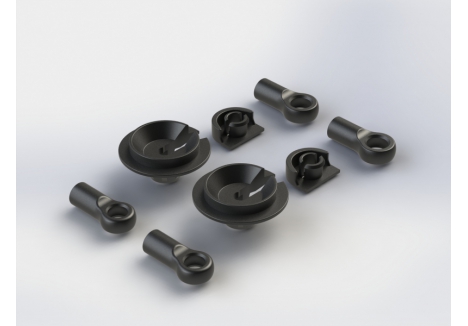

  • Ball Ends: Never-pop design – prevents detachment during high-impact use

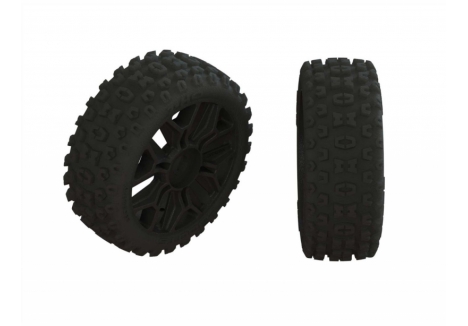

Tyres and Wheels

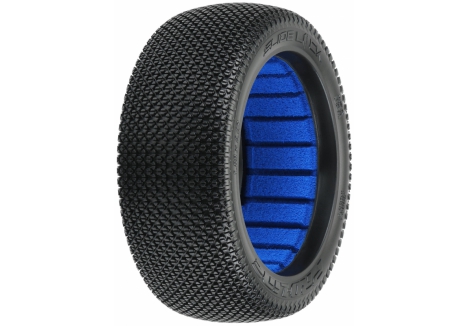

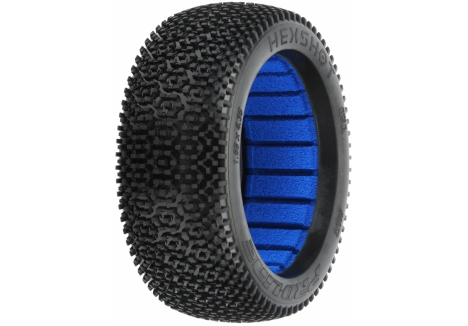

  • Tire Type: Multi-surface – aggressive tread for dirt, grass, and asphalt

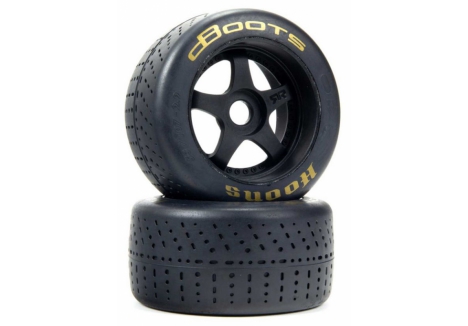

  • Tire Tread: dBoots KATAR B – mounted on low-drag buggy wheels
  • Wheel Type: 1/8 scale buggy – forged composite style with matte finish
  • Wheel Width: 4.4 cm – supports traction and stability

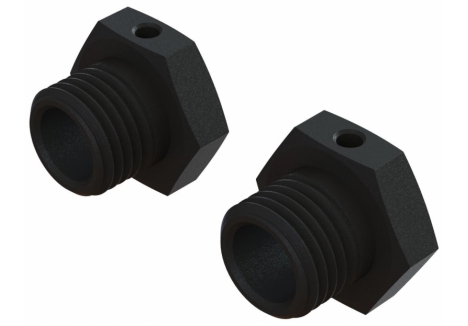

  • Wheel Hex Size: 17 mm – compatible with standard 1/8 scale buggy hubs

Chassis and Body

  • Chassis Material: 3 mm 6061-T6 aluminium – anodized and reinforced for strength
  • Chassis Braces: Composite front and rear – adds rigidity under load
  • Side Pods: Composite – protects electronics and supports structure
  • Body: Painted, decaled, and trimmed – matte black with forged composite styling

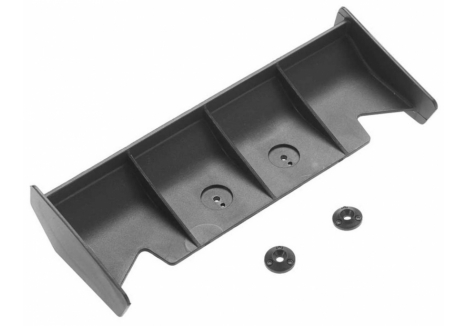

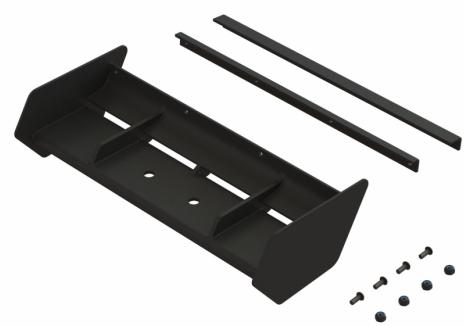

  • Wing: Low-drag – mounted for downforce and high-speed stability

Technology and Features

  • Smart Technology: Enabled – telemetry-ready with real-time data via Spektrum Dashboard
  • Water-Resistant: Yes – receiver box and electronics protected against splashes
  • Ball Bearings: Full set – rubber shielded for reduced maintenance
  • Brakes: User programmable – adjustable via ESC settings
  • Completion Level: Ready-To-Run – no assembly required

What’s in the Box

  • 1 × ARRMA C-ARA8606V5 brushless speed buggy – fully assembled
  • 1 × Spektrum Firma 150A Smart ESC (installed)
  • 1 × Spektrum Firma 4074 2050Kv brushless motor (installed)
  • 1 × Spektrum S652 digital servo (installed)
  • 1 × Spektrum SR315 receiver (installed)
  • 1 × Spektrum SLT3 2.4GHz 3-channel radio
  • 1 × ARRMA TYPHON 6S V5 4WD BLX manual

What You Require

  • 2 × 2S or 3S LiPo batteries or 1 × 4S or 6S LiPo soft pack with EC5 or IC5 connector
  • 1 × Compatible LiPo battery charger
  • 4 × AA alkaline batteries for transmitter

Sold Separately

  • Battery – required for operation
  • Charger – compatible with selected battery type
  • Optional speed pinion gear – for achieving 70+ mph

Parts Diagrams

Front Assembly
Steering Assembly
Chassis Assembly 1
Chassis Assembly 2
Rear Assembly

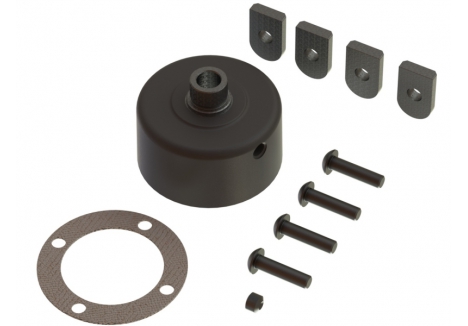

Differential Assembly
Shock Absorber Assembly

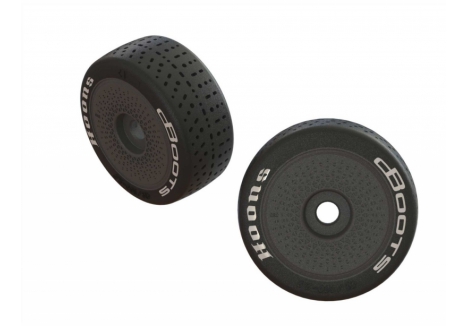

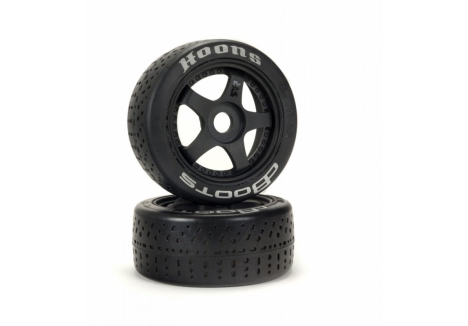

Bodyshell / Wheel & Tyre

Finance Options

Click to see Novuna Finance Information

Novuna

Novuna Personal Finance Available on this product


DEPOSIT MONTHS APR MONTHLY PAYMENTS TOTAL AMOUNT PAYABLE
24 Month Credit
£53.90 24 19.9% 24 x £24.29 £636.86
36 Months Credit
£53.90 36 19.9% 36 x £17.61 £687.86
48 Months Credit
£53.90 48 19.9% 48 x £14.32 £741.26
Buy Now Pay Later 48 months (6 months Deferred)
£53.90 48 24.9% 48 x £16.89 £864.62
Buy Now Pay Later 48 months (10 months Deferred)
£53.90 48 24.9% 48 x £17.86 £911.18
Buy Now Pay Later 48 months (12 months Deferred)
£53.90 48 24.9% 48 x £18.88 £960.14

We want to make sure your delivery goes smoothly, so here are some important details about our service:

  • For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
  • Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
  • Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
  • If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
  • We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
  • As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
  • If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
  • For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
