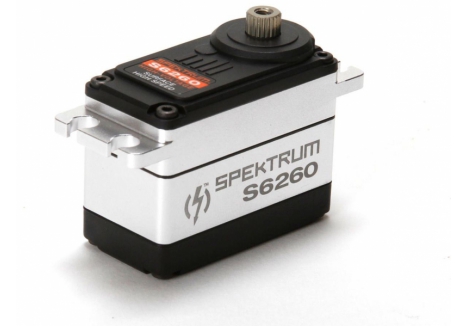

SPM S6260 High Torque High Speed Digi HV Servo-Metal Gear P-SPMSS6260

Model No: P-SPMSS6260


£129.99

£15.99

£114.00

Inc VAT & delivery

Sorry, Out Of Stock
We Accept
Delivery Included
1 Year Warranty

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

  • Speed @ 6V: 0.08 s/60Â
  • Torque @ 6V: 12.0 Kg/cm
  • Speed @ 7.4V: 0.07 s/60Â
  • Speed @ 8.4V: 0.06 s/60Â
  • Torque @ 7.4V: 15.10 Kg/cm
  • Torque @ 8.4V: 17.4 Kg/cm
  • Weight: 65.2 g
  • Bearings: Dual BB
  • Gear Type: Metal
  • Motor Type: Coreless
  • Height: 31.8 mm
  • Length: 41.0 mm
  • Width: 20.8 mm

The Spektrum P-SPMSS6260 S6260 HV surface servo with 241 oz-in torque and waterproof aluminum case is engineered for high-speed control and rugged reliability in 1/10–1/8 scale RC trucks, crawlers, and bashers. Designed to deliver responsive performance across extreme terrain, this standard-size digital servo integrates a 7075 hard anodized output shaft, steel internal gears, and dual NMB bearings into a heat-dissipating aluminum housing. Whether you're navigating technical trails or pushing through high-speed corners, the Spektrum P-SPMSS6260 digital standard-size servo provides the precision, strength, and durability needed for serious surface applications.

Key features of the Spektrum P-SPMSS6260 S6260 HV surface servo

  • 7075 anodized output shaft – precision-machined for maximum strength and wear resistance
  • Steel internal gears – engineered for long-term durability under high-speed loads
  • Waterproof aluminum case – protects internal components and dissipates heat efficiently
  • Dual NMB bearings – ensures smooth rotation and consistent torque delivery
  • Removable wire harness – includes 7.87" lead with flexible routing options
  • HV-compatible – operates across 6.0–8.4V input range for enhanced performance
  • Standard-size footprint – fits 1/10–1/8 scale RC platforms with ease
  • Aluminum mounting tabs – secure installation in high-impact environments

Why is the Spektrum P-SPMSS6260 ideal for high-speed surface control?

The Spektrum P-SPMSS6260 high-speed servo with 7075 anodized output shaft and dual NMB bearings is purpose-built for RC drivers who demand fast, accurate response in competitive and recreational settings. With a peak torque of 241 oz-in at 8.4V and a 120° rotation range, this servo delivers the speed and control fidelity needed for aggressive steering and throttle modulation. Its standard-size dimensions make it compatible with a wide range of RC vehicles, while the waterproof aluminum case ensures reliable performance in wet or dusty conditions. Whether you're racing or crawling, the Spektrum P-SPMSS6260 S6260 HV surface servo delivers consistent results.

How does the gear system enhance durability and precision?

The Spektrum digital waterproof servo with dual bearings, 22 AWG wiring, and heat-dissipating aluminum case features a gear train built for endurance. The 7075 hard anodized aluminum output shaft and main gear are paired with steel internal gears, creating a system that resists wear and maintains alignment under stress. Dual NMB bearings support the shaft, reducing friction and ensuring smooth, accurate movement. This combination of materials and design ensures that the servo performs reliably in high-impact conditions, making it a trusted choice for serious surface RC applications.

What makes the waterproof aluminum case essential for extreme terrain?

The Waterproof digital servo for extreme terrain with steel internal gears and aluminum mounting tabs is built to withstand the elements. Its aluminum housing not only protects internal electronics from moisture and debris but also acts as a heat sink, regulating temperatures during extended operation. This is especially important for crawlers and bashers that operate in wet, muddy, or dusty environments. The rugged construction ensures that the servo remains functional and responsive, even when conditions are less than ideal.

How does the removable wire harness improve installation flexibility?

The Spektrum P-SPMSS6260 with removable wire harness, 23T spline, and 7.87" lead for flexible installs includes a detachable 22 AWG wire harness that simplifies routing and maintenance. The 7.87-inch lead provides ample length for varied chassis configurations, and alternative lengths are available for custom setups. The 23T spline ensures compatibility with standard servo arms, while the removable design allows for quick swaps and upgrades. This feature is especially valuable for builders who prioritize clean wiring and modular component access.

Is the Spektrum P-SPMSS6260 suitable for high-voltage systems?

Yes. The HV-compatible surface servo with 6.0–8.4V input, 4900mA stall draw, and 120° rotation range is optimized for high-voltage applications. Operating at up to 8.4V, the servo unlocks its full torque potential, making it ideal for demanding steering and throttle control. The 4900mA stall draw at 6.0V reflects its powerful motor design, while the 120° rotation range ensures responsive movement across a wide control spectrum. This voltage flexibility allows users to pair the servo with advanced ESCs and power systems for maximum performance.

Buy Spektrum P-SPMSS6260 S6260 HV servo for 1/10–1/8 scale RC vehicles needing speed and waterproofing.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMSS6260
  • Product Type: Spektrum P-SPMSS6260 S6260 HV surface servo with 241 oz-in torque and waterproof aluminum case, Spektrum P-SPMSS6260 digital standard-size servo for 1/10–1/8 scale RC trucks, crawlers, and bashers, Spektrum P-SPMSS6260 high-speed servo with 7075 anodized output shaft and dual NMB bearings, Spektrum P-SPMSS6260 with removable wire harness, 23T spline, and 7.87" lead for flexible installs, Waterproof digital servo for extreme terrain with steel internal gears and aluminum mounting tabs

Dimensions

  • Product Length: 4.1 cm – standard-size footprint for 1/10–1/8 scale surface vehicles
  • Product Height: 3.18 cm – accommodates high-speed motor and gear system
  • Product Width: 2.08 cm – fits standard servo mounting configurations
  • Product Weight: 65.2 g – balanced for performance without compromising chassis dynamics

Motor and Gear System

  • Motor Type: Digital – tuned for high-speed response and control fidelity
  • Gear Type: Metal – includes steel internal gears for enhanced durability
  • Output Shaft: 7075 hard anodized aluminum – precision-machined for strength and wear resistance
  • Spline Count: 23 teeth – compatible with standard servo arms

Performance and Speed

  • Maximum Torque: 167 oz-in @6.0V; 210 oz-in @7.4V; 241 oz-in @8.4V – delivers high-speed torque for demanding surface control
  • Rotation Range: 120° – supports wide-angle steering and throttle modulation
  • Current Draw (Idle): 9.8 mA @6.0V – efficient standby consumption
  • Current Draw (Stall): 4900 mA @6.0V – reflects powerful motor output under full load

Voltage and Compatibility

  • Operating Voltage: 6.0–8.4V HV – supports high-voltage systems for maximum performance
  • HV Compatibility: Yes – unlocks full torque and speed potential at 8.4V

Protection and Reliability

  • Waterproof: Yes – sealed aluminum case protects internal components from moisture and debris
  • Case Material: Aluminum – provides heat dissipation and rugged durability
  • Bearings: Dual NMB bearings – ensures smooth rotation and long-term reliability
  • Mounting Tabs: Aluminum – robust design for secure installation in high-impact environments

Connectivity and Wiring

  • Connector Type: Universal – compatible with standard receiver ports
  • Wire Length: 20 cm (7.87 inches) – removable harness with flexible routing options
  • Wire Gauge: 22 AWG – supports stable current delivery and signal integrity

Application

  • Primary Use: Surface – optimized for 1/10–1/8 scale RC trucks, crawlers, and bashers
  • Servo Size Category: Standard – designed for high-speed surface applications

What’s in the Box

  • 1 × Standard Digital HV High Speed Metal Gear Surface Servo (Model No: P-SPMSS6260)

What You Require / What You Will Need

  • Compatible receiver and HV-capable power system – required for full performance operation
