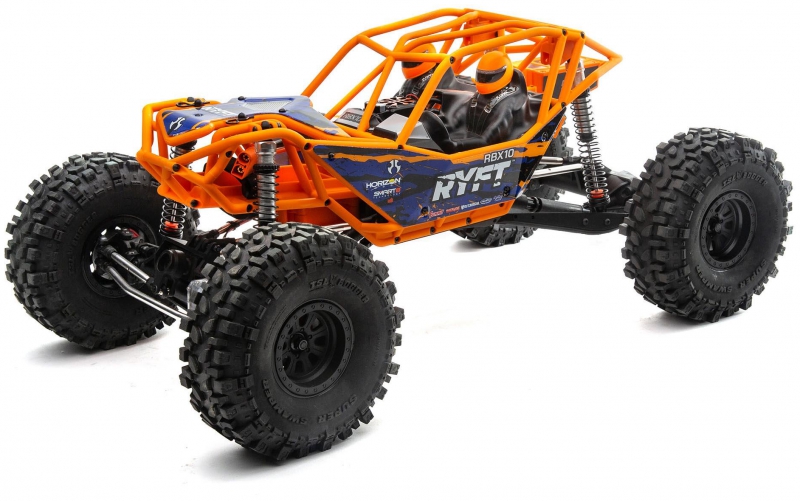

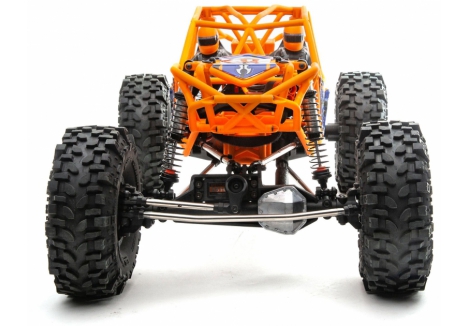

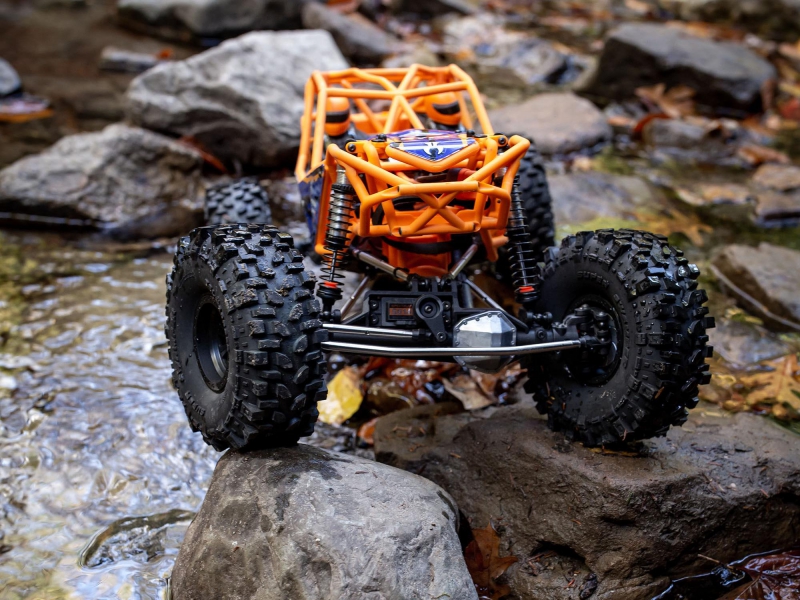

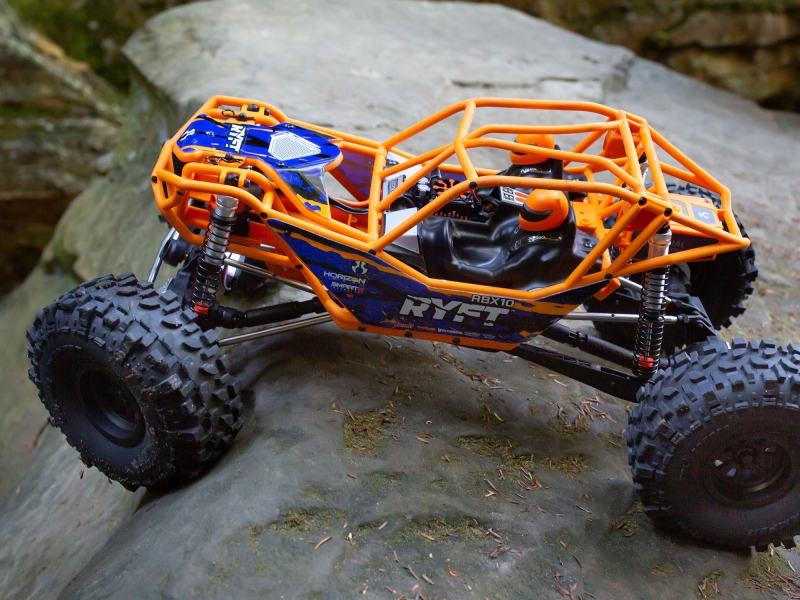

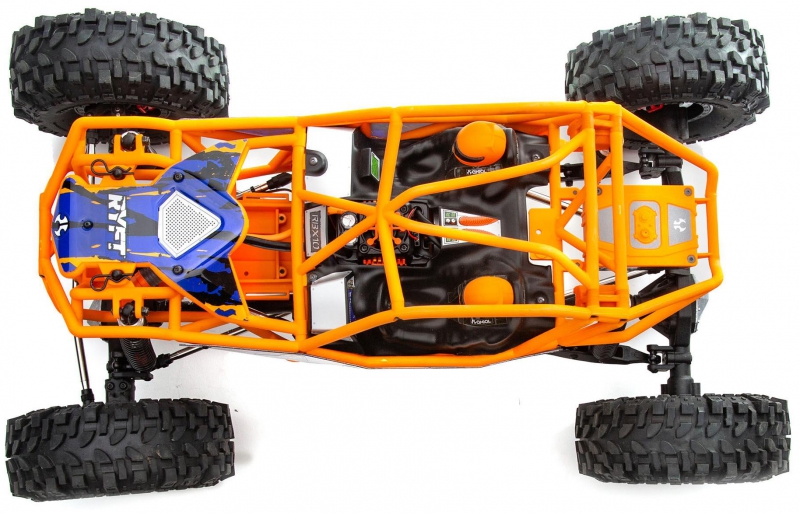

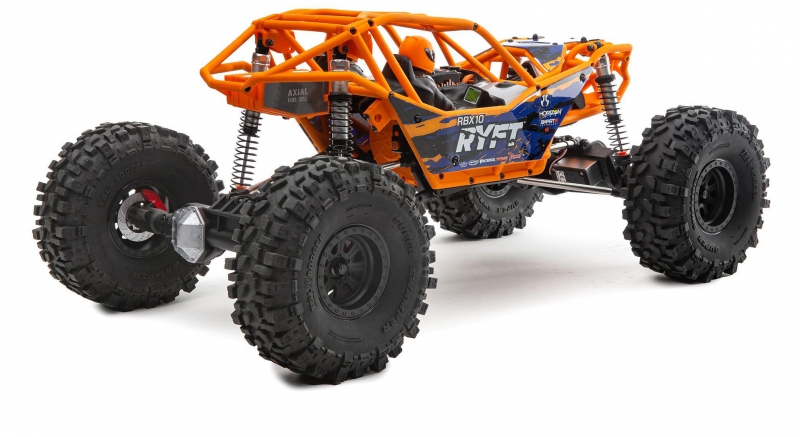

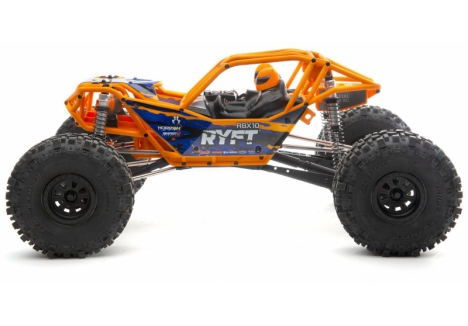

AXIAL 1/10 RBX10 Ryft 4WD Rock Racer RTR Orange C-AXI03005T1

Name: AXIAL 1/10 RBX10 Ryft 4WD Rock Racer RTR Orange C-AXI03005T1
Brand: Axial
Price: 499.00 GBP
Availability: OutOfStock

Model No: AXI03005T1

Please note:

This item is a special order with a lead time of 6 weeks or more. Due to its nature, orders for this product cannot be cancelled. To complete your purchase, we require payment via bank transfer. Kindly contact us to arrange payment details.

£499.00

Inc VAT & delivery

ONP:

£559.99

You Save:

£60.99

Quantity:

SPECIAL ORDER ITEM PLEASE CONTACT US ON: 01922 494 608.

We Accept

Price Match

If you find this product cheaper elsewhere we will check if we can match or beat the price

Delivery Included

1 Year Warranty

Product Details

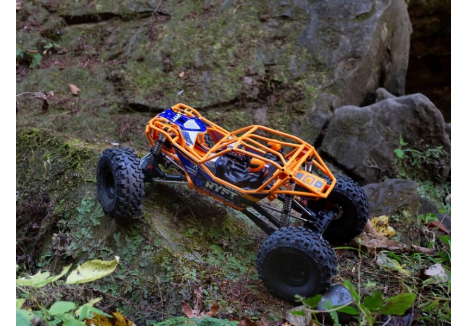

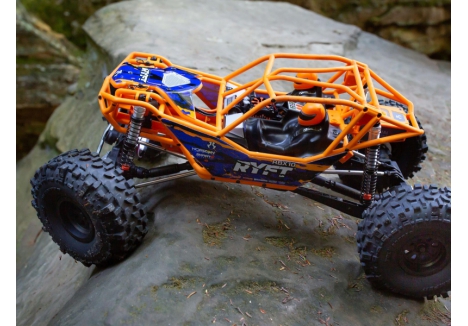

Like real rock bouncers, the Axial RBX10 Ryft 1/10 4WD RTR is built to run at high speeds over rugged, rocky trails. Exclusive Spektrum technologies such as Smart telemetry and AVC traction control enable all drivers to enjoy unstoppable performance.

Key Features

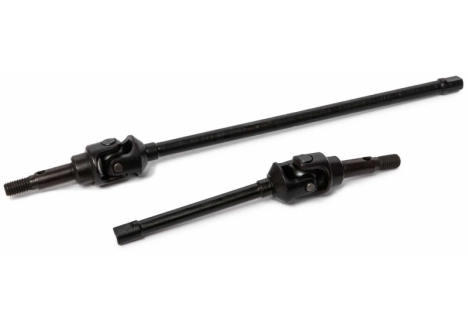

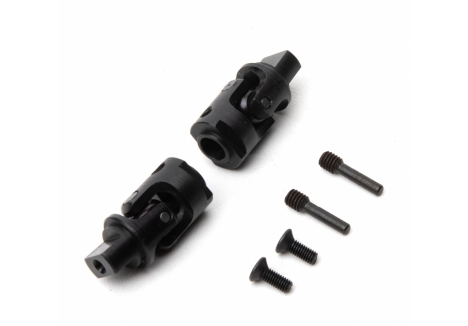

Solid axles front and rear with universal axle joints
Robust tube chassis design
Strong powertrain with 4S-capable brushless motor
Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tyres
Ready to Run completion level requires no assembly, and comes with everything required other than a battery and charger

In The Box

(1) Axial RBX10 Ryft 1/10 4WD RTR
(1) Spektrum DX3 3-Channel 2.4GHz DSMR Radio Transmitter
(1) Spektrum SR6100AT 6-Channel DSMR AVC/Telemetry Receiver
(1) Spektrum Firma 130A Smart ESC
(1) 2200Kv Brushless Motor
(1) Product Manual

Needed to Complete

Battery and charger

Introduction

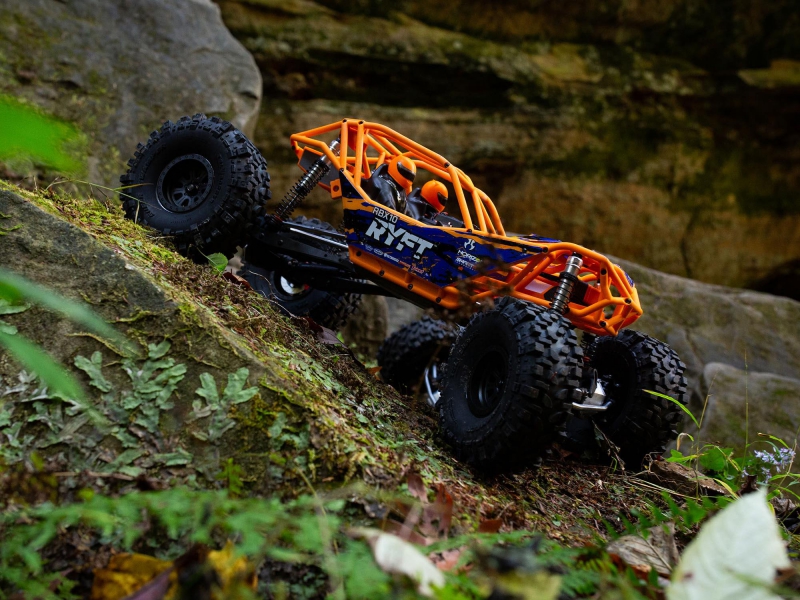

Axial^® introduces another first with the 1/10 scale RBX10^™ Ryft^™ 4WD. This ready-to-run vehicle lets any RC driver experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop - or even back down on the throttle - when facing steep climbs and massive rocks. So does the RBX10^™ Ryft^™ 4WD. This ground-up new Axial^® vehicle handles lots of abuse and loads of power!

Features

Solid axles front and rear with universal axle joints
Robust tube chassis design
Strong powertrain with 4S-capable brushless motor
Full-time 4WD transmission

Licensed Raceline wheels and Interco TSL (Three Stage Lug) Bogger tyres
Long travel front and rear shocks
Waterproof 15kg servo

Overview

The RBX10^™ Ryft^™ 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading - even while moving at the high speeds produced by a strong powertrain featuring a 4S-capable, 2200Kv brushless motor. Both the front and rear axles boast a durable one-piece, molded plastic, solid axle design and metal differential cover. Licensed Interco TSL Bogger tyres on Raceline wheels, aided by long travel front and rear shocks, do their part to tame wild off-road tracks. These features, along with a full-time 4WD transmission, make the RBX10^™ Ryft^™ a fun vehicle to send over the trails at full throttle.

Exclusive Spektrum^™ technologies, such as Smart telemetry and AVC^® traction control, help even new RC drivers enjoy unstoppable performance from the RBX10^™ Ryft^™ 4WD. Its Spektrum^™ DX3^™ radio uses DSMR^® technology for superior range, response, and interference resistance. The radio is also fully compatible with the Smart telemetry potential of the vehicle's Spektrum^™ Firma^™ 130A Smart ESC. When using a Spektrum^™ Smart LiPo battery, you'll stay aware of on-board battery capacity with only a glance at the transmitter's handy voltage level indicator. When the voltage gets low, an alarm will sound.

The DX3^™ radio and SR6100AT receiver also support the on-demand traction control of Spektrum^™ AVC^® (Active Vehicle Control^®) technology - included here for the first time in an Axial^® RTR vehicle. With an AVC^® system, you can dial in extra stability as needed when climbing hills or launching ledges without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

The Axial^® RBX10^™ Ryft^™ 4WD is ideal for beginner to intermediate RC enthusiasts who are interested in the rock bouncing style of off-road driving over trails, dirt, gravel, rocks and more. It's available with a striking orange or black factory-applied finish and requires nothing except a battery and charger.

SPEKTRUM^™ DX3^™ 2.4GHz DSMR^® TRANSMITTER

The included Spektrum^™ DX3^™ radio features exclusive DSMR^® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential of the vehicle's installed Spektrum^™ Firma^™ 130A Smart ESC. Use a Spektrum^™ Smart LiPo battery and you can follow its capacity at a glance on the DX3 transmitter's voltage level indicator. When the battery level gets low, an alarm will sound.

™ FIRMA^™ 130A SMART ESC src=https://www.horizonhobby.com/on/demandware.static/-/Sites-horizon-master/default/PDPImages/FIRMA_130A_PP.jpg class=img-fluid>

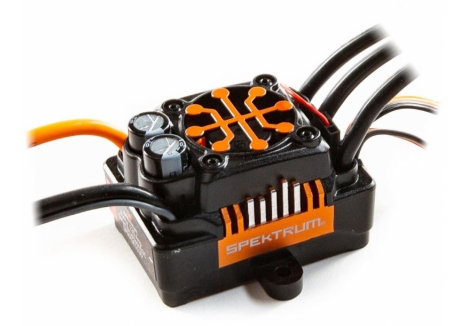

SPEKTRUM^™ FIRMA^™ 130A SMART ESC

The feature-packed, waterproof Firma^™ 130A Smart ESC delivers power and intelligence all-in-one - no additional vehicle modules or links required. Compatible with 2S to 4S LiPo input, this brushless ESC gives your RBX10^™ Ryft^™ the ultimate drive while feeding important telemetry data straight to your DX3^™ transmitter in real time.

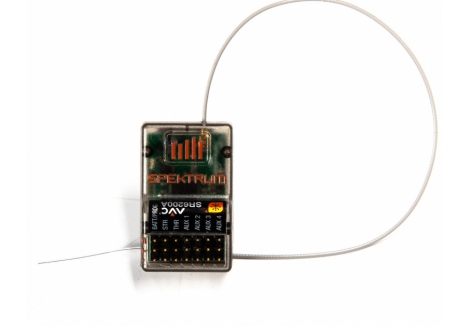

SPEKTRUM^™ SR6100AT DSMR^® AVC^®/TELEMETRY RECEIVER

Built around frequency-agile DSMR^® technology, the Spektrum^™ SR6100AT 6-channel receiver delivers superb range and response. It also features patented Spektrum AVC^® (Active Vehicle Control) and full-range telemetry capabilities.

® (ACTIVE VEHICLE CONTROL) src=https://www.horizonhobby.com/on/demandware.static/-/Sites-horizon-master/default/PDPImages/AVC_LOGO_PP.jpg class=img-fluid>

AVC^® (ACTIVE VEHICLE CONTROL^®)

The DX3^™ radio system supports the on-demand traction control of Spektrum^™ AVC^® (Active Vehicle Control^®) technology. With an AVC^® system, you can dial in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt!

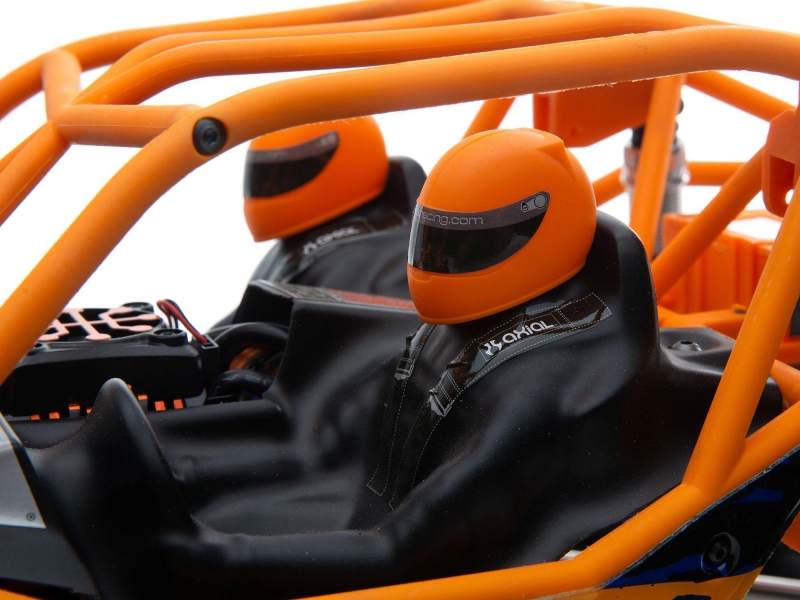

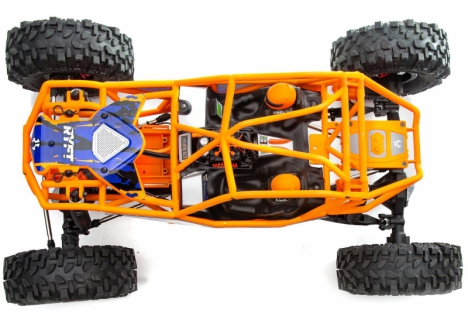

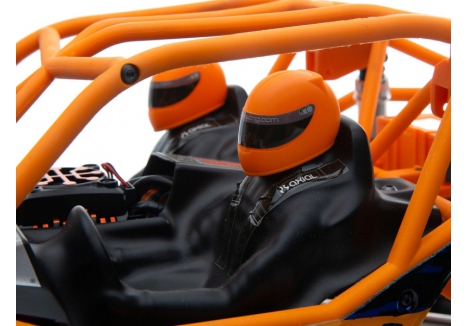

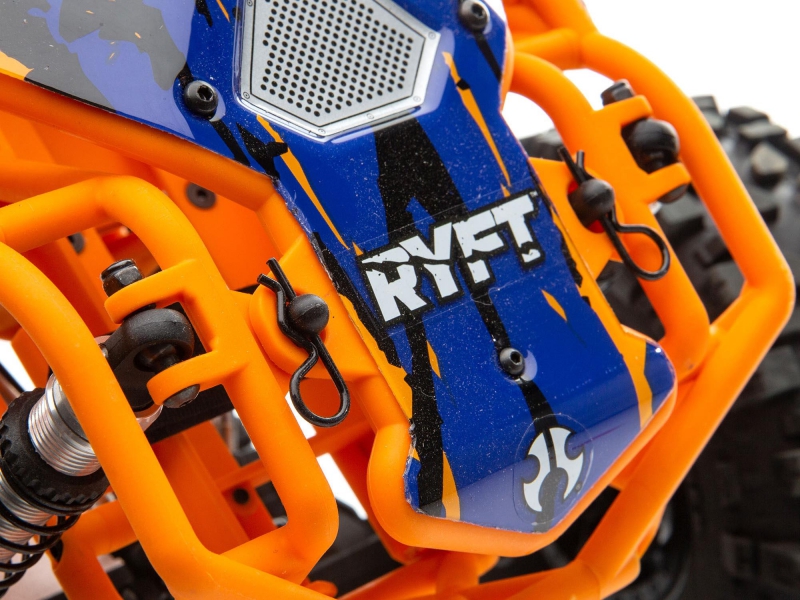

CUSTOM TUBE CHASSIS

The Axial^® RBX10^™ Ryft^™ was designed and styled with the life-size rock bouncers in mind. Its proven, high-strength composite plastic is engineered to withstand the hard knocks of rock bouncing.

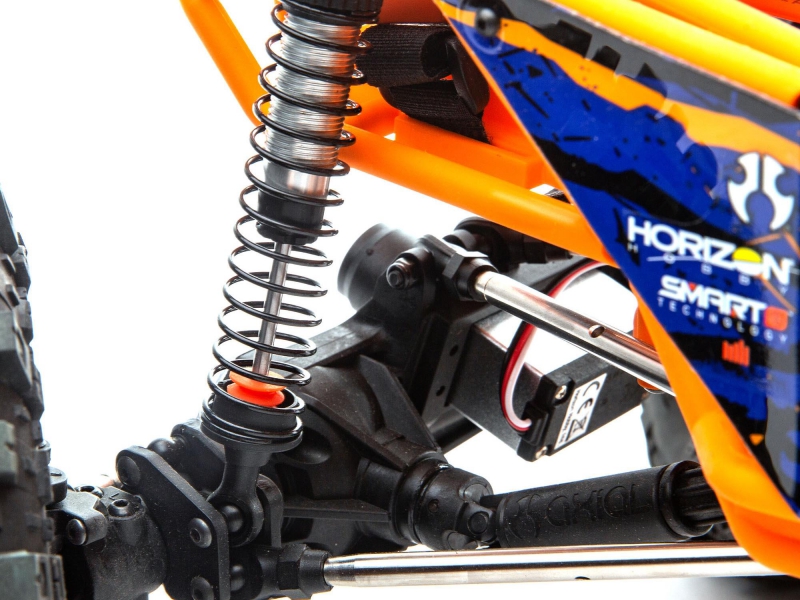

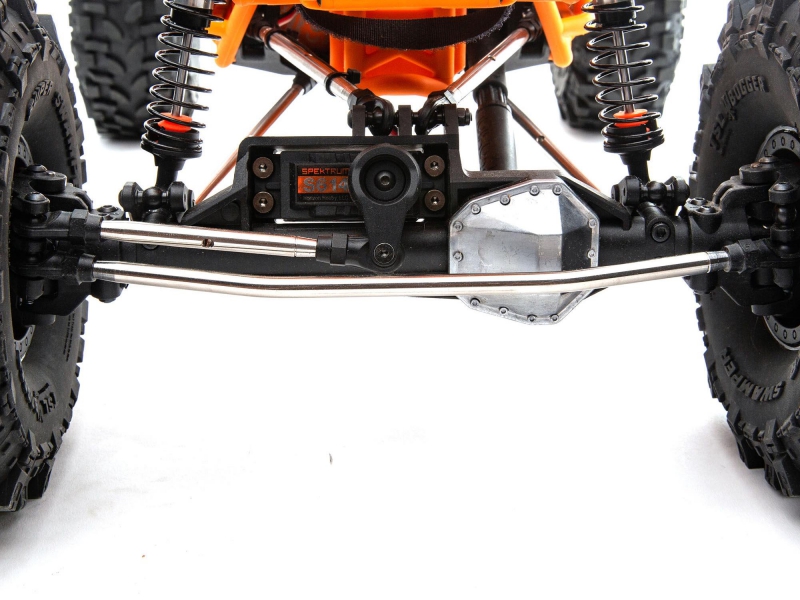

FRONT AND REAR SOLID AXLES

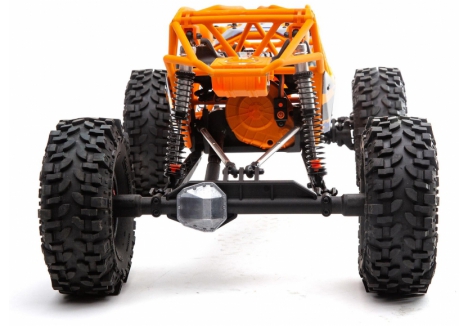

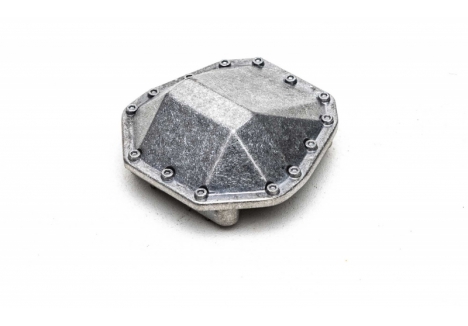

The RBX10^™ Ryft^™ 4WD is engineered to carry a lot of power over punishing off-road tracks - as evidenced by the durable one-piece, molded plastic, solid axle design of its front and rear axles and the metal differential cover.

4-LINK SUSPENSION

The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.

Brand, Model and Product Type

Brand: AXIAL
Model: C-AXI03005T1
Color: Orange
Product Type: AXIAL AXI03005T1 brushless rock racer, AXIAL AXI03005T1 1/10 scale RC car, AXIAL AXI03005T1 4WD RTR rock bouncer, AXIAL AXI03005T1 with 2200Kv motor and 130A Smart ESC, AXIAL RC car with AVC control and Interco Bogger tyres

Dimensions

Product Length: 54.6 cm – extended chassis layout enhances stability and scale realism
Product Width: 32.4 cm – wide track improves grip and cornering control on uneven terrain
Product Height: 22.2 cm – elevated stance supports obstacle clearance and shock travel
Wheelbase: 38.7 cm – long wheelbase improves straight-line stability and climbing geometry
Ground Clearance: 8.25 cm – suitable for rock crawling and trail bashing
Product Weight: 3.29 kg – reinforced tube chassis and solid axle components contribute to structural integrity

Drivetrain and Suspension

Drivetrain: Full-time 4WD – delivers consistent traction across all four wheels for aggressive terrain handling
Drive Type: Forward / Brake / Reverse – integrated within ESC for simplified control
Differential Type: Bevel gear – housed in solid axles with metal covers for durability under load
Suspension: Solid axle 4-link – optimized geometry reduces axle steer and improves anti-squat characteristics
Shock Type: Oil-filled – long travel dampers with 13.0 cm front and 14.5 cm rear lengths for terrain absorption
Front and Rear Track: 32.4 cm – symmetrical layout supports balanced handling and articulation

Motor and Electronics

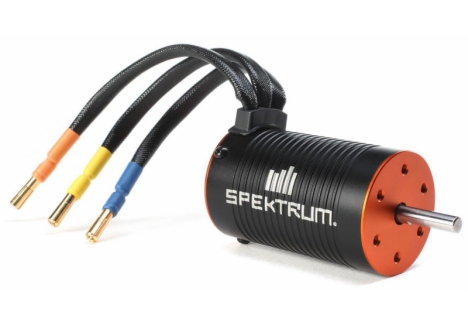

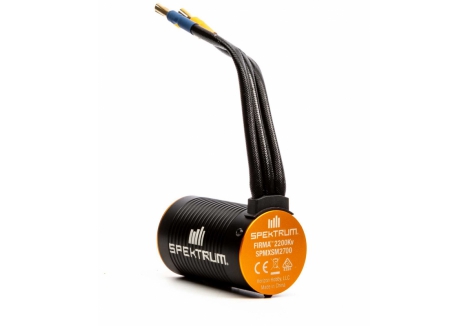

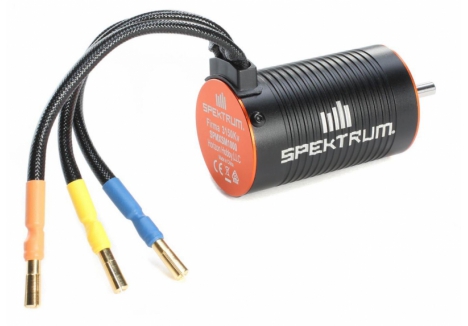

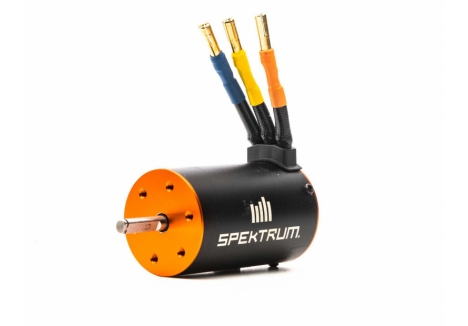

Motor Type: Brushless – 3660-size 2200Kv motor delivers high-speed torque and thermal stability
ESC: Spektrum Firma 130A Smart ESC – waterproof, telemetry-ready, and compatible with 4S LiPo input
Receiver: Spektrum SR6100AT – 6-channel DSMR with AVC and full-range telemetry support
Radio System: Spektrum DX3 – 2.4GHz DSMR transmitter with voltage indicator and AVC tuning

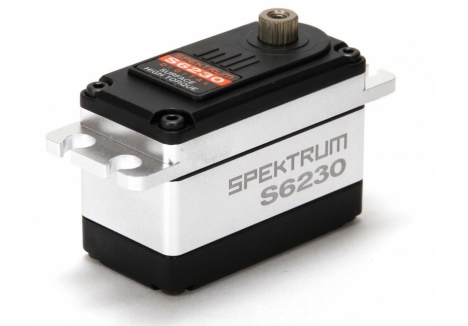

Servo: Waterproof 15kg – supports steering under high-load conditions with metal gearing
Connector Type: IC5 – compatible with EC5 batteries and chargers

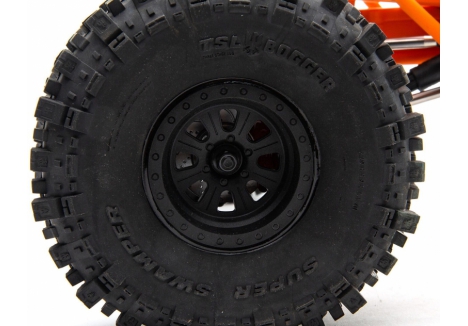

Tyres and Wheels

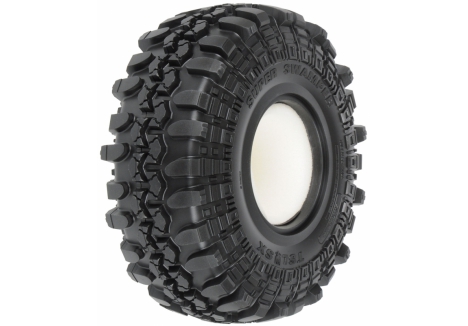

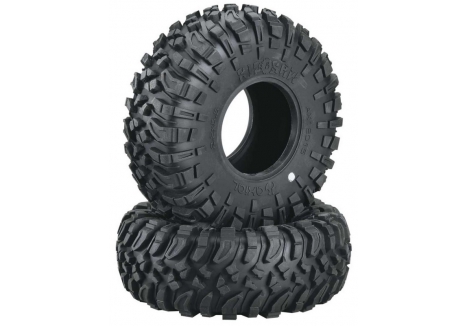

Tyre Type: Interco TSL Bogger – aggressive tread pattern for grip on rocks, gravel, and dirt
Tyre Tread: Three Stage Lug – designed for multi-surface traction and scale realism

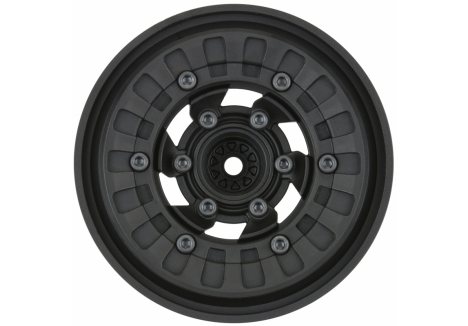

Wheel Type: Raceline Monster – licensed black wheels with foam inserts and reinforced hubs
Wheel Width: 4.06 cm – supports tyre stability and shock absorption

Chassis and Build

Chassis Type: Injection-molded plastic – tube-style frame engineered for impact resistance and scale appearance
Body: Screen printed – orange finish with applied decals for visual impact
Completion Level: Ready-To-Run – no assembly required, electronics pre-installed
Bushing Material: Metal – supports drivetrain durability and long-term performance

What’s in the Box

1 × AXIAL RBX10 Ryft 1/10 4WD RTR
1 × Spektrum DX3 3-channel 2.4GHz DSMR transmitter
1 × Spektrum SR6100AT AVC/Telemetry receiver
1 × Spektrum Firma 130A Smart ESC
1 × 2200Kv brushless motor
1 × RBX10 Ryft 4WD manual

What You Require

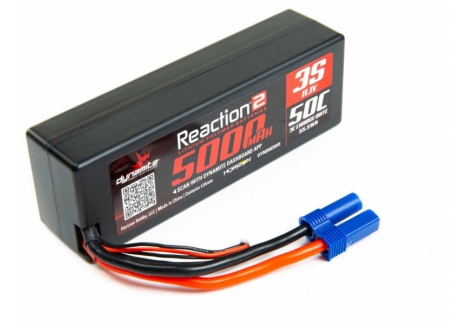

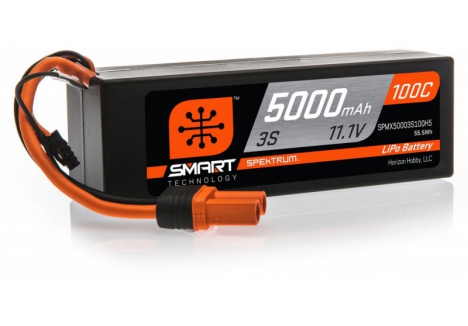

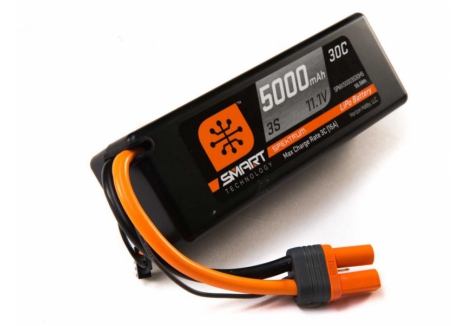

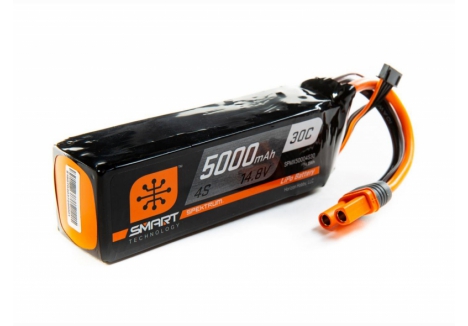

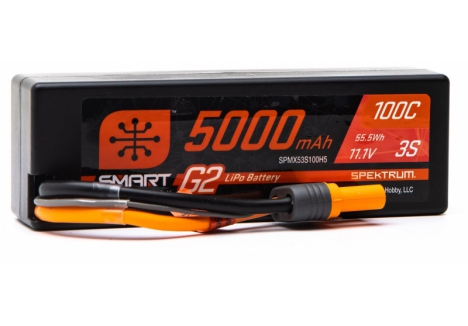

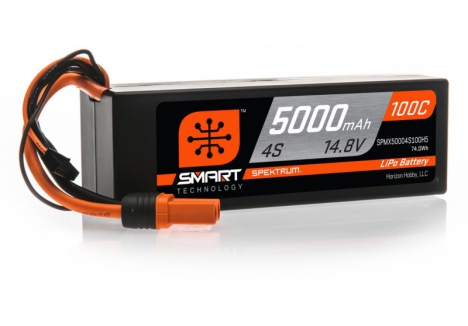

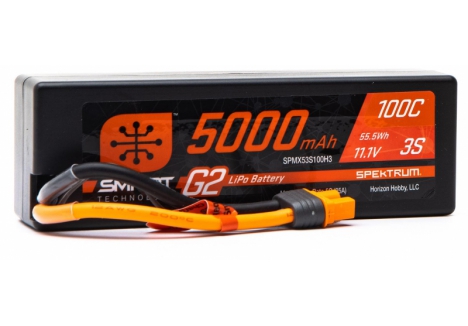

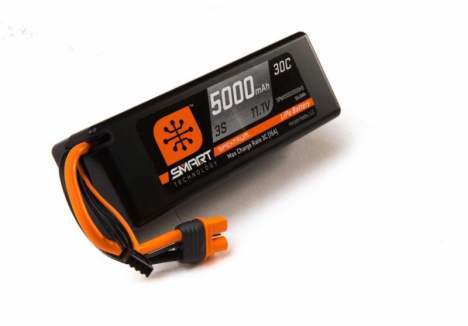

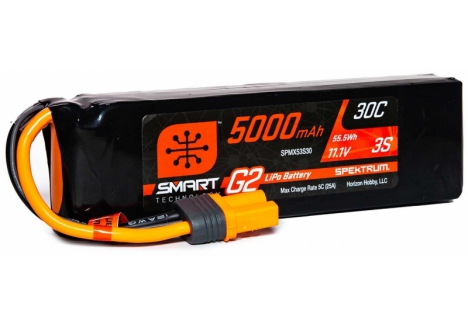

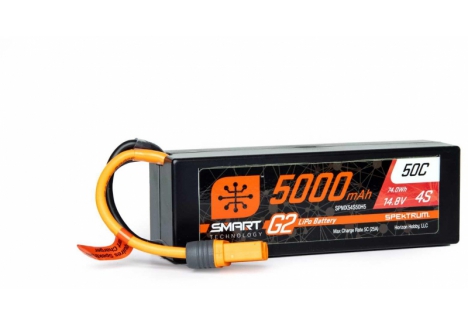

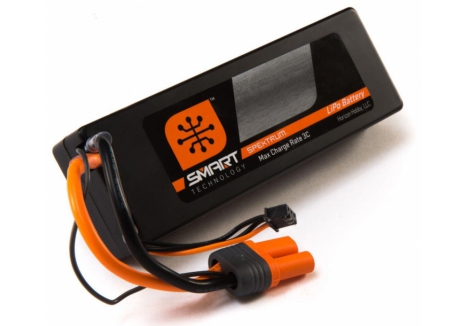

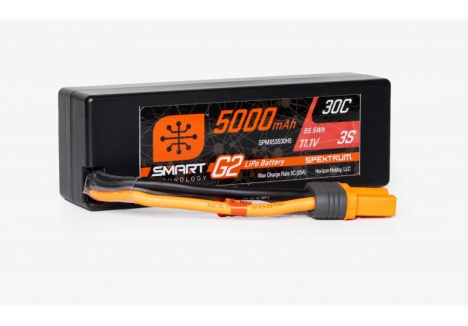

1 × 3S or 4S LiPo battery – standard or shorty pack with EC5 or IC5 connector
1 × Compatible LiPo charger
4 × AA alkaline batteries for transmitter

Sold Separately

Battery – required for operation
Charger – compatible with selected battery type

Parts Diagrams

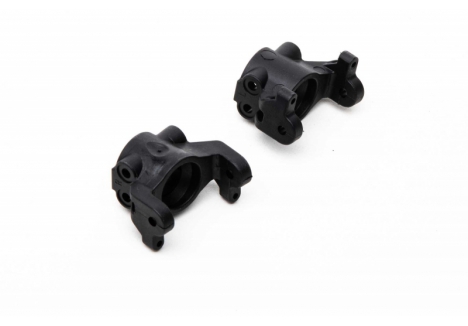

Front Assembly

Rear Assembly

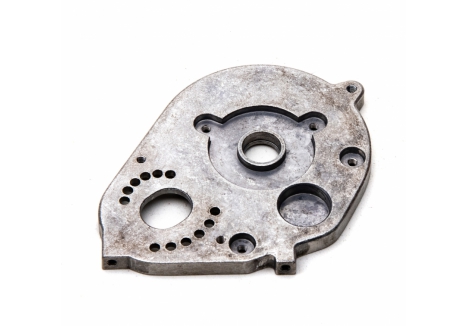

Chassis and Transmission Assembly

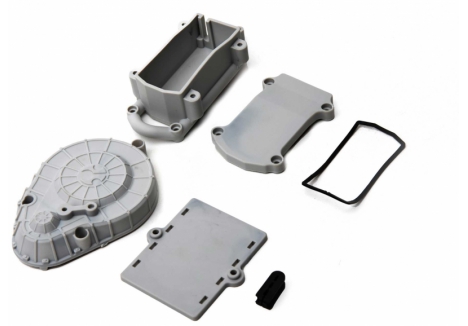

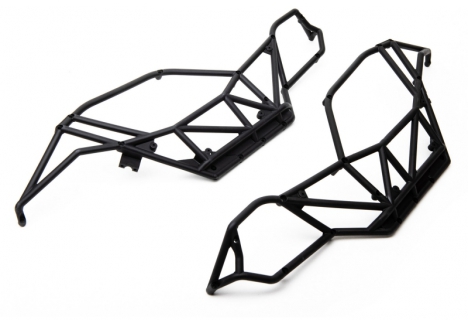

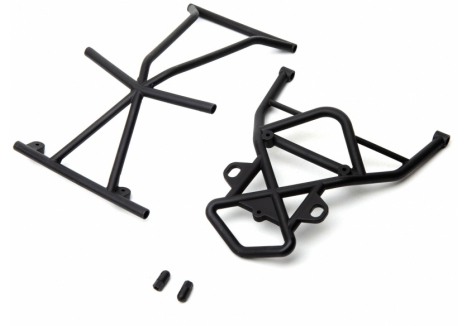

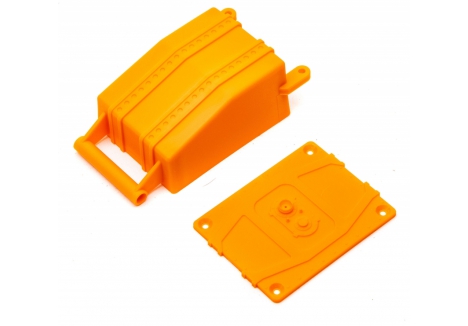

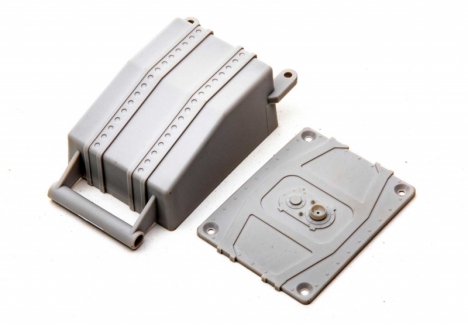

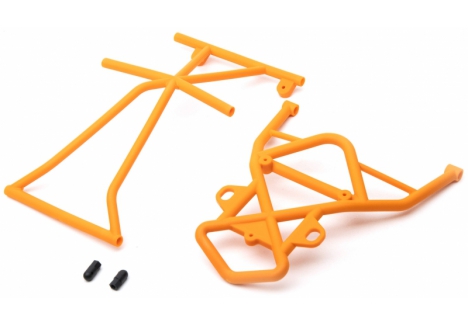

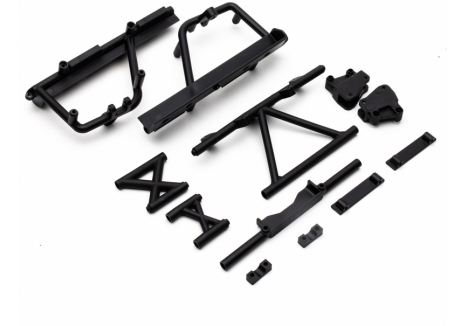

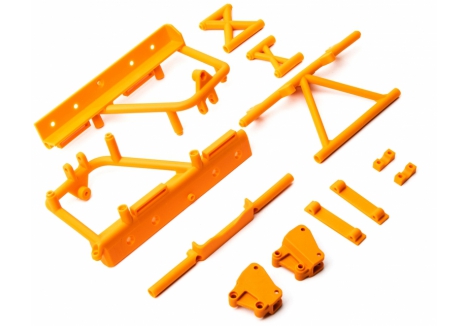

Roll Cage and Receiver Box Assembly

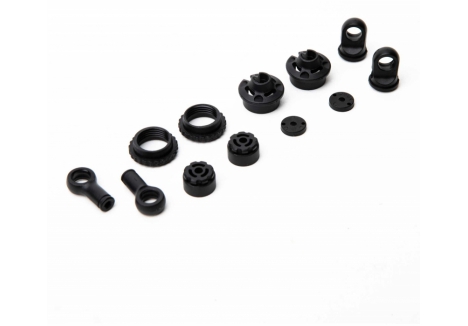

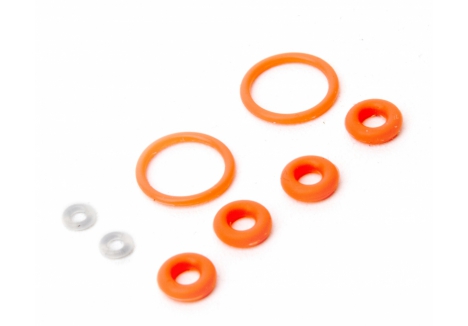

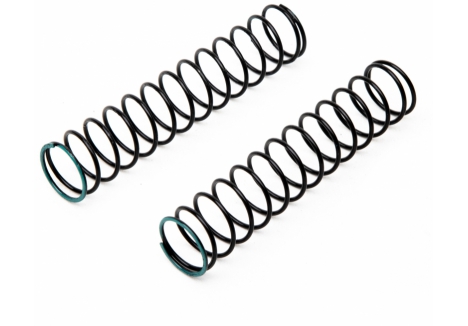

Shock Absorber Assembly

Differential Assembly

Wheel and Tyre Assembly
