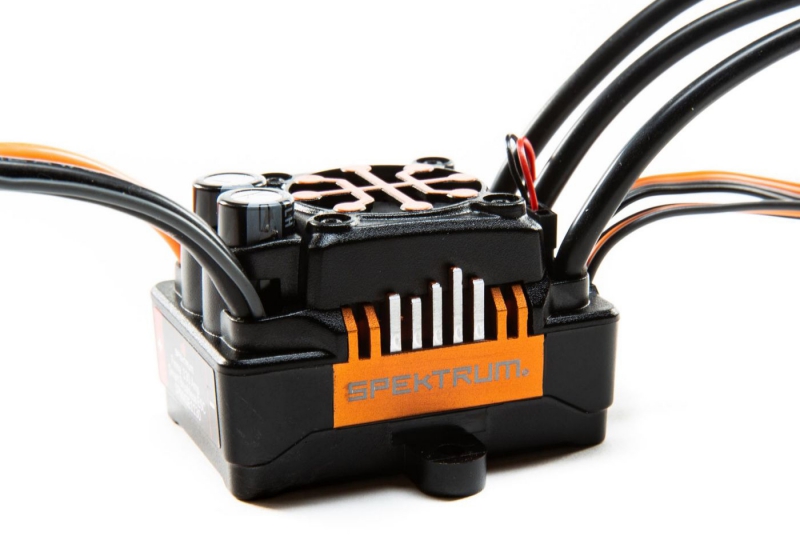

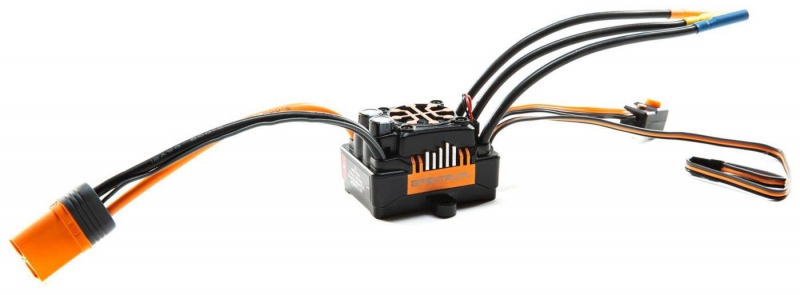

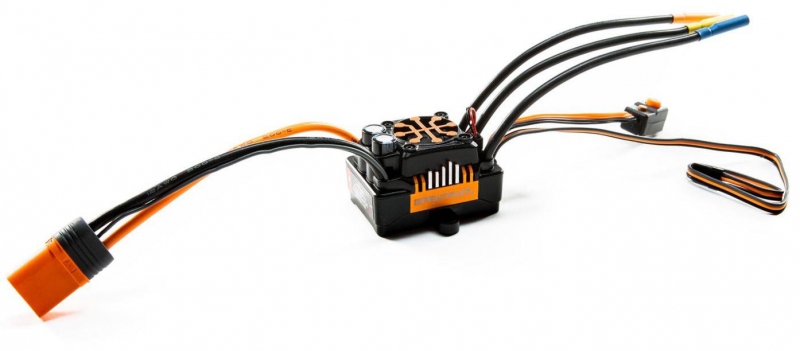

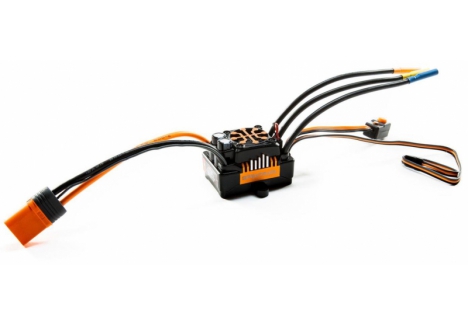

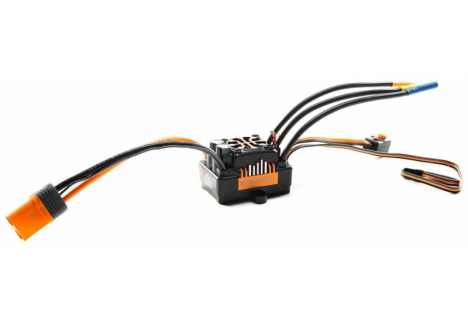

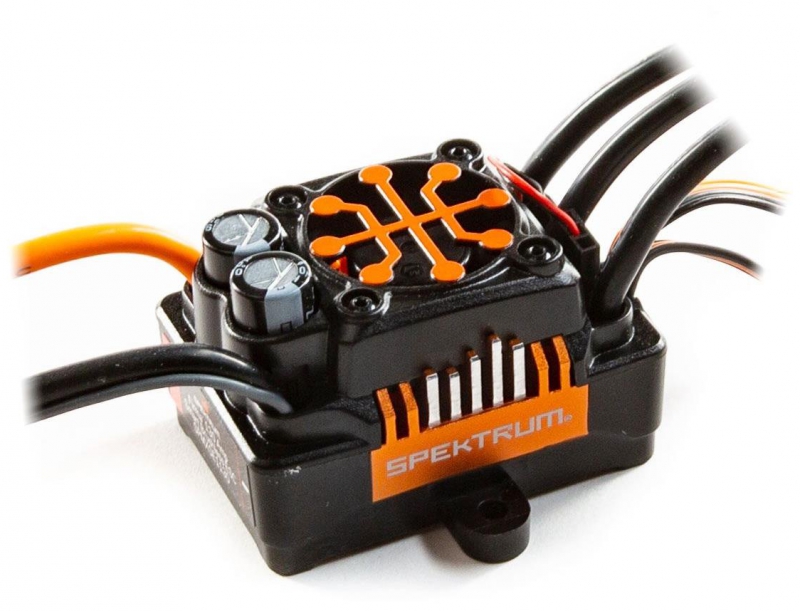

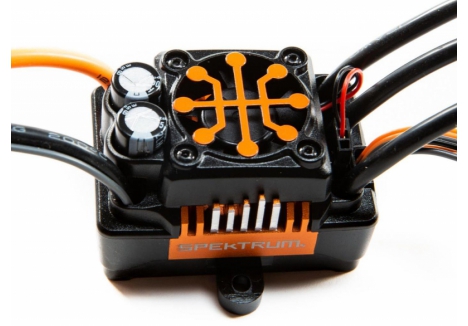

The Spektrum P-SPMXSE1130 Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and 760A burst current is a high-performance brushless electronic speed control system engineered for surface RC vehicles. Designed by Spektrum in collaboration with top-tier ESC manufacturers, this compact and rugged ESC delivers powerful output, intelligent telemetry, and versatile programming options. With a continuous current rating of 130A and a peak burst capacity of 760A, the Spektrum P-SPMXSE1130 is built to handle demanding off-road platforms, RC trucks, and buggies with ease. Its waterproof construction, integrated cooling fan, and aluminum heat sink ensure reliable operation across harsh terrain and extreme conditions.
Key features of the Spektrum P-SPMXSE1130 Firma 130A Smart ESC
- Smart telemetry – real-time data transmission including RPM, voltage, temperature, and battery capacity
- Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app
- Rugged case with cooling fan – designed for durability and thermal efficiency
- 8A linear BEC – stable power delivery with 6V output for servos and receivers
- Compact form factor – 57mm length and 126g weight for tight installations
- Failsafe logic and multi-point protection – includes over-current, thermal, and low-voltage safeguards
Why choose the Spektrum P-SPMXSE1130 for surface RC vehicles?
The Spektrum P-SPMXSE1130 waterproof brushless ESC with Smart telemetry, 4mm motor bullets, and 8A linear BEC is purpose-built for surface applications where power, precision, and reliability are non-negotiable. Whether you're racing across gravel tracks or navigating rugged off-road terrain, this ESC delivers consistent performance with minimal setup. Its waterproof design allows operation in dust, snow, and wet conditions, while the rugged plastic case and mounting tabs ensure secure installation in RC trucks and buggies. The aluminum heat sink and cooling fan work together to maintain optimal temperatures during extended runs, preventing thermal shutdown and preserving performance.
How does Smart telemetry enhance control and diagnostics?
One of the defining features of the Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and firmware updates is its ability to transmit real-time telemetry data directly to your Spektrum transmitter. Using a single wire, the ESC communicates RPM, voltage, temperature, and battery capacity without the need for additional sensors or modules. This streamlined telemetry system allows drivers to monitor system health, adjust settings on the fly, and optimize performance based on live feedback. When paired with a Spektrum Smart LiPo battery, the ESC also provides detailed battery data such as cycle count, cell voltage, and remaining capacity—giving you full visibility into your power system.
What programming options are available for the Spektrum P-SPMXSE1130?

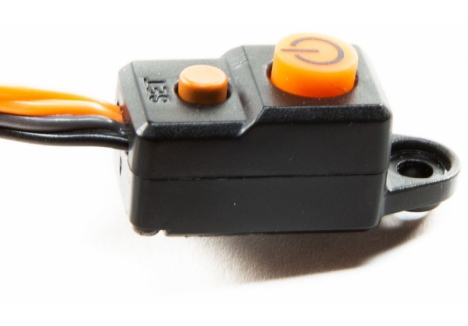

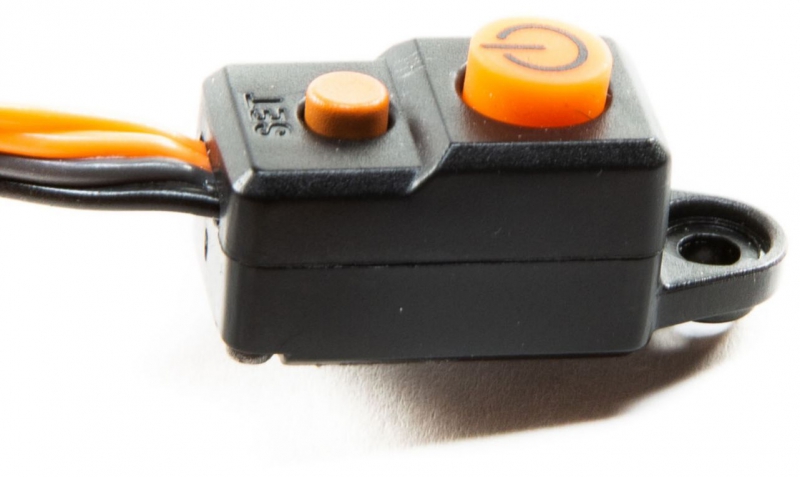

The Spektrum digital ESC for surface vehicles with button programming and aluminum heat sink offers multiple programming pathways to suit different user preferences. For quick adjustments, the onboard button interface allows basic configuration without any external tools. For more advanced tuning, users can connect the Smart ESC Programming Box or use the SmartLink USB app to access a full suite of settings. These options enable customization of throttle response, brake strength, cutoff thresholds, and more—ensuring the ESC can be tailored to match your driving style and terrain conditions. Firmware updates are also supported, allowing users to stay current with performance enhancements and feature upgrades.
How does the Spektrum P-SPMXSE1130 manage heat and durability?

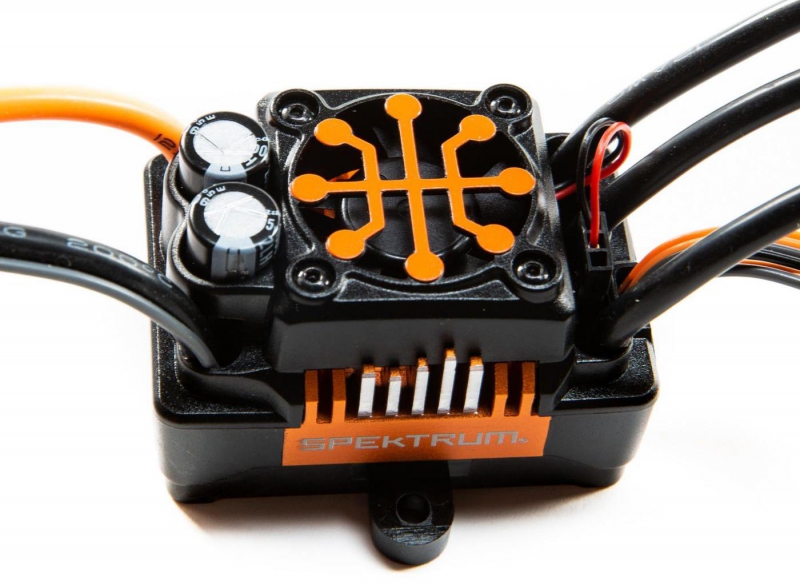

The high-performance surface ESC with rugged case, cooling fan, and multi-point protection is engineered for thermal efficiency and long-term reliability. Its aluminum heat sink dissipates heat rapidly during high-load operation, while the integrated cooling fan provides active airflow to prevent overheating. The rugged plastic housing protects internal components from impact and environmental exposure, and the mounting tabs simplify installation in compact chassis layouts. With a weight of 126g and a length of just 57mm, the ESC fits easily into most surface vehicle configurations without compromising space or balance.
What protection features are built into the Spektrum P-SPMXSE1130?
Safety and reliability are core strengths of the Spektrum P-SPMXSE1130 with 6V BEC output, 126g weight, and 57mm length for compact installs. The ESC includes multi-point protection systems such as over-current protection, automatic LiPo low-voltage cutoff, thermal protection, and failsafe logic. These safeguards work together to prevent damage to the ESC and connected components during unexpected conditions or system faults. Whether you're pushing your vehicle to its limits or navigating unpredictable terrain, these features ensure that your electronics remain protected and responsive.
Is the Spektrum P-SPMXSE1130 easy to install and integrate?
Installation is straightforward thanks to the ready-to-use design of the Spektrum digital ESC with 760A burst current, 4mm motor leads, and button or box programming. No soldering is required, and the ESC comes equipped with high heat-resistant IC5 connectors that are backwards compatible with EC3 and EC5 systems. The 4mm motor bullet connectors provide secure and efficient power delivery to brushless motors, while the compact dimensions allow for flexible placement within tight chassis spaces. With plug-and-play simplicity and full compatibility with Spektrum Smart receivers and transmitters, integration into your existing setup is seamless.
Buy Spektrum P-SPMXSE1130 Firma 130A Smart ESC for 2S–4S brushless RC vehicles and off-road platforms.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXSE1130
- Product Type: Spektrum P-SPMXSE1130 Firma 130A Smart ESC with 2S–4S LiPo support, IC5 input, and 760A burst current, Spektrum P-SPMXSE1130 waterproof brushless ESC with Smart telemetry, 4mm motor bullets, and 8A linear BEC, Spektrum P-SPMXSE1130 digital ESC for surface vehicles with button programming and aluminum heat sink, Spektrum P-SPMXSE1130 with 6V BEC output, 126g weight, and 57mm length for compact installs, Smart ESC for RC trucks and buggies with one-wire telemetry, failsafe logic, and firmware updates, High-performance surface ESC with rugged case, cooling fan, and multi-point protection
Dimensions
- Length: 5.7 cm – compact enough for tight chassis layouts and surface vehicle installations
- Width: 3.7 cm – standard footprint for secure mounting in RC trucks and buggies
- Height: 3.8 cm – vertical clearance suitable for rugged terrain builds
- Weight: 126 g – lightweight design supports balanced vehicle performance
Electrical and Performance Specifications
- ESC Type: Brushless – engineered for high-efficiency motor control
- Application: Surface – optimized for RC trucks, buggies, and off-road platforms
- Input Voltage: 2S–4S LiPo (up to 14.8V) – supports high-voltage setups for demanding terrain
- Maximum Continuous Current: 130A – delivers sustained power for aggressive driving
- Maximum Burst Current: 760A – handles peak loads during throttle spikes and acceleration
Connector and Output Configuration

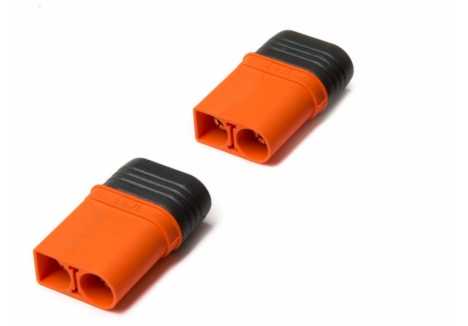

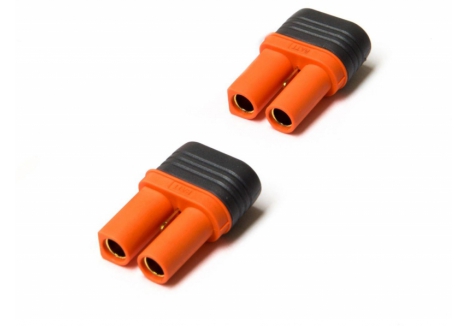

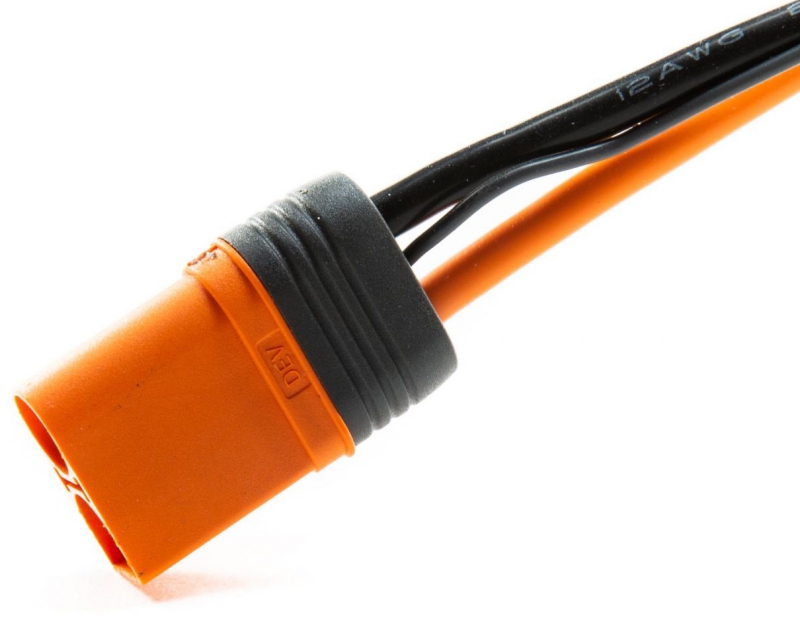

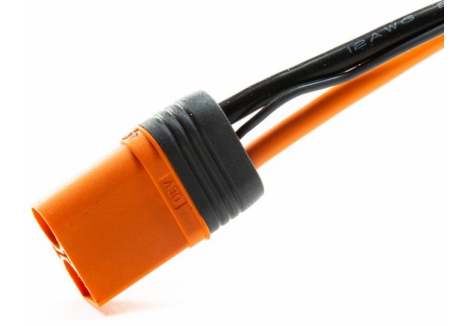

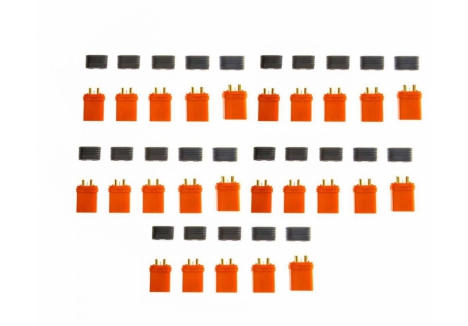

- Battery Connector: IC5 – high heat-resistant input, backwards compatible with EC3 and EC5

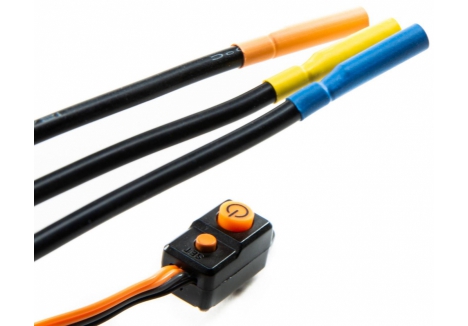

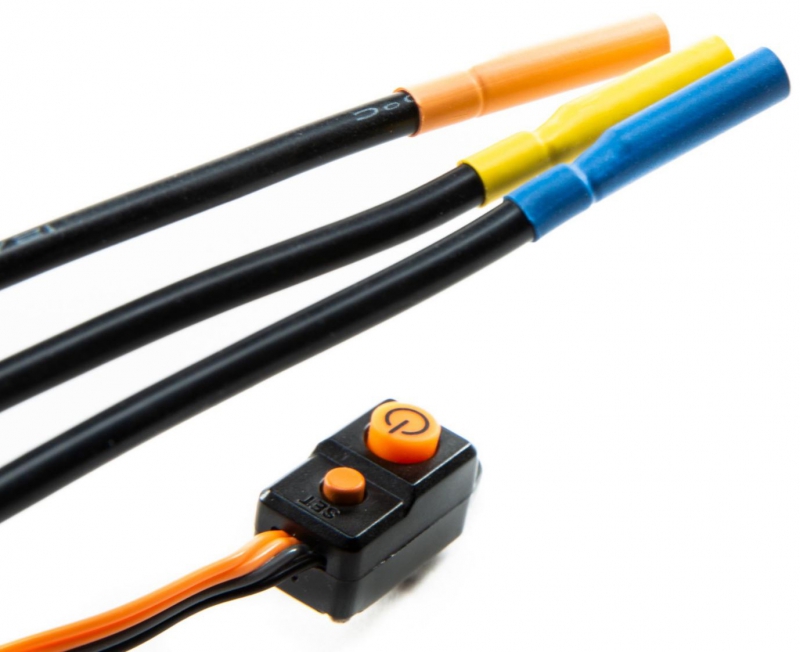

- Motor Output Lead: 4mm bullet connectors – secure and efficient connection for brushless motors
Processor and Control Features
- Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
- Programmable: Yes – supports multiple programming methods for flexible configuration
- Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App
- Forward/Reverse: Yes – includes full directional control for surface vehicle maneuverability
- Brakes: Yes – adjustable braking force for terrain-specific tuning
Telemetry and Smart Technology
- Telemetry: Smart all-in-one – transmits RPM, voltage, temperature, and battery data via one-wire link

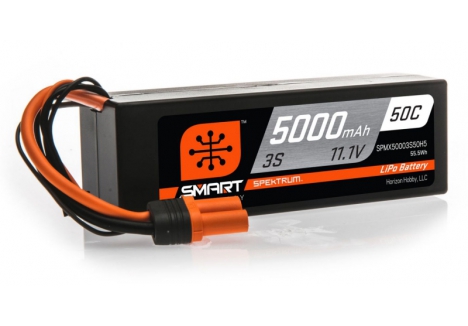

- Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time
Protection and Safety Features
- Waterproof Rating: Yes – fully sealed for all-weather operation
- Failsafe Protection: Yes – maintains control during signal loss or system fault
- Thermal Protection: Yes – prevents overheating during extended use
- Overload Protection: Yes – safeguards against electrical surges
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge
BEC Specifications
- BEC Type: Linear – provides stable power delivery to receiver and servos
- BEC Voltage: 6V – suitable for standard surface electronics
- BEC Continuous Current: 8A – supports high-demand servo systems
Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for off-road durability
- Heat Sink: Integrated aluminum – improves thermal efficiency under load

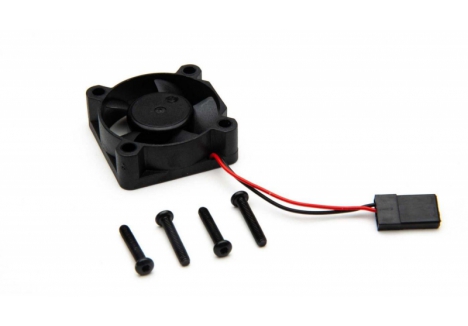

- Cooling Fan: Yes – active cooling for sustained high-current operation
- Mounting Tabs: Included – enables secure installation in surface vehicle chassis
- Installation: Ready to install – no soldering required
What’s in the Box
- 1 × Spektrum Firma Smart ESC
- 1 × Spektrum Smart sticker sheet
- 1 × Product Manual
What You Require / What You Will Need

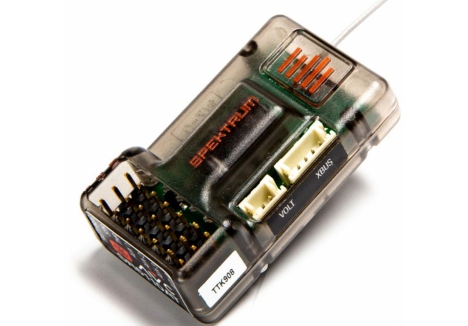

- 1 × Spektrum Surface Receiver

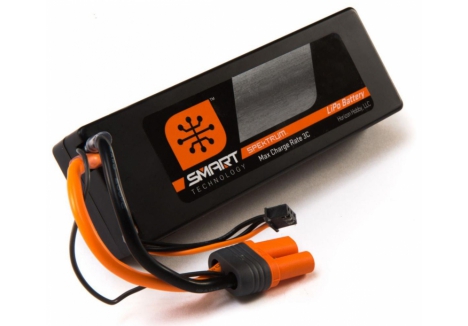

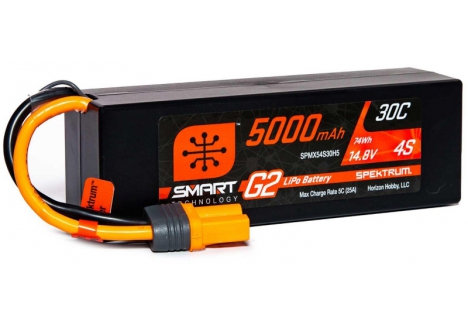

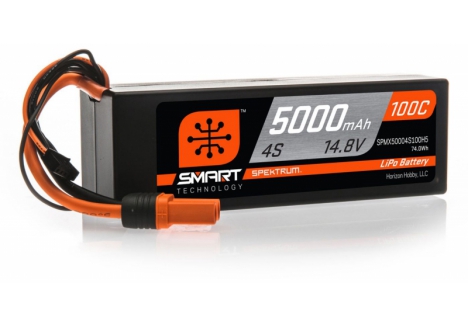

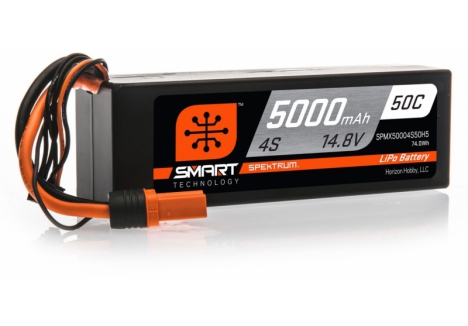

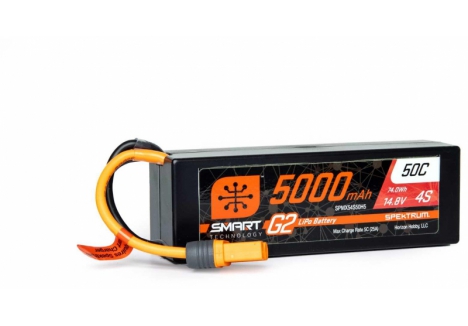

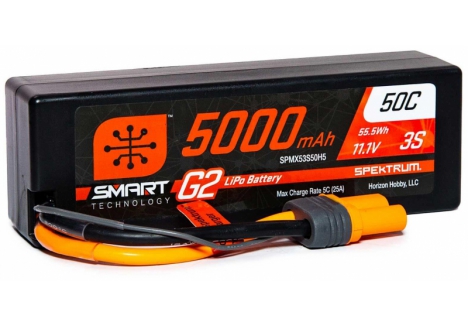

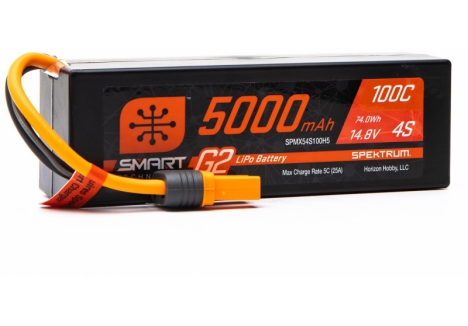

- 1 × Spektrum Smart Technology LiPo Battery
- 1 × Spektrum Transmitter
