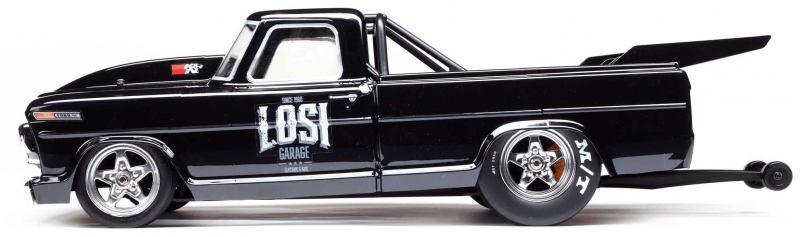

LOS 1/10 22S 2WD 68 F100 22S Drag Truck RTR Losi Garage C-LOS03045T2

Model No: C-LOS03045T2


Please note:

This item is a special order with a lead time of 6 weeks or more. Due to its nature, orders for this product cannot be cancelled. To complete your purchase, we require payment via bank transfer. Kindly contact us to arrange payment details.

£439.00

Inc VAT & delivery

£489.99

£50.99

SPECIAL ORDER ITEM PLEASE CONTACT US ON: 01922 494 608.
We Accept
Delivery Included
1 Year Warranty

Product Details

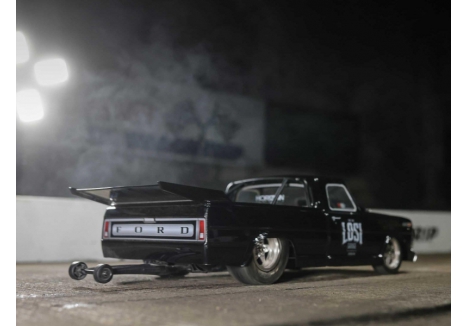

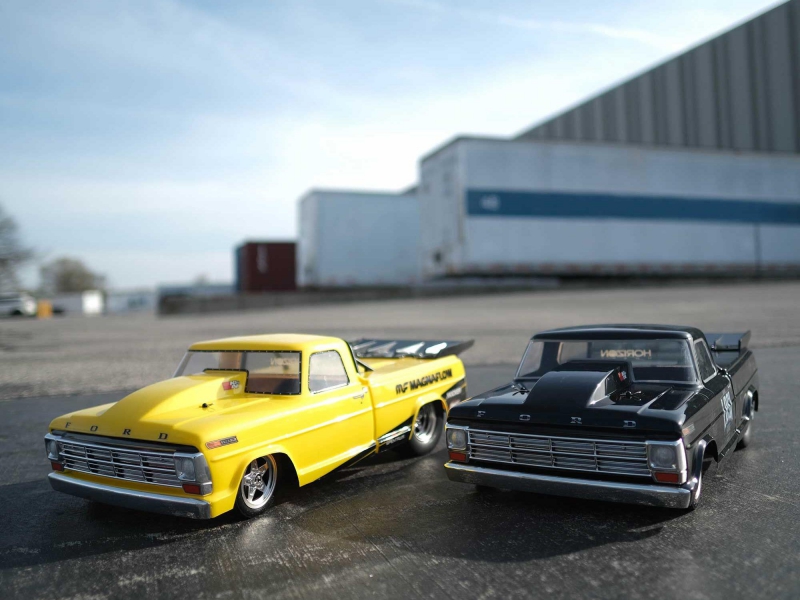

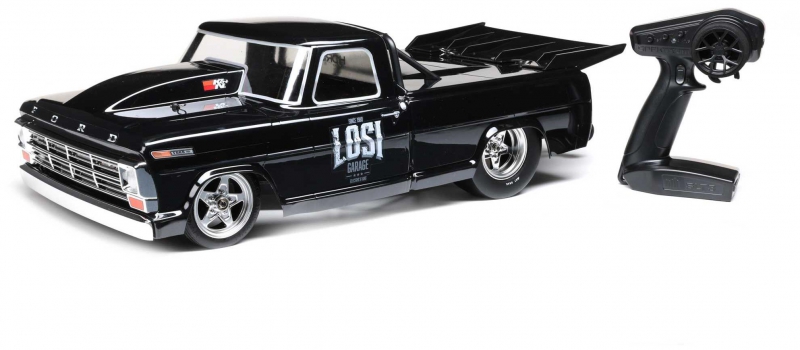

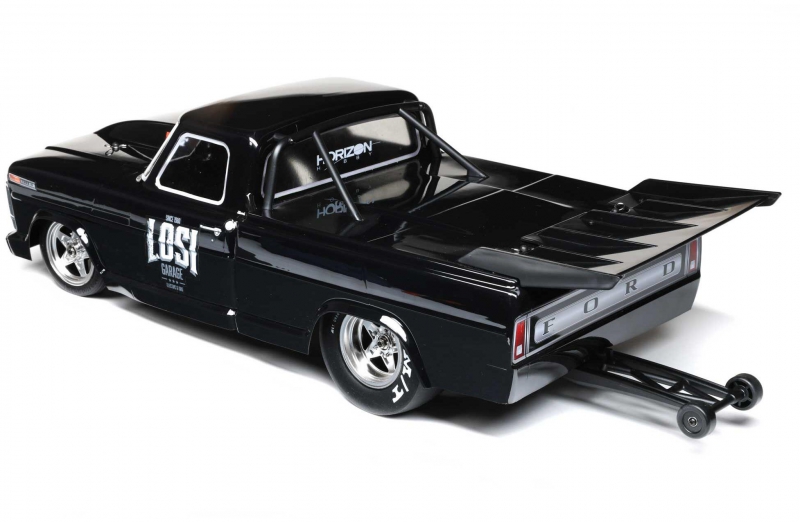

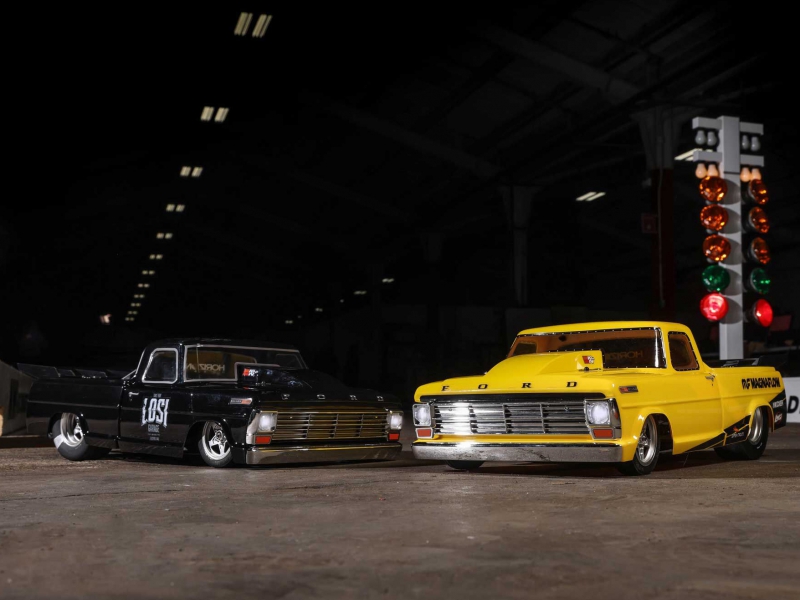

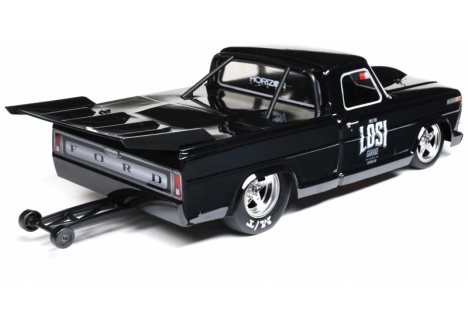

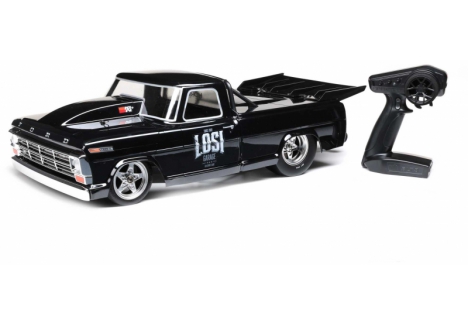

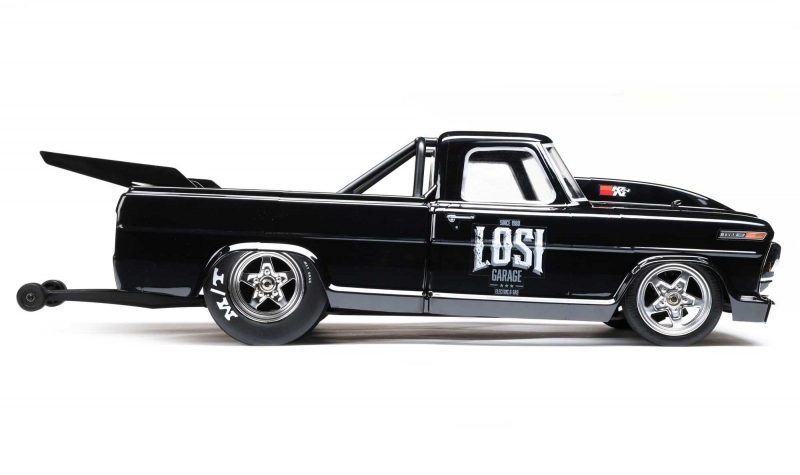

Setting the standard in the industry for years, the Losi® 1968 Ford F100 No Prep Drag Racing Truck is the most competitive No Prep Drag Racing Ready-to-Run.

Key Features

  • Spektrum Firma 100 amp Smart ESC
  • Spektrum Firma 6500kv Brushless Motor
  • Officially Licensed 1968 Ford F100 Body
  • All Metal Gear Transmission
  • Precisely Adjustable Wheelie Bar
In The Box
  • (1) Losi 68 Ford F100 Drag Truck RTR
  • (1) Spektrum Firma 100 amp Smart ESC
  • (1) Spektrum Firma 6500kv Brushless Motor
  • (1) Spektrum SLT3 Transmitter and Dual Protocol Receiver
  • (1) User Manual
Needed to Complete

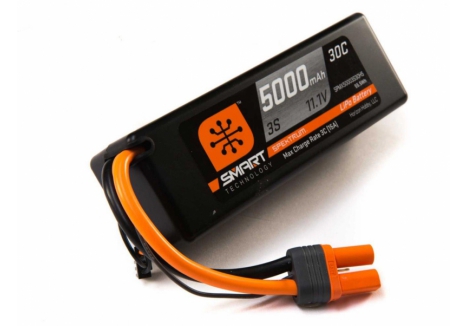

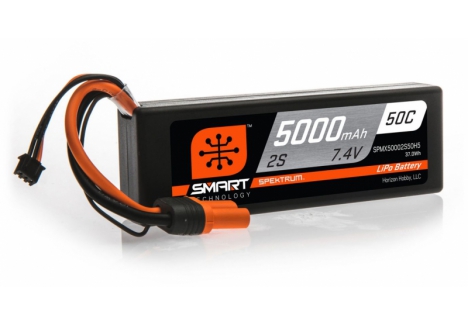

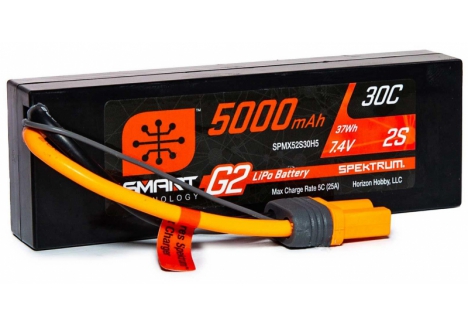

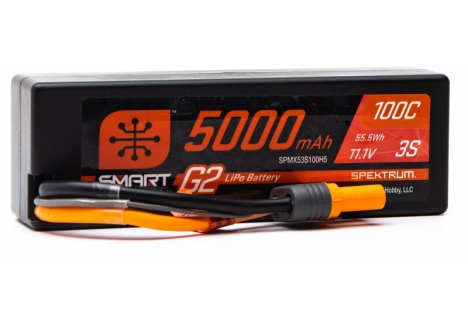

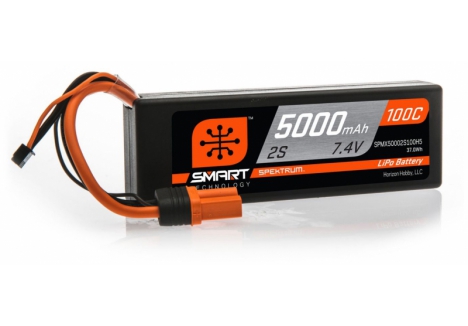

  • (1) 2-3S LiPo Battery with IC5/EC5 Connector
  • (1) LiPo Compatible Charger

Features

  • Spektrum Firma 100 amp Smart ESC
  • Spektrum Firma 6500kv Brushless Motor
  • Spektrum SLT3 Transmitter and Dual Protocol Receiver
  • 22S aluminium chassis
  • Officially Licensed 1968 Ford F100 Body
  • Officially Licensed Mickey Thompson ET Rear Drag Tyres
  • Officially Licensed Mickey Thompson Ultra Light Front Runner Tyres
  • LED Lights
  • All Metal Gear Transmission
  • Elastomer Battery Straps
  • Precisely Adjustable Wheelie Bar
  • Aluminium Option Parts Available

Ready To Pound The Pavement

Setting the standard in the industry for years, the Losi® 1968 Ford F100 No Prep Drag Racing Truck is the most competitive No Prep Drag Racing Ready-to-Run. With the popularity of No Prep Drag Racing exploding, Losi has once again taken it to the next level with a truly innovative design and the quality workmanship drivers expect. The Ford F100 has been carefully crafted to give a classic look while still fitting into the rules and regulations set by the No-Prep Drag Racing scene. It has all the advantages of an aluminium chassis such as electronics protection, side impact guards, and a clean wire management system with plenty of 22S option parts. It's designed with racers in mind with many outstanding features including officially licensed Mickey Thompson tyres, limited travel oil filled front and rear shocks, low center of gravity rear shock tower, extended body mounts, optional heavy duty sway bar, adjustable weight front bumper, elevated transmission, adjustable turnbuckles, and a fully adjustable wheelie bar. You get an all-metal gear transmission for concrete dependability along with a Spektrum SLT3 transmitter and dual protocol receiver, Spektrum Firma 100 amp Smart ESC, and Spektrum Firma 6500kv brushless motor. From its rugged body to state-of-the-art electronics, everything about the Losi 1968 Ford F100 No Prep Drag Racing Truck is ready for blazing down the blacktop.

Header



Aluminium

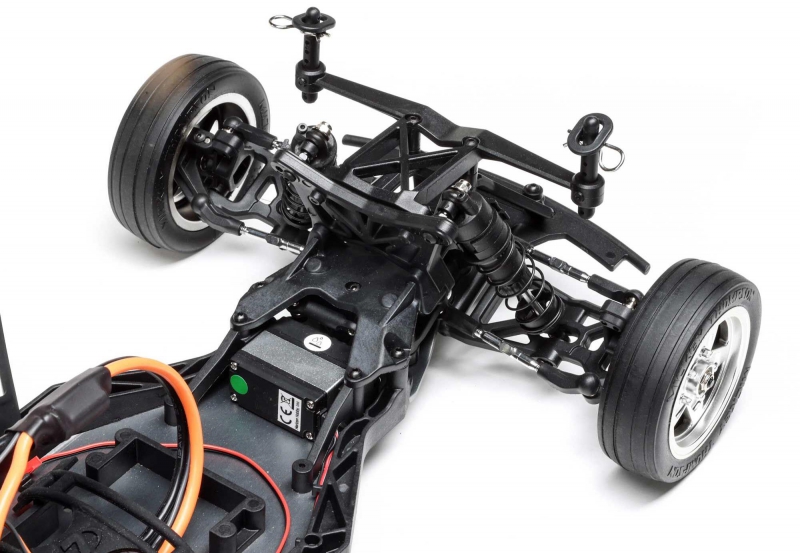

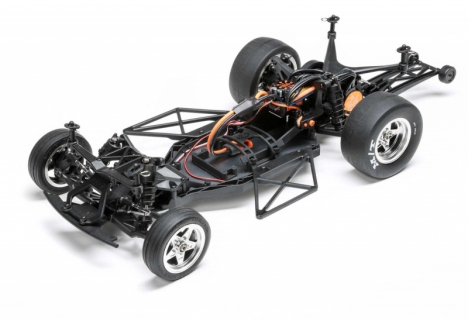

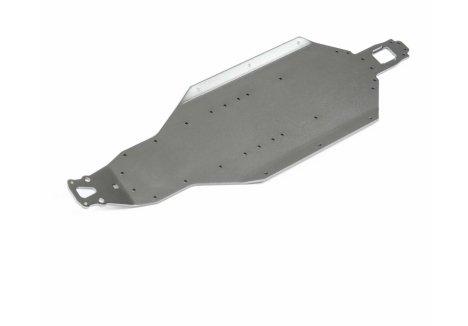

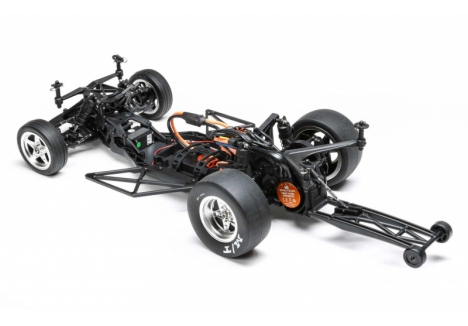

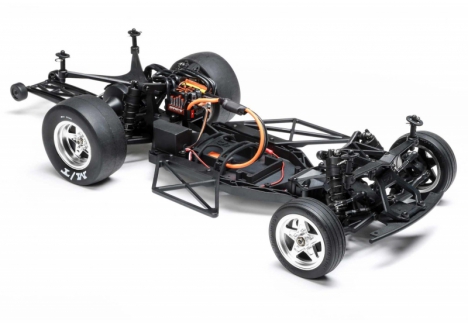

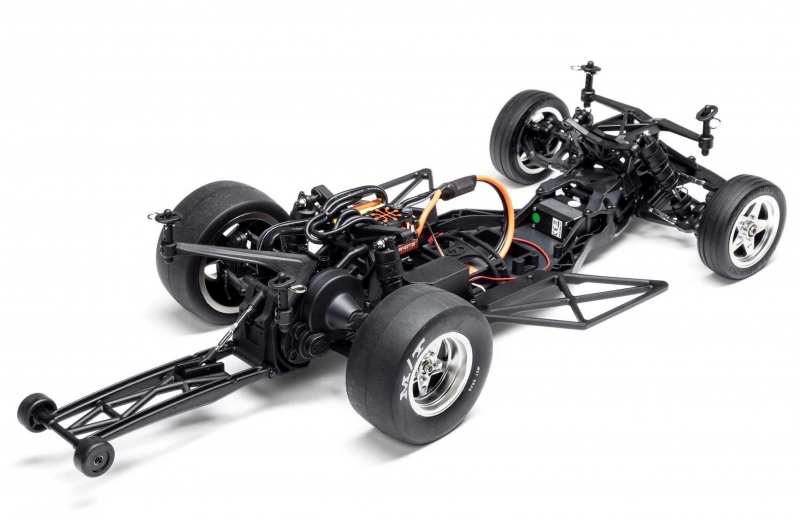

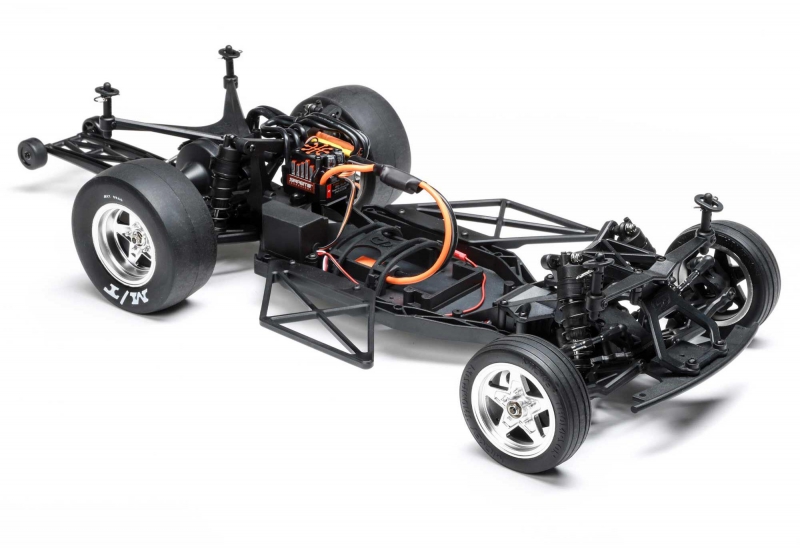

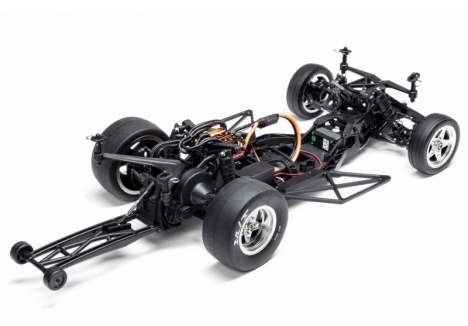

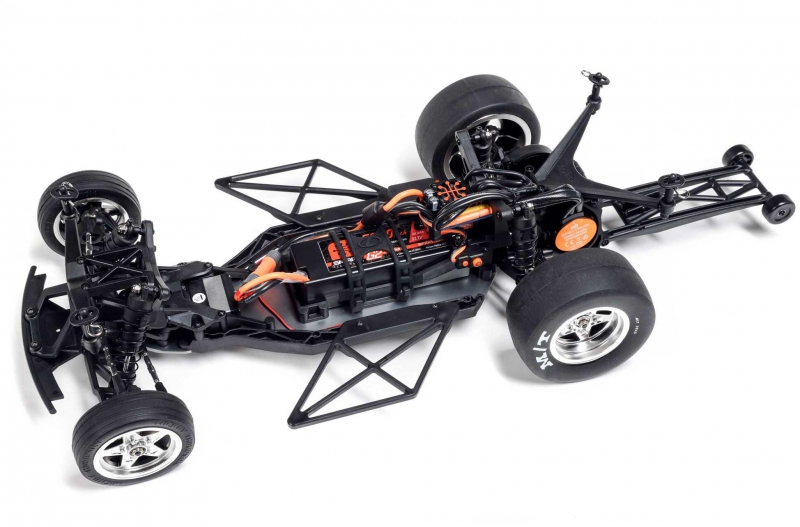

Aluminium Chassis

This 22 aluminium chassis will provide accurate and positive grip to the road when you are pushing the limits of power and traction. This chassis is designed with electronics protection, side impact guards, and a clean wire management system.



Designed
Designed To Race

Go from the box to the strip. The Losi 22S Drag Car is setup to race and adhere to the regulations set for competition No Prep Drag Racing. Setup to race 2S with a powerful 6500kv motor that is geared and ready to rock.



Spektrum

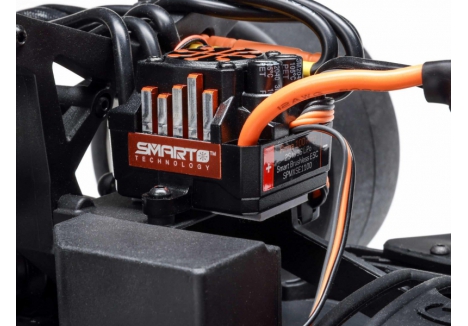

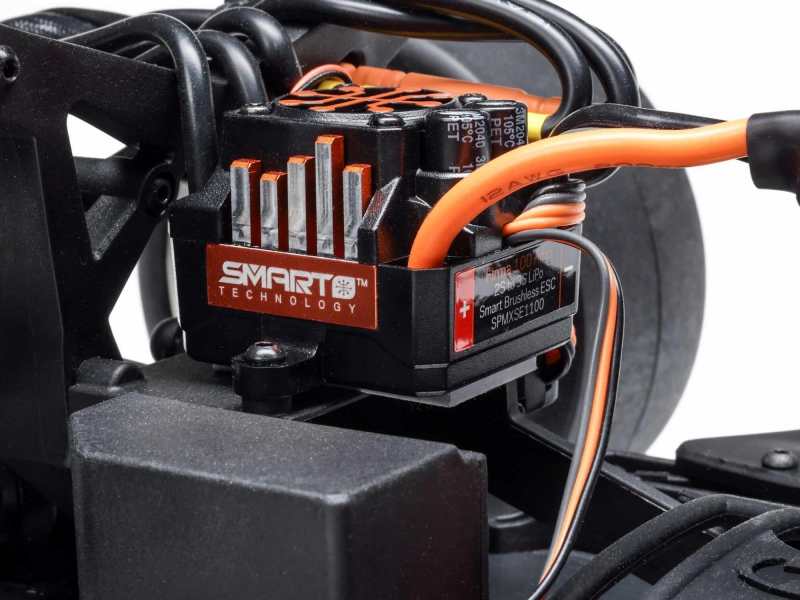

Spektrum Firma 100 amp Smart ESC, and Spektrum Firma 6500kv Brushless Motor

The Wheelie bar will surely be getting a work out when this powerful brushless system is released. This system will allow this Drag Car to propel its way down the lane at over 50+mph



Spektrum
Spektrum SLT3 Transmitter and Dual Protocol Receiver

Spektrum SLT3 Transmitter and Dual protocol receiver will offer an excellent upgrade path for consumers to upgrade to DSMR Transmitters.



Officially

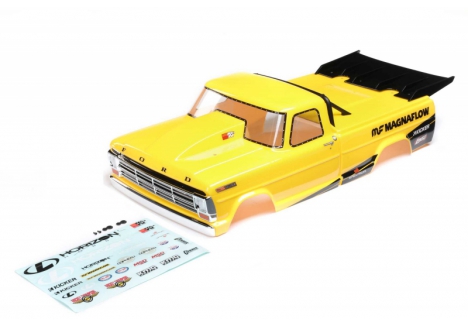

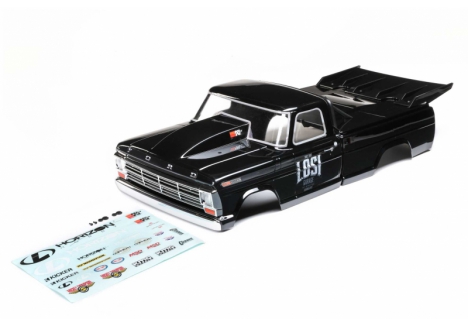

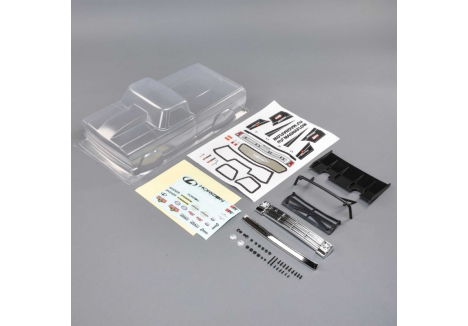

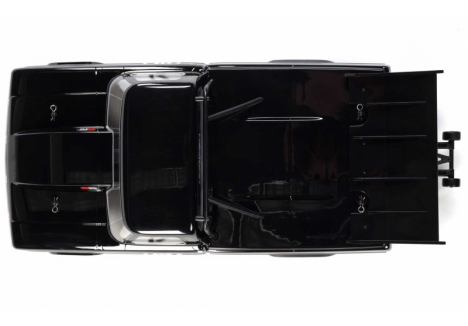

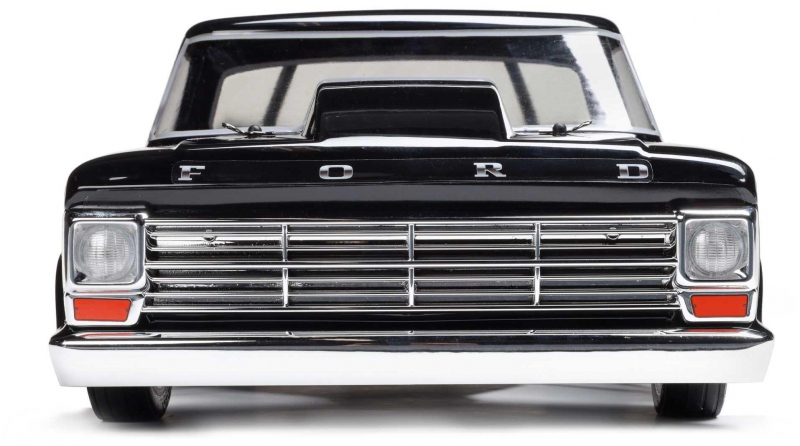

Officially Licensed 1968 Ford F100 Body

Scale realism with moulded chrome grille and front bumper.



LED
LED Lights

Light up the night with LED front headlights.



Officially

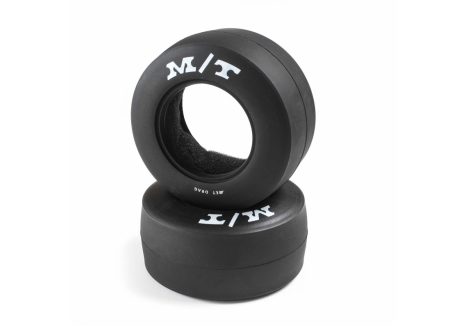

Officially Licensed Mickey Thompson ET Rear Drag Tyres

The Mickey Thompson licensed rear tyres will surely give you a great grip on the road, making sure you have the ultimate traction.



Officially
Officially Licensed Mickey Thompson Ultra Light Front Runner Tyres

Mickey Thompson licensed front tyres will provide you with plenty of tracking while having lower drag characteristics.



All
All Metal Gear Transmission

It comes with a heavy duty all metal gear transmission that can handle anything you can throw at it, giving you the confidence that you need to win the race!



Weight
Weight Distribution

Weight distribution plays an important role when we are talking about racing. The truck features weight placement locations throughout giving you the ability to fine tune your ride.



Elastomer

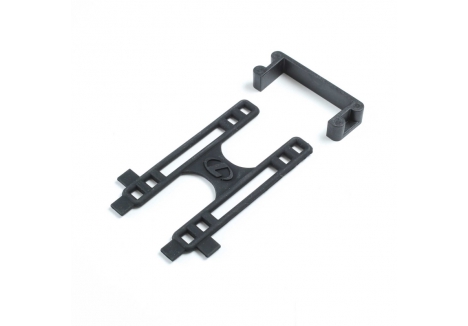

Elastomer Battery Straps

With the addition of an elastomer battery strap, your battery changes will be quick and easy. No more messing with clunky hook and loop. Simply slap your battery in, pull across the strap and hook it.



Clean

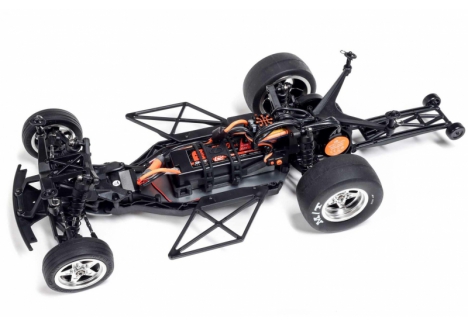

Clean Installation

Keep your interior as clean as the outside. The chassis includes wire routes that will keep your electronics and their wires in place and clean. Easily route your wires from the front and rear of the vehicle to your components without the need for an abundance of zip ties.



Fully

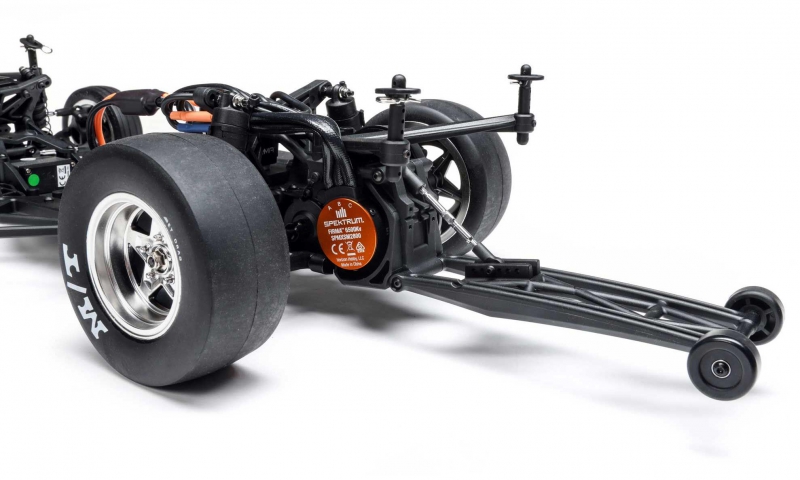

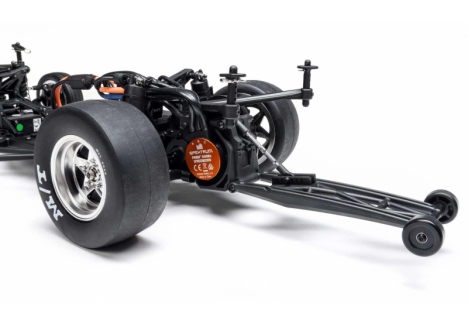

Fully Adjustable Wheelie Bar

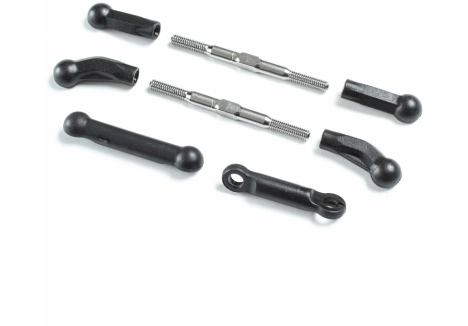

While others only offer pre-set positions, we offer a turnbuckle to precisely tune your wheelie bar.



Aluminium

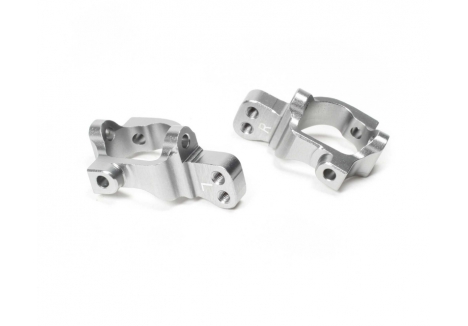

Aluminium Option Parts Available

Since it is based on the Team Losi Racing® 22 series of vehicles, many of the TLR® parts are natural performance upgrades that can take the performance of the 22S to an even higher level! Part upgrades available include, but are not limited to 22 GEN II Shocks, 22 Heavy Duty Slipper System (HDS), 22 GEN II Ball Differential, 22 Adjustable Turnbuckles/ballstuds, and many more! You also have the ability to utilize the aluminium option parts for the 22S.



Footer



Brand, Model and Product Type

  • Brand: LOSI
  • Model: C-LOS03045T2
  • Color: Losi Garage Yellow
  • Product Type: LOSI C-LOS03045T2 brushless drag truck, LOSI C-LOS03045T2 1/10 scale RC car, LOSI C-LOS03045T2 2WD 22S F100, LOSI drag truck with Mickey Thompson tyres and aluminium chassis, LOSI RC car with LED lights and adjustable wheelie bar

Dimensions

  • Product Length: 63.8 cm – extended chassis layout supports straight-line stability and aerodynamic control
  • Product Width: 28.1 cm – wide stance improves traction and launch consistency
  • Product Height: 16.8 cm – low-profile body reduces drag and enhances visibility
  • Wheelbase: 33.3 cm – optimized for weight distribution and strip alignment
  • Front Track: 25.2 cm – narrow front end enhances directional tracking and reduces rolling resistance
  • Rear Track: 25.65 cm – wider rear stance supports grip and launch stability
  • Ground Clearance: Variable – adjustable ride height for tuning launch geometry

Drivetrain and Transmission

  • Drivetrain: 2WD – rear-wheel drive configuration for authentic drag racing dynamics
  • Drive Type: Forward / Brake / Reverse – integrated control via ESC

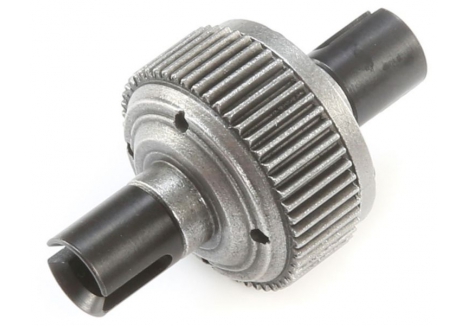

  • Differential Type: Sealed gear differential – filled with 500,000k fluid for controlled power transfer

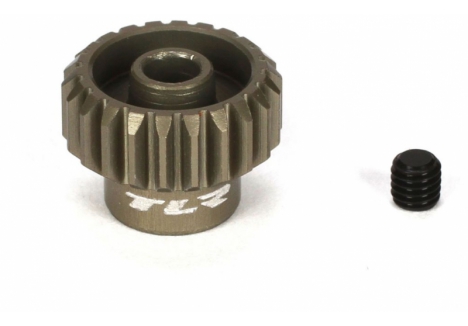

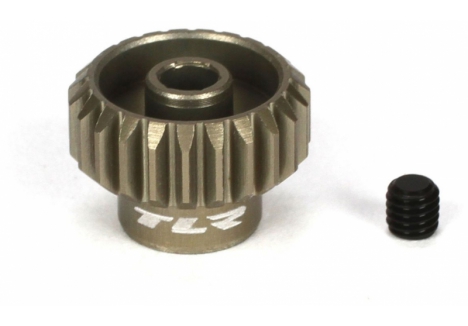

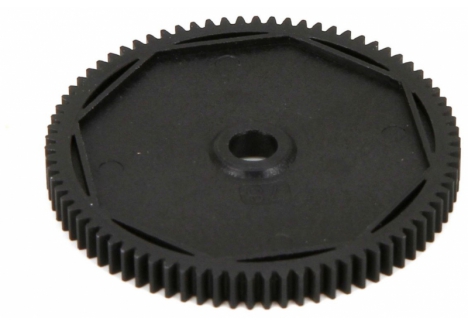

  • Gear Pitch: 48-pitch – fine-tooth gearing for smooth acceleration
  • Internal Gear Ratio: 2.43:1 – tuned for rapid throttle response
  • Final Drive Ratio: 18.76:1 – optimized for drag strip performance
  • Transmission: All-metal gear – engineered for durability under high torque loads

Motor and Electronics

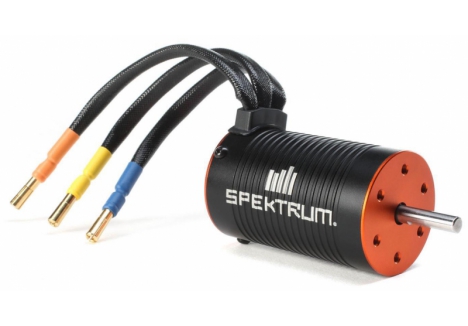

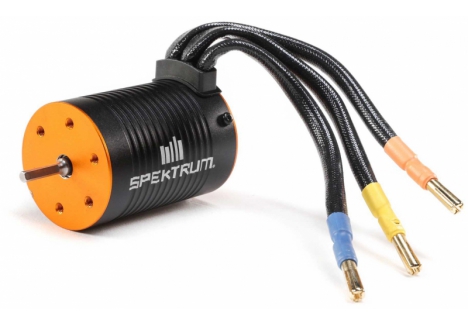

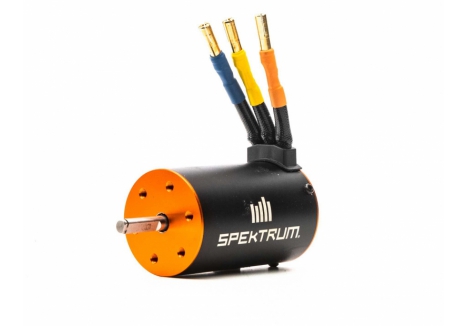

  • Motor: Spektrum Firma 3552 6500Kv brushless motor – delivers high RPM output for explosive launches

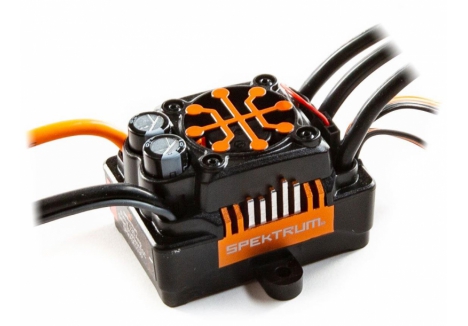

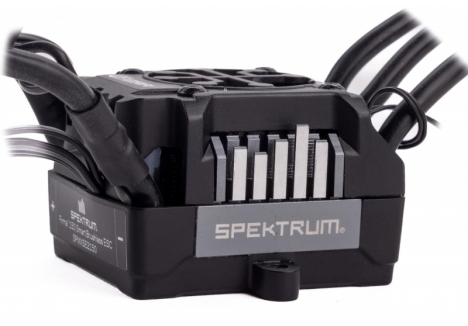

  • ESC: Spektrum Firma 100A Smart ESC – telemetry-enabled and geared for consistent power delivery
  • Radio System: Spektrum SLT3 transmitter – includes dual protocol receiver for DSMR upgrade path

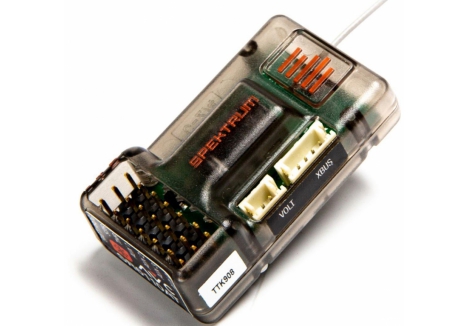

  • Receiver: Dual protocol RX – supports both SLT and DSMR transmitters

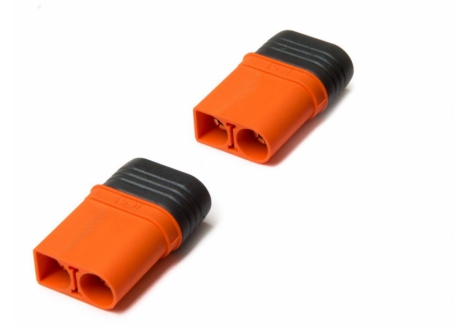

  • Connector Type: IC5 – compatible with high-current LiPo battery systems
  • Servos: Included – supports steering precision and throttle modulation
  • Sensored: No – sensorless motor configuration for simplified setup

Suspension and Chassis

  • Chassis Type: 3mm 6061-T6 aluminium plate – includes side impact guards and clean wire routing

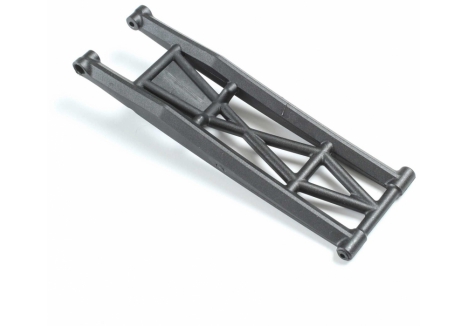

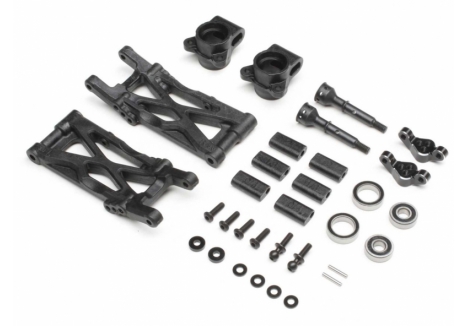

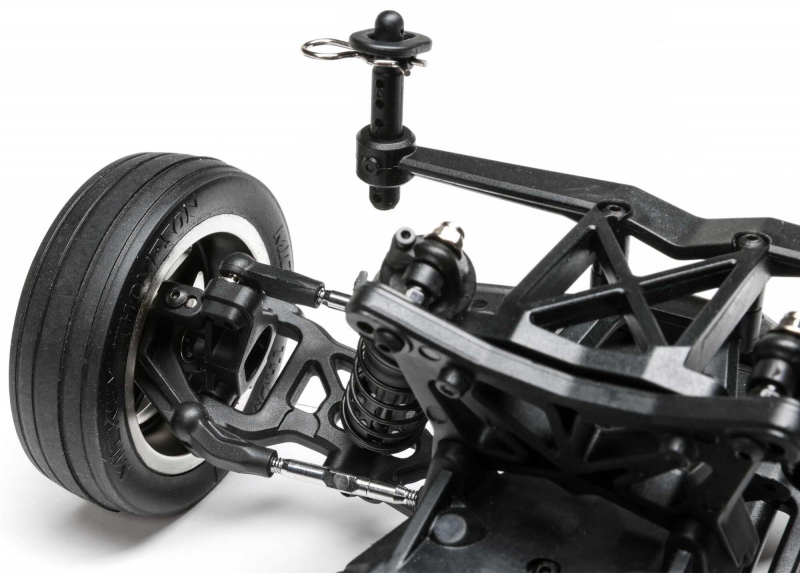

  • Suspension: Lower A-arm, upper link – designed for minimal travel and launch stability

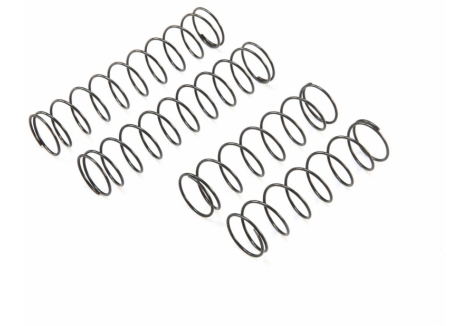

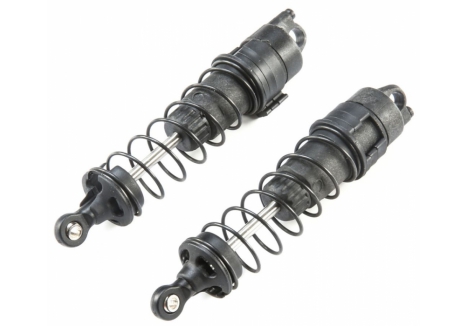

  • Shock Type: Oil-filled internal limited coil-over springs – tuned for drag-specific damping
  • Weight Distribution: Adjustable – includes tuning points for front-end balance and launch control
  • Battery Mounting: Elastomer straps – quick-change system for streamlined pit stops

Tyres and Wheels

  • Rear Tyres: Mickey Thompson ET Drag – licensed compound for maximum grip
  • Front Tyres: Mickey Thompson Ultra Light Front Runner – low drag profile for directional stability
  • Tyre Compound: LOSI Drag – formulated for no-prep surface traction
  • Tyre Tread: M/T ET Drag – optimized for straight-line launches

Lighting and Body

  • Body: Polycarbonate, painted 1.2mm – officially licensed 1968 Ford F100 with molded chrome grille

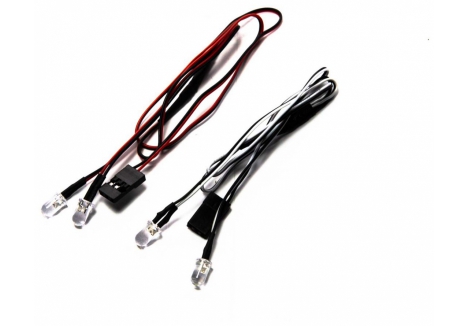

  • LED Lights: Included – front headlights for scale realism and night visibility

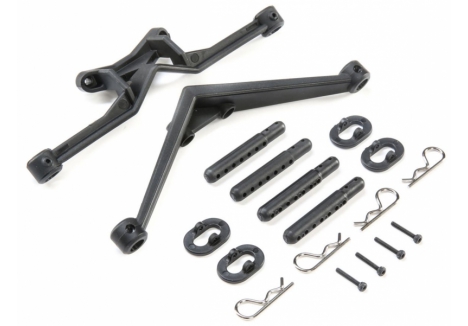

  • Body Mounts: Extended – supports scale body fitment and aerodynamic tuning

Control and Tuning Features

  • Wheelie Bar: Fully adjustable – turnbuckle system for precise launch angle control
  • Weight Bumper: Adjustable – fine-tunes front-end balance for competitive setups
  • Technology: Smart ESC and dual protocol receiver – supports telemetry and upgrade flexibility

What’s in the Box

  • 1 × LOSI 1/10 22S 2WD 68 F100 Drag Truck RTR Losi Garage
  • 1 × Spektrum SLT3 Transmitter
  • 1 × Dual Protocol Receiver (installed)
  • 1 × Spektrum Firma 6500Kv Brushless Motor (installed)
  • 1 × Spektrum Firma 100A Smart ESC (installed)
  • 1 × Adjustable Wheelie Bar
  • 1 × LED Headlights

What You Require

  • 1 × Compatible LiPo Battery
  • 1 × Compatible Charger

Sold Separately

  • Battery – required for operation
  • Charger – compatible with selected battery type

Parts Diagrams

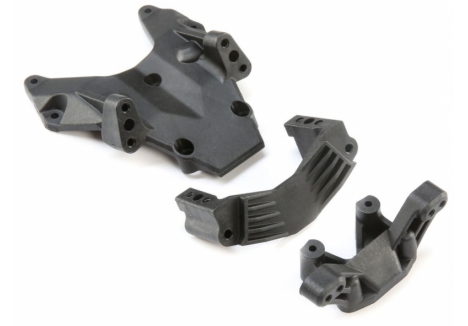

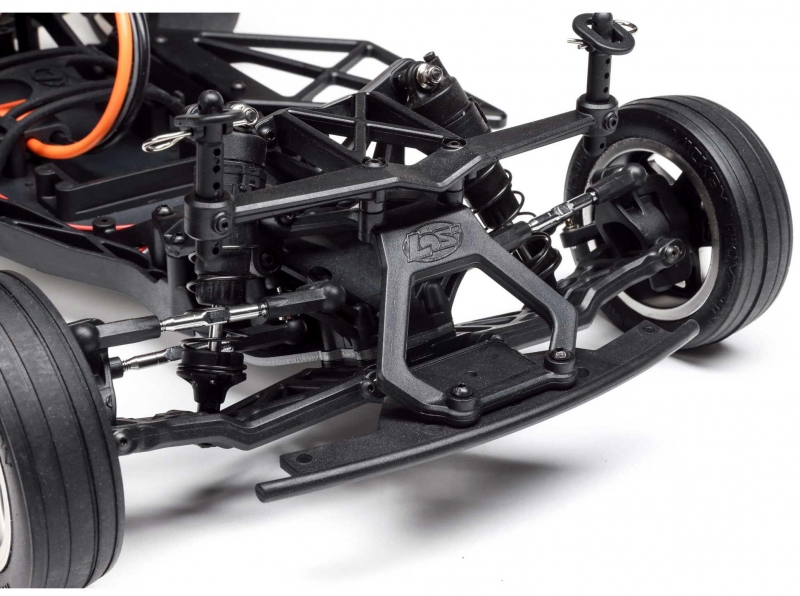

Front Assembly
Chassis Assembly
Rear Assembly
Transmission Assembly
Differential Assembly

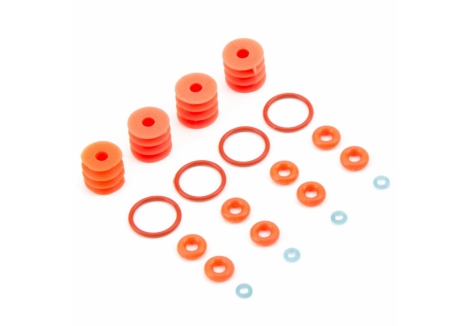

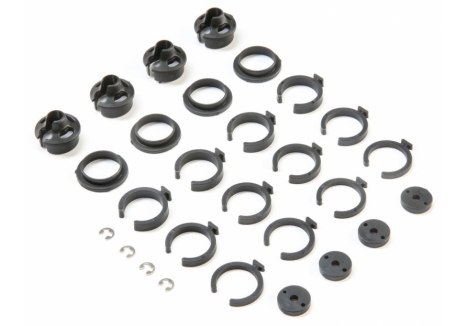

Shock Absorber Assembly
Bodyshell / Wheelie Bar / Wheel & Tyre
