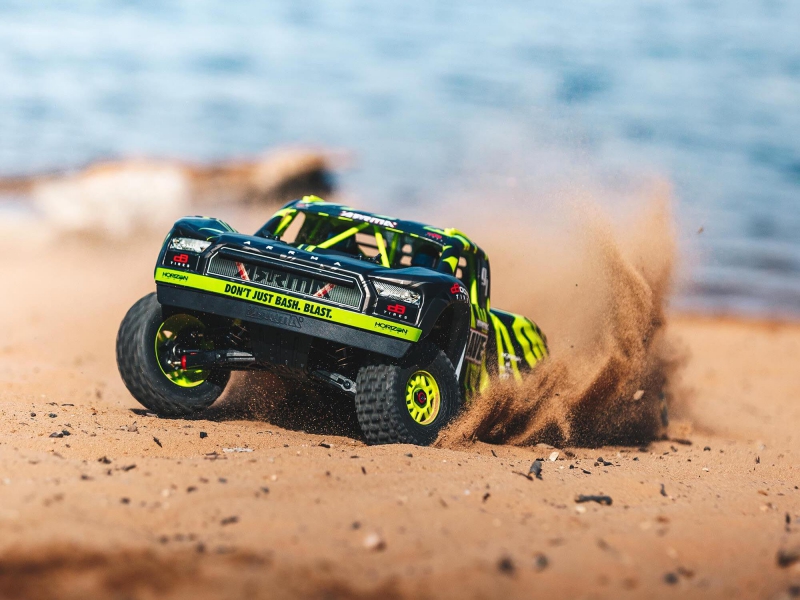

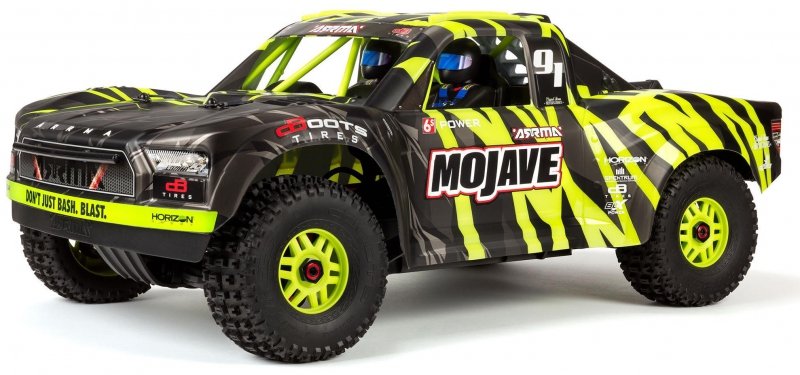

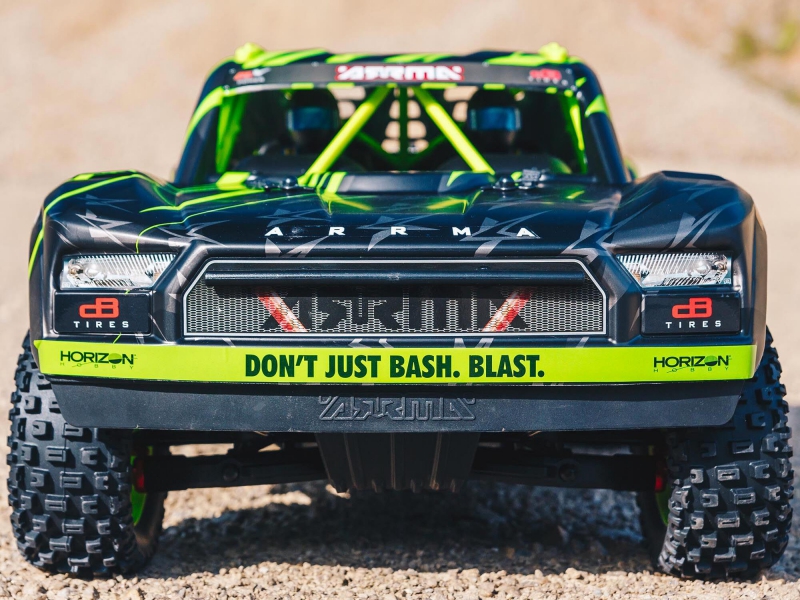

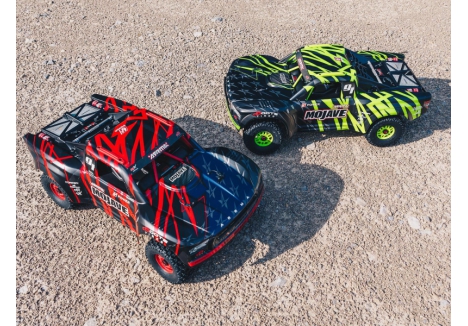

Product Description of ARRMA C-ARA7604V2T1 brushless desert truck

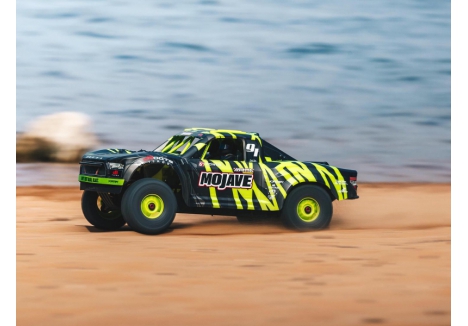

The ARRMA C-ARA7604V2T1 brushless desert truck is engineered for high-impact off-road bashing, combining 1/7 scale size with Smart-enabled electronics and a reinforced chassis architecture. Designed for speed, strength, and terrain versatility, the ARRMA C-ARA7604V2T1 1/7 scale off-road RC car delivers 60+ mph performance with a 6S LiPo setup and optional gearing. From sand dunes to asphalt, the ARRMA C-ARA7604V2T1 4WD Smart bash vehicle is built to dominate with a heavy-duty drivetrain, multi-terrain tyres, and a fully integrated roll cage system. Whether you're a seasoned basher or stepping into large-scale RC for the first time, this desert truck offers a complete package of power, control, and durability.
Key features of the ARRMA C-ARA7604V2T1 brushless desert truck
- Smart ESC and 2050Kv motor – delivers real-time telemetry and 60+ mph speed potential
- Aluminium chassis – reinforced with EXB-compatible front brace and centre roll hoop
- Oil-filled adjustable shocks – mounted on black-anodized aluminium towers for terrain absorption
- Multi-terrain FORTRESS tyres – mounted on split-spoke wheels for grip across sand, dirt, and asphalt

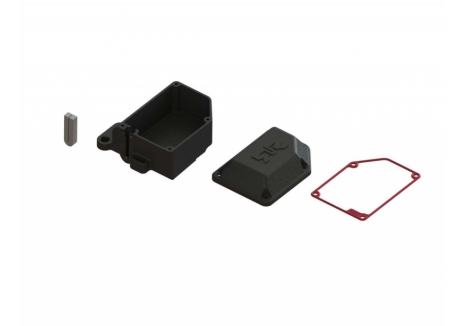

- Waterproof receiver box – large volume design protects electronics in all weather conditions
- Steel driveshafts and metal gears – heavy-duty drivetrain built for high torque and impact resistance
- S652 servo – metal-geared digital steering with increased torque and faster response
How does the Smart ESC and 2050Kv motor enhance performance?

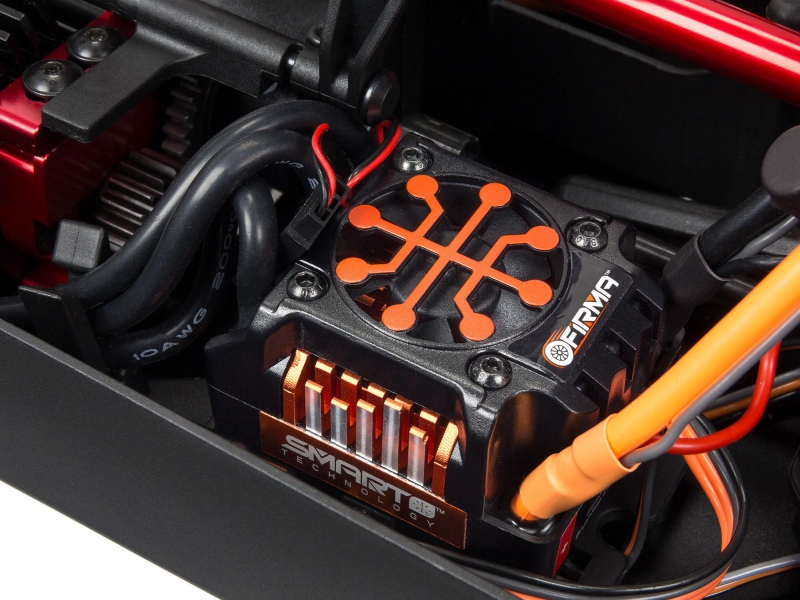

The ARRMA C-ARA7604V2T1 with Smart ESC and 2050Kv motor features the Spektrum Firma 150A Smart ESC paired with a Firma 4074 2050Kv brushless motor. This combination delivers explosive acceleration and sustained top-end speed, with telemetry-ready electronics that monitor ESC temperature, motor RPM, and battery voltage in real time. The ESC is waterproof and dustproof, supports 3S to 6S LiPo batteries, and includes user-programmable settings for punch, brake, and motor timing. The motor’s 4-pole construction and 5mm shaft ensure consistent power delivery, while the anodized aluminium can improves heat dissipation during extended runs. Together, they give the ARRMA C-ARA7604V2T1 brushless desert truck the muscle to bash hard and the intelligence to stay in control.
What makes the aluminium chassis and EXB-compatible brace ideal for durability?

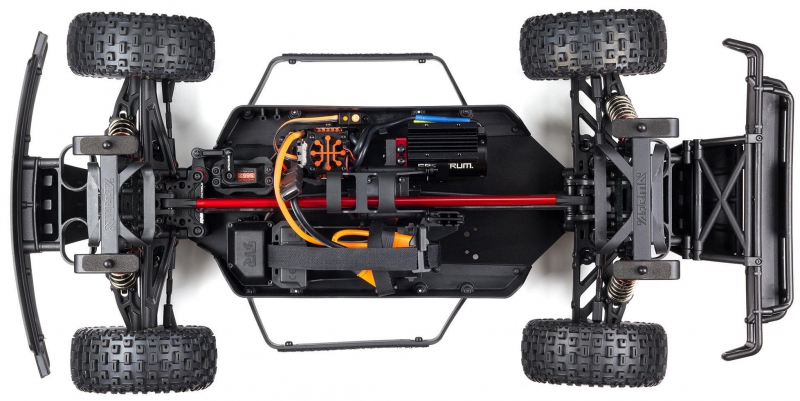

The 3mm 6061-T6 aluminium chassis of the ARRMA desert truck with aluminium chassis and FORTRESS tyres is reinforced with a centre brace and EXB-compatible front brace for maximum rigidity. The chassis layout includes composite side pods, a centre roll hoop, and nerf bars to protect against side impacts. Front and rear bumpers absorb frontal and rear collisions, while the flexible front valance adds terrain adaptability. The chassis design also supports quick maintenance, with a sliding motor mount and five-bolt centre diff removal system. These features ensure the ARRMA C-ARA7604V2T1 1/7 scale off-road RC car remains structurally sound under extreme conditions and is easy to service between runs.
How does the suspension system handle rough terrain?

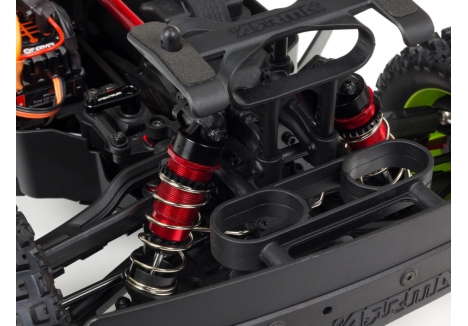

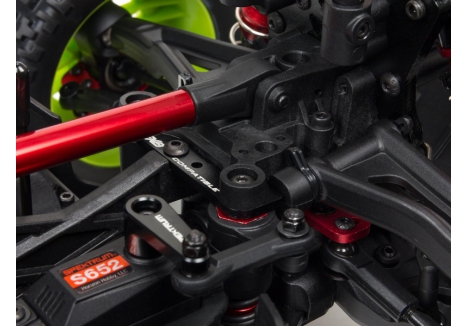

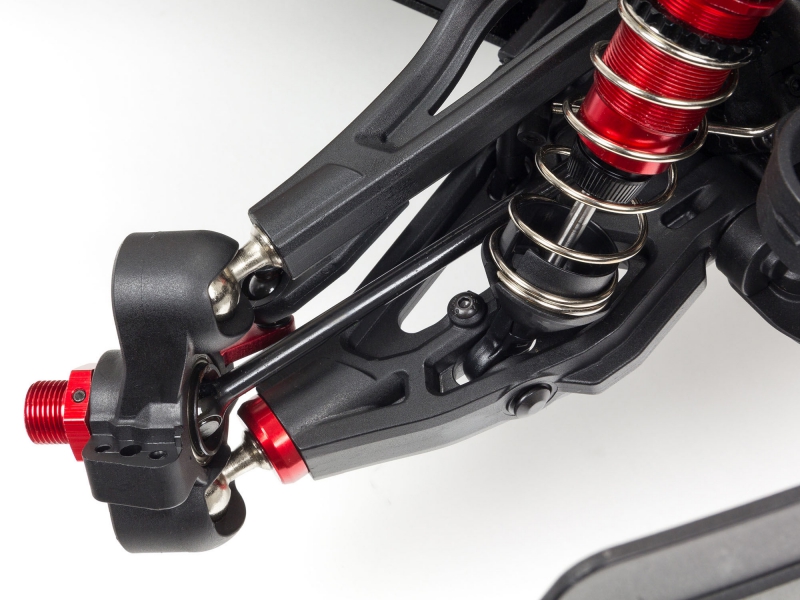

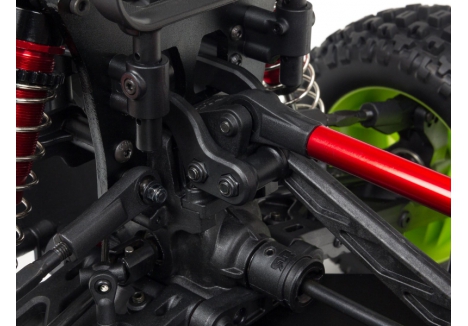

The ARRMA RC car with S652 servo and EXB-compatible front brace features independent suspension with oil-filled adjustable shocks mounted on black-anodized aluminium towers. The shocks are tuned to absorb bumps and jumps, while the front and rear spring rates (3.2 f-lb/in and 7.7 f-lb/in respectively) provide balanced damping across varied surfaces. The S652 metal-geared digital servo delivers 265 oz-in torque at 7.4V and is 32% stronger and 5% faster than previous models. Combined with pivot ball geometry and a never-loose red aluminium servo saver, the steering system offers precise control at high speeds. These components ensure the ARRMA C-ARA7604V2T1 4WD Smart bash vehicle remains agile and responsive across sand, gravel, and grass.
What makes the drivetrain suitable for high-torque bashing?

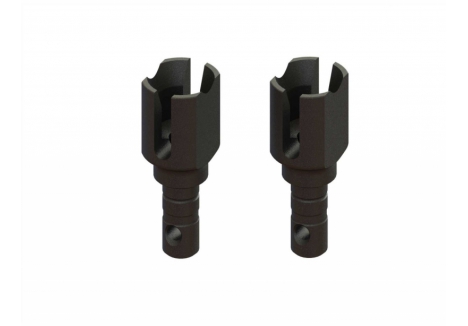

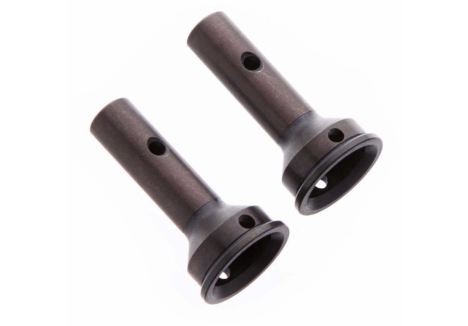

The drivetrain of the ARRMA C-ARA7604V2T1 brushless desert truck is built for strength and longevity. Steel driveshafts run throughout the vehicle, connecting to all-metal diff outdrives and gearbox internals. The 3-gear differential system is fluid-filled and sealed, allowing each wheel to drive independently and maintain traction. The gear pitch is 1.0MOD, and the internal gear ratio of 4.3 is matched with a 16T pinion and 50T spur gear for balanced torque and speed. With a final drive ratio of 13.44, the drivetrain is optimized for acceleration and terrain control. These features make the ARRMA desert truck with aluminium chassis and FORTRESS tyres capable of handling the full output of the 6S power system without compromise.
How does the tyre and wheel setup support multi-terrain bashing?

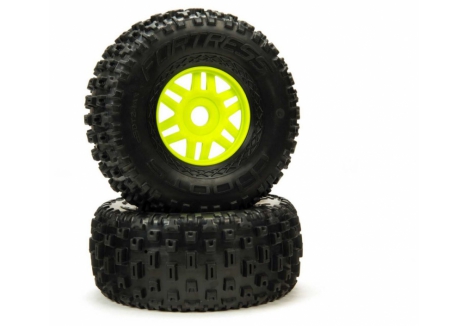

The ARRMA C-ARA7604V2T1 1/7 scale off-road RC car is equipped with dBoots FORTRESS multi-surface tyres mounted on 1/7 scale split-spoke wheels with 17mm hex hubs. These tyres offer aggressive tread for grip across sand, dirt, and asphalt, while the wheel design enhances structural integrity during high-impact landings. The wheel width of 4.2 cm and track width of 35.5 cm provide a stable footprint, reducing rollover risk and improving cornering performance. Combined with the suspension system and Smart electronics, the tyre setup ensures the ARRMA C-ARA7604V2T1 4WD Smart bash vehicle remains composed and capable across all terrain types.
Is this the best option for large-scale off-road bashing?
For drivers seeking the best ARRMA off-road RC car with oil-filled shocks and Smart telemetry, the MOJAVE 6S BLX platform delivers unmatched performance and durability. With Smart-enabled electronics, a reinforced aluminium chassis, and a heavy-duty drivetrain, this desert truck is built to withstand the rigors of extreme bashing. The ergonomic SLT3 transmitter includes throttle limiting for beginners, while the SR315 receiver supports dual protocol upgrades. The painted and decaled body, detailed cockpit, and color-coordinated roll cage add visual impact to match its mechanical prowess. Whether you're racing across dunes or tearing through urban terrain, the ARRMA C-ARA7604V2T1 brushless desert truck offers a complete solution for high-speed, high-impact RC action.
For those looking for an affordable ARRMA desert truck with multi-terrain tyres and steel driveshafts, the MOJAVE 6S BLX combines premium features with ready-to-run convenience. With no assembly required and only batteries and a charger needed to complete, it minimizes setup time and maximizes bashing potential. Buy ARRMA C-ARA7604V2T1 truck with centre brace and waterproof receiver box today and unleash Smart-powered performance across any terrain.
Technical Specifications of ARRMA C-ARA7604V2T1 brushless desert truck
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA7604V2T1
- Product Type: ARRMA C-ARA7604V2T1 brushless desert truck, ARRMA C-ARA7604V2T1 1/7 scale off-road RC car, ARRMA C-ARA7604V2T1 4WD Smart bash vehicle, ARRMA desert truck with aluminium chassis and FORTRESS tyres, ARRMA RC car with S652 servo and EXB-compatible front brace
Dimensions
- Product Length: 71.5 cm – extended chassis for high-speed stability and terrain control
- Product Width: 35.5 cm – wide track improves cornering and rollover resistance
- Product Height: 26.9 cm – low-profile body with integrated roll cage and roof rails
- Wheelbase: Not specified – optimized for desert truck geometry and suspension travel
- Product Weight: 5.4 kg – reinforced aluminium and steel components for durability
Chassis and Structural Components
- Chassis Material: 3 mm 6061-T6 aluminium – reinforced with centre brace and EXB-compatible front brace

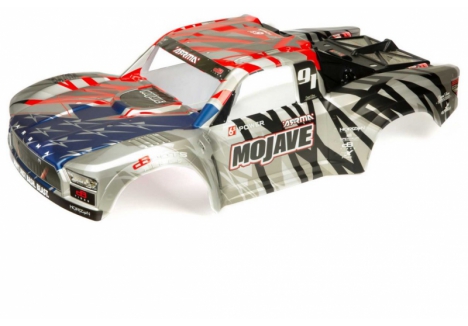

- Body: Painted, decaled, and trimmed – multi-finish matte and gloss with cockpit detailing

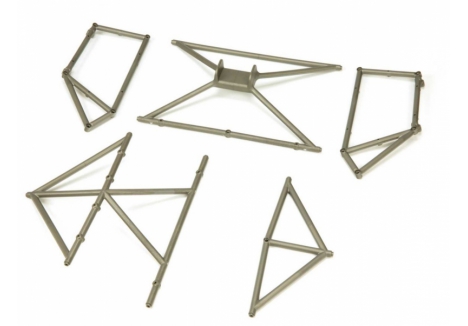

- Roll Cage: Color-coordinated – interfaces with centre roll hoop for enhanced body durability
- Side Pods: Composite – protects internal components and supports structural rigidity

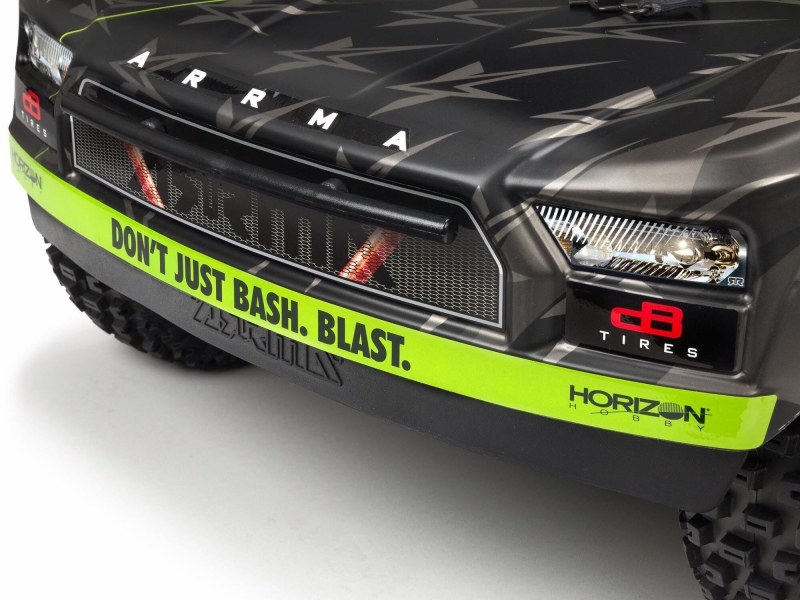

- Bumpers: Front and rear – realistic design with impact absorption features
- Nerf Bars: Side-mounted – supports body and resists lateral impact
Power System and Electronics

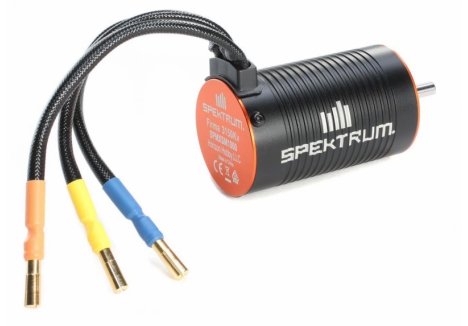

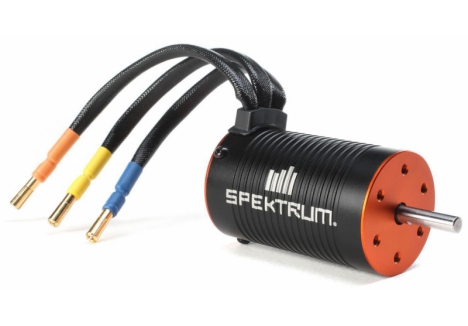

- Motor: Spektrum Firma 4074 2050Kv brushless motor – 4-pole construction with 5 mm shaft
- ESC: Spektrum Firma 150A Smart ESC – waterproof, 6S LiPo compatible, telemetry-ready

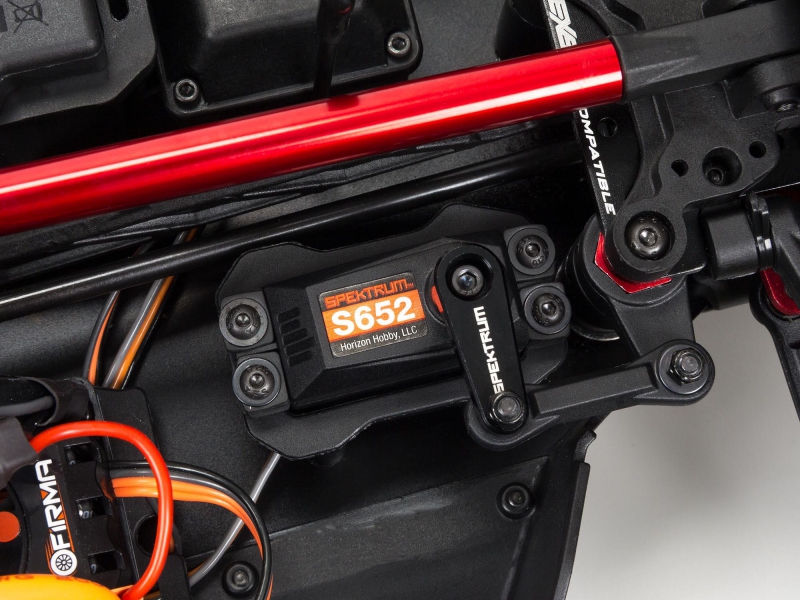

- Servo: Spektrum S652 digital – metal gears, 265 oz-in torque @ 7.4V, 32% stronger than ADS-15M

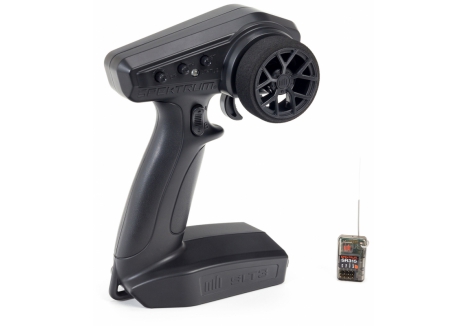

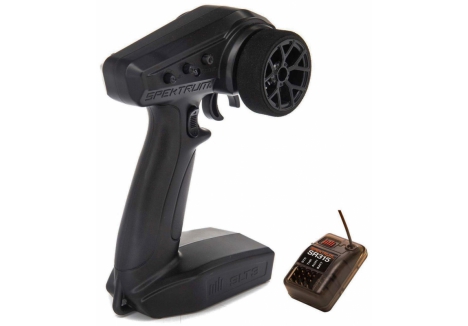

- Transmitter: Spektrum SLT3 2.4GHz 3-channel – throttle limiting and ergonomic foam grip
- Receiver: Spektrum SR315 – dual protocol DSMR/SLT, Smart telemetry compatible
Drivetrain and Transmission
- Drive Type: Forward/Brake/Reverse – full directional control for off-road bashing
- Drivetrain: 4WD – steel driveshafts and all-metal diff outdrives for torque endurance

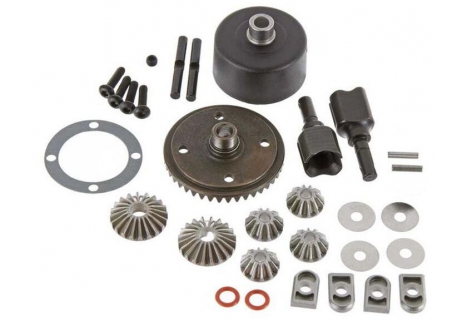

- Differential Type: 3-gear – sealed and fluid-filled for independent wheel control
- Internal Gear Ratio: 4.3 – tuned for torque delivery and drivetrain efficiency
- Final Drive Ratio: 13.44 – optimized for acceleration and terrain versatility
- Gear Pitch: 1.0MOD – heavy-duty gearing for high-load conditions

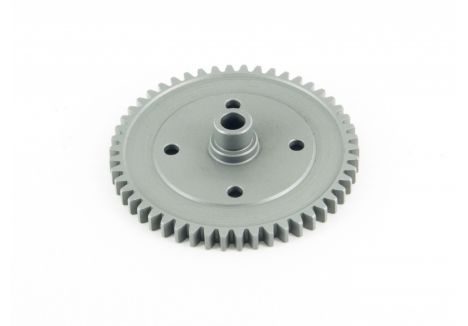

- Spur Gear: 50T – matched to motor output for balanced performance

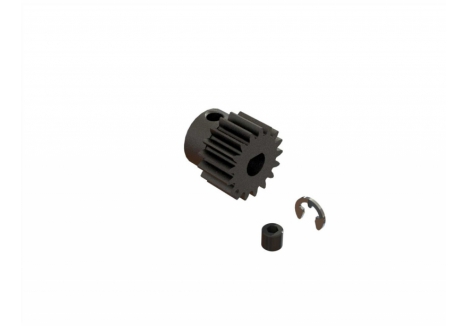

- Pinion Gear: 16T – factory-installed with optional upgrade included
Suspension and Handling
- Suspension Type: Independent – bump-soaking geometry for terrain adaptability

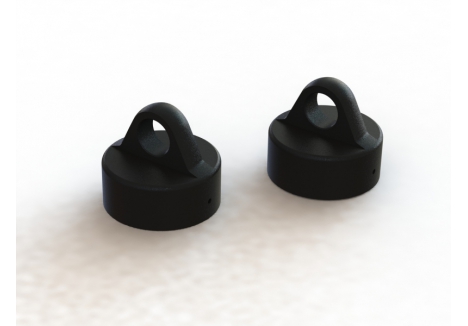

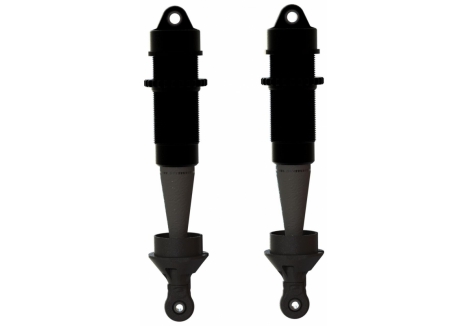

- Shock Type: Oil-filled adjustable – aluminium body mounted on black-anodized towers

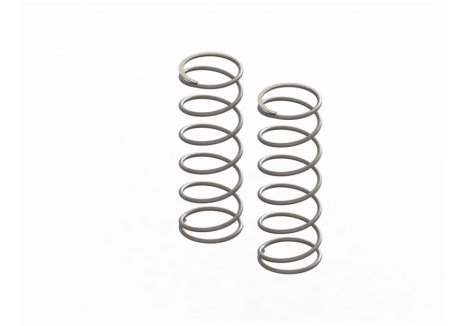

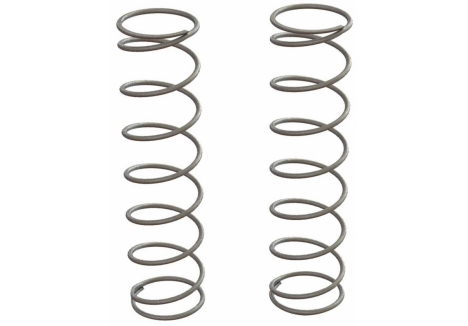

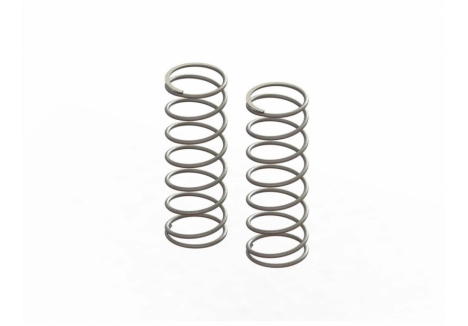

- Front Shock Spring Rate: 3.2 f-lb/in – tuned for responsive damping
- Rear Shock Spring Rate: 7.7 f-lb/in – supports rear-end stability under load
- Steering Type: 2WS – precise control with pivot ball geometry and servo saver
Tyres and Wheels
- Tyre Type: Multi-surface – dBoots FORTRESS tread for grip across sand, dirt, and asphalt

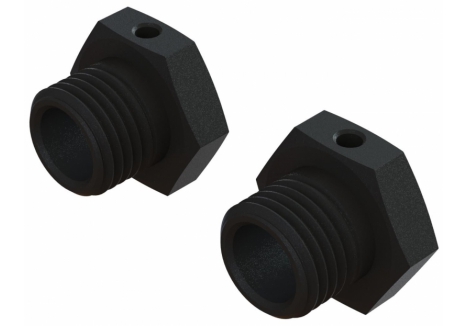

- Wheel Type: 1/7 SC, 17 mm hex, multi split spoke – designed for strength and scale realism
- Wheel Width: 4.2 cm – wide footprint for stability and traction
Battery and Power Compatibility
- Battery Compatibility: 4S and 6S LiPo – supports high-voltage setups for speed and torque
- Connector Type: IC5 and EC5 – reliable interface for high-current delivery
Technology and Smart Features
- Smart Telemetry: Enabled – real-time monitoring of ESC temperature, motor RPM, and battery voltage
- Receiver Protocols: Dual – compatible with DSMR and SLT transmitters
- Water Resistance: Yes – waterproof receiver box and electronics for all-weather operation
Vehicle Classification
- Scale: 1/7 – large format for high-speed bashing and terrain dominance
- Vehicle Type: Short Course Truck – designed for desert and multi-surface performance
- Vehicle Size: Large – optimized for outdoor terrain and high-impact use
- Top Speed: 60+ mph – achievable with 6S LiPo and optional pinion gear
What’s in the Box
- 1 × ARRMA MOJAVE 6S BLX 1/7 Desert Truck RTR
- 1 × Spektrum Firma 150A Smart ESC (installed)
- 1 × Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA Heatsink (installed)
- 1 × Spektrum S652 Metal-Geared Digital Servo (installed)
- 1 × Spektrum SR315 Dual Protocol Receiver (installed)
- 1 × Spektrum SLT3 2.4GHz 3-Channel Radio
- 1 × 1/7 MOJAVE 6S V2 4WD BLX Manual
What You Require
- 2 × 2S or 2 × 3S LiPo Batteries with EC5 or IC5 connectors
- 1 × Compatible Battery Charger
- 4 × AA Batteries for Transmitter
Sold Separately
- LiPo Batteries – required for operation
- Battery Charger – compatible with 4S or 6S LiPo
- AA Batteries – for transmitter power
