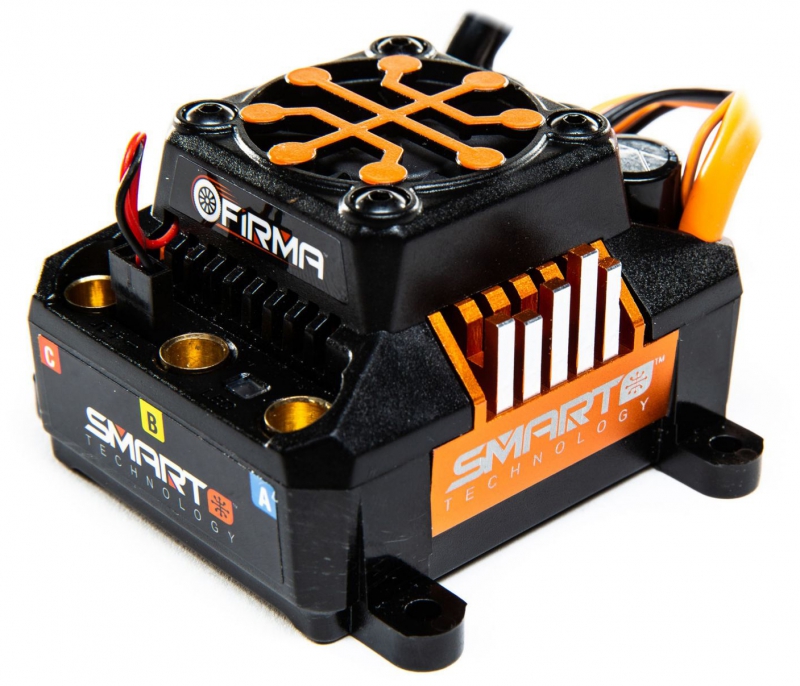

The Spektrum P-SPMXSE1160CP Firma 160A Smart ESC with 3S–8S LiPo support, dual IC5 input, and 1050A burst current is a high-output brushless electronic speed control system engineered for extreme surface RC applications. Designed for speed-run and basher platforms, this ESC delivers uncompromising power, intelligent telemetry, and advanced voltage protection. With its integrated inline capacitor pack, waterproof housing, and cooling fan, the Spektrum P-SPMXSE1160CP ensures stable performance under high-load conditions and aggressive throttle demands. Whether you're pushing 8S setups to their limits or fine-tuning for speed records, this ESC is built to handle it all.
Key features of the Spektrum P-SPMXSE1160CP Firma 160A Smart ESC
- Smart telemetry – real-time data transmission including RPM, voltage, temperature, and battery capacity
- Inline capacitor pack – voltage smoothing and protection for high-output setups
- Multiple programming options – button interface, Smart ESC Programming Box, and SmartLink USB app
- Cooling fan and aluminum heat sink – thermal efficiency for sustained high-current operation
- Waterproof housing – all-weather protection for off-road and speed-run environments
- Failsafe logic and multi-point safety protocols – includes over-current, thermal, and low-voltage safeguards
- 5A switch-mode BEC – stable power delivery with 6V output for servos and receivers
- Compact form factor – 70mm length and 280g weight for rugged installs
Why is the Spektrum P-SPMXSE1160CP ideal for high-speed 8S bashers?
The Spektrum P-SPMXSE1160CP brushless ESC for high-speed 8S bashers with 5A switch-mode BEC and cooling fan is purpose-built for platforms that demand extreme voltage and sustained current. Supporting 3S–8S LiPo batteries and delivering up to 160A continuous current with a 1050A burst rating, this ESC powers heavy-duty vehicles through aggressive terrain and high-speed runs. The dual IC5 input ensures stable power delivery, while the integrated capacitor pack smooths voltage spikes and protects internal components. Whether you're launching off jumps or chasing top speeds, the Spektrum P-SPMXSE1160CP provides the torque, responsiveness, and protection needed for elite performance.
How does Smart telemetry improve control and diagnostics?
The Smart ESC for speed-run and basher vehicles with one-wire telemetry, failsafe logic, and aluminum heat sink offers seamless telemetry integration without the need for extra wires or modules. Through a single wire, the ESC transmits RPM, temperature, battery voltage, and capacity directly to your Spektrum transmitter in real time. This allows drivers to monitor system health, make adjustments on the fly, and optimize performance based on live feedback. When paired with a Spektrum Smart LiPo battery, the ESC also provides detailed battery diagnostics such as cycle count, cell voltage, and remaining capacity—giving you full visibility into your power system.
What makes the inline capacitor pack essential for high-output platforms?

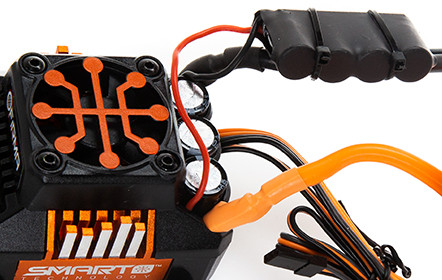

The Spektrum P-SPMXSE1160CP waterproof surface ESC with inline capacitor pack, Smart telemetry, and 6.5mm motor bullets includes a factory-installed capacitor pack that protects the ESC from voltage spikes and current surges. This is especially critical for 8S setups and speed-run builds where rapid throttle changes and high RPMs can strain electronic components. The capacitor pack smooths out fluctuations, ensuring consistent voltage delivery and reducing the risk of damage. Combined with the ESC’s multi-point protection system, this feature enhances reliability and extends the lifespan of your electronics under extreme conditions.
What programming options are available for the Spektrum P-SPMXSE1160CP?
The Spektrum digital ESC with 1050A burst current, 6.5mm motor leads, and SmartLink programming options supports multiple programming methods to suit different user preferences. For quick adjustments, the onboard button interface allows basic configuration without additional tools. For advanced tuning, users can connect the Smart ESC Programming Box or use the SmartLink USB app to access a full suite of settings. These options enable customization of throttle response, brake strength, cutoff thresholds, and more—ensuring the ESC can be tailored to match your driving style and terrain conditions. Firmware updates are also supported, allowing users to stay current with performance enhancements and feature upgrades.
Can the Spektrum P-SPMXSE1160CP handle harsh environments?
Absolutely. The high-performance surface ESC with capacitor protection, waterproof housing, and multi-point safety protocols is built for all-weather operation. Its waterproof housing protects internal components from moisture, dust, and debris, making it suitable for use in rain, snow, and mud. The rugged plastic case and mounting tabs ensure secure installation, while the aluminum heat sink and cooling fan maintain optimal operating temperatures during high-load conditions. Whether you're navigating unpredictable terrain or pushing your vehicle to its limits, this ESC is engineered to perform under pressure.
Is the Spektrum P-SPMXSE1160CP easy to install and integrate?
Installation is straightforward thanks to the ready-to-use design of the Spektrum P-SPMXSE1160CP with 6V BEC output, 280g weight, and 70mm length for rugged installs. No soldering is required, and the ESC comes equipped with dual IC5 connectors that are backwards compatible with EC3 and EC5 systems. The 6.5mm motor bullet connectors provide secure and efficient power delivery to brushless motors, while the compact dimensions allow for flexible placement within large-scale chassis layouts. With plug-and-play simplicity and full compatibility with Spektrum Smart receivers and transmitters, integration into your existing setup is seamless.
Buy Spektrum P-SPMXSE1160CP Firma 160A Smart ESC for 8S brushless RC vehicles and high-output platforms.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXSE1160CP
- Product Type: Spektrum P-SPMXSE1160CP Firma 160A Smart ESC with 3S–8S LiPo support, dual IC5 input, and 1050A burst current, Spektrum P-SPMXSE1160CP waterproof surface ESC with inline capacitor pack, Smart telemetry, and 6.5mm motor bullets, Spektrum P-SPMXSE1160CP brushless ESC for high-speed 8S bashers with 5A switch-mode BEC and cooling fan, Spektrum P-SPMXSE1160CP with 6V BEC output, 280g weight, and 70mm length for rugged installs, Smart ESC for speed-run and basher vehicles with one-wire telemetry, failsafe logic, and aluminum heat sink, High-performance surface ESC with capacitor protection, waterproof housing, and multi-point safety protocols
Dimensions
- Length: 7.0 cm – compact enough for high-output chassis configurations
- Width: 7.7 cm – wide footprint for secure mounting and heat dissipation
- Height: 4.4 cm – vertical clearance suitable for rugged installs
- Weight: 280 g – robust build for large-scale surface applications
Electrical and Performance Specifications
- ESC Type: Brushless – optimized for efficient motor control in high-speed platforms
- Application: Surface – engineered for speed-run and basher RC vehicles
- Input Voltage: 3S–8S LiPo – supports extreme voltage setups up to 29.6V
- Maximum Continuous Current: 160A – delivers sustained high-output performance
- Maximum Burst Current: 1050A – handles peak loads during acceleration and throttle spikes
Connector and Output Configuration

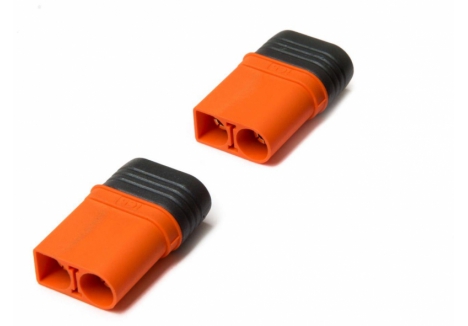

- Battery Connector: Dual IC5 – high heat-resistant input, backwards compatible with EC3 and EC5
- Motor Output Lead: 6.5mm female bullet connectors – secure and efficient connection for brushless motors
Processor and Control Features
- Processor: 32-bit ARM M4 – enables high-resolution signal input and precise motor output
- Programmable: Yes – supports multiple programming methods for flexible configuration
- Programming Options: Button interface, Smart ESC Programming Box, SmartLink USB App
- Forward/Reverse: Yes – includes full directional control for surface vehicle maneuverability
- Brakes: Yes – adjustable braking force for terrain-specific tuning
Telemetry and Smart Technology
- Telemetry: Smart all-in-one – transmits RPM, voltage, temperature, and battery data via one-wire link
- Smart Battery Data: Compatible with Spektrum Smart LiPo – displays cycles, capacity, and cell voltage in real time
Protection and Safety Features
- Waterproof Rating: Yes – fully sealed for all-weather operation
- Failsafe Protection: Yes – maintains control during signal loss or system fault
- Thermal Protection: Yes – prevents overheating during extended use
- Overload Protection: Yes – safeguards against electrical surges
- Low-Voltage Cutoff: Programmable – protects battery from over-discharge
- Capacitor Pack: Inline – smooths voltage spikes and enhances ESC protection during high-output operation
BEC Specifications
- BEC Type: Switch-mode – efficient and stable power delivery
- BEC Voltage: 6V – suitable for standard surface electronics
- BEC Continuous Current: 5A – supports high-demand servo systems
Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for off-road durability
- Heat Sink: Integrated aluminum – improves thermal efficiency under load

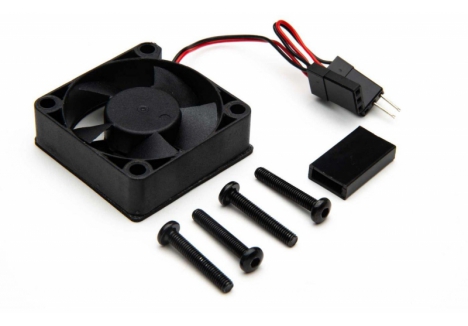

- Cooling Fan: Yes – active cooling for sustained high-current operation
- Mounting Tabs: Included – enables secure installation in surface vehicle chassis
- Installation: Ready to install – no soldering required
What’s in the Box
- 1 × Spektrum Firma Smart ESC
- 1 × Spektrum Smart Sticker Sheet
- 1 × Product Manual
What You Require / What You Will Need
- 1 × Spektrum Surface Receiver

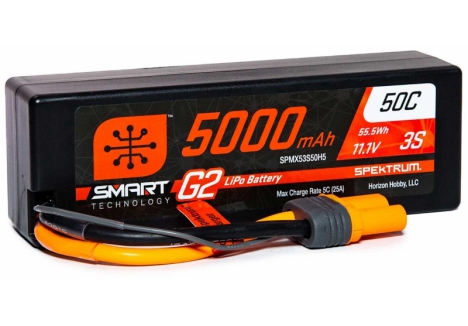

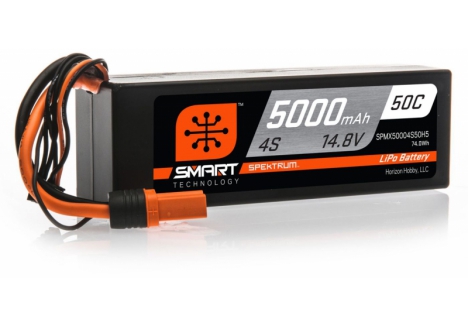

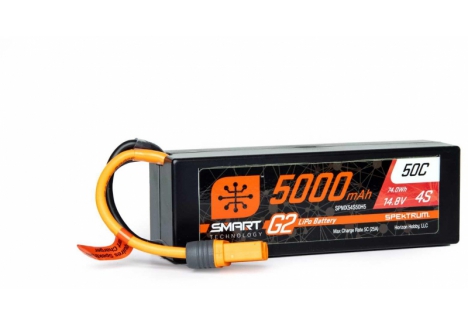

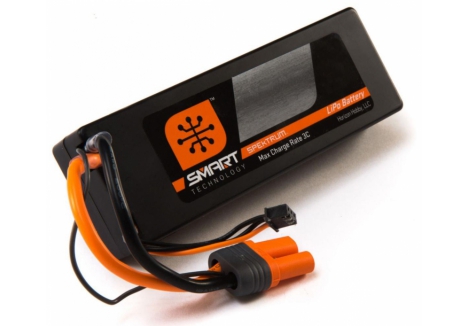

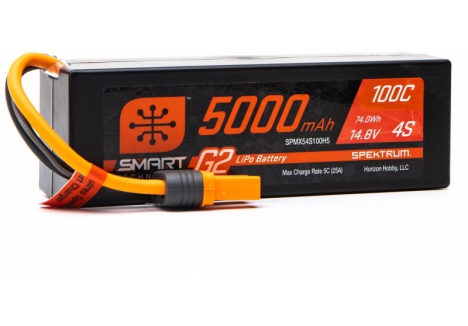

- 1 × Spektrum Smart Technology LiPo Battery
- 1 × Spektrum Transmitter
